Intelligent TFT-LCD Module

Model

STWI043WT-01

Equipment Manual

Preface

This equipment manual is part of our Intelligent TFT-LCD Module documentation. It provides the information in regards of operation, installation, configuration, function, system as well as its technical design and working principle.

Organization of the manual

TheSTWI043WT-01 equipment manual is organized into the following chapters:

Chapter

Contents

      1

Overview of features and functional scope of the STWI043WT-01

2-3

Technical Parameters, Interface Description

4-5

Accessories, Physical Dimensions

6-8

Electrical Components, Naming Rule, International Certification

Appendix

ESD Guidelines, Glossary

Customer Online Services

Customer Support offers comprehensive additional information of Intelligent Products through its Online services as follows:

Other support

In need of technical queries, please contact STONE representatives in the subsidiaries and branches responsible for your area.

Trademarks

STONE registered trademarks are as below:

- STONE

- STONE TECH

- Intelligent HMI

- Intelligent TFT-LCD Module

Abbreviations

The abbreviation table in this equipment manual is as below:

  LED      Light Emitting Diode

  CPU     Central Processing Unit

  ESD      Electrostatic Sensitive Device

  HMI       Human Machine Interface

  IF          Interface

  LCD      Liquid Crystal Display

  UART    Universal Asynchronous Receiver/Transmitter

  COM     Commercial

  DIN        Data Input

  DOUT     Data Output

  VIN         Voltage Input

  GND       Ground

  TP          Touch Panel

A list of all the technical terms together with their explanations is provided in the glossary at the end of this manual.

1Introduction

This chapter contains general information of:

- Brief Introduction

- Warranty

- Product Characteristics

- Application Area

- Working principle

- Operation Processing

- Software Operation

Brief Introduction

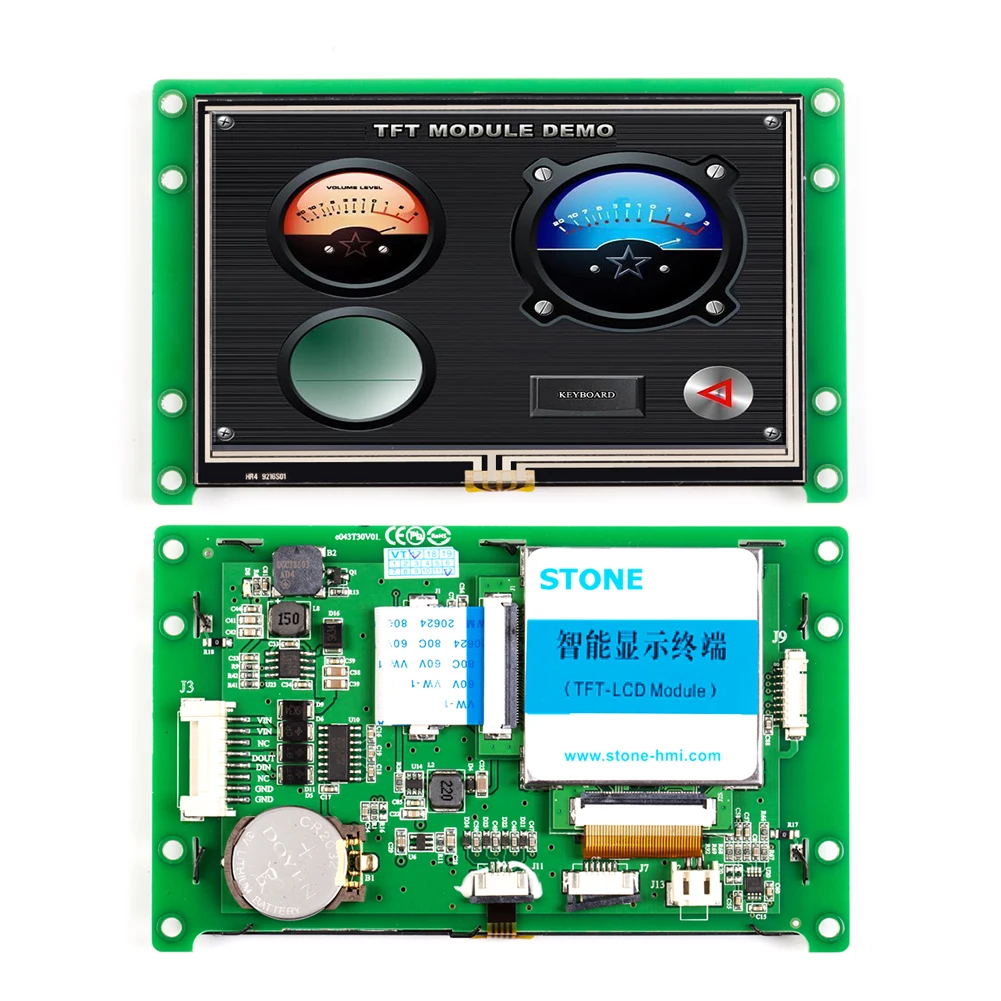

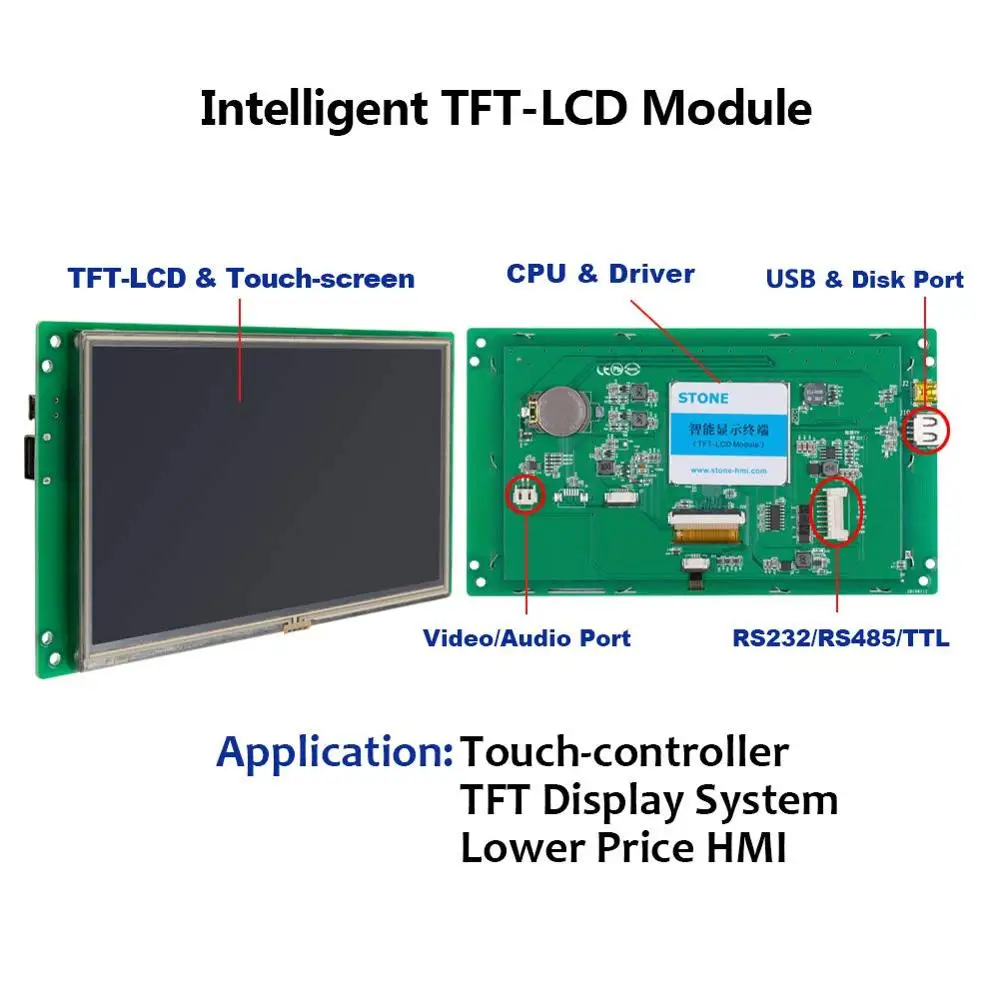

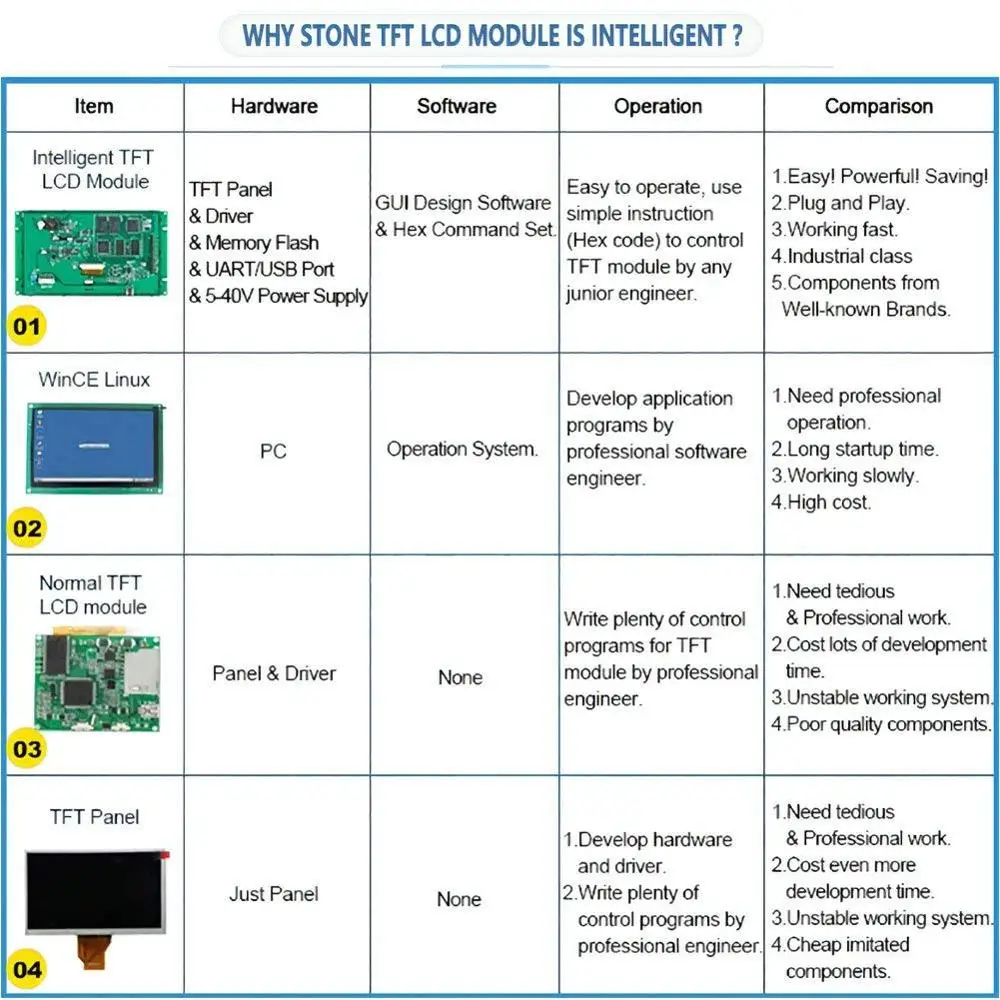

The STWI043WT-01has been conceived as TFT monitor & Touch controller. It includes processor, control program, driver, flash memory, RS232/RS422 / RS485/

TTL / LAN port, Wi-Fi / Bluetooth, touchscreen, power supply etc., so it is a whole display system based on the powerful & easy operating system, which can be controlled by Any MCU.

TheSTWI043WT-01 can be used to perform all basic functions, such as text display, image display, curve display as well as touch function, Video & Audio function etc. The User Interface can be more abundant and various. And the flash memory can store your data, configuration files, image file, font file, video file and audio file etc.

1.2 Warranty

All products purchased from our company are guaranteed to keep in good repair for

3 years. If quality problems (except human error) happen in guarantee period, our company will maintain for free to replace the broken one unconditionally.

1.3 Product Characteristics

- With Cortex A8 CPU & Driving device

- Controlled by any MCU

- Display Picture/ Text /Curve / Video

- 262K (18bit) colour TFT display

- With/without Touch Screen

- RS232/RS422 / RS485/ TTL UART Interface & USB port

- Ethernet port/WI-FI/Bluetooth optional

- Wide voltage range

- Easy to use! Powerful function! Saving Much Development cost and time!

1.4 Application Area

Widely used in various industrial field

- Medical & Beauty Equipment

- Engineering Machinery and Vehicle Equipment

- Electronic Instrument

- Industrial Control System

- Electric Power Industry

- Civil Electronic Equipment

- Automation Equipment

- Traffic

- New energy project

- IOT applications

Etc.

1.5 Working Principle

The Intelligent TFT-LCD Module communicates with the Customer’s

MCU/CPU / FPGA / PLC via Commands (JSON command and HEX Code), and then the MCU would control its connected equipment to work according to the received commands.

1.6 Operation Processing

Only 3 steps to use our TFT-LCD Module:

Build a GUI project by STONE designer GUI editor with png/jpg/bmp/svg/gif image files.

Connect with customer’s MCU through RS232,RS422,RS485,TTL directly. Plug and play.

Write a simple program for MCU to control the TFT-LCD Module via Command Set.

(JSON code to TFT-LCD Module and HEX Code to Customer’s MCU ).

That’s all.

The communication protocol (customized command set) is built with 2 parts:

Initiative command (MCUàTFT-LCD Module)

Frame head: ST<

Command content: { json }

Frame end: >ET

For example:

ST<{"cmd_code":"open_win","widget":"label_value"}>ET ST<{"cmd_code":"set_value","widget":"label_value",”value”:100}>ET

Important: The text content should be with the quotes(“”), including widgets’ name but the value content shouldn’t be with the quotes, such as value or true/false states.

Passive command (TFT-LCD ModuleàMCU)

Basic command format:

Frame head + CMD + LEN + DATA + Frame tail + CRC16

Example: ST< 0x1068    0x00040x01 0x02 0x03 0x04        >ET CRC16

The TFT LCD module serial port command frame is composed of 5 data blocks, shown as the table 1-1.6. All serial port commands or data are represented with hex format. The data transfer in MSB manner. E.g. for 0x1234, first send 0x12 and then send 0x34.

Definition

Frame header

Command

length

Data

Frame tail

CRC check code

Length (byte)

3

2

2

N

3

2

Description

Could be customized

Specific command function, default setting

The bytes number of Data

-

Could be customized

Default setting

Example

ST<

0x1068

0x0004

0x01,0x02,0x03,0x04.

>ET

CRC16

More information, please refer to the document of Development Guide.

1.7 Software Operation

We will offer simple "Stone Desinger GUI editor" to help you to design the new project file for Intelligent TFT-LCD Module on Windows system PC

or MacOS PC, or it also can Design on website version directly.

2TechnicalParameters

This chapter contains technical data on:

- Physical Parameters:

Physical Parameters

Display

- Hardware Parameters:

Processor

Memory

Interface

Power Supply

- Storage & Test

Electrical Characteristics

Ambient Conditions

Noise Immunity

Radio Interference

- Support Device

Support Device

Technical Parameters

Physical Parameter

Size

4.3 inch

Resolution

480×RGB×272

Pixel Spacing

0.066 (W)×0.198(H) mm

Color

262,144 colors (18 bit)

Viewing Area

95.04(W)× 53.856(H) mm

Display Dimension

97.1mm× 56mm

Overall Dimension

121.9mm×74.7 mm×13.8 mm (T)

(Standard type)

121.9mm×74.7 mm× 23.8mm (T)

(with Ethernet port)

Net Weight

155g (T)

Display

Backlight
Type

LED

Brightness

500cd/m2

(Brightness can be adjustable in 100 levels)

Contrast

500:1

Backlight
life

30,000 hours

Viewing
Angle

70°/70°/50°/70°(L/R/U/D)

TFT Panel

A Class Industry Panel

Touch Screen

4 Wire Resistance Touch /Capacitive Touch /
Without Touch Screen

Screen
Mode：

Digital

Processor

CPU

Cortex A8

Refresh Rate

1G Hz

Max Frame rate

60 FPS

Memory

Flash Memory

Standard 256MB, Extension 1GB or 2GB

Memory
Amount for Image

According
to the capability of the image, Suggest "PNG, BMP, JPG, SVG, GIF" format.

Interface

Serial Interface

RS232 / RS422 / RS485 / TTL level

Ethernet interface

10M/100M (Optional)

Wireless interface

Wi-Fi / Bluetooth (Optional)

Project file downloading

USB2.0 port or U storage Disk

Power Supply

Rated voltage

+12V DC or +5V DC

Permissible voltage range

+7V DC...+28V DC or +5V DC

Max. permissible transients

+28V

Time between two transients

50 sec minimum

Internal Fuse

2A self-recovery fuse

Power consumption

1.0 W

Electrical Characteristics

Parameter

Condition

Min

Type

Max

Supply
Current

VIN=12V

(Max brightness)

120mA

VIN=12V

(close brightness)

60mA

Baud
Rate

115200 bps

Signal

Technical Parameters

Ambient Conditions

Max. permissible ambient temperature

Operation

Storage

-30℃～+80℃

-30℃～+80℃

Relative humidity

Operation

Storage

55℃,85%

60℃,90%

Shock loading

Operation

Storage

15 g/11 msec

25 g/6 msec

Vibration

Operation

Storage

0.035 mm (10 - 58
Hz)/ 1 g (58 - 500 Hz)

3.5 mm (5 - 8,5
Hz)/ 1 g (8.5 - 500 Hz)

Barometric pressure

Operation

Storage

706 to 1030 hPa

581 to 1030 hPa

Noise Immunity

Static discharge

(contact discharge/air discharge)

EN
61000-4-2

6 kV/8 kV

RF
irradiation

EN 61000-4-3

10
V/m, 80% AM

1
kHz

Pulse
modulation

ENV 50204

900
MHz ±5 MHz

10
V/meff., 50% ED, 200 Hz

RF conduction

EN 61000-4-6

150 kHz - 80 MHz

10 V, 80% AM, 1 kHz

Burst interference

Supply lines

Process data lines

Signal lines

EN 61000-4-4

2kV

2kV

1kV

 Radio Interference

Radio interference level complying to

EN 55011

Class A

Support Device

UART Port

Support

RS232 / RS422 / RS485 / TTL

Network Port

Support

Ethernet Port / Wi-Fi / Bluetooth

Flash Memory

Support

Standard 256MB, Extend 1GB or 2GB

Buzzer

Support

RTC

Support

USB port

Support

Online Download By USB Cable

U Storage Disk Interface

Support.

Offline Download or Copy User Data

Touch Screen

4 Wire Resistance / Capacitive

Vector Font

Standard TTF Format


Support PNG/JPG/BMP/SVG/GIF Format

Audio Interface

Support WAV format

The length of single audio file is not limited,

theoretically up to 4096 audio files, speaker

power is 8 ohms 2 watts or 4 ohms 3 watts

Command Set

Unified Simplified Command Sets

3InterfaceDescription

This chapter contains the description of the interfaces:

- VVC

- NC

- DOUT

- DIN

- GND

Please notify the interface type before ordering. RS232/ RS422/ RS485/TTL Interface.

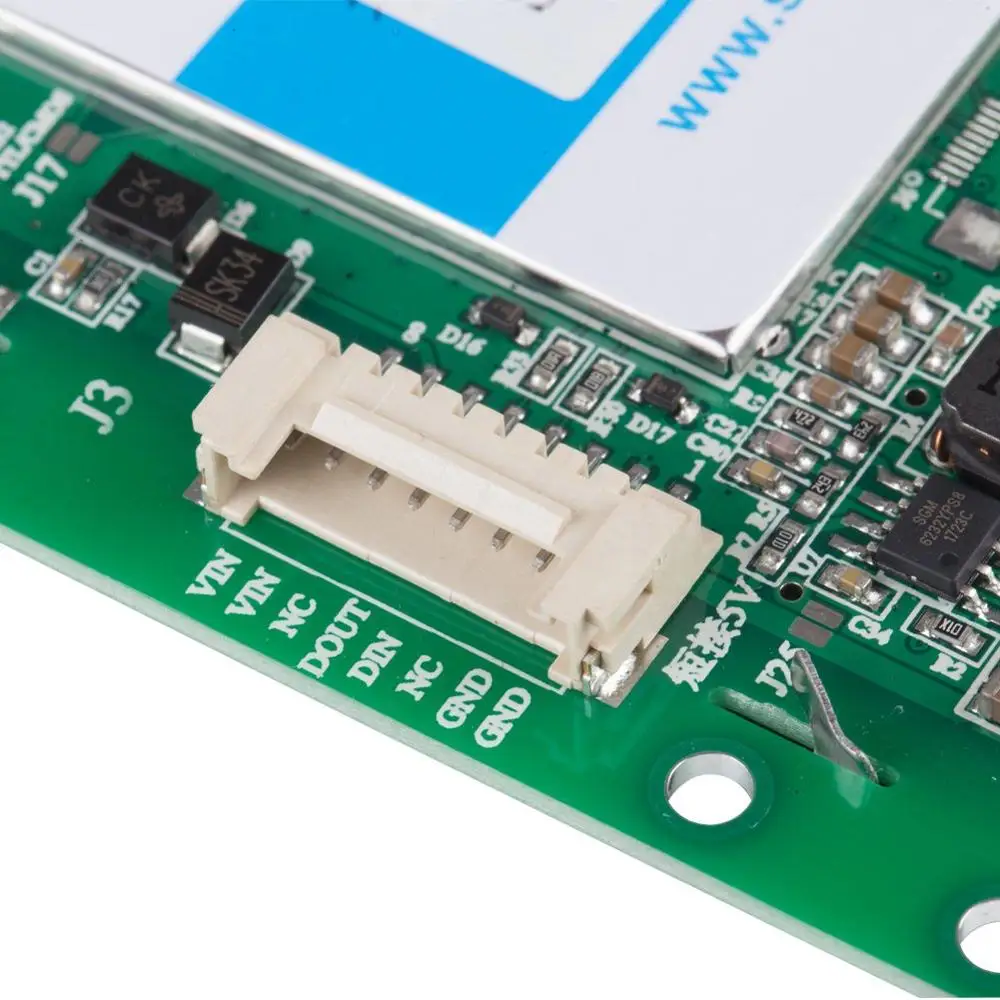

Communication Interface Definition：

Pin Name

Pin NO.

Pin Type

Interpret

GND

1,2

P

Power Ground

DIN

4

I

Data Input

DOUT

5,

O

Data Output

NC

3,6

None

VCC

7,8

P

Power Supply Input

I: Input   O: Output   P: Power

Note A:  1. Adopting the 8 Pin 2mm spacing socket. Model Code: A2006WF-08A.

2. Direction of the signal was defined with TFT-LCD Module;

“I” refers to the signal from the user’s MCU transmitted to the TFT-LCD Module.

3. Pins with the same definition are connected together in the module inside.

4. RS232, RS422, RS485, TTL port can be default which need to point out in the order.

Note B: The selection of Baud rate for the serial interface：

Baud rate（bps）

1200

2400

4800

9600

19200

38600

57600

115200

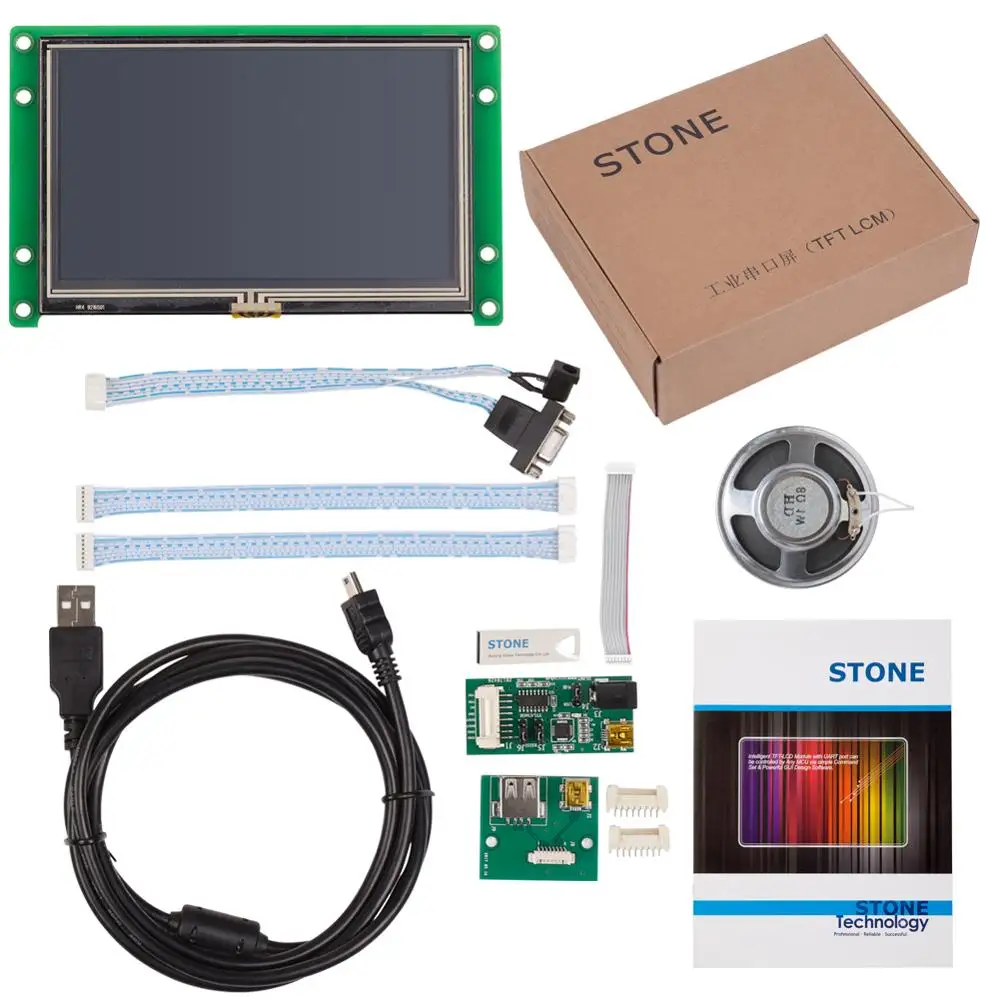

4Accessories

This chapter contains the accessories:

- Double 8-pin Connect Cable

- 8-pin Socket

- Type AUSB Cable

- Converter: USB⇌RS232/RS422/RS485/TTL

- Metal Bezel (optional)

- IP65 Plastic Box (optional)

Accessory Name

Model

Note


Double 8-pinCable

L8

Optional：10cm/20 cm/35cm/65cm

8-pin Socket

S8

SMD-8 2.0mm with Lock

Type AUSB Cable

LU

Double USB Port Cable

Online Downloading

Converter

UR2.0

UR4.0

UR1.0

USB to RS232

USB to RS422 / RS485

USB to TTL

U Storage Disk

Offline USB Batch Downloading Function

Accessory Name

Model

Note


IP65 Plastic Box

(optional)

PB-043

PB-050

PB-056

PB-070

PB-080

PB-104

For: 4.3”, 5”, 5.6”, 7”, 8”,10.4”

Metal Bezel

(optional)

MB-035

MB-043

MB-050

MB-056

MB-070

MB-080 MB-101

MB-104

For: 3.5”, 4.3”, 5”, 5.6”, 7”, 8”,10.1”,10.4”

5PhysicalDimensions

This chapter contains the information of Physical Dimensions.

6Electrical Components

This chapter contains the brands of the components:

- TFT Panel

- Touch Screen

- CPU

- LCD Controller

- Flash memory

- Connecter

- Capacitance

- IC

7Naming Rule

This chapter contains the naming rule:

As sample STWI043WT-01N

Code

Explain

ST

Company Code

W

The third version product

I

I=Industrial Type; A=Advanced Type; C=Civil Type

043

TFT Panel Dimension: 3.5 inch

W

W=Wide Voltage(+7V to +28V) L=Low Voltage (+5V)

T

T=With Resistive Touch Screen

N=Without Touch Screen

C=With Capacitive Touch Screen

0

0=RS232 4=RS422 / RS485 1=TTL Level

1

Hardware Code

N

N=Ethernet W=Wi-Fi/Bluetooth

8International  Certification

This chapter contains the certification we passed:

- CE Certificate

- ROHS Certificate

- FCC Certificate

- ISO9001:2008 Quality System

CE Certificate                                                        FCC Certificate

RoHS Certificate                                                     ISO9001:2008

APPENDIX

ESD Guidelines

What does ESD mean?

Virtually all present-day modules incorporate highly integrated MOS devices or components. For technological reasons, these electronic components are very sensitive to over voltages and consequently therefore to electrostatic discharge:

These devices are referred to in German as Elektrostatisch Gefährdeten Bauelemente/ Baugruppen: ºEGBº

The more frequent international name is:

ºESDº (Electrostatic Sensitive Device)

The following symbol on plates on cabinets, mounting racks or packages draws attention to the use of electrostatic sensitive devices and thus to the contact sensitivity of the assemblies concerned:

ESDs may be destroyed by voltages and energies well below the perception threshold of persons. Voltages of this kind occur as soon as a device or an assembly is touched by a person who is not electrostatically discharged . Devices exposed to such over voltages cannot immediately be detected as defective in the majority of cases since faulty behavior may occur only after a long period of operation.

Precautions against electrostatic discharge

Most plastics are capable of carrying high charges and it is therefore imperative that they be kept away from sensitive components.

When handling electrostatic sensitive devices, make sure that persons, workplaces and packages are properly grounded

Handling ESD assemblies

A general rule is that assemblies should be touched only when this cannot be avoided owing to the work that has to performed on them. Under no circumstances should you handle printed-circuit boards by touching device pins or circuitry.

You should touch devices only if

  you are grounded by permanently wearing an ESD wrist strap or

you are wearing ESD shoes or ESD shoe-grounding protection straps in conjunction with an ESD floor.

Before you touch an electronic assembly, your body must be discharged. The simplest way of doing this is to touch a conductive, grounded object immediately beforehand ± for example, bare metal parts of a cabinet, water pipe etc.

Assemblies should not be brought into contact with charge-susceptible and highly insulating materials such as plastic films, insulating table tops and items of clothing etc. containing synthetic fibers.

Assemblies should be deposited only on conductive surfaces (tables with an ESD coating, conductive ESD cellular material, ESD bags, ESD shipping containers).

Do not place assemblies near visual display units, monitors or television sets (minimum distance to screen > 10 cm).

Measuring and modifying ESD assemblies

Perform measurements on ESD assemblies only when

the measuring instrument is grounded ± for example, by means of a protective conductor ± or

the measuring head has been briefly discharged before measurements are made with a potential-free measuring instrument ± for example, by touching a bare metal control cabinet.

When soldering, use only grounded soldering irons.

Shipping ESD assemblies

Always store and ship assemblies and devices in conductive packing ± for example, metallized plastic boxes and tin cans.

If packing is not conductive, assemblies must be conductively wrapped before they are packed. You can use, for example, conductive foam rubber, ESD bags, domestic aluminum foil or paper (never use plastic bags or foils).

With assemblies containing fitted batteries, make sure that the conductive packing does not come into contact with or short-circuit battery connectors. If necessary, cover the connectors beforehand with insulating tape or insulating material.

Glossary

Baud rate

Rate of speed at which data is downloaded. Baud rate is specified in Bit/s.

Boot

A loading process which downloads the operating system in the working memory of the operating unit.

Command Set

Hex Code, the MCU can control the TFT Module via the command set.

Configuration file

It can be created by the software.

Download

Download the image, configuration files and data through mini USB port or USB port.

Download mode

Through mini USB port or USB port.

Flash memory

Programmable memory which can be electrically deleted and written to again segment-by-segment.

Half Brightness Life

The period of time after which the brightness tube only achieves 50% of the original value.

Input field

Enables the user to enter values which are subsequently sent to the MCU.

MCU

Micro Control Unit, it is widely used in the industrial control.

Normal operation

Operating unit operating mode in which messages are displayed and screens can be operated.

Output field

Displays current values from the MCU on the operating unit.

Process screen

The display of process values and process progress on the operating unit in the form of screens, which may contain graphics, texts and values.

RS485

Standard interface for serial data transfer at a very high transmission rate.

Screen

A screen displays all the logically related process data on the operating unit, whereby the individual values can be modified.

Touch panel

This is an operating unit without a keyboard. The touch panel (abbreviated to TP) is operated via the contact-sensitive screen elements.
