1080P full hd Android,linux, auto white balance, auto exposure usb UVC webcam with ir led for PC computer

Package includes:

1) 1PC 2mp H.264 ir usb camera module with 3.6mm lens (2.8/2.1/6/8/12mm lens optional)

2) 1PC 1m usb cable

Advantage of usb camera:

1)The HD 1080P USB CMOS board camera module(model: ELP-USBFHD01M serials) is ideal for many applications like security systems, portable video system, video phones, industrial machine monitoring and toys.

2)It use high quality image sensors made by OmniVision, one of the world leaders in this field of electronics.

3)The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.

Feature:

*High Speed 1080P HD USB Camera
*Equiped with 3.6mm  lens
*Can drive 30fps@1080P
*CMOS 1080P sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.

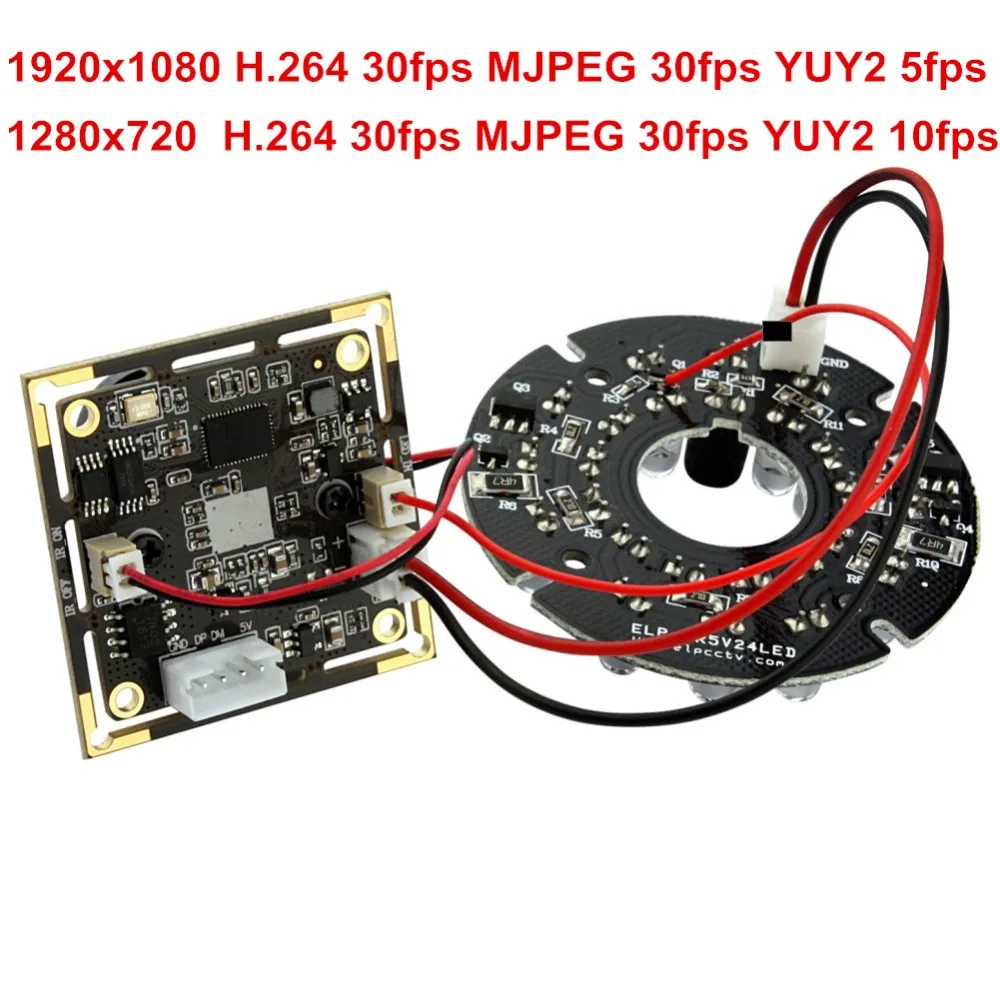

*High frame rate– deliver 60 fps in 1280X720 resolution,30 fps in 1920X1080 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.

Specification:

Optional models

 ELP-USBFHD04H-RL36

Sensor

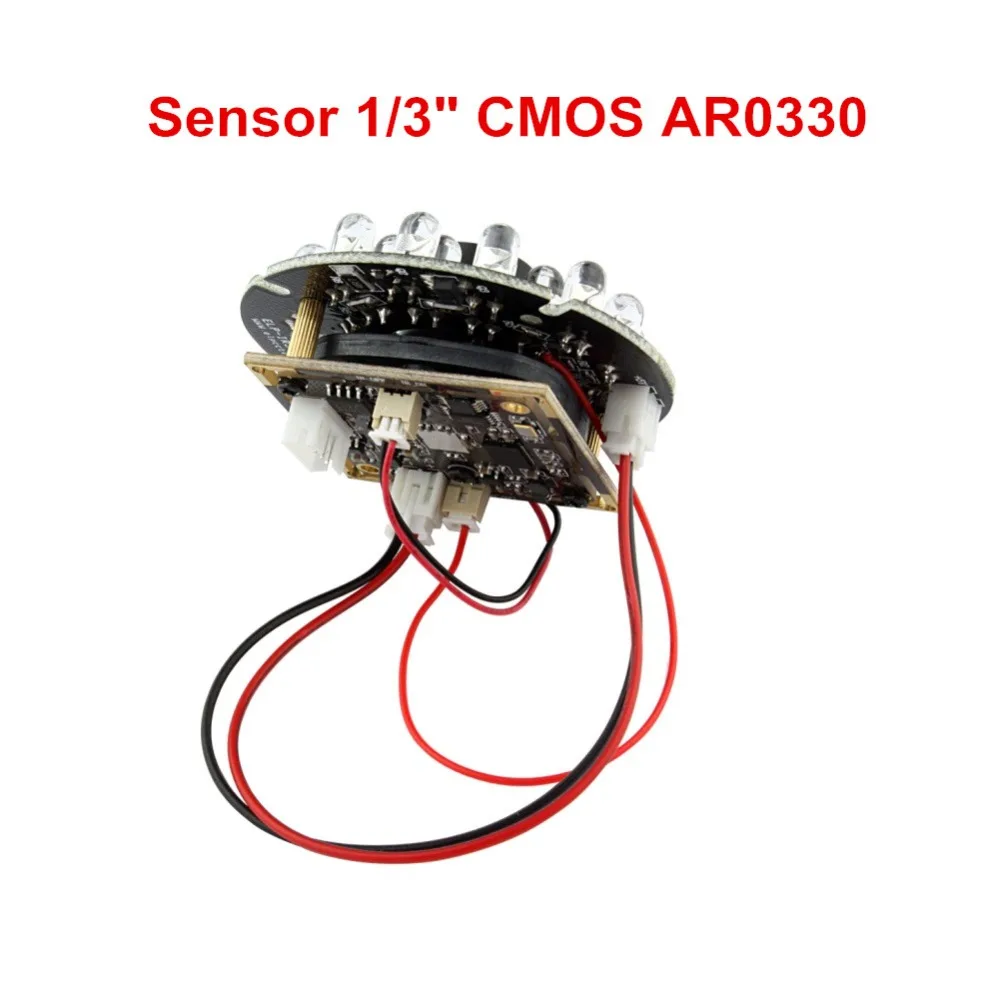

 1/3" CMOS AR0330

Lens size

200W, 2.0megapixel, 1920(H)x1080(V)pixels

Max. Resolution

1920X1080

Picture format

H.264 &MJPEG&YUY2

USB Protocal

USB2.0 HS/FS, USB1.1 FS

Support free driver

USB Video Class(UVC)1.1

Auto exposure AEC

Support

Auto white blance AEB

Support

Frame rate

Adjustable parameters

Brightness/Contrast/Color saturation /Definition/Gamma/WB

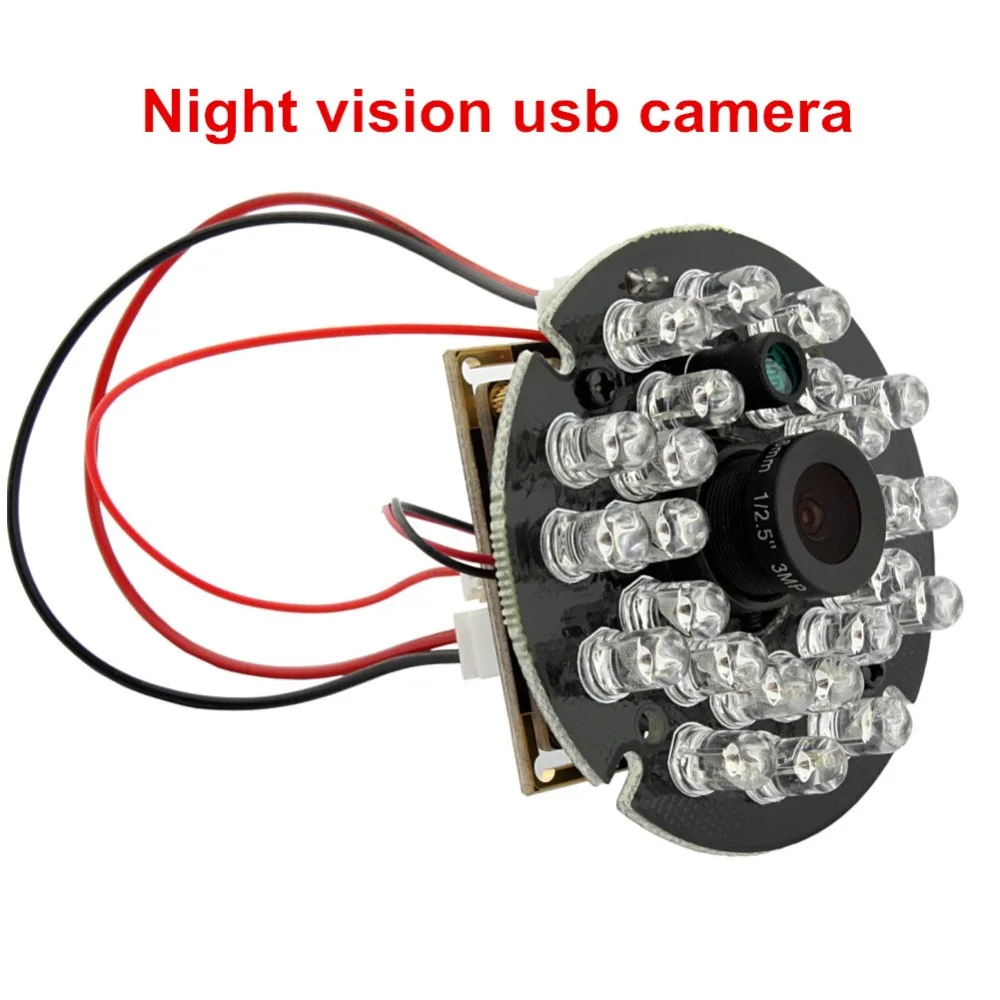

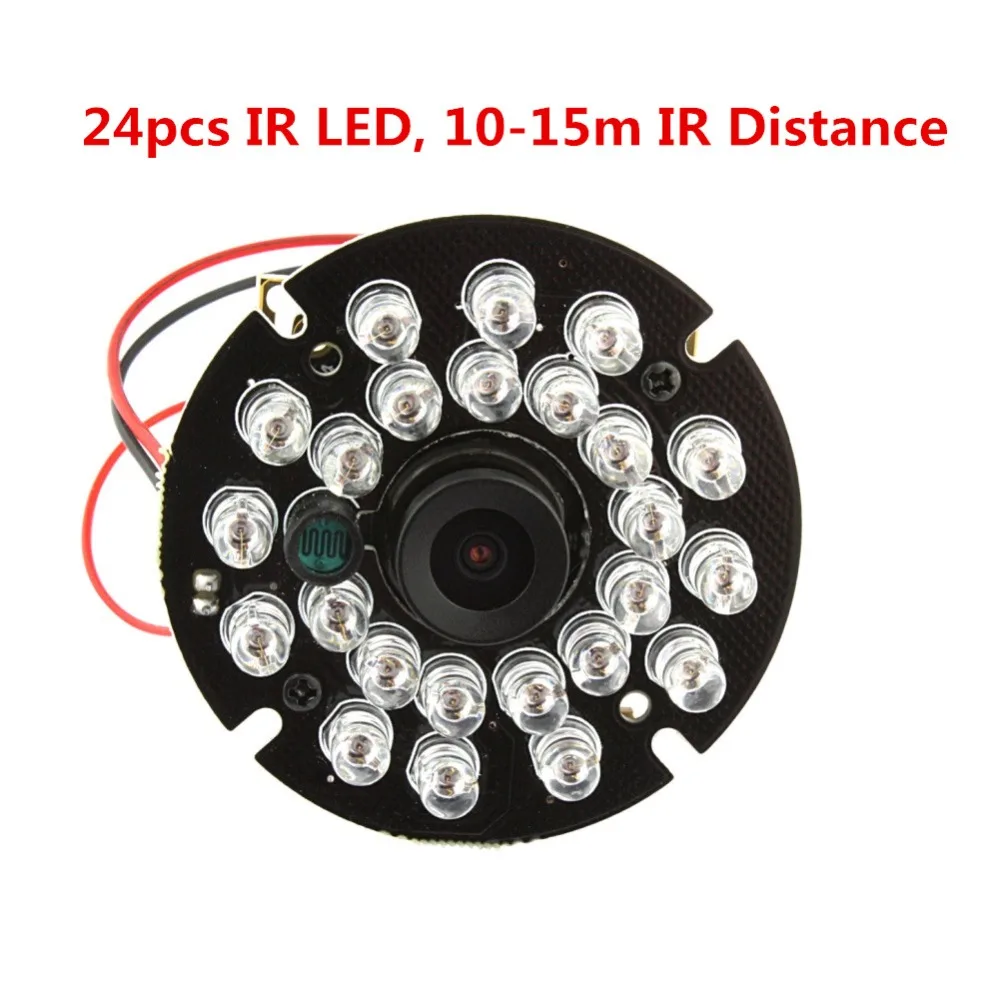

Night vision

optional, can choose IR board

view angle

30-150degree optional (depend on different lens)

voltage /current

DC 5V /150mA

Lens

2.1/2.8/3.6/6/8/12mm lens optional

work temperature

DEGREES(-20~70)

Size

32x32mm/38*38mm

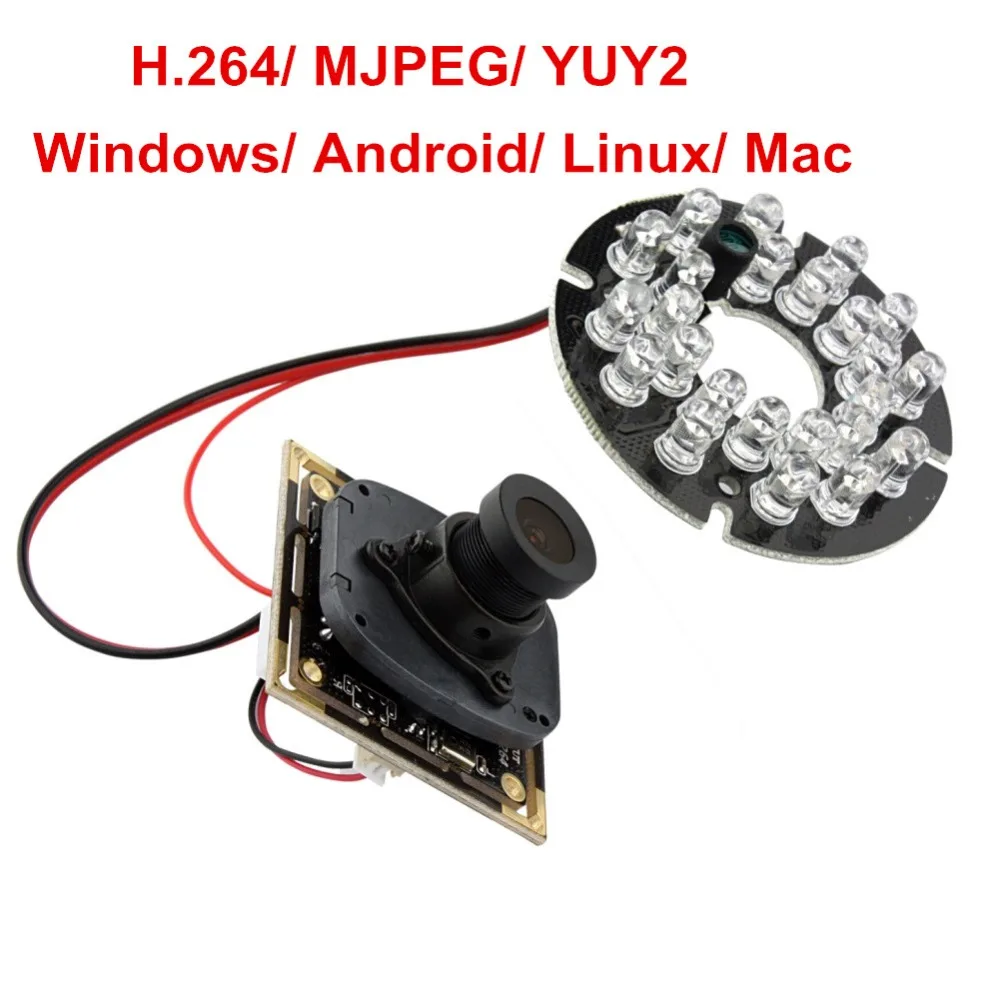

Support OS

WinXP/Vista/WIN7/WIN8
Linux with UVC
Mac-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above

Applications:

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture,  credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope, Medical auxiliary equipment, etc.

Products display:

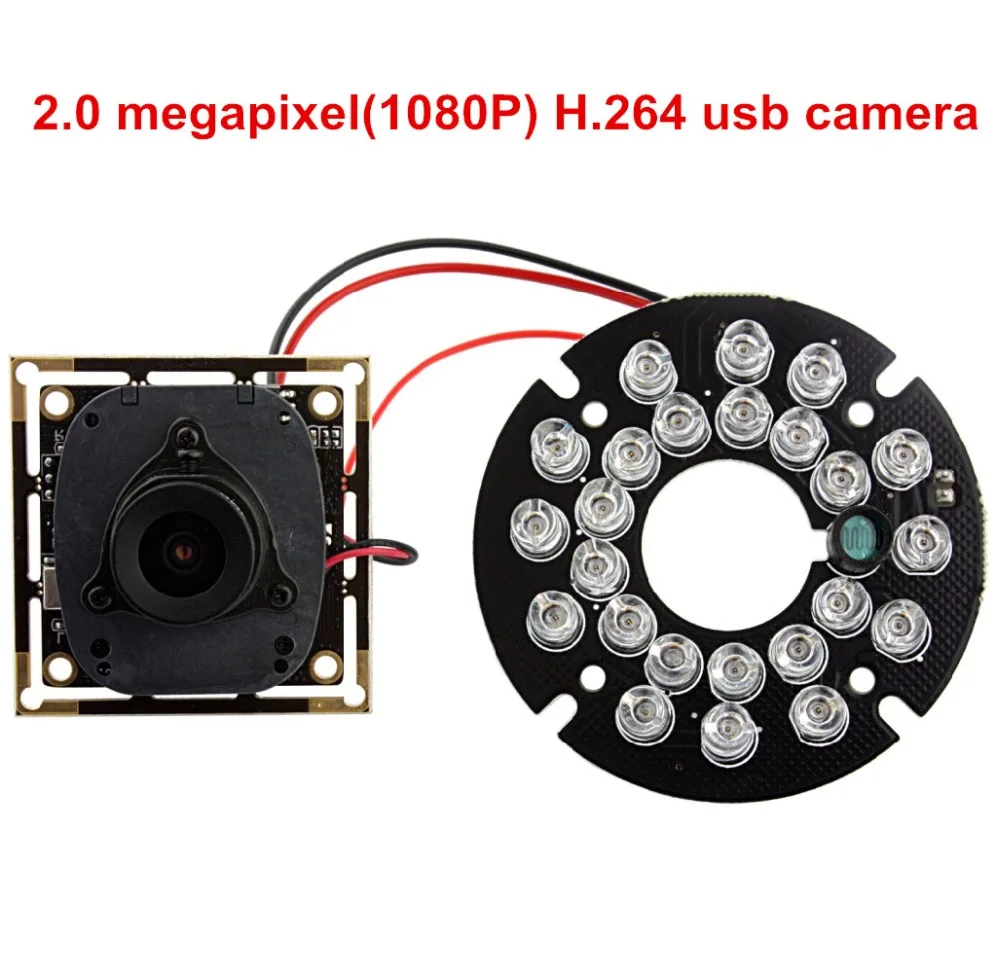

2MP usb camera paper picture:

Outdoor true and undistorted color image:

Specially designed Packing for usb cameras:
