Hello friend,

If you need Electronic English user manual file,pls download by follow link:

http://www.mediafire.com/download/9htppdqrk2egb07/How_to_use_HD05%2CHD07.docx

2 bay 4 TB per ssd kit 2.5 3.5 4 TB odd caddy usb 3.0 sata docking hdd storage caddy case suit for disc disk

Product Introduction

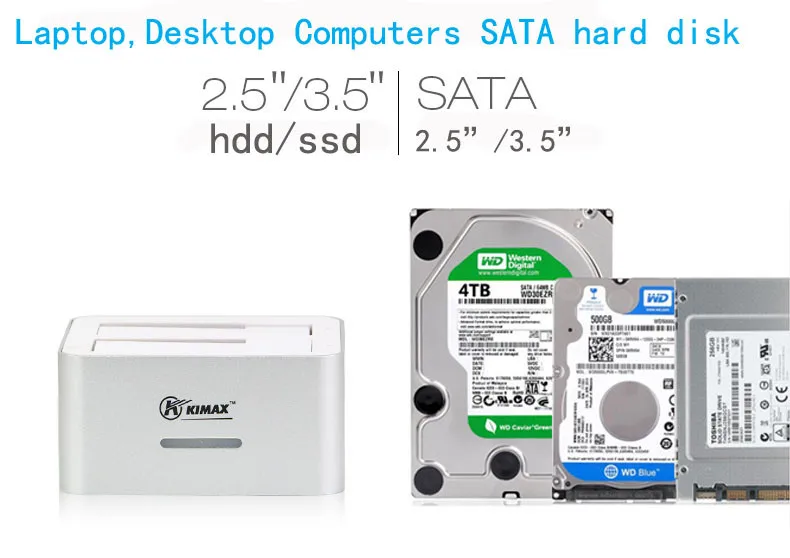

This dual drive SATA HDD Dock provides fast, convenient access to 2.5” or 3.5" SATA (SATA, SATA II, SATA III) hard drives (HDD) or solid state drives (SSD) through either USB or eSATA, without ever having to open a computer case or mount hard drives in an enclosure. Supporting one or two drives (tested with up to 4TB 3.5" and 1TB 2.5" drives per bay), BS-HD07U3 can be connected to the host computer through either USB 2.0 or eSATA - then, it's just a matter of inserting the desired 2.5" or 3.5" SATA drives (or combination of both) into one of the two (or both) docking station slots for instant access. "

The BS-HD07U3 is at the top of [the] heap when considering construction quality, ease of use and performance.The docking station supports plug and play installation on most operating systems, making it a perfect solution for data recovery, drive imaging, software testing, or any environment that requires fast access to massive amounts of data (uninstalled or archived hard drives etc.). Plus, SATADOCK22UE features a small form factor design that requires minimal desk space for permanent connection to the host computer and provides enough hard drive surface exposure to optimize dissipation of operating heat.

The BS-HD07U3 supports any 2.5" or 3.5" SATA drive and data transfer speeds of up to 1.5 Gbps (using eSATA) and 5Gbps (using USB 3.0) between host and dock - ensuring effortless data dumps or backups and hassle-free file transfers. The inclusion of a high-output power adapter versus other competitive dual drive dock models ensures stable performance for even the latest power hungry high-capacity hard drives. The value of this hard drive docking station can be extended, using a SATA to IDE hard drive adapter (SAT2IDEADP), which enables you to use any 2.5 or 3.5in IDE hard drive in a SATA hard drive dock slot.

Product Feature

1.Compliance with Genli, Gen1m,Gen2i and gen2m of Serial ATA II
2. Support SATA II Asynchronous Signal Recovery(Hot Plug) feature
3.Support SATAII 1.5G/3.0G Speed Negotiation
4.Compliance with USB 2.0 electrical specification
5.Supports all 2.5"/3.5" SATA Hard Disk Drive of any capacity
6. Support hot swappable

7. One Touch Backup Clone function(it can be clone the file without PC for USB2.0)

Please note : this is only a hdd case and don’t contains the hard disk .

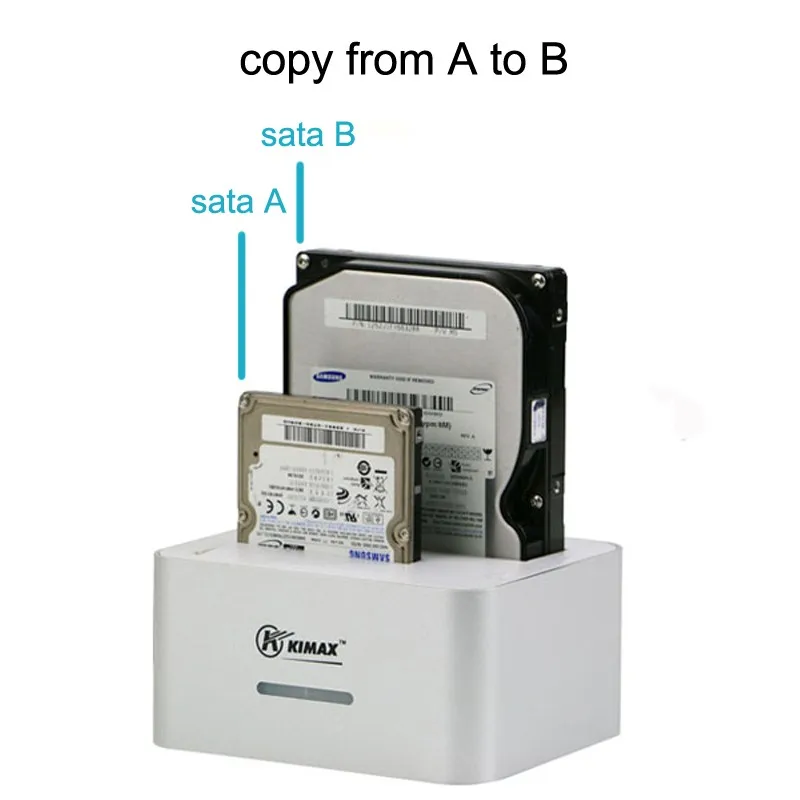

How to use HDD clone function(Duplicator Function)

1.Plug in identify Source Disk(front port) and Target Disk(back port)

(1)Make sure your disk is sata port(IDE is not support) before insert

(2).Back disk(B) must be larger capacity(eliminate space loss) than front disk

2.Connect power supply and switch on power. (make sure that the usb cable is disconnected)

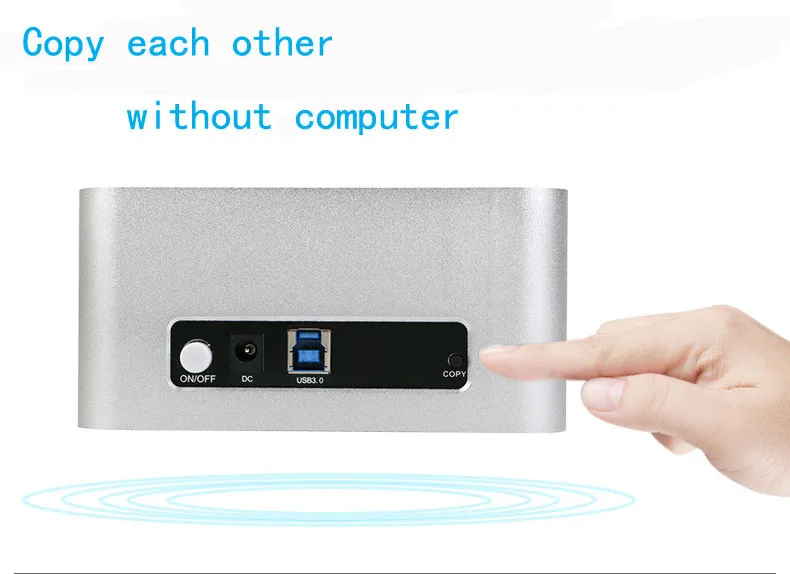

3.Press "Copy" button for about 3 seconds(or more) until the LED will start flashing and the cloning process will begin.

(1)To avoid your disk file damaged,pls don't stop the device when it's under clone function.

(2)When copy the disk,pls don't connect the computer,if connect the computer,disk will be under reading,can not support copy(device heating is normally,as big hard disk operate will be hot)

(3)When copy disk,pls make sure disk B is empty,or the former file in disk B will be loss.if disk B has file before,and want to copy from disk A too,pls don't use copy function,just copy and paste on computer

(4)If your disk format is FAT,can not support copy single file more than 4GB(included 4GB),but NTFS is ok,you can change disk format
