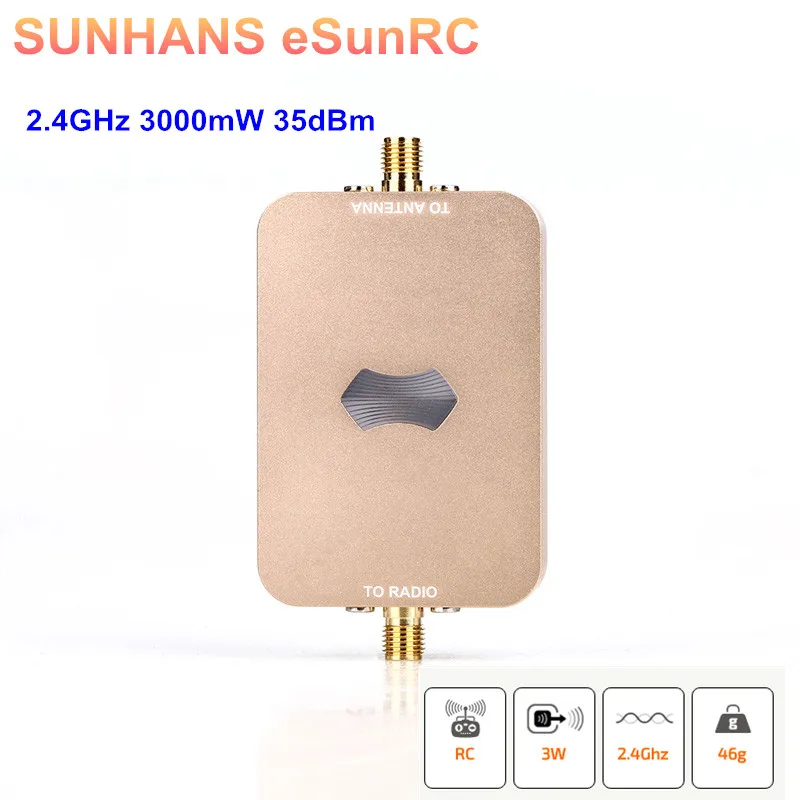

Genuine SUNHANS eSunRC SH-RC24G3W 3W 2.4Ghz 35dBm Aeromodlling Amplifiler Wireless WiFi Signal Booster

For Aeromodelling, 2.4G 3W Wireless (WiFi) Signal Amplifiler (Also available in wireless monitoring/ wireless routing)

Features & Description

Sunhans’s family of Wi-Fi Signal Boosters are designed for use in mobile and/or mesh wireless networking applications. It is the most consistent signal amplification available for Wi-Fi networks. Designed for bi-directional signal amplification, In contrast, traditional analog amplifier technologies can go into saturation or reduce transmit power as input signal fluctuates, negatively impacting signal quality and network performance. While allowing for the use of virtually any 2,4GHz antenna that implements an SMA-Male connector. Also the small footprint and low profile design makes it an ideal solution for mounting on vehicles or in other space constrained applications.

The Sunhans’s 2.4GHz Inline Signal Booster efficiently increases signal range of any antenna by up to 200%-400% while maintaining high data throughput rates. This signal boosting functionality adds up to 16dB of transmit gain and 12dB of receive gain, resulting in a farther reaching signal and better connectivity with client radios. Results may vary depending on environmental factors, interference, cable length and type, etc.

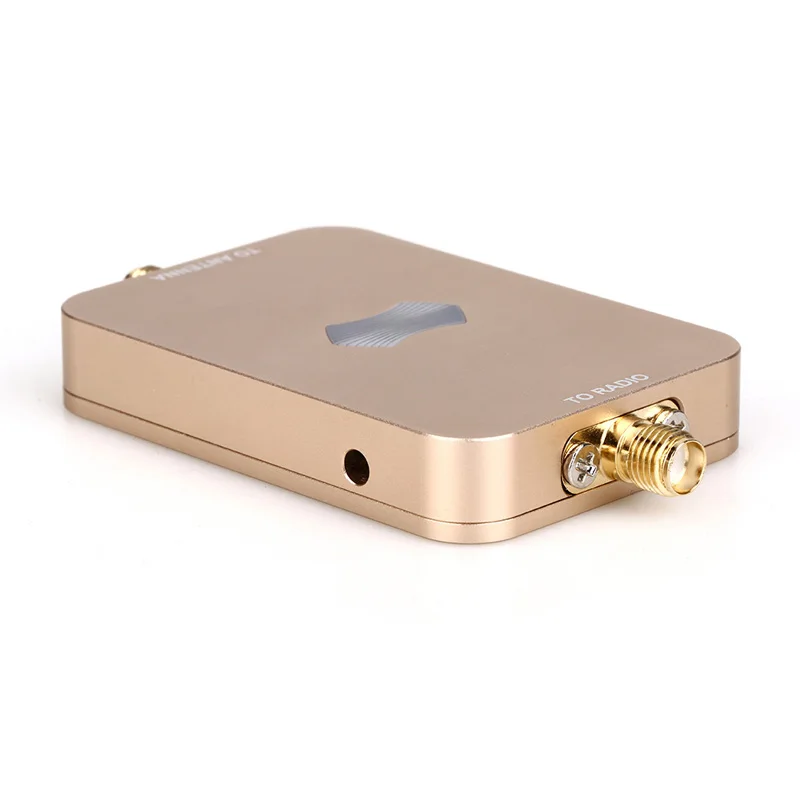

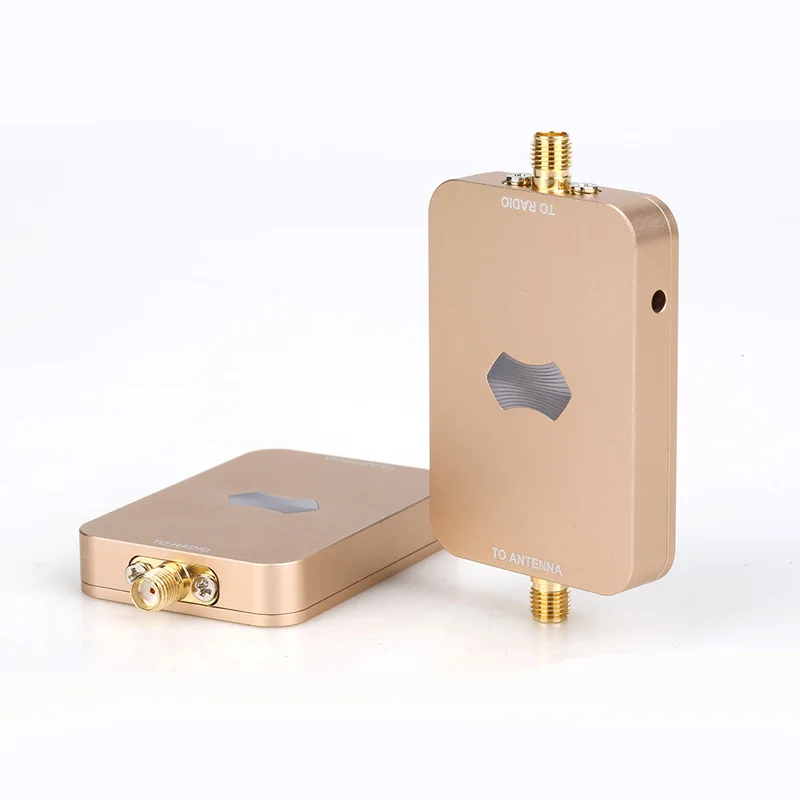

The WiFi booster indicates which connector is for antenna and which one for the radio. There are several kind of radios that you can connect to the booster to increase the power and distance of use. For example router, access point, radio control remotes, radio control planes, drones, cars... IP camera, Walkie Talkies, etc. Always checking that the range of frequency between the radio and the booster, is the same.

Technical Specifications

SKU: 0305SH100317

Model: SH- RC24G3W

P/N: RC24G3W015

Barcode: 6958917601589

Operating Range:2.4~2.5 GHz

Operating Mode:Bi-directional, half-duplex, time division duplex senses RF,

carrier from transmitter and automatically switch receiving

to transmitting mode.

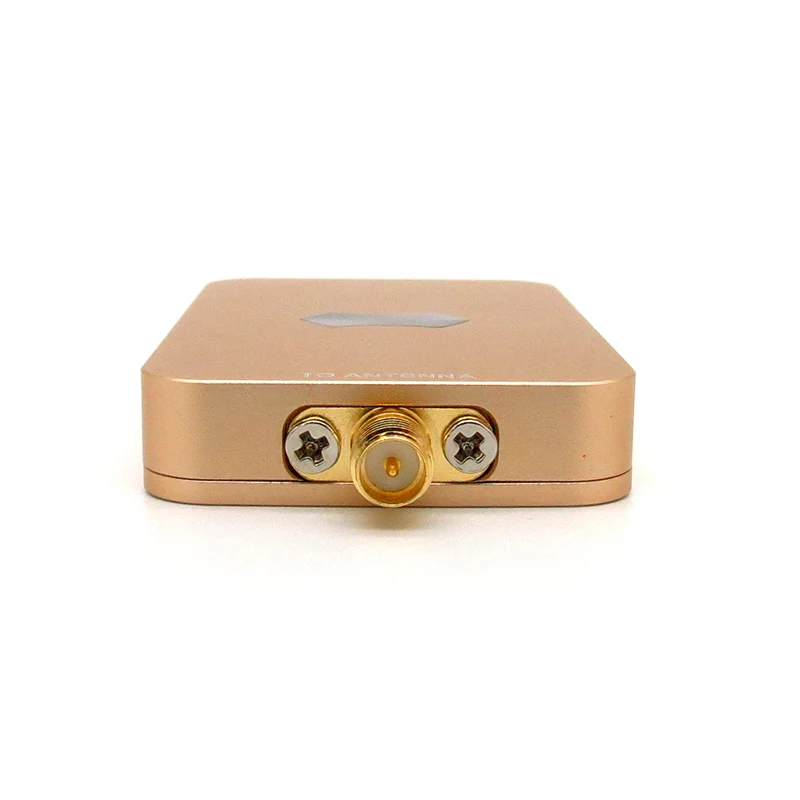

Connector Type:SMA Receptacle 50ohm,To radio SMA female(hole inside),To antenna RP-SMA female(pin inside)

Input Power:0~20 dBm

Transmit Gain:15-18dB

Output Power:3000mW (35dBm)

Receiver Gain:≤ 12 dB

Noise Figure:≤3.5 dB typical

Support Standard: IEEE 802.11/b/g/n

Frequency Response:±1dB over operating range

Supported voltages: 5V~16V/2A DC

Operating Temperature:-20°C to + 70°C

Operating Humidity:Up to 75% relative humidity

Material:Cast Aluminum

Booster Weight:46g

Package Weight: 180g

Booster Size:7.3 x 4 x 1cm

Package Size:110 x 80 x 46cm

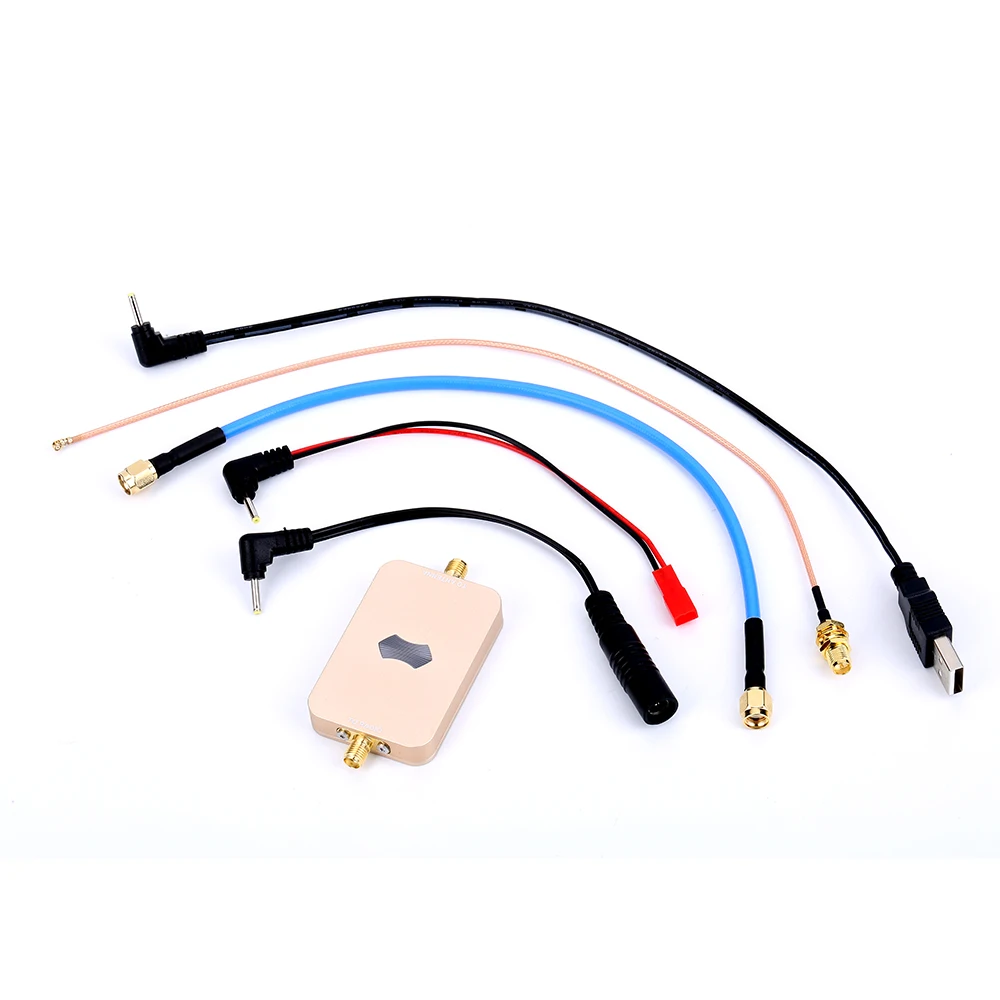

Package included:

1 x SH-RC24G3W eSunRc WiFi booster

1 x RG141 20cm cable SMA male to RP-SMA male

1 x DC 2.5” to 12V 5.5” adapter

1 x DC 2.5” to USB adapter

1 x DC 2.5” to JST adapter

1 x Mounting Velcro

1 x Documentation

This product is the equipment attached to the model by special stickers, Dedicated power line, Do not need any modification, Can be used after installation.

FAQ (Frequently Asked Questions)

1. My WiFi booster ´s light indicator, does not blink blue. It just shows the white light. What ´s the problem?.

Please, check the connection between the radio (RC, router, IP camera…) and the “To Radio” connector of the WiFi booster. If the connection is right, maybe just the blue LED has a problem. So check if the level of signal increased. If you do not have any improvement in your signal strength, the blue LED does not blinks and the installation was right, please, contact the supplier where you bough the product to file a warranty claim.

2. The white light is off, but the blue light is blinking.

The white LED is possibly broken. But the booster is working properly.

3. The light indicator does not work. There is no light when I plug the power supply.

Please, check if your power supply operates between 5V to 16V 2A. If it does, contact your supplier.

4. The signal is not strong enough or it barely increased.

Please, check the connections between the radio and the booster. Also between the booster and the antenna. Check that the blue light is blinking. If it all looks correct, relocate the booster in a higher place and orientate the antenna.
