Standard C-Mount camera with SONY ExView HAD CCD II sensor ICX285AQA resolution 1.4Mp, Color sensor;

Two-stage TE-cooling with controllable electric fan;

Working temperature can be regulated to specified temperature;

Smart structure to assure the heat radiation efficiency and avoid the moisture problem;

Up to 40 degrees temperature drop ensures high quality image with low noise;

Up to 1 hour long time exposure;

USB3.0 5Gbit/second interface ensuring high speed data transmission;

Ultra-FineTM color engine with perfect color reproduction capability;

With advanced video & image processing application RisingView;

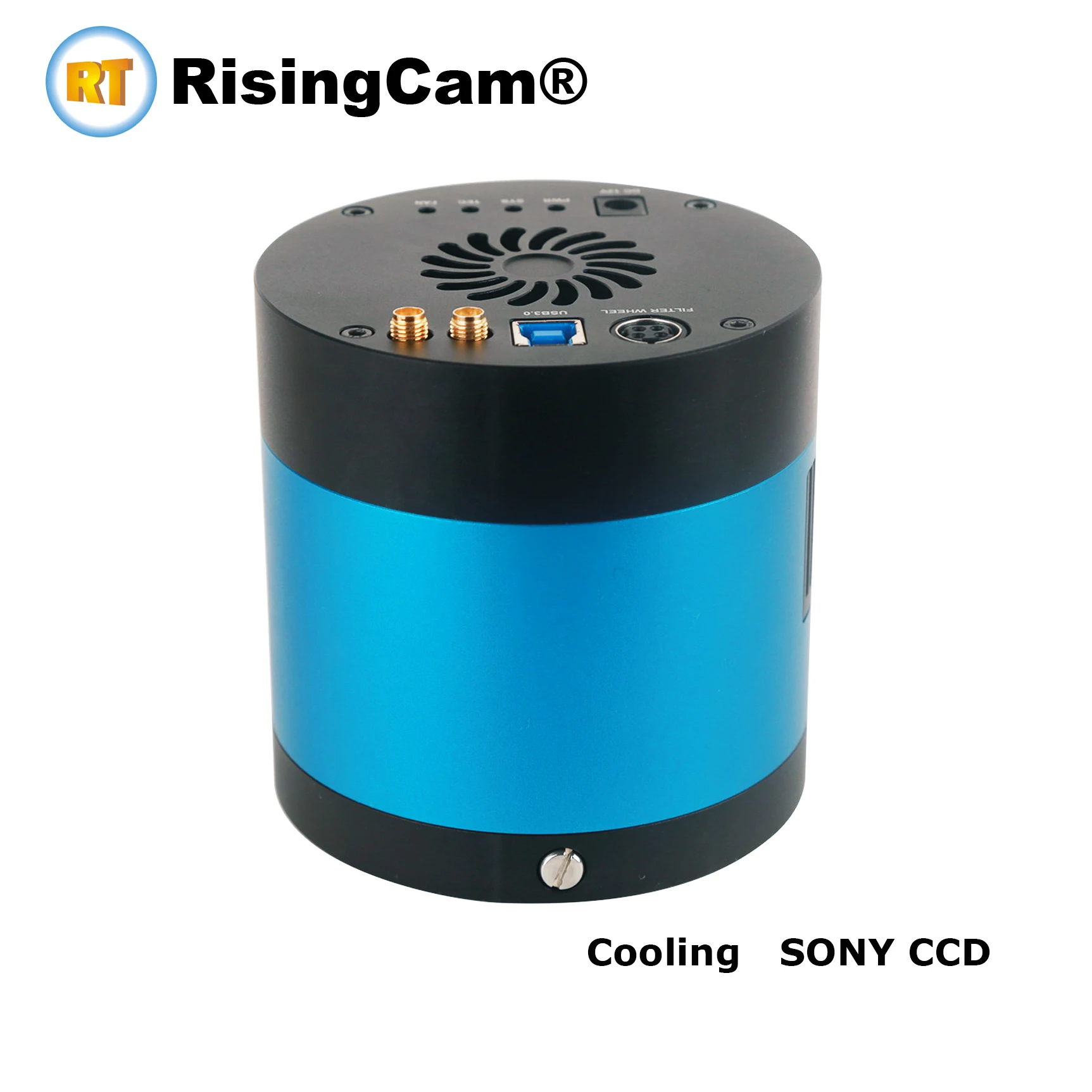

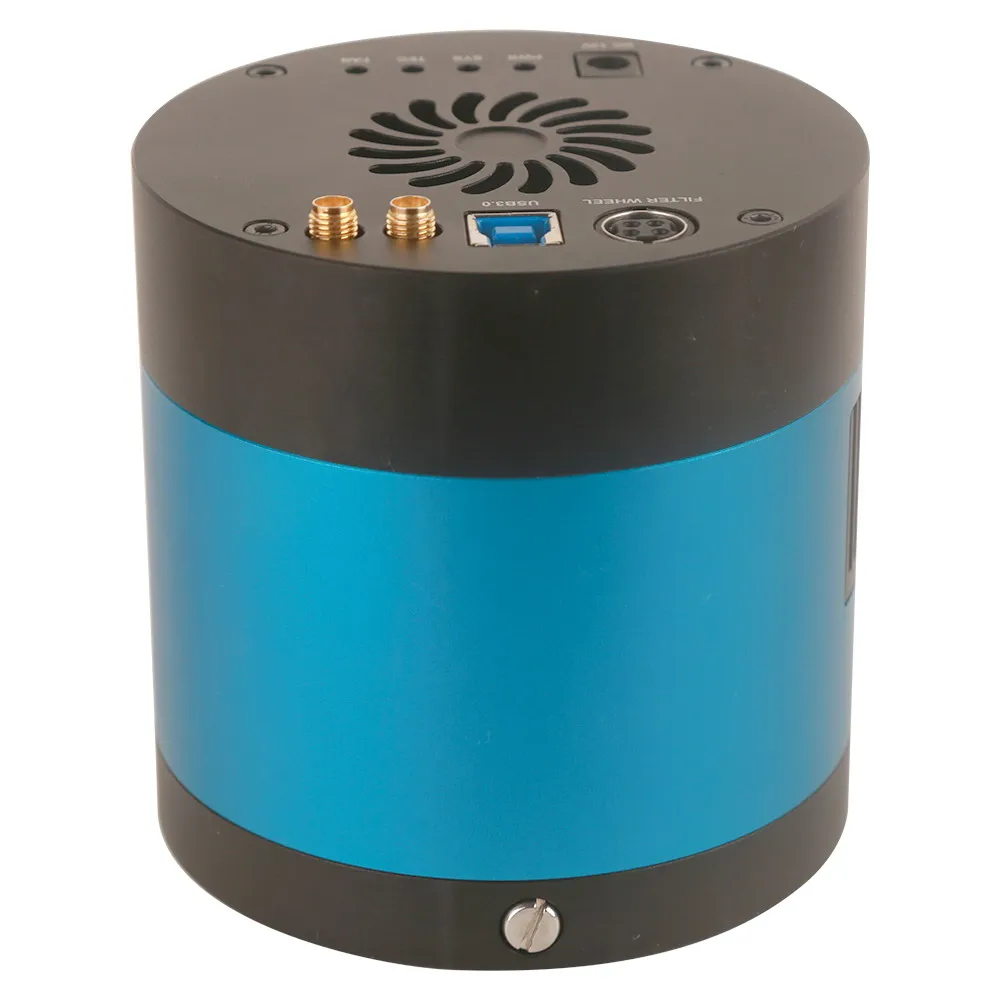

RisingTech MTR3CCD camera is an Microscope Temterature Regulated USB3.0 CCD camera and it adopts Sony Exview HAD CCD sensor as the image-picking device.

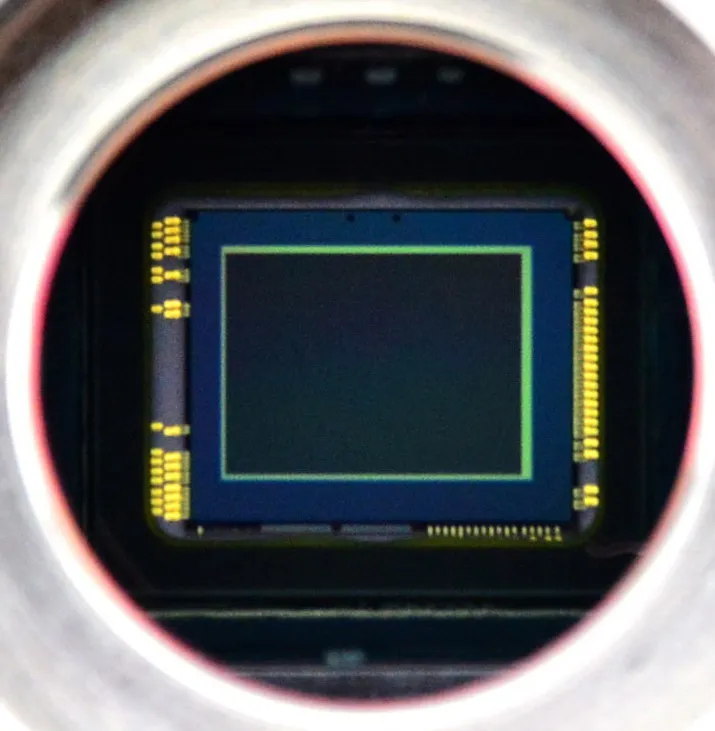

Sony Exview HAD CCD is a CCD that drastically improves light efficiency by including near infrared light region as a basic structure of HAD (Hole-Accumulation-Diode) sensor.

MTR3CCD comes with advanced video & image processing application RisingView;

The MTR3CCD can be widely used in low light environment and microscope fluorescence image capture and anaysis.

Working temperature can be regulated to specified temperature in 5 minutes;

Excellent Sensitivity Including the Near IR
Excellent Image Quality
Exceptional Dynamic Range
Minimal Motion Blur For Sharp images at Higher Shutter Speeds

Sony EXview HAD CCD technology increases sensitivity and compared to other CCD, offers improved quantum efficiency, reduced smear, and increased sensitivity, including into the near infrared.

The EXview HAD CCD II is an evolved version of the well known EXview HAD CCD technology further increasing sensitivity as well as extending higher sensitivity into the near-IR range.

Model No

Sensor & Size(mm)

Pixel(um)

G Sensitivity

MaxFPS/Resolution

Binning

Exposure

Dark Signal

MTR3CCD

1.4mp/ICX285AQA

(color sensor)

6.45*6.45

1240mv with 1/30s

15fps@1360x1024

1x1

0.07ms~3600s

2/3"(8.88x6.70)

10mv with 1/30s

OTHER HARDWARE CONFIGURATION

Spectral Range

380-650nm (with IR-filter)

White Balance

ROI White Balance/ Manual Temp-Tint Adjustment

Color Rendering Technique

Ultra Fine Color Engine

Recording System

Still Picture and Movie

Cooling System

Two-stage TE-cooling System -45C below Camera Body Temperature

OPERATING ENVIRONMENT

Operating Temperature

-10C--50C

Storage Temperature

-20C--60C

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port

External Power Adapter for Cooling System, DC12V, 3A

SOFTWARE ENVIRONMENT

Operating System

Support Microsoft  Windows  XP / Vista / 7 /8 /10 (32 & 64 bit)

OS X (Mac OS X), Linux (Note:  RisingView for Windows OS are Full verion as follow picture.    RisingView for MAC and Linux are Simple Version without Measurement and other  Process function)

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory: 2GB or More

USB port: USB2.0 High-speed Port

Display: 17 inch or Larger

CD-ROM

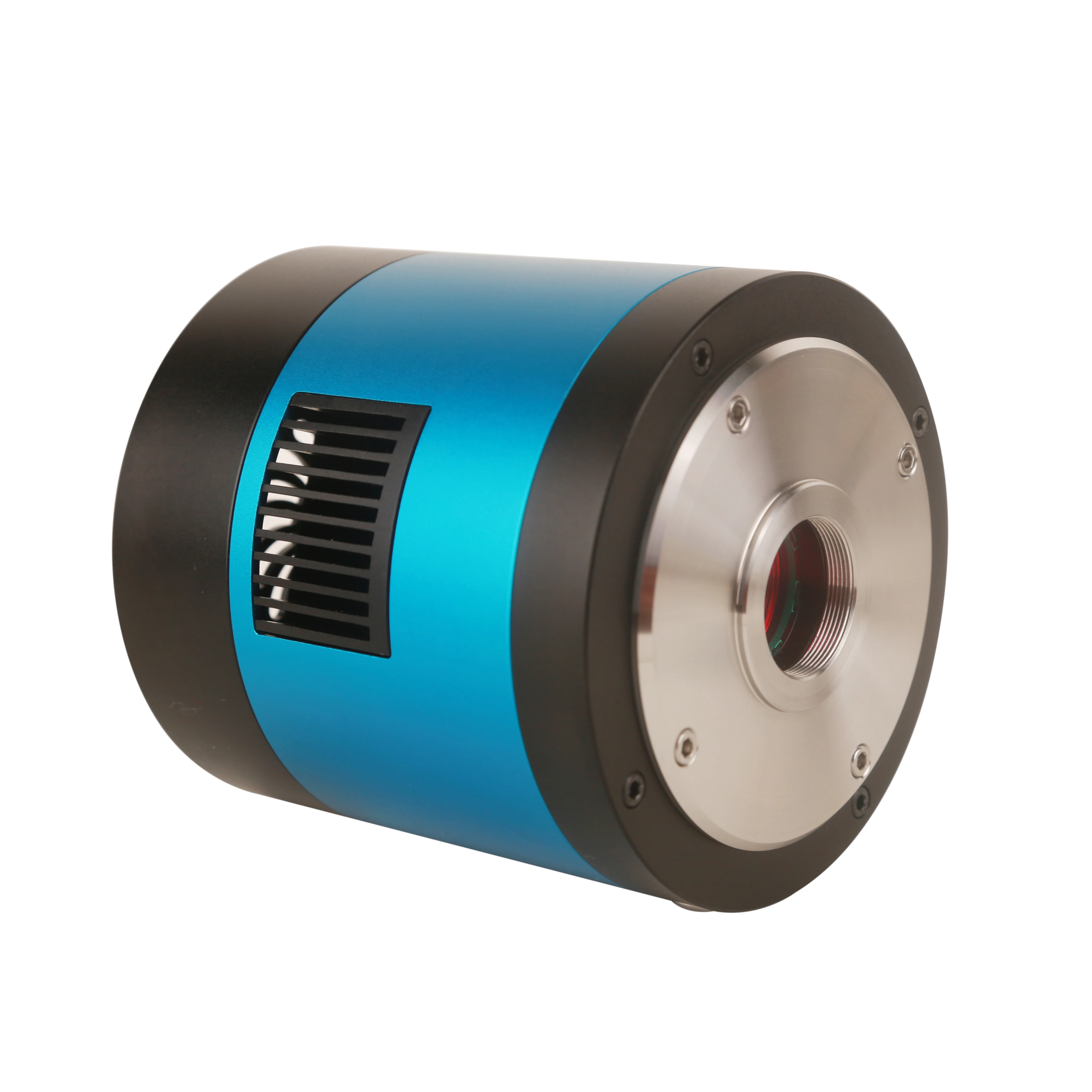

The MTR3CCD Series USB3.0 CCD Camera body, made from tough, alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

Human Cell Mucus Membrane

Dog squamous Epitheblium

Daphina

Earthworm

Fluorescence Image sample picture

Standard Camera Packing List

A

Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton), not shown in the photo

B

Gift box L:28cm W:23cm H:15cm (2.8Kg/ box); Carton size:L:28.2cm W:25.2cm H:16.7cm

C

MTR3CCD series camera

D

Power adapter: input: AC 100~240V 50Hz/60Hz, output: DC 5V 4.5A

E

High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m

F

CD (Driver & utilities software, 12cm)

Optional Accessory

G

Adjustable lens adapter

C-mount to Dia.23.2mm eyepiece tube

108001/AMA037

(Please choose 1 of them for your microscope)

108002/AMA050

108003/AMA075

C-Mount to Dia.31.75mm eyepiece tube

108008/ATA037

(Please choose 1 of them for your telescope)

108009/ATA050

108010/ATA075

H

Fixed lens adaptor

C-mount to Dia.23.2mm eyepiece tube

108005/FMA037

(Please choose 1 of them for your microscope)

108006/FMA050

108007/FMA075

C-mount to Dia.31.75mm eyepiece tube

108011/FTA037

(Please choose 1 of them for your telescope)

108012/FTA050

108013/FTA075

Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera), RisingTech engineer will help you to determine the right microscope or telescope camera adapter for your application;

I

108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube

J

108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube

K

External trigger control line

L

Calibration Lit

106011/TS-M1(X=0.01mm/100Div.);

106012/TS-M2(X,Y=0.01mm/100Div.);

106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
