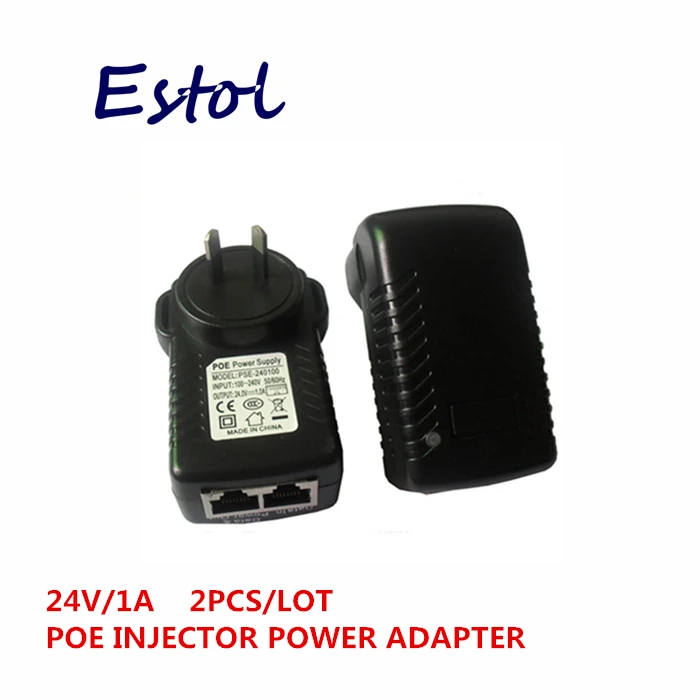

Australia AUS DC 24V PoE Power Adapter 1A 10/100Mbps Injector Over Ethernet power plug poe switch | Компьютеры и офис

DC24V 1A 10/100Mbps PoE Injector Power Over Ethernet Adapter,Australia standard power plug,poe switchRelated Products

IntroudctionThis Non standard active PoE injector is a simple and convenient power supply equipment for PoE or Non PoE devices via only an Ethernet cable, which will save your trouble about power line cabling and save cost. while it does not have auto detection function and directly supply power to the network devices by force as soon as you connect them.In order to protect them from burning,pls be sure that your powered device support  power pin 4/5(+),7/8(-).
Tips:this the AUS standard plug,we also supply USA,EU,UK PoE adatper,if you need,please contact me with options.Main Specifications1. Power Output1) Rated voltage: DC24V2) Rated current: 1A3) Current range: 0~1A4) Ripple: 480mVp-p5) Rated power: 24W6) Voltage tolerance: ±3.0%7) Setup, rising time: 500ms, 50ms at full load8) Hold up time: >5ms at full load9) Power pin: 4&5(+), 7&8(-); Data Pin: 12362. Power Input1) Rated Voltage range: 100~240VAC2) Frequency range: 47~63Hz3) Efficiency: >80% (min)4) AC current: 1A(max)5) Leakage current: < 0,25 mA at 250 V6) Inrush current: < 40 A at 230 V3. Power Protection1) Protection Short circuit: Yes2) Over load protection: Yes3) Over power protection: Yes4. Environment1) Working temp: 0 ~+40°C2) Working humidity: 20 ~90% RH non-condensing3) Storage temp & humidity: -20~+85°C, 10~95% RH4) Vibration: EN 61131-25. Safety & EMC1) Standards: design refer to EN609502) Withstand voltage: I/P-O/P: 3KVAC, 5mA, 60S3) Isolation resistance: I/P-O/P: 100M ohms/500VDC4) EMC: EN55022 Class B6. Others1) PoE type: Mid-span2) Lan environment: 10/100Mbps Base-T3) Mounting: Wall4) Connection: 2 pin AC plug; RJ45 connectors5) US/EU power plug optional6) Warranty Period: 2 years7. Applications: Non PoE Device such as Access Points, Routers, IP cameras, modems, switches, embedded computers,IP Phones or other network devices.Fast Ethernet 10/100Mbps DC24V 1A PoE Injector.
