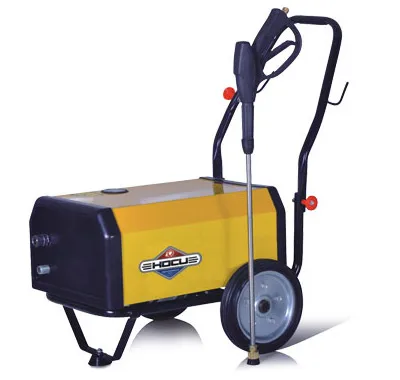

KQ-360/388 high pressure washer

Some characteristics as follows :

Model      Flow rate      working pressure  Max pressure  Power   RPM        N/G W   Dimension

KQ-360/388   < 20.36L/Min       1000psi             1200PSI         3kw   1440r/min 52/56kg 560*350*270mm

Direct dirve motor, triple piston pump , compact design , light weight and low maintenance

Clean surface of skyscraper, terrace, bathing pool, swimming pool, window, floor. Especially for dislodged dirt, grease, grim, and impermeable surface.

Features:
1) High working pressure
2) Low flow
3) Electricity leaking protection
4) Special spare parts
5) Long life span
6) Easy to move
7) Can be used by all types of vehicles, such as saloon cars, passenger
cars, trucks and other special vehicle
8) Working pressure: 5- 9MPa
9) Max. pressure: 10MPa
10) Average flow rate: <5.5L/min
11) Power: 1.6kW
12) Power supply: 120V

Min. Order Quantity 30 Piece/Pieces
FOB Price
Port SHANGHAI
Payment Terms L/C T/T
Production Capacity 10000 Piece/Pieces / Week
Packaging Details standard cargo carton
Delivery Time 15-30days
Product Type public

Applications:
KOCU KQ-360/388 type pressure washer, washing machines and other household products. Widely used in the manufacture repair and maintenance, repair and other services as well as printing and dyeing industry, agriculture, aviation, ships, docks, construction and other construction machinery and equipment.
The washing machine is mainly used
1. All kinds of motor vehicles, construction vehicles, construction machinery and agricultural machinery for cleaning and maintenance.
2. Food Processing Machinery and hotels, restaurants kitchen decontamination.
3. The livestock epidemic prevention, disinfection and daily barn cleaning.
4. facades, floors, baths, swimming pool cleaning.

Use and maintenance

 1. After a single box according to the packing check clear, with spare parts and documents shall be properly kept.

 2. Remove the body and pushing the equipment, cut the nylon cable ties, remove the air cushion film, remove the support on the frame to push the inner into the rack, with hexagonal bolts M840, light springs, flat washers, hex nut threads tight.

 3. pump to inject L-AN46 ~ 48 (old grade 30 # -40 #) oil standard oil to 1/2 position.

 4. Check the connection nut screw is loose.

 5. The machine will move locations, carefully check that the power meets the standard requirements.

 6. commutation gun nozzle can help you achieve fast switching on the fan-shaped nozzle hole or round hole nozzle; scallops nozzle for cleaning large areas of soil surface; circular hole nozzle used for surface cleaning dirt particularly serious. Reversing nozzle realize just turn off after commutation trigger spray bar rotates 180 degrees after boot.

 7. Connect the high pressure hose: the hose fitted with quick coupling one end of the machine is connected to the outlet quick connector connected, the other end of the hose is secured to the gun trigger valve body.

8. The inlet end of the nut and equipment inlet connected to the other end of the sleeve on the tap, tighten the nut, connected to water, power and then turn on the trigger, and so on to enter the working state within the machinery after a clean air discharge. If the water tank to pump water, first put into the water tank, and then turn on the trigger power, and the inlet filter must be installed.

9. cleaning operations:

Remove the gun, remove the plastic bag.

1).  if using pistols, it can be used directly, as shown in (picture A) below.

A.  B. C.

2). if using guns, then put Figure (a) rotary head shown in the diagram (Picture B) A barrel end as shown in FIG fastening (picture A) original nozzle at the nozzle secured in Fig. (Picture B) B-side installation Figure (Picture C.) below.

The nozzle and the surface to be cleaned should not be too far a distance. When performing cleaning operations, both hands must grip the handle and trigger valve lance.

10. KQ360 / when KQ360A cleaning operations, equipment pressure not exceeding the working pressure (5MPa) is appropriate, if you have special needs, they can be raised to the maximum pressure pressure equipment (6MPa); KQ388 / when KQ388A cleaning operations, pressure equipment to not more than the working pressure (7MPa) is appropriate, if you have special needs, can also be raised to the maximum pressure equipment pressure

Picture D.

(8MPa). However, note that the state machinery in continuous operation at maximum pressure must not exceed 10 minutes, boost regulator carried out in the injection state.

11. The new machine after 20 hours, the oil must be replaced. When put the oil, tilt the machine to be exhausted within the oil pump, and then inject diesel, cleaning pump cavity until the release of diesel clean up, and then re-injected into the oil, this point is very important for prolonging the life of equipment. When accumulated to 100 hours and then use the same method to change the oil after every 100 to 200 hours change the oil again.

12. unused for long periods, the machine should be left to pump water drain, is to leave the water inlet pipe water supply system, power dehydrating operation about half a minute, and remove the high pressure hose to drain the remaining water inside the net tube.
