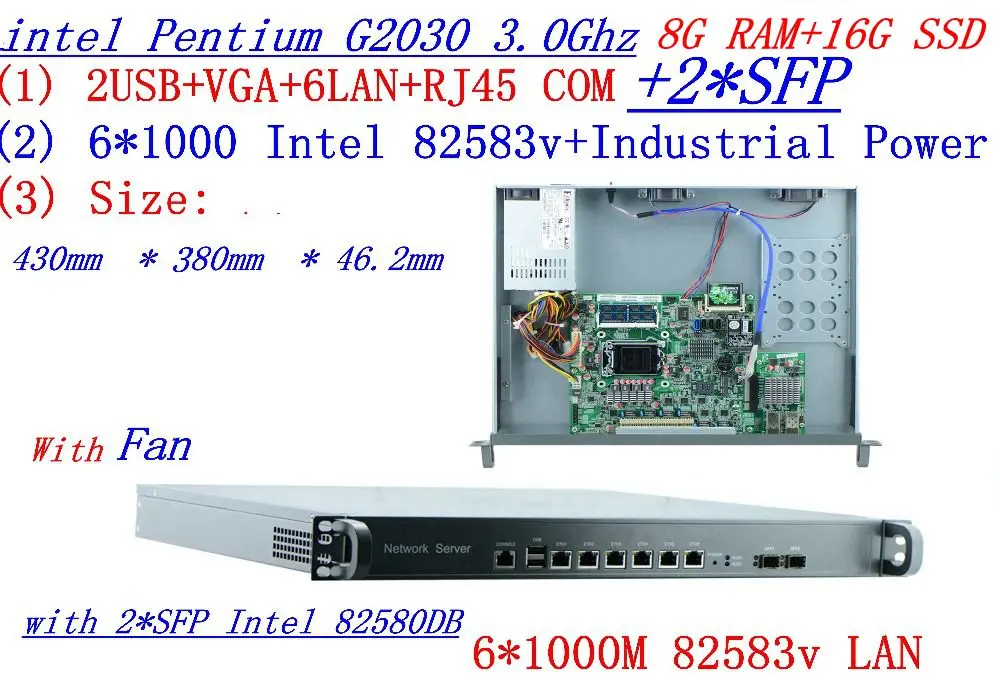

INTEL G2030 3.0Ghz 1U rack type firewall server with 6*1000M 82583v Gigabit LAN 2*SFP Support ROS/RouterOS 8G RAM 16G SSD | Компьютеры и

INTEL G2030 3.0Ghz 1U rack type firewall server with 6*1000M 82583v Gigabit LAN 2*SFP Support ROS/RouterOS 8G RAM 16G SSD | Компьютеры и

Model NO.

1U380SF_H67SL_O

CPU

Support LGA1155 intel Pentium G2030 Dual Core 3.0Ghz

Chipset

Using Intel® B75 Express Chipset

Memory

Dual-channel SO DDR3 1333/1066 memory slot, Max. up to 16GB

Display port

1* DB15 VGA port

Network Function

Integrated 6* Intel 82583V 10/100/1000Mbps Ethernet

2*Intel 82580DB 1000Mbps SFP+ Optical fiber

Supporting Wake-on-LAN and PXE function

Wireless Network

Providing 1* Mini-PCIE slot, support WIFI/3G module

Storage

Providing a 3.5/2.5inch SATA disk location

Support RAID 0,1,5,10

1* MSATA slot, support SSD 6Gbps

1* CF card slot

Panel Port

1* COM(CISCO Standard Interface)

2* USB 2.0 port

6* LAN port

2* Fiber socket

1* POWER Switch

1* POWER_LED, HDD_LED Indicator

1* VGA port (Rear panel)

Cooling system

1* CPUFNA, 2* SYSFAN

Operating Temp.

-0°C~50°C

Storage Temp.

-20°C~70°C

Humidity

5%-95% (relative humidity; non-condensing)

Anti vibration

5~300Hz/random operating

Power

ATX Power supply

Installation

1U chassis frame

Material and Process

Surface sandblasting oxidation process(Silver gray)

Size

430mm(L)* 380mm(W)* 46.2mm(H)

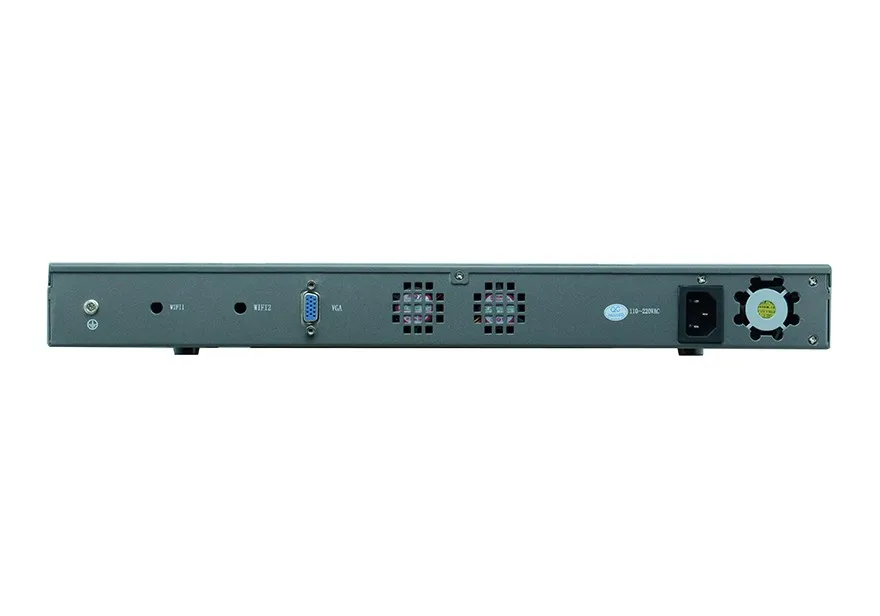

back I/O:

Console

USB*2

Lan*6 1000M

2*SFP 82580DB

VGA

With Fan

Factory direct sale, We ensure the best price , best quality! Welcome OEM ODM! Chassis can be customized, motherboard , front panel PVC LOGO , software can be OEM customized.

Equipment can be installed by RouterOS latest official stable version v5.25 Genuine clone can upgrade into L6 authorized official 6.x, you can reinstall. Can choose the front PVC panel without any logo, Intel B75 chip , 6 * 1000M intel pci-e network port +2*SFP 82580DB, 1-2G/DDR3 , 4GB-8GB industrial SSD, ROS L6 authorized 6.x can upgrade.

Configured

​CPU:G2030 3.0GHZ

RAM:8G RAM

DISK CAPACITY:16G SSD

OS:NO

Parameters

Intel Pentium G2030

The main parameters

Model

Pentium G2030

Chip factory

Intel

Interface Type

LGA 1155

Core Type

Ivy Bridge

Production

22 nm

Cores

Dual-core

Threads

Dual thread

Frequency

3.0GHz

Three cache

3M

Function parameters

Shows the core model

Intel HD Graphics 2500 Core Graphics

Support memory frequency

DDR3 1333MHz

Working Power

55W

Other parameters

Properties Keyword

64-bit processor, dual-core processor

Detailed configuration

B75 82583V

NIC : intel PCI-E 1000M 6 * 82583V+2*SFP 82580DB

Motherboard : intel B75 chip supports a full range of 1155 -pin CPU including XEON E3 series

Power : Genuine best quality supply rated power 250 watts maximum power of 300 watts ( not small HTPC power which can ensure I7 series CPU power)

Software: Support ROS/RouterOS, Mikrotik,PFSense,Panabit,Wayos with intelliegent flowcrl,Monowall,Radius_Manager, BYTEVALUE, netzone webcache, hi-spider, ikuai8, and so on

Built- SSD hard drive bracket, you can directly install the SSD

The new chassis, new blue plate

RJ45 standard COM port , compatible with cisco standard , built-in standard SATA interface , minipci-e interface can be installed SSD, scalable wifi wireless card. With VGA easy debugging (optional without VGA interface ) , front 2 USB interfaces , No need disassemble the chassis, and can reinstall the system ( providing tutorials) , optional 2.5-inch hard drive, Can contact us for different configuration requested by you.

Standard 1U size  430mm(L)*380mm(W)*46.2mm(H)  for a variety of conventional machines
