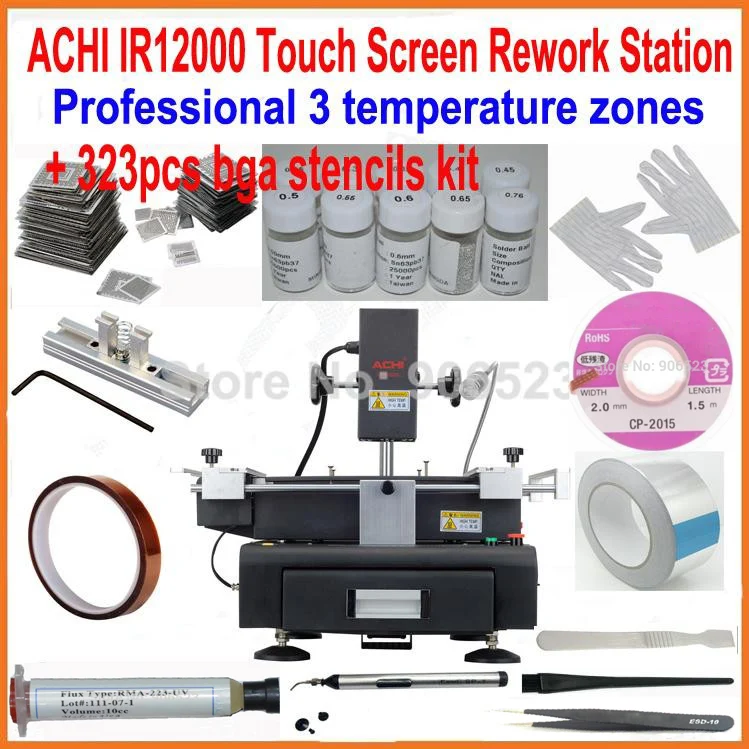

Original ACHI IR12000 bga rework station +323pcs bga stencils solder flux reball station completely 20 in 1 bga reballing kit

Note : this price is  not included remote area delivery cost if there is delivery remote area of your shipment address,we will need charge 33USD for remote area delivery cost .you can also tell us your city name and zip code for we check for you .thanks for your cooperation

packing list:

(1) ACHI IR12000 DARK IR BGA rework station  1 set

21 in 1 reballing kit list :

(2) heated directly reball station  x  1 piece

(3) 25K lead solder ball  x 10 bottles (0.25mm 0.30mm 0.35mm 0.40mm 0.45mm 0.50mm 0.55mm 0.60mm 0.65mm 0.76mm )

(4) most completely bga stencils template x 323pcs

(5)RMA223-UV lead solder flux 10cc  x  1 piece

(6)BGA high tempeature tape x 1 roll (0.6cm*20M)

(7)Aluminum foil tape x 1 roll (30mm*40M)

(8)ESD-10 anti-static tweezer  x 1 piece

(9)Scraper x  1 piece

(10)Anti-static gloves x 1 pair

(11)939 vacuum sucktion pen x 1 piece

(12)Desoldering wick x 1 roll (20mm*1.5M )

(13)Anti-static brush  x 1 piece

Features

1.  ELSTEIN RFS/80 400 Ceramic (Made in Germany,CE Passed)

2. 3 temperature zones

3. USB Ports

4. Top heater can be up, down, left, right.

5.  Drawer design 7” high definition touch screen

6.  MCGS systerm, easy operate and conrtol.

7.  Programmable PLC controller

8. Emergency stop buttom

9. Easy operate

10. With LED light.

11. Operation interface can be English,  Spanish,  Portuguese.

12. Automatic force air cooling.

13. CE approval.

Specifications

Total Power

3650W

Voltage

AC 220V+-10%   50/60Hz

Heating Zone

3 zones,top,bottom and preheating

Upper heater ceramic

ELSTEIN RFS/80 400 Ceramic(Made in Germany,CE Passed)

Upper Heater

Infrared 400 W

Size of upper heater

80*80mm

Bottom heater

IR 2400W, Hot air 800W,total 3200W

Bottom heater size

350*210 mm

PCB size

Max. 500*400mm / Min.22*22mm

BGA chip size

Max. 80*80mm / Min.2*2mm

Positioning

V-groove PCB

Temperature control

K-Type temperature senser and close loop

Temperature accuracy

+- 2 degree

Curve display

On drawer design 7'' high definition touch screen

Operation temperature

15 ~ 45 degree

Operation humidity

5% to 95%, non-condensing

Machine dimension

635*600*560mm

Net Weight

42kg

Item pictures

Accessories detail pictures

323pcs heated directly stencils list can be offer , please contact us !
