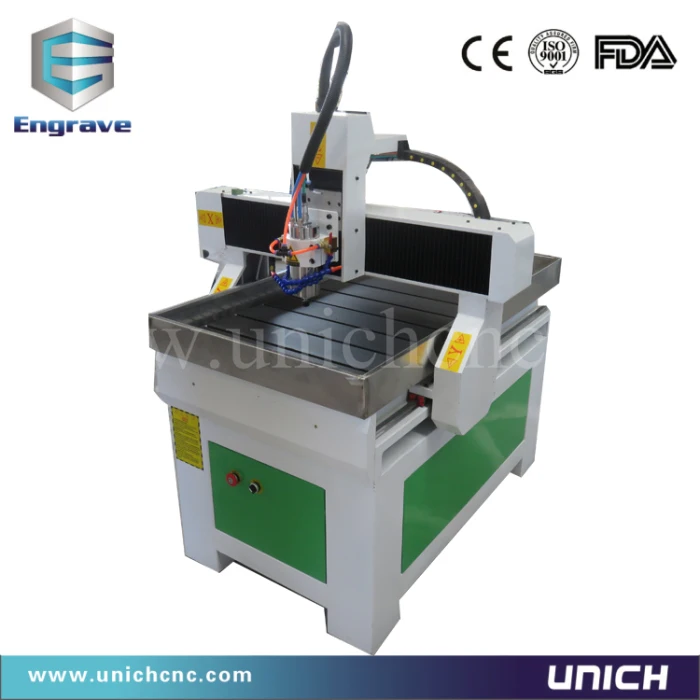

China unich small cnc router/LXM0609 CNC router machine/machine cnc router

 Other model cnc router machine

 Machine features

1.1.5 kw air cooling spindle(top brand in China),with high precision and strong power.

2.It is good at engraving on brass, aluminum, plastic, acrylic, wood, MDF and other similar materials.  with fast speed and high accuracy, and it can meet the demand of all the needs of engraving.

3.It is equipped with the international leading NC studio control system (DSP for choice), which could memorize the breakpoint if it happens accident so that to guarantee to process in the other day..

4.With T-slot working table, holding the materials with clamps, you can do variety of high-precision works.

5.Cast iron machine bed, by vibration aging treatment, ensuring the machine not easy to deformation.

6.Imported ball screw transmission and linear round guide rail for X Y Z-axis, good stability, high precision and long life time.

7. Stainless steel water slot cooling system, cooling for the tools and materials, necessary for the metal/stone/glass processing.

 8. NcStudio control system, be controlled by computer, show the processing path and analogue simulation.

9. Diameter 80mm rotary axis with higher precision for the cylinder processing.

10. Breakpoints, power off memory way, ensuring the memory function, can continue processing if cutters break or next day working.

11. Can realize the multi-layered 3D processing, fast speed, smooth three-dimensional processing, engraving and cutting.

Machine parameter

Description

Parameter

X,Y Working Area

600*900mm

Z Working Area

110mm

Resolution

+0.01mm

Lathe Structure

Cast-iron structure

X,Y Structure

Ballscrew transmission

Z Structure

TBI  ball screw,

Hiwin square guide rail

Max. Idling Speed

8m/min

Spindle

2.2KW/1.5kw

Spindle Rotate Speed

0-24000r/min, variable speed

Inverter

Fuling

Working Voltage

AC220V/50Hz,Single Phase

Working Mode

Sub-division Stepper motor

Driver

Leadshine860

Command

G code,HPGL,U00,mmg,plt

Operating System

Ncstudio or DSP with USB interface

Diameter of cutter

φ3.175-φ12.7mm

Cooling Mode

Water-cooling

Work-holding

By Clamp

Net Weight

300KGS

Gross Weight

350KGS

Machine application

1.WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,

   cupboard doors, interior doors, sofa legs, headboards and so on.

 2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding,

   and other advertising materials derivatives making.

3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,

   PVC pipe, wooden planks and other non-metallic mold.

4.Relief sculpture and 3D engraving

5.Cylindrical object

 Machine samples

     Our company sets research and development, production, sales, maintenance services as a whole, specialized in manufacturing CNC woodworking engraving machine, CNC advertising engraving machine, laser engraving/cutting machine, laser marking machine, And distribution of plasma cutting metal machine and so on .

Our service

Training
We offer free training in our factory, welcome foreign friend come here to study the machine.
engineer oversea service is aviliable if you like, and Engineers will be trained user programming,
peration, processing and routine maintenance.
We will offer Multi-language software and operation CD, Detailed User Manual together with machine
for your reference.
On line service
24 hours (all days) technical support by call ,e-mail, skype or computer remote control service by engineer.
Guarantee time
2 year guarantee for whole machine, if any problem of components, we will express you good ones. As we
have strictly ex factory inspection, so there in no any problem of the machine.
lifetime maintenance, charge the appropriate fee and the cost of replacement parts
