Douk audio HiFi Pure Class A Power Amplifier Home Stereo Audio Single-ended Amp 15W*2 Refer Hood1969 Circuit |

Douk audio HiFi Pure Class A Power Amplifier Home Stereo Audio Single-ended Amp 15W*2 Refer Hood1969 Circuit |

Unavailable in

Inspired by Hood 1969, adopting single-ended output circuit, small harmonic distortion, class A large quiescent current, matched with active electronic filtering, the background is very quiet without noise.

Pure class A with 15W output power of each channel, which is equivalent to 80W of digital amplifier, easily to drive most home speakers.

Filter is integrated into the amplifier board, which makes the primary current shortest transmission distance and reduces the loss. Output capacitance blocking, avoids the loss of relay protection.

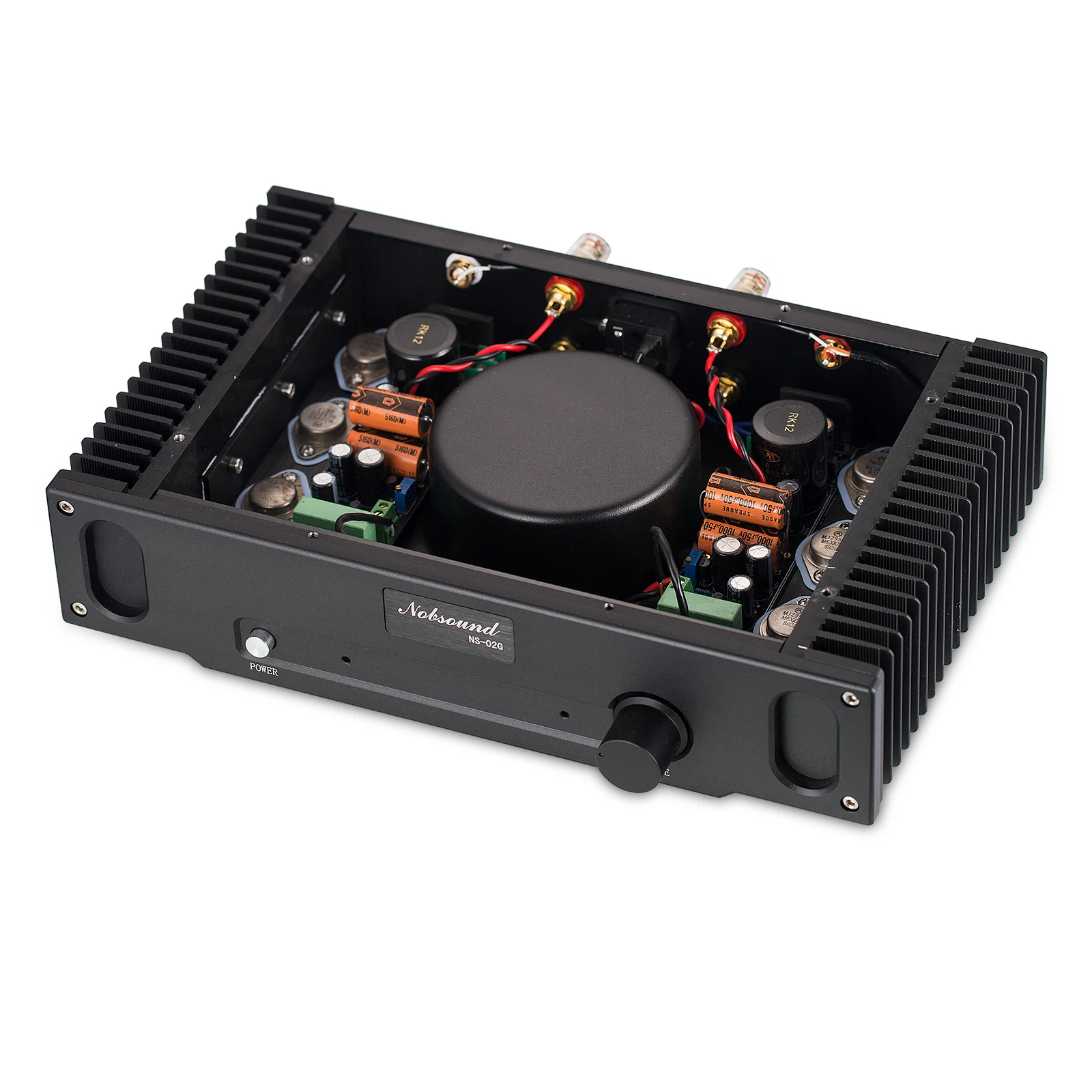

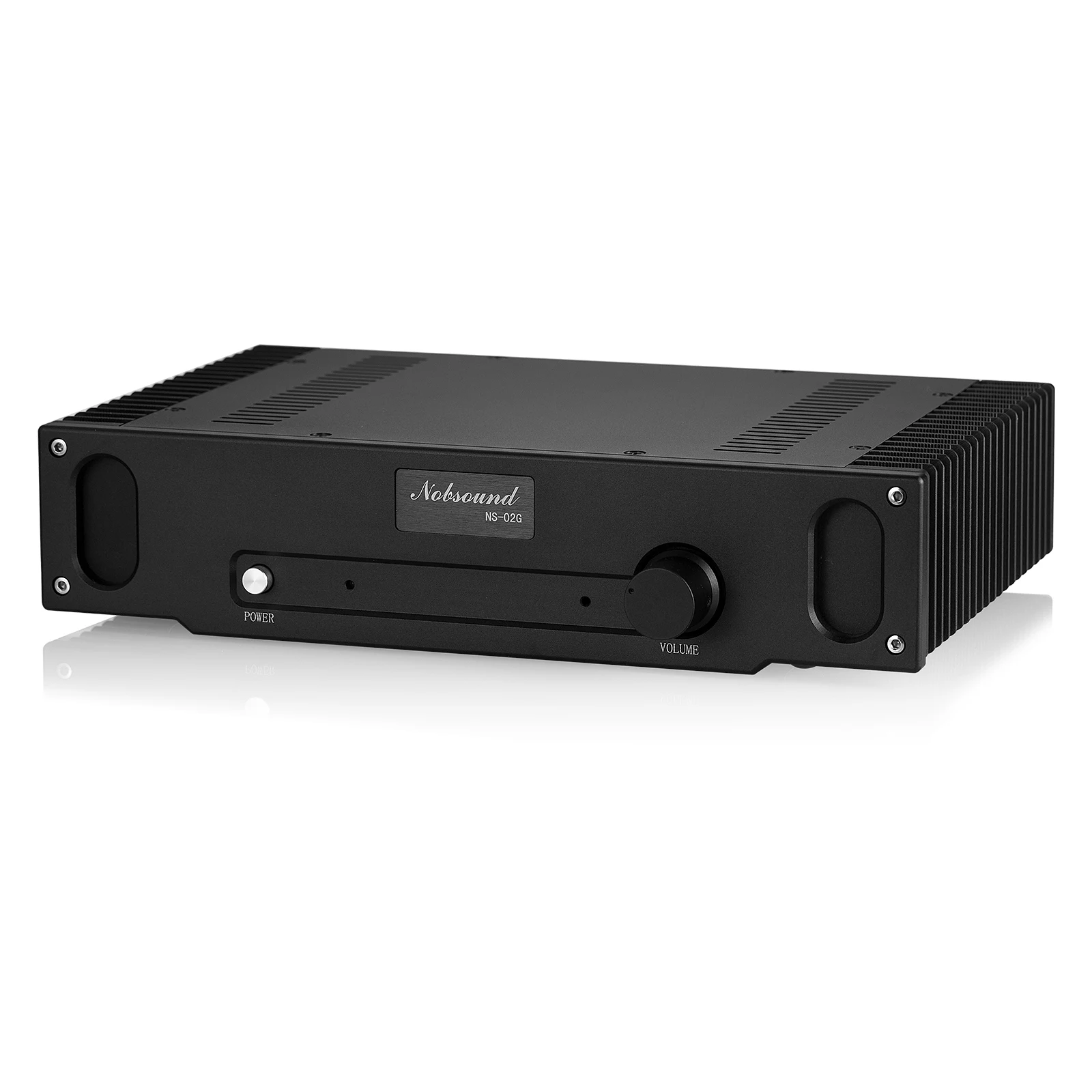

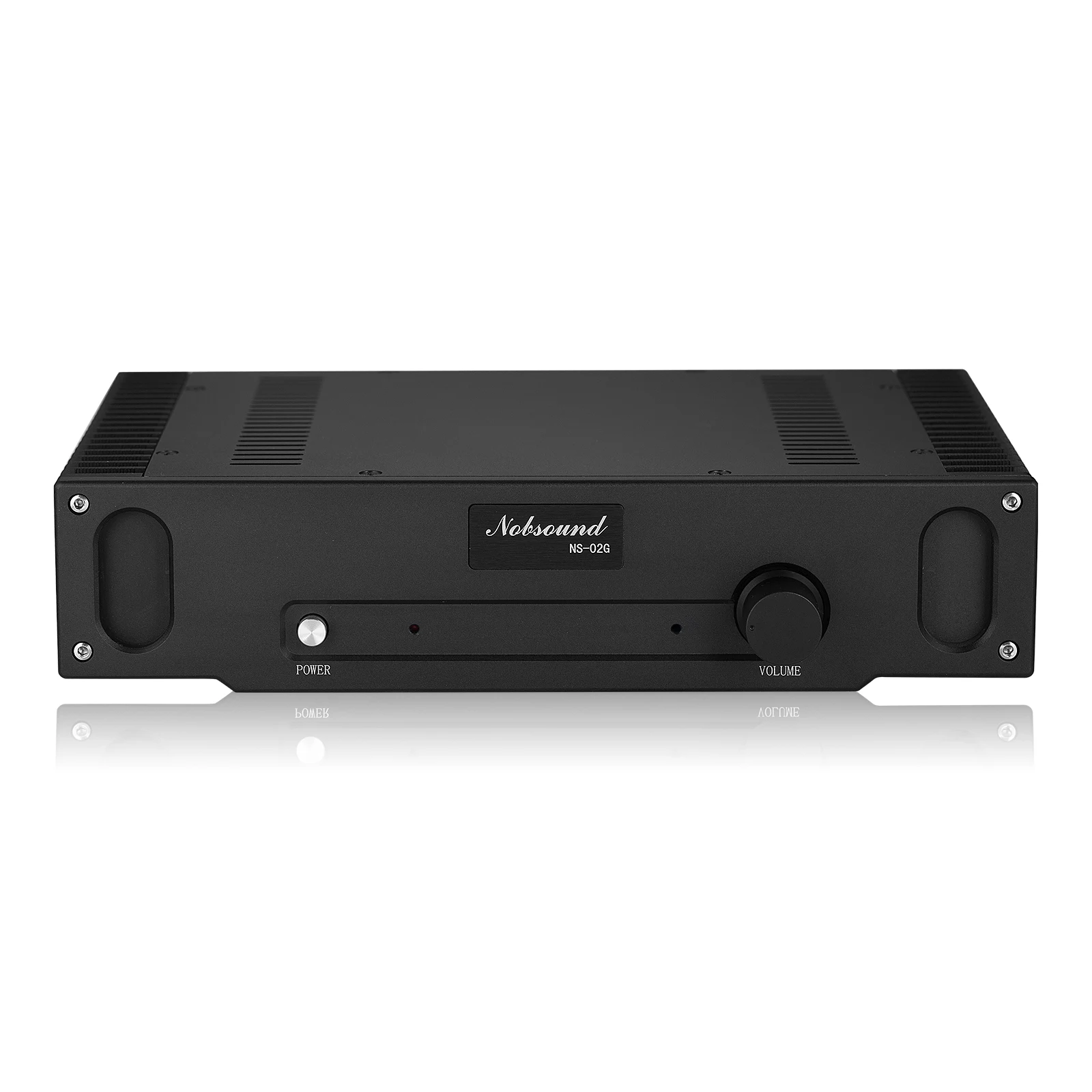

CNC all aluminum alloy, external heat dissipation chassis, laser laser engraving font, not easy to aging, no deformation.

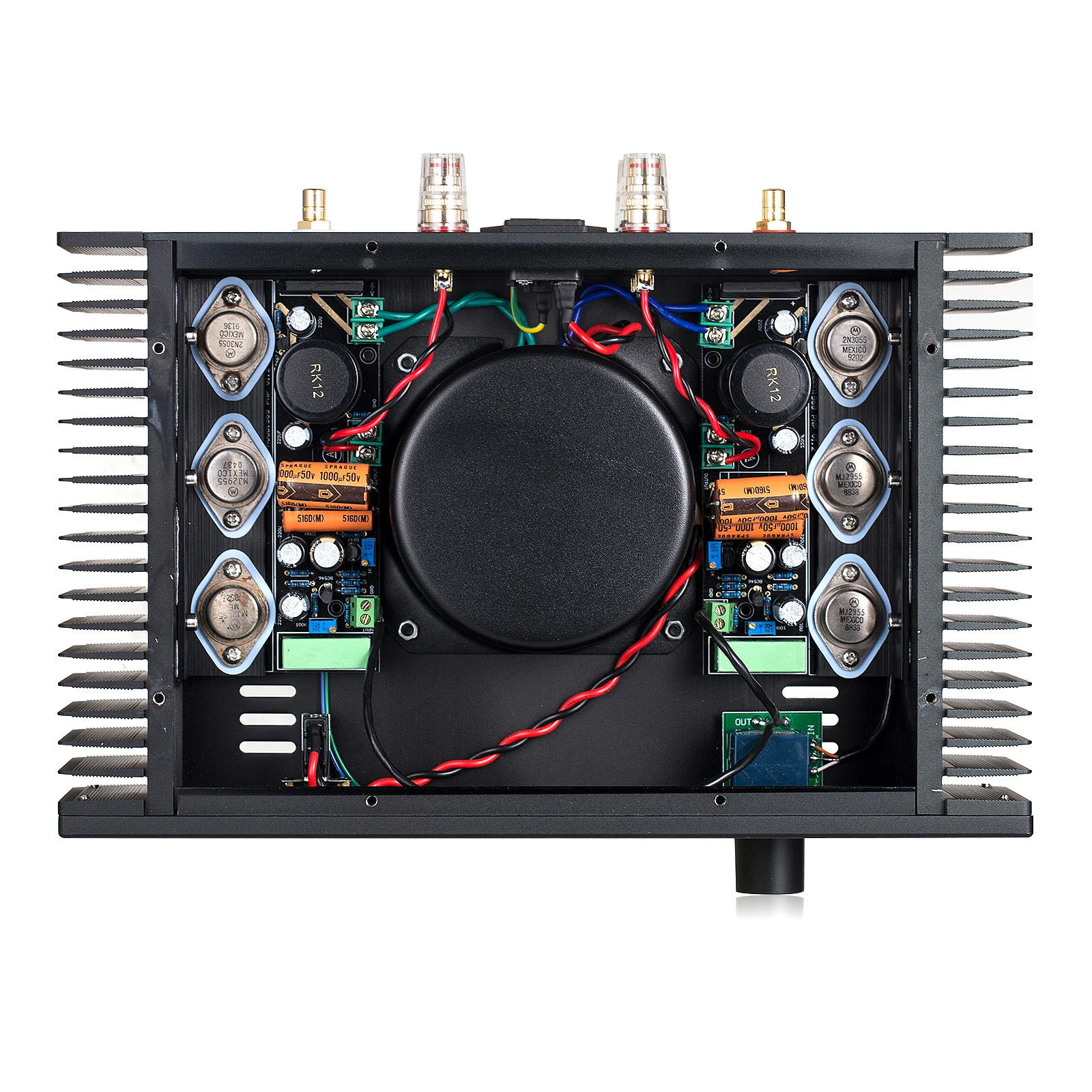

6 gold-sealed high-power transistors as electronic filter and power output, sound quality is warmer, more delicate and full, providing extremely HiFi listening experience.

High-end Materials

Frequency range: 15Hz-30KHZ (+/- 3dB)

Signal noise ratio: 93 decibels

Rated output power: 15W * 2 Class A

Output impedance: 4 to 8 ohms

Harmonic distortion: <0. 01% 1KHZ 1W

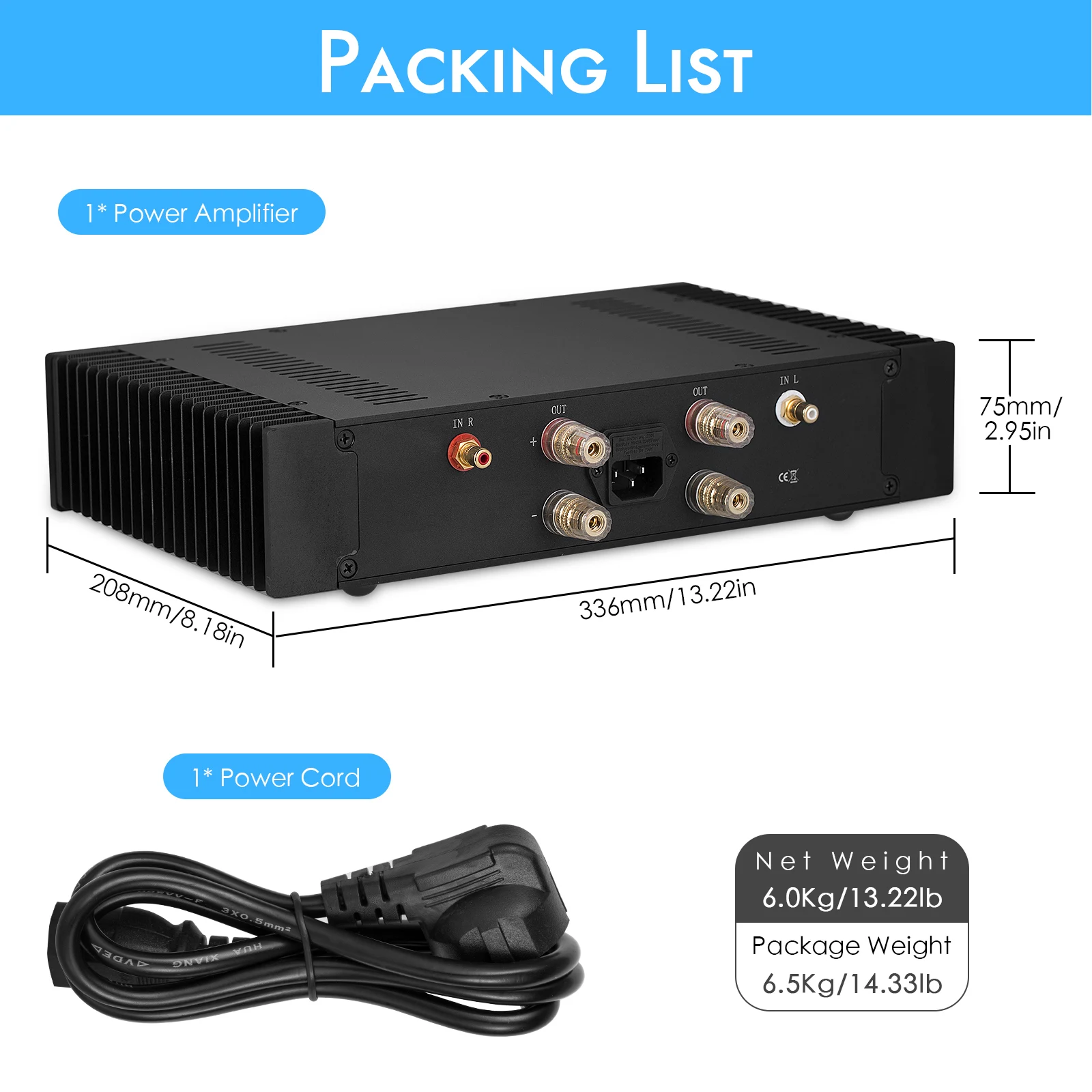

Dimensions: height 75 width 336 depth 208mm

Package weight: 7KG

1* Power Amplifier

1* Power Cord
