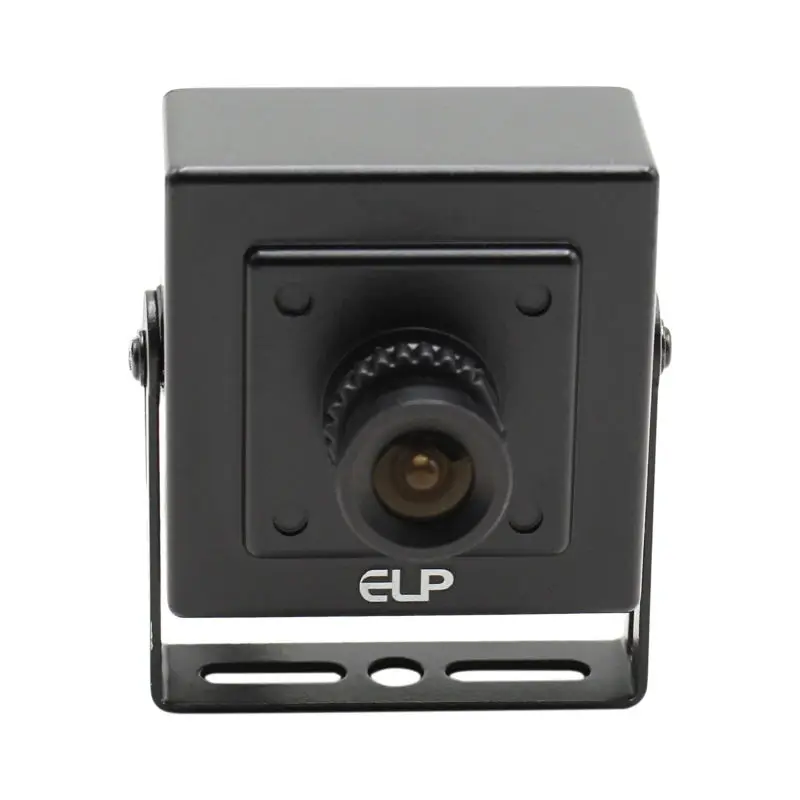

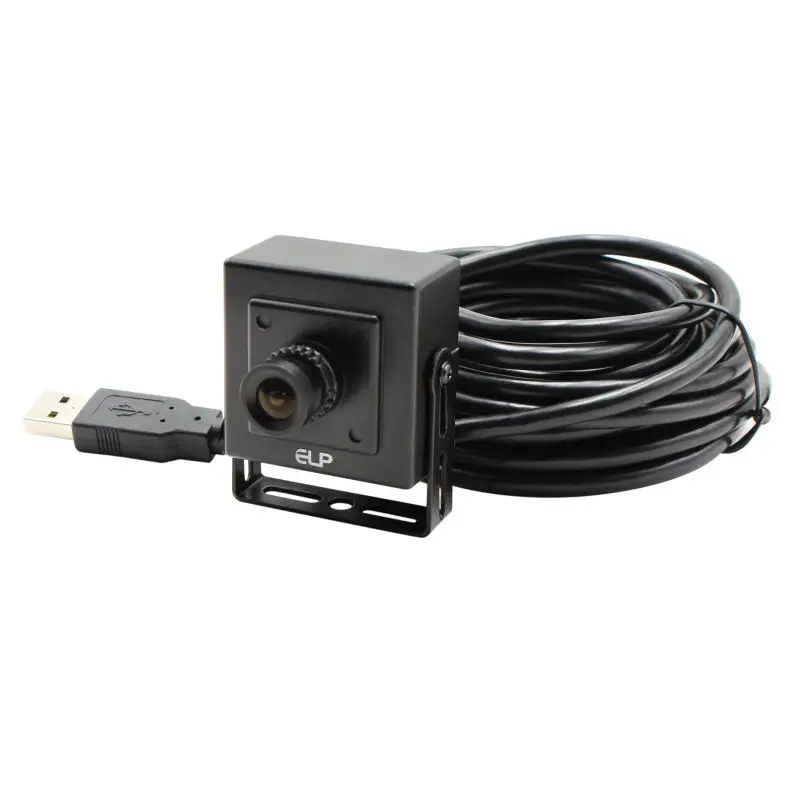

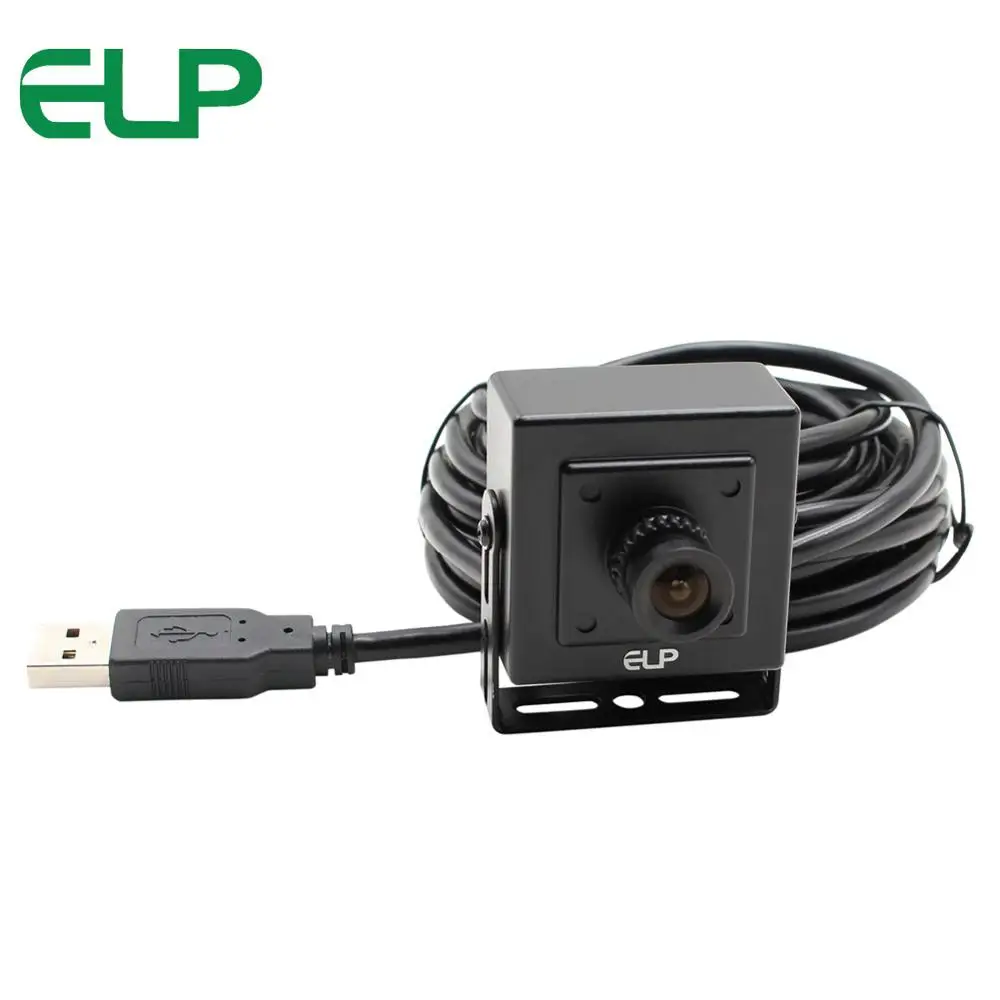

CCTV Camera USB module board 6mm lens 0.3MP VGA 640x480 30fps Video camera for Project video capture,camera module USB interface

    The low cost USB CMOS board camera module(model: ELP-USB30W04M serials) is ideal

for machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX,

advisement player, LED display, automatic vending machine, safety box, notebook, video

door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement,

door bell and button system, cat-eye system, simple security system, teaching system, Interactive

 system,  automobile data recorder. Project video capture,  credit card machine, attendance

machine, Voting system, High speed video shooting Device, exam system, Driving learning

system, Industrial camera, biological microscope, box inside surveillance,  micro HD surveillance, endoscope, Medical auxiliary equipment, etc.


 *640x480 VGA resolution USB Camera
*Support Android and Linux system
*Suport YUY and MJPEG format
*high pixel technology for sharp image and accurate color reproduction
*low light performance – ideal for any lighting condition
*Super small outline and thin profile for embedded applications
*High frame rate– deliver 60 fps in VGA
*High quality lens, true and undistorted color image
*Low power consumption – ideal for portable equipment
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above
*Camera with UVC

Lens: 8mm (2.1mm/2.8mm/3.6mm/6mm/12mm Optional)

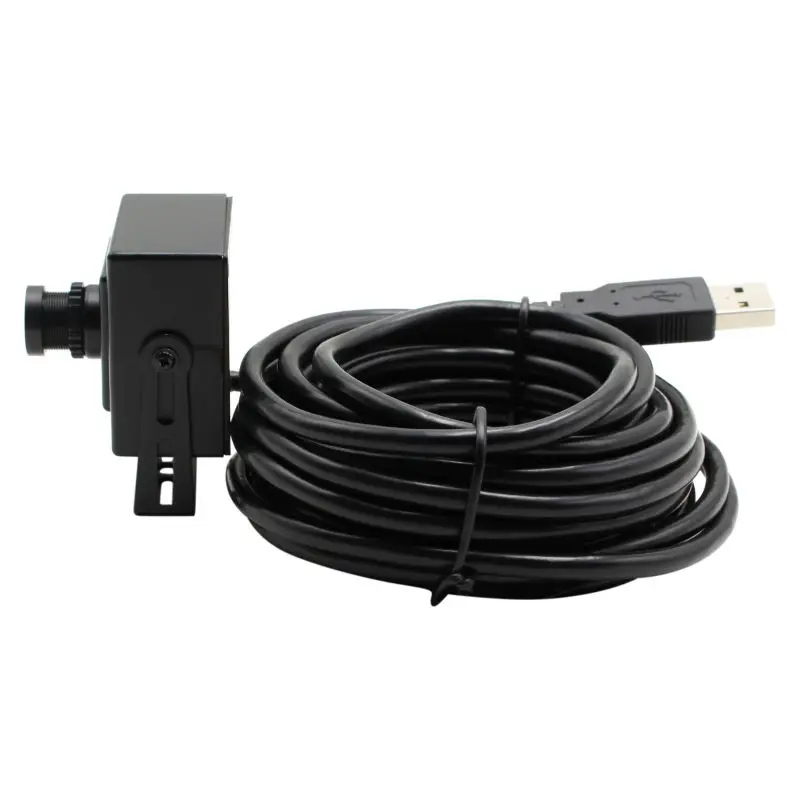

CABLE: 2m USB cable (1M/3M/5M optional)


Optional models

 ELP-USB30W04MT-BL36

Sensor

OV7725

Lens size

1/4 inch

Max. Resolution

640X480 VGA

Picture format

YUY2
MJPEG

USB Protocal

USB2.0 HS/FS
USB1.1 FS

Support free driver

USB Video Class(UVC)1.1

Auto exposure AEC

Support

Auto white blance AEB

Support

Frame rate

640 (H) x 480 (V) pixels   MJPEG: 30FPS, YUY2 30FPS

Adjustable parameters

Brightness/Contrast/Color saturation/Definition
Gamma/WB

Support resoluion

640x480 352x288 320x240 160x120

Night vision

optional, can choose IR board

view angle

30-150 degree optional

voltage

DC 5V

current

120mA

work temperature

DEGREES(-20~70)

Size

38X38, 32x32mm

Support OS

WinXP/Vista/WIN7/WIN8
Linux with UVC
Mac-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above

Effective Pixels:

640 (H) x 480 (V) pixels/352 (H) x 288 (V) pixels/320 (H) x 240 (V) pixels
/176(H) x 144(V) pixels/160 (H) x 120 (V) pixels

Performance:
640 (H) x 480 (V) pixels   MJPEG: 30FPS, YUY2 30FPS

​

Inside the case

Effect

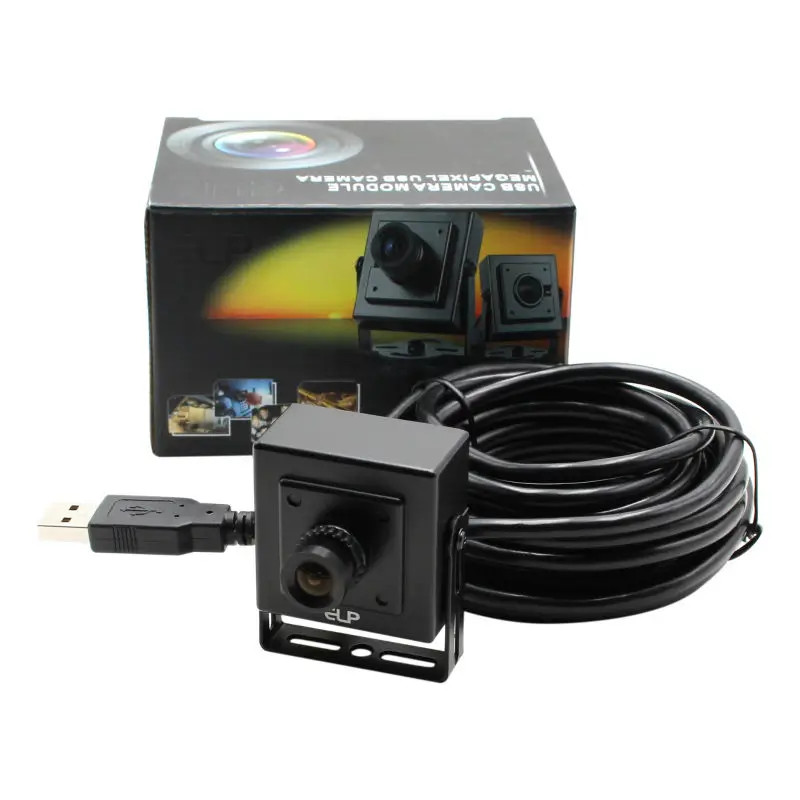

Package

Our USB Camera include VGA 640X480,1MP,1.3MP,2MP,5MP and 8MP resolution
