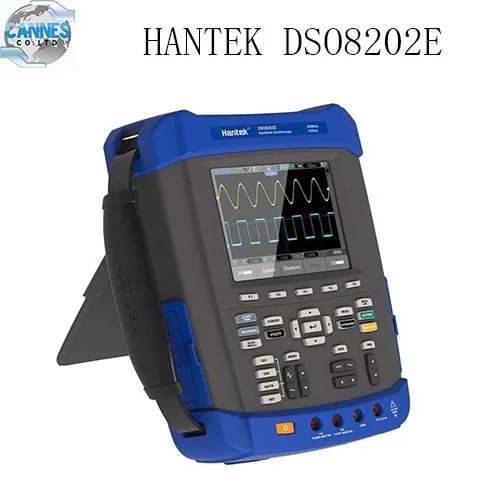

Hantek DSO8152E70MHz 6 IN1 Handheld Digital Oscilloscope Signal generator DMM Recorder Frequency counter FFT Spectral analysis

Features:

Six in one: Oscilloscope/Recorder/DMM/ Spectrum Analyzer/Frequency Counter/Arbitrary Waveform generator. IP-51 rated for dust, drip and shake proof to withstand harsh environments. Large fuse confirms to European Safety Standard. Battery indicator with easy-changed connect points. Selectable 18650 battery box for matching 18650 battery by yourself. Anti-theft lock hole, tripod fixed hole, hang rope, FLASH light that can be used in darkness. Replaceable BNC safety joints, and additional one set of joints. High bandwidth 70MHz-200MHz Oscilloscope, 1GSa/s sample rate, 2M Memory depth. 25Mz Arb. Waveform Generator, 200 Mesa/s DDS, 12 bit vertical resolution, easy for simulating transducer 6000 Counts DMM, AC/DC voltage, AC/DC current, resistance, break, capacitance, and diode function. FFT spectral analysis; Waveform Math: add, subtract, multiply and divide; X-Y mode; more than 20 automatic measurements; PASS/FAIL Check function, apply to engineering application. Abundant trigger function, double timebase sampling, easy to observe two waveforms in different frequency. Record and replay of more than 1000 waveforms. Large 5.6 inch TFT Color LCD Display; High Resolution(640*480) USB Host/Device 2.0 full-speed interface; support removable disk; WIFI/LAN Option, easy to control by PC or long-distance. Waveform data can be output in WORD, EXCEL, BMP, JPG as time and voltage.



Characteristic:

Model DSO8072E DSO8102E DSO8152E DSO8202E Acquisition Sample Modes Real-Time Sample Acquisition Modes   Normal Normal data only Peak Detect High-frequency and randon glith capture Average Wavefom Average, selectable 4,8,16,32,64,128 Inputs Inputs Coupling AC, DC, GND Inputs Impendance 1MΩ±2% ii20pF±3pF Probe Attenuation 1X, 10X Supported Probe Attenuation Factor 1X, 10X, 100X, 1000X Maximum Input Voltage CAT I and CAT II: 300VRMS (10×), Installation Category;
CAT III: 150VRMS (1×) Horizontal System Sample Rate Range 1GS/s Waveform Interpolation (sin x)/x Record Length 2M SEC/DIV Range 4ns/div~2000s/div, in a 2, 4, 8 sequence 2ns/div~2000s/div, in a 2, 4, 8 sequence Sample Rate and
Delay Time Accuracy ±50ppm over any ≥1ms time interval Scanning Speed Range 4ns/div to 8ns/div; (-8div x s/div) to 40ms;
20ns/div to 80μs/div;(-8div×s/div) to 40ms;
200μs/div to 40s/div;(-8div×s/div) to 400s; 2ns/div to10ns/div;(-4div×s/div) to 20ms; Delta Time Measurement Accuracy
(Full Bandwidth) Single-shot, Normal mode:± (1 sample interval +100ppm × reading + 0.6ns);
>16 averages:± (1 sample interval + 100ppm × reading + 0.4ns);
Sample interval = s/div ÷ 200 Vertical System Vertical Resolution 8-bit resolution, all channel sampled simultaneously Volts Range 2mV/div to 100V/div at input BNC Bandwidth 70MHz 100MHz 150MHz 200MHz Rise Time at BNC( typical) 5ns 3.5ns 2.3ns 1.8ns Analog Bandwidth in
Normal and Average
modes at BNC or with probe,
DC Coupled ±400V(100V/div-20V/div);
±50V(10V/div-5V/div);
±40V(2V/div-500mV/div);
±2V(200mV/div-50mV/div);
±400mV(20mV/div-2mV/div); Math +, -, *, /, FFT FFT Windows: Hanning, Flatop, Rectamgular, Bartlett, Blackman; 1024 sample point Bandwidth Limit 20MHz Low Frequency Response (-3db) ≤10Hz at BNC DC Gain Accuracy ±3% for Normal or Average acquisition mode, 100V/div to 10mV/div.
±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div. DC Measurement Accuracy,
Average Acquisition Mode Measurement Type: Average of ≥16 waveforms with vertical position at zero
Accuracy: ± (3% × reading + 0.1div + 1mV) when 10mV/div or greater is selected.
Measurement Type: Average of ≥16 waveforms with vertical position not at zero
Accuracy: ± [3% × (reading + vertical position) + 1% of vertical position + 0.2div]. Volts Measurement Repeatability,
Average Acquisition Mode Delta volts between any two averages of ≥16 waveforms acquired under same setup and ambient conditions Trigger System Trigger Types Edge, Video, Pulse, Slope, Over time, Alternative Trigger Source CH1, CH2, AC Line Trigger Modes Auto, Normal, Single Coupling Type DC, AC, HF Reject, LF Reject, Noise Reject Trigger Sensitivity
(Edge Trigger Type) DC(CH1,CH2):
1div from DC to 10MHz; 1.5div from 10MHz to 100MHz; 2div from 100MHz to Full;
AC: Attenuates signals below 10Hz ;
HF Reject: Attenuates signals above 80kHz;
LF Reject: Same as the DC-coupled limits for frequencies above 150kHz; attenuates signals below 150kHz. Trigger Level Range CH1/CH2: ±8 divisions from center of screen; Trigger Level Accuracy( typical)Accuracy is for signals having rise and fall times ≥20ns CH1/CH2: 0.2div × volts/div within ±4 divisions from center of screen; Set Level to 50%(typical) Operates with input signals ≥50Hz Video Trigger   Video Trigger Type CH1, CH2: Peak-to-peak amplitude of 2 divisions; Signal Formats and Field Rates Supports NTSC, PAL and SECAM broadcast systems for any field or any line Holdoff Range 100ns ~ 10s Pulse Width Trigger   Pulse Width Trigger Mode Trigger when (< , >, = , or ≠); Positive pulse or Negative pulse Pulse Width Trigger Point Equal: The oscilloscope triggers when the trailing edge of the pulse crosses the trigger level.
Not Equal: If the pulse is narrower than the specified width, the trigger point is the trailing edge. Otherwise, the oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width.
Less than: The trigger point is the trailing edge.
Greater than (also called overtime trigger): The oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width Pulse Width Range 20ns ~ 10s Slope Trigger   Slope Trigger Mode Trigger when (< , > , = , or ≠ ); Positive slope or Negative slope Slope Trigger Point Equal: The oscilloscope triggers when the waveform slope is equal to the set slope.
Not Equal: The oscilloscope triggers when the waveform slope is not equal to the set slope.
Less than: The oscilloscope triggers when the waveform slope is less than the set slope.
Greater than: The oscilloscope triggers when the waveform slope is greater than the set slope. Time Range 20ns ~ 10s Overtime Trigger   Over Time Modee Rising edge or Falling edge Time Range 20ns ~ 10s Alternative Trigger   Trigger on CH1 Internal Trigger: Edge, Pulse Width, Video, Slope Trigger on CH2 Internal Trigger: Edge, Pulse Width, Video, Slope Trigger Frequency Counter   Readout Resolution 6 digits Accuracy (typical) ±30ppm (including all frequency reference errors and ±1 count errors) Frequency Range AC coupled, from 4Hz minimum to rated bandwidth Signal Source Pulse Width or Edge Trigger modes: all available trigger sources
The Frequency Counter measures trigger source at all times, including when the oscilloscope acquisition pauses due to changes in the run status, or acquisition of a single shot event has completed.
Pulse Width Trigger mode: The oscilloscope counts pulses of significant magnitude inside the 1s measurement window that qualify as triggerable events, such as narrow pulses in a PWM pulse train if set to < mode and the width is set to a relatively small time.
Edge Trigger mode: The oscilloscope counts all edges of sufficient magnitude and correct polarity.
Video Trigger mode: The Frequency Counter does not work. Measure Cursor Measurement Manual: Voltage difference between cursors: ΔV
Time difference between cursors: ΔT
Reciprocal of ΔT in Hertz (1/ΔT);
Tracing: The valtage and time at a waveform point; Auto Measuerment Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, Waveform Generator Mode Frenquency Range 1Hz(DC)~25MHz DAC Clock 2K~200MHz adjustable Memory Depth 4KSa Vertical Resolution 12 Bits Stability <30ppm Amplitude ±3.5V Max. Output Impedance 50 Ω Output Current 50mA Ipeak=50mA System Bandwidth 25M Harmonic Wave Distortion -50dBc(1KHz), -40dBc(10KHz) General Specifications Display Resolution 640 horizontal by 480 vertical pixels Display Contrast Adjustable (16 gears) with the progress bar Probe Compensator Output   Output Voltage( typical) About 2Vpp into ≥1MΩ load Frequency(typical) 1kHz Power Supply   Supply Voltage AC Input:100-240VACRMS,0.6A MAX,50Hz~60Hz; DC Output:9V,2A Power Consumption <30W














Package (gift box):

1 x 8072E oscilloscope 2 x oscilloscope probe 1 x USB cable 2 x test probe 1 x power cable 1 x CD (Manual etc.)
