Unich discount price laser cutting and engraving machine 1290/engraving machine laser wood

Contact Lucy Ni

skype: export05_16
Email: export05@unichcnc.com
Whatsapp/Wechat: 008613361009556

On this page, due to the limited plate, we are just a number of machines, one of them a machine to do a presentation. If you want to know more about our machine, you can contact me anytime. Both you and me, we are have a same goal, to let your work more smoothly.

 1. Applicable Materials:

Nonmetal materials such as stone, marble, granite, gravestone, tombstone, acrylic, glass,

ceramics, wood, bamboo, double colored boards, paper, and leather. Etc.

2. Applicable Industries:

(Monument/gravestone/tombstone) industry, model industry (construction models,

aviation and navigation models and wooden toys), advertisement,decoration, art crafts,

electronics, and electric appliances, etc.

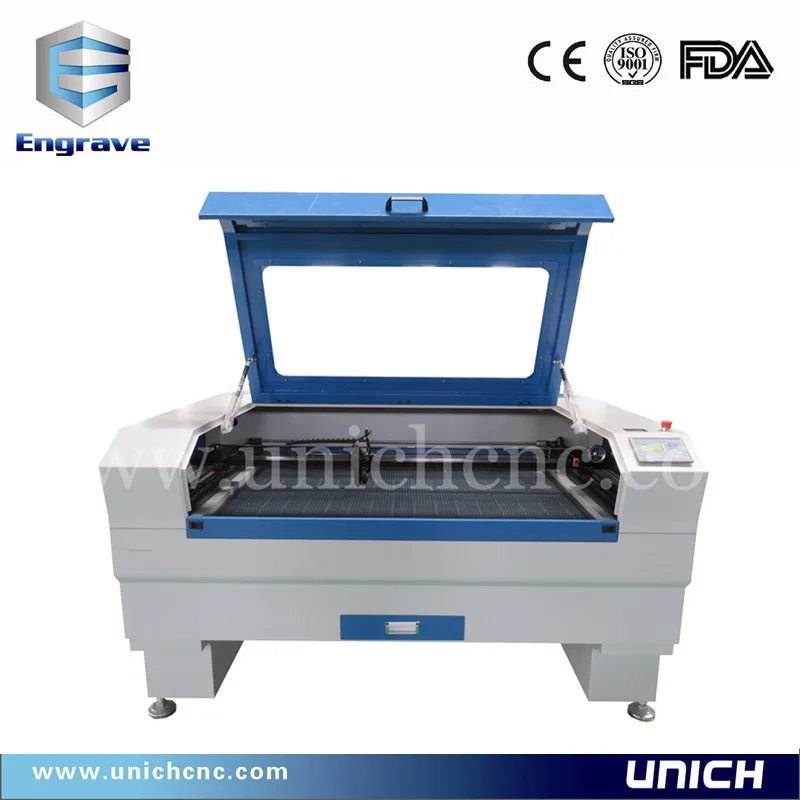

3. Machine display:

4. Machine parts display:

1. Laser head

Professional laser head for all kinds of non-metal, high precision, high speed.

We can also custom made multi-head laser machinefor you.

2. Control system

Original new version  Leetro 6585 controller control system, USB offline, English version,

very easy to learn and operate.

3. Leadshine stepper Motor and Driver

High-performance driven motor to ensure

that the machines high speed and accuracy.

4. Beijing Reci laser tube

Beijing Reci laser tube has a good beam and

strong stability. Long life time and have different laser tube power to choose.

5. Taiwan Hiwin rail

Original HINWIN rails and Dongfeng

belt imported from Taiwan high, ensure high

durability, stability and precision. The gear

 we use is High wear resistance copper

 it can have a very high prcision than the Aluminum.

6. Singapore lens and mirrors

High precision and crystal clear lens and reflector.

5. Machine parameters

Laser Power

90w( Reci CO2 Laser tube)

Power Supply:

AC220±10% 50 HZ /AC110±10% 50 HZ

Motor

High speed stepper motor

Working Area

600*400mm/900*600mm/1200*900mm/1300*900mm/1400*900mm/1300*2500mm

Cutting Speed

≤18,000mm/min

Locating Precision

0.01mm

Min Shaping Character

Character:2x2mm, Letter:1x1mm

Camera Pixel

3200,000px

Shooting Way

Continuous, automatically and moving array shooting

Laser Energy Control

1-100% set by hand or software

Resolution

≤4500dpi

Data Transfer Interface

USB

System Environment

WINDOWS 2000/ WINDOWS XP

Cooling Way

Water Cooling and Protection System

Graphic Format

Supported

BMP, GIF, PCX, TGA, PLT, CDR, DXF, AI etc.

Cutting Thickness

0 -30mm Acrylic (Others depend on Materials)

Slope Engraving

Yes, Slope can be designed discretionarily

Standard Accessories:

1)  1 piece 90w Reci Laser tube (installed in the machine)
2)  3 Reflcting Mirrors to reflect the light from Laser tube
3)  1 Focusing Len to Focus the light from Laser tube
4)  Air Exhaust Fan to protect the Focusing Len from pollution
5)  Water Chiller (To Cool Laser tube and Longer the lifetime of Laser tube)
6)  Honeycomb worktable(You can custom made the blade table, too)
7)  Laser Engraving software (English Version)
8)  User Manual of machine
9)  User manual of software

10) Laser Software CD

11) USB Cable & USB Disk

12) Communication cable

13) Screws and Other tools

14) Red Light Pointer to position Where the Laser light is.

Recommend spare parts(Consumables):

Laser Tube, Reflecting Mirrors and Focusing Len,

Optional Spare Parts:

(1) UP/Down working table to move the Z-axis up and down

automatically ( This machine does not have a UP/Down working  table, if your work need, we can also lift the table with another machine,  Both machines difference in style)

(2) Rotary attachment (Mainly For Cylinder/Round objects

Engraving or Cutting Very thick materials, Rotary needs to be installed on a machine with  up/down working table. )

(3) Auto Focus to to make "focus" easier & automatic

6. Machine samples

 Jinan Unich Machinery Co.,Ltd

is a professional CNC machinery manufacturer Rather than merely supplying stand-alone products, we offer customized solutions for businesses with small cost-efficient production in mind and those with highly automated projects that require high throughputs. These solutions have a proven record of offering definite advantages to users in assisting them to produce better products in a more efficient way, with lower cost and in a shorter time. The seamless integration of our machineries with industrial automation software and systems enhances our partners' competing edge by taking care of the labor cost impact, offering optimal yield and measurable savings,  in the meantime dramatically reducing cycle times.

After service and Guaranty of our factory:

1. 2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed      free of charge when if any problem during the warranty period.

2. Lifetime maintenance free of charge.

3. Free training course at our plant.

4. 24 hours on line service and email each day, free technical support.

5. Machine has been adjusted before delivery.We will take machine photos and make machine working image for you ,after getting your agreement ,then we will book a ship.

6. Provide technical services to the door(We have professional engineers to offer machine installation commissioning and maintenance) if customers pay the charges of ticket.

7. If you have any problem during your use.you need our technician to judge where the problem is and help you to solve it. We can provide team viewer and skype with cam till all of your problems solved.

Q: Do I need two laser machines to engrave and cut separately?
A: No, the laser machines we provide are capable of both engraving and cutting. One machine alone can fulfill the two purposes.

Q: Do the laser machines need to be connected to a laptop or desktop computer to work?
A: Yes, either is ok. It supports Windows 2000, Windows XP, Win 7 and other operating systems

Q: How long will it take to learn to operate a laser machine?
A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation. You just need to do some simple tests on different processing materials to know how to set the correct speed and laser power.

In order to help you choose the best suitable machine, please try to reply my questions below, thanks.

Q1: What about your material , wood or acrylic or others?

Q2: The size of your material , length ? Width and thickness?

Q3: Do you want to cut or engrave your material ? Or both cut&engrave ?

Q4: What machining effect do you want to get ? It is better you can send sample pictures to me .

Q5: The machine choose 220v or 110v or ?

Q6: what about your nearest sea port?
