Мини-ПК без вентилятора Intel Celeron J4125 2x Gigabit LAN RS232 HDMI VGA Mini PCIE Wi-Fi/4G 4x USB Поддержка Windows

Мини-ПК без вентилятора Intel Celeron J4125 2x Gigabit LAN RS232 HDMI VGA Mini PCIE Wi-Fi/4G 4x USB Поддержка Windows

Processors

Intel Celeron N2830, 2 Cores 2 threads, 2.16GHz, up to 2.41GHz

Intel Pentium 3805U, 2 cores 2 threads, 1.90GHz

Intel Celeron 2955U, 2 cores 2 threads, 1.40GHz

Intel Celeron J4125, 4 cores 4 threads, 2.0GHz, up 2.70GHz

Intel Core i3-4005U, 2 Core 4 Threads, 1.70GHz

Intel Core i3-5005U, 2 Core 4 threads, 2.0GHz

Intel Core i5-4200U, 2 Cores 4 Threads, 1.60GHz, up to 2.60GHz

Memory

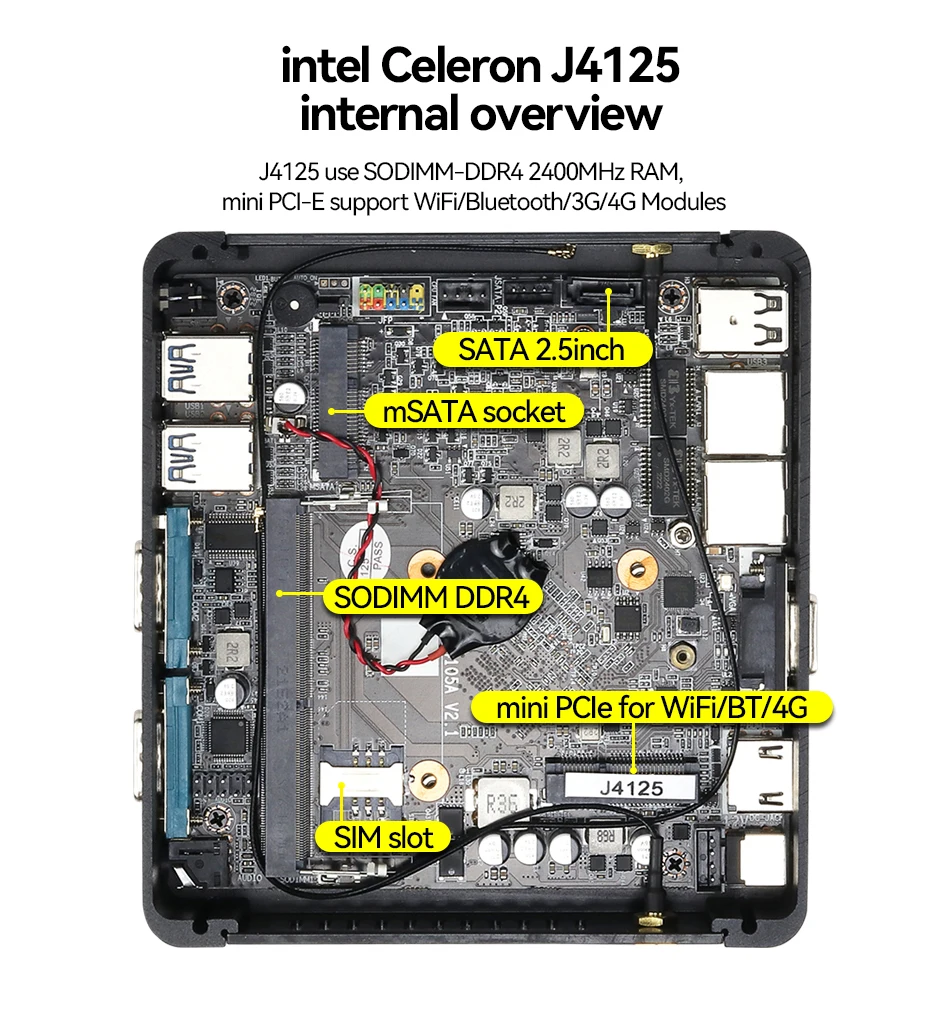

J4125 models use SODIMM DDR4 RAM 2400MHz

Other models use SODIMM DDR3L 1333/1600MHz

max support to 8GB

Storage

1x mSATA SSD

Graphics

Integrated Graphics

Intel HD Graphics

Network Interfaces

2x GbE RJ45 Realtek 8111E, support wake on LAN, PXE

Expansion

1x Mini PCI-E for WiFi/Bluetooth/4G module

OS Support

Windows 7

Windows 8.1

Windows 10 pro/IoT/Embedded

Linux, Ubuntu

Please NOTE: J4125 doesn't support Windows 7

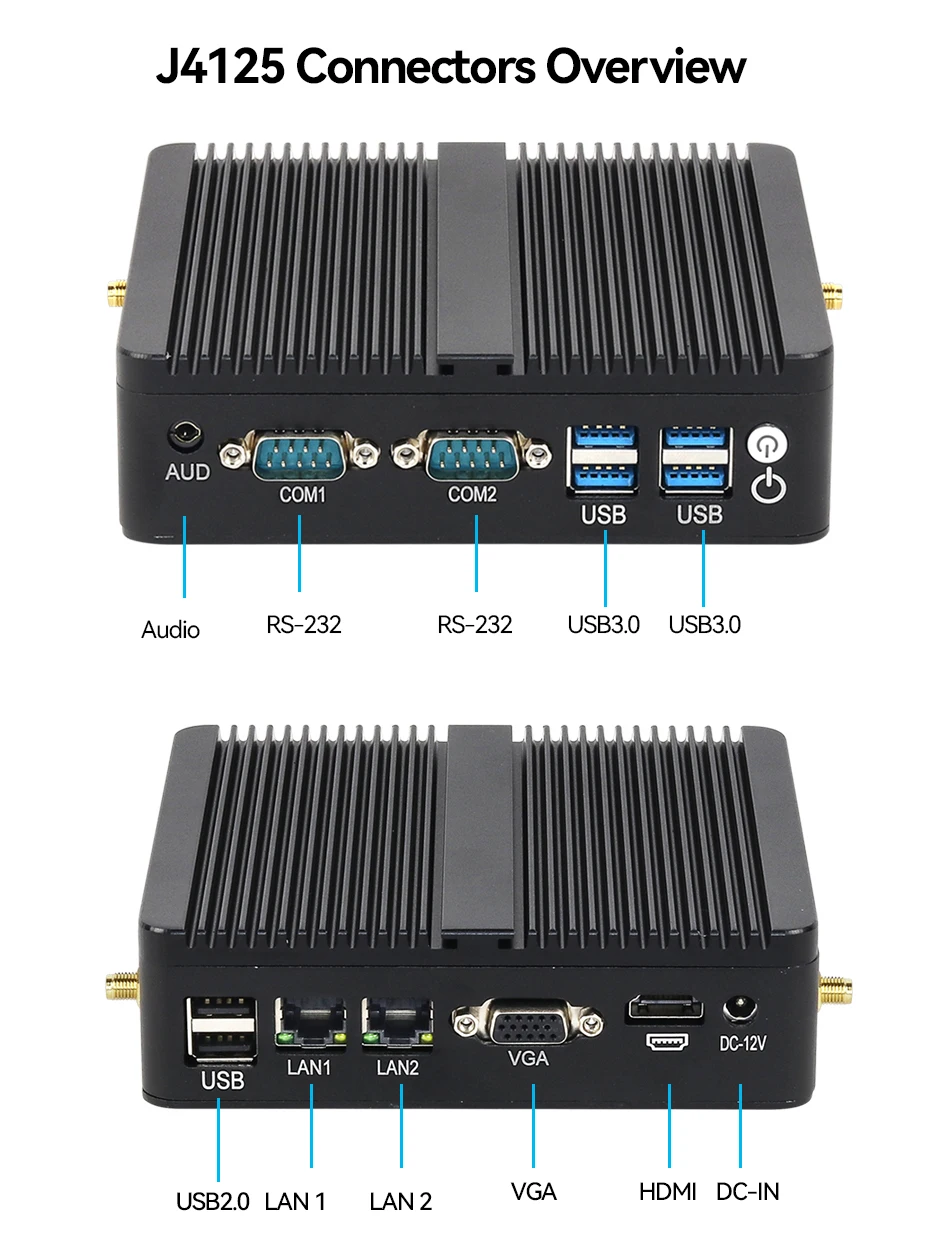

USB Ports

J4125 CPU : 4x USB 3.0+2x USB2.0

Other CPUs : 2x USB3.0+ 2x USB2.0

Display Port

1x VGA, 1x HDMI

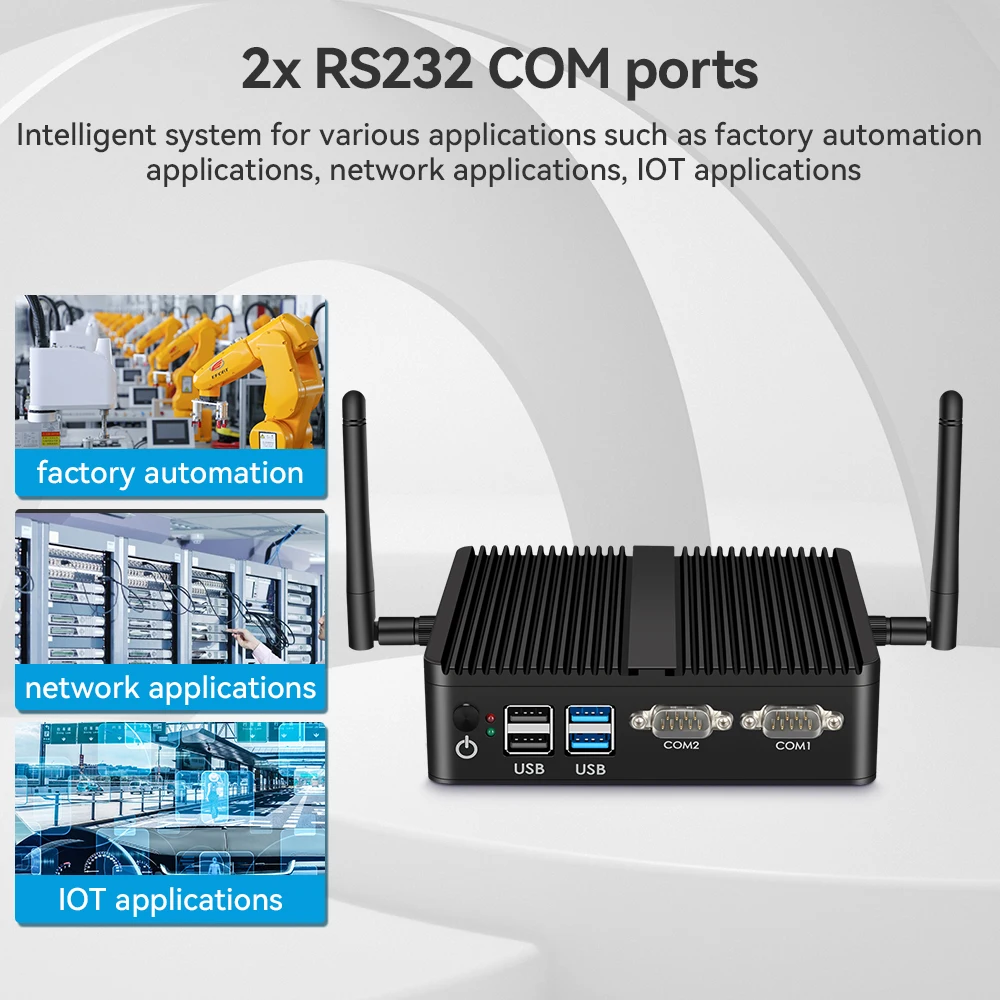

COM Ports

2x RS232

Features

Support wake on LAN, PXE booting, automatically power on when power restored after a sudden power loss;

Audio Ports

3.5mm combo audio jack

Construction

Fanless passive cooling

Case

Aluminum Case

Dimension

135x124x40mm

Netweight

0.89Kg

OperatingTemperature

-20℃ to +60℃

RH

5%~90% @30℃，Non-condensing

Power Adapter

Input AC100-240V, Output DC12V-5A/3A

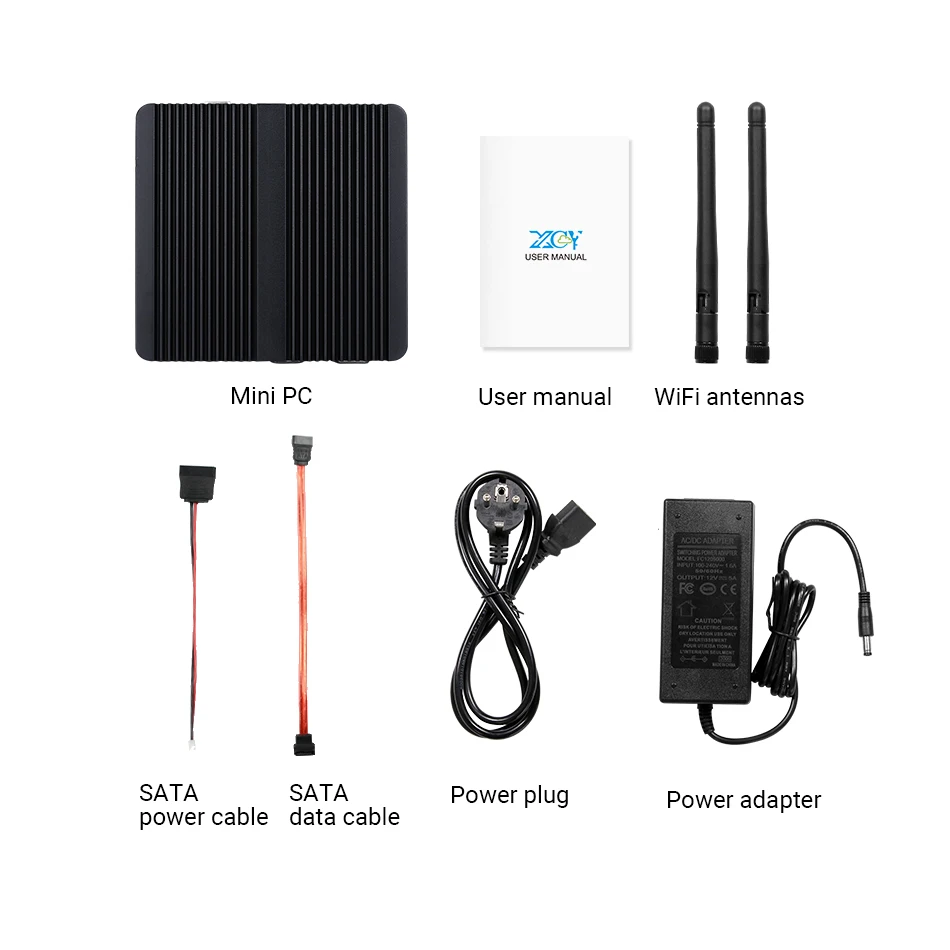

Package List

1x Mini PC X30G

1x AC Adapter

1x Power cord ( EU AU US UK type plug shipped according to buyer’s address )

1x SATA cables

1x User manual
