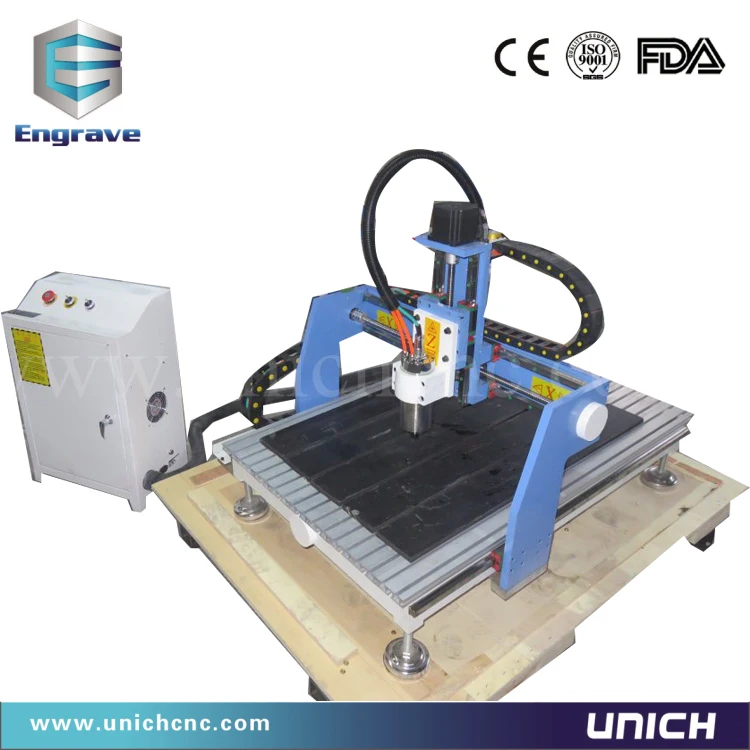

 new type stronger mini 0609 cnc router machine/cnc router spindle motor

skype: export04_6

Features of cnc router machine

1. Cast steel structure makes our routers more stable

2. Excellent part:imported linear rails,import German ball screw,high speed air-cooling spindle,high

precision bearing which has low noise and long life.

3. Modularize frame design:select a variety of machining spindle configuration that can carve,

hollow cut and mill.

4. Reasonable designs:advanced rack and pinion drive in Y axi with larger speed and strength.

5.Easy operation:advanced file pre-processing functions to ensure speed and accuracy of operation.

6.Taiwan strong vacuum holding device that up to 312 cubic meter per hour.

7.Compatible software:open softwares prots,compatible with processing codes created by many

CAD/CAM sofewares including Type3/Artcam/Castmate/Wentai to pave the way for designs.

Application of cnc router machine

1. Advertising industry: cutting/engraving/drilling/photo engraving on wood, MDF, bamboo, plastic, PVC, acrylic, two colors board, metals, stone etc.

2. Manufacturing industry: engrave, cut, drill, photo engraving on copper, iron and aluminum, alloy, steel etc.

3. Furniture making: wood door cutting, wood door artwork engraving, wave boards making,

3d photo engraving, small or large relief works, cylinder materials engraving, 3d photo engraving etc.

4. Artwork industry: Figure engraving, character engraving and cutting, name brand making, small gift

cutting, souvenirs making, Carving various decoration letters, figures on small windows, fences, wall, etc.

Parameter of cnc router machine

Working area:

600x900x100mm

Spindle type:

Water cooled spindle

Spindle power

1.5kw

Spindle rotating speed

0-24000rpm

Power (except spindle power)

8.8KW (include powers of: motors, drivers, inverters and so on)

Power supply:

AC220±10,  50 HZ

Worktable:

T-slot table /Vacuum table

Locating precision:

<0.01mm

Min shaping character:

Character:3x3mm,letter:2x2mm

Operating temperature:

5°C-40°C

Working humidity

30%-75%(without condensed water)

Working precision

±0.03mm

System resolution

±0.001mm

Control configuration:

Mach3/DSP/ NC studio control system

Data transfer interface:

USB/PC

System environment:

WINDOWS 2000/WINDOWS XP/ windows 7

Spindle cooling way:

Water cooling by water pump (optional: chiller)

Graphic format supported:

G code: *.u00, * mmg, * plt, *.nc

Compatible software

ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares….

Cutting thickness:

0-40mm also (depends on different material)

Z tool sensor:

 yes

Whole machine dimension:

1500x980x1450mm

Net weight:

280KG

Gross weight

350KG

packing

Plywood case (veneer wood case for export)

 Optional parts

1. Water cooled type spindle (China brand or Italian brand)

2. Bigger or smaller power spindles (6kw or 3kw)

3. High-grade cooling system (chiller, it has alarming system)

4. double-head or more heads

5. servo motors (China brand or Japan brand)

6. Auto tool change system

(this system need other systems accordingly, like LNC control system, servo motors etc)

7. Weihong DSP Control system ,NK105 Model or Mach 3

8. other customerized features.

1. Technical supports and suggestions before you order a machine according to your work piece.
2. Professional instruction for the operation of the machine.
3. One year warranty, we will provide the consumable parts at cost price after the warranty period.
4. Our technician will come to your workshop if the problems can not be fixed through Internet or phone communications.
5. 24-hour technical support by email or calling.

Why choose unich?

1.UNICH company is specialized in manufacturing and selling plasma cutting machine

and cnc router for 11 years . We have lots of experience.

2,Our worker have experience,they can produce machines professional and skilled, so

make the machine with high quality and can work well.

3.All the parts of our machines are famous brand in China or in international,so it make

sure our machine have high quality and long lifetime.

4. Our company has international technical service team and provides 18 hours online

services and technical supports for customers.

Payment

A:T/T:30% T/T deposite,70% before shippent.This is the most convenient payment terms for international trade
B: Trade Assurance of alibaba. It is a third party payment terms,
You can have this service:
On-time shipment and pre-shipment product quality safeguards
Refund up to the covered amount agreed with your supplier

1.) you pay money to alibaba,
2.) we prepare your machine production.
3.) We ship it.
4.) After dispatch,we show documents to Alibaba, Alibaba would pay your money to us.

FAQ

Q1: How long is the delivery time?

For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.

Q2: How about the payment terms?

30% T/T for deposit, 70%T/T paid before shipping.

T/T, West Union, Paypal

Q3: Do You Arrange Shipment For The Machines?

Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.

Q4: How about Guarantee & After Sales Service?

1) The machine guarantee is 12 months.

2) 24 hours technical support by phone, email or msn, skype etc.

Q5: If some problems happened to this machine during warranty period,what should i do?

We will supply free parts in machine warranty period if machine have some problem.While we also supply free after-service forever, so any doubts,just let us know, we will give you solutions in 24 hours.

Q6: What is the MOQ?

MOQ for our products is 1 set machine,we could send it to your country port  if you tell detail information about your country port.

Welcome contact us if you need the high quality machine, best price and the reassuring after sale service.
