Skype: export01_18 whatsapp: 008613793193929

1. About Lathe bed : To burden very heavy stone, our machine welding bed use 12 mm steel , Afterhundred times’ special vibrate experiments,we ensure that the lathe will not deform during their long-term working hours. With enhanced welding technicals, we provide our machines good stability, longer life and amazing accuracy rate. Compared with other manufacturers ’ 4.8mm body thickness, we believe that our products will totally attain even your most rigorous requirements.

2. About spindle: Using Constant power 5.5KW Chinese top water cooling spindle

to ensure the high intensity and precisio of stone engraving . The water cooling

spindle adopt water cycle to cooling the spindle ,so the cooling effect is very good. Almost no noise, long life.

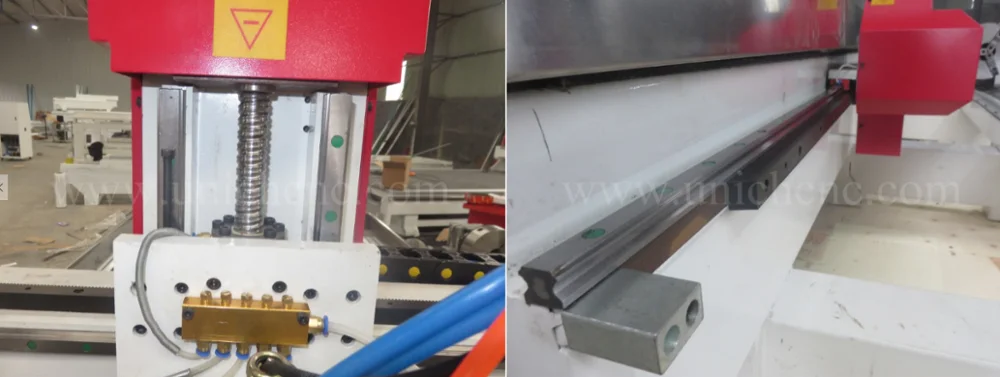

3. About transmission: For the total machine,we adopt the world famous rail and

guide manufacturer Taiwan Hiwin square rails, self-lubricating sliding block.

This ensures equal force in all directions and accuracy and strength of the machine.

Z axis adopts original TBI ball screw imported from Taiwan and X Y axis adopt high precision gear transmission,high precision, speed and strength.

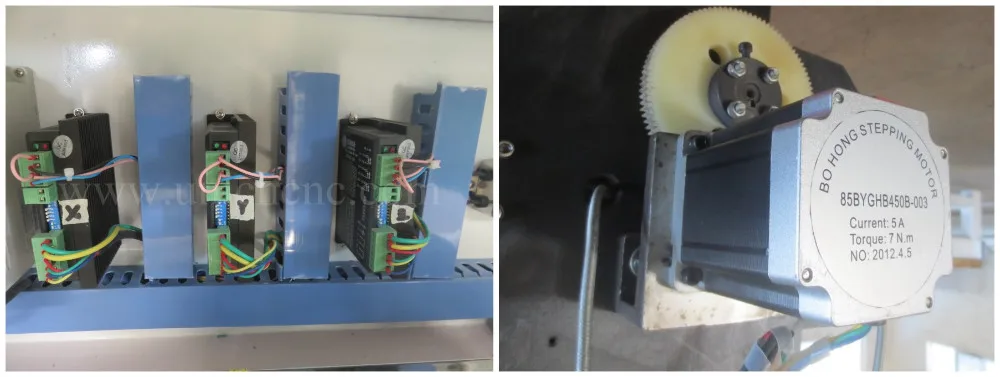

5. Leadshine stepper drive and motor:
a: Won't lose step when it work,guarantee the positional accuracy of the motor.
b: Speed performance increased about 30%, improve the equipment speed heavily.
c: Motor heat fell down 30%, prolong the life time of the motor.
Vibration phenomenon significantly reduced, motor run more smoothly.
e: Adopted the current control system technology, save power consumption.

1) With tool sensor

2) Limit switch for each X,Y,Z axis

3) Machine is equipped with a water tank and automatic water cooling system

4) Z axis has 200mm effective working travel(We can also add the height of Z axis)

5) With reset function. recover carving point after break or disconnecting power

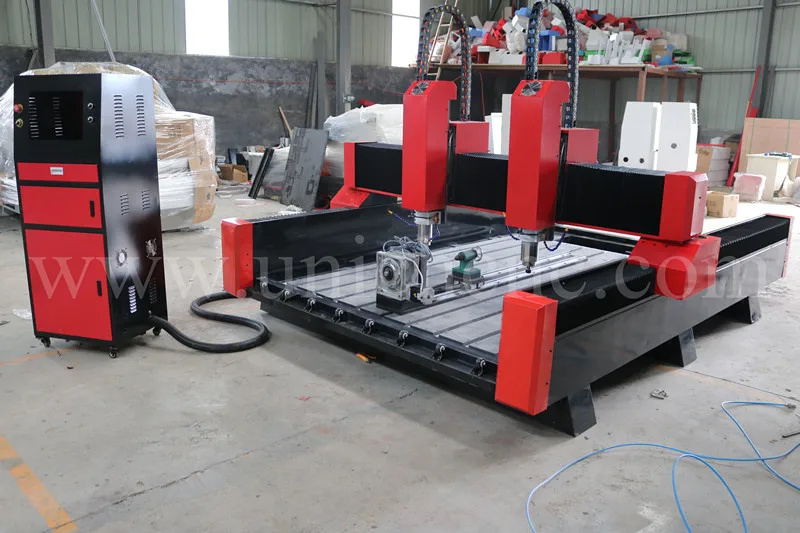

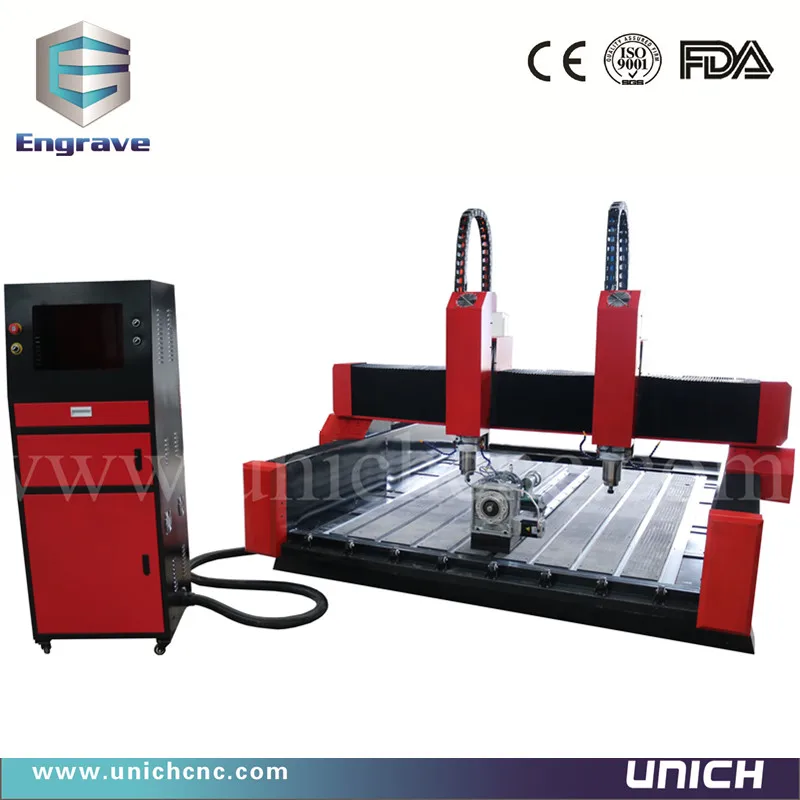

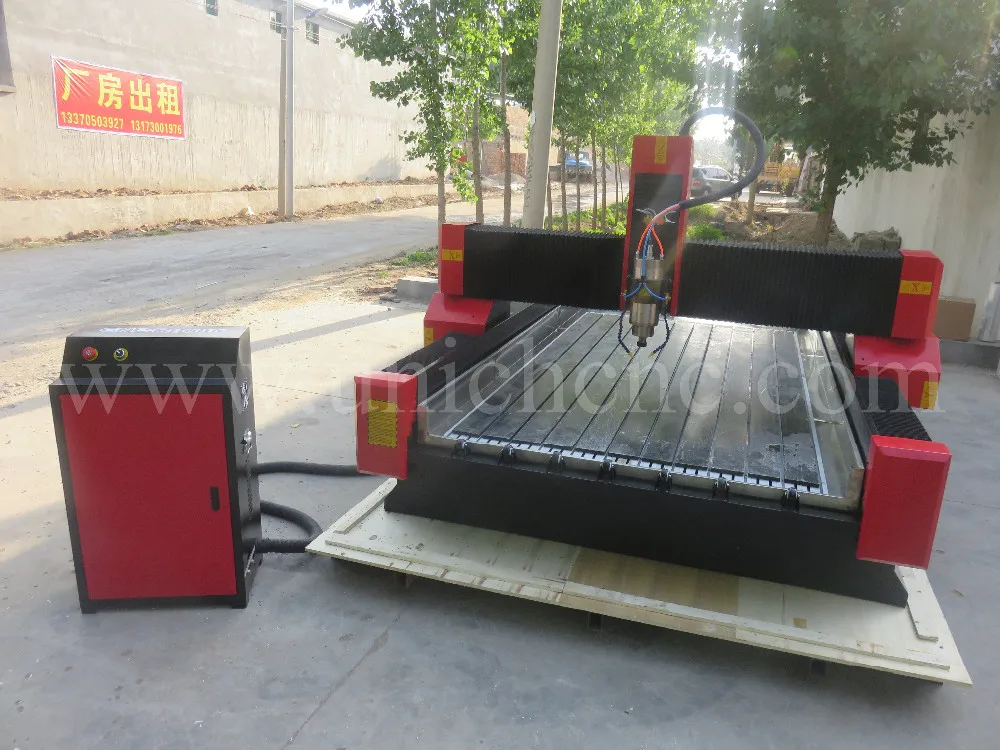

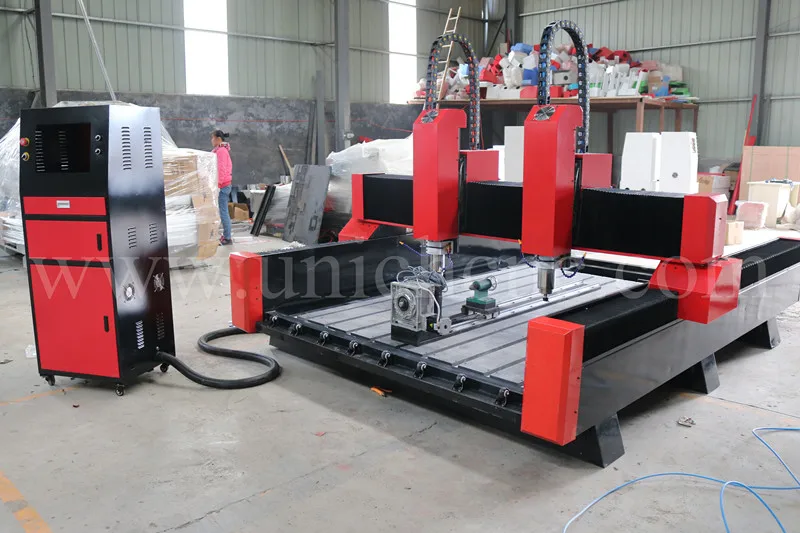

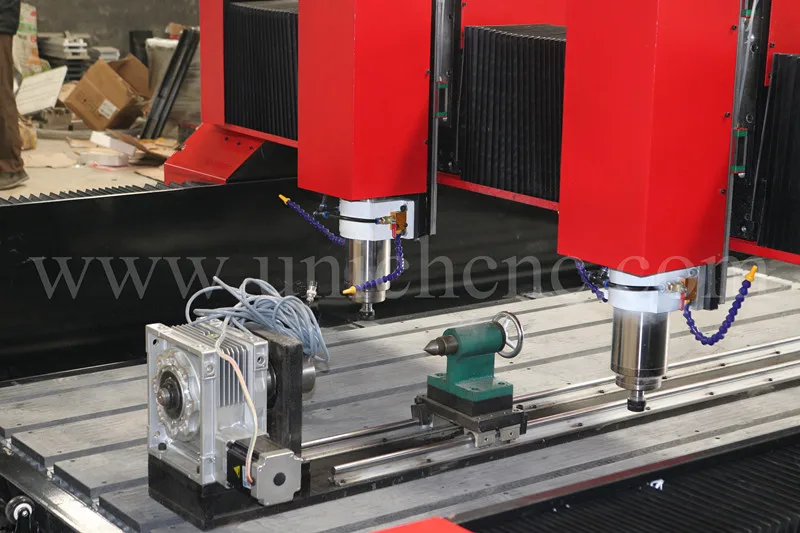

Machine picture

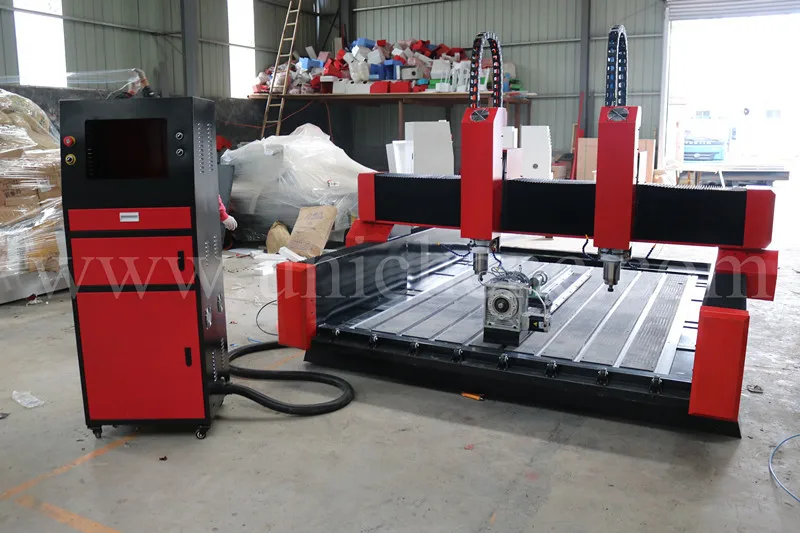

Machine picture

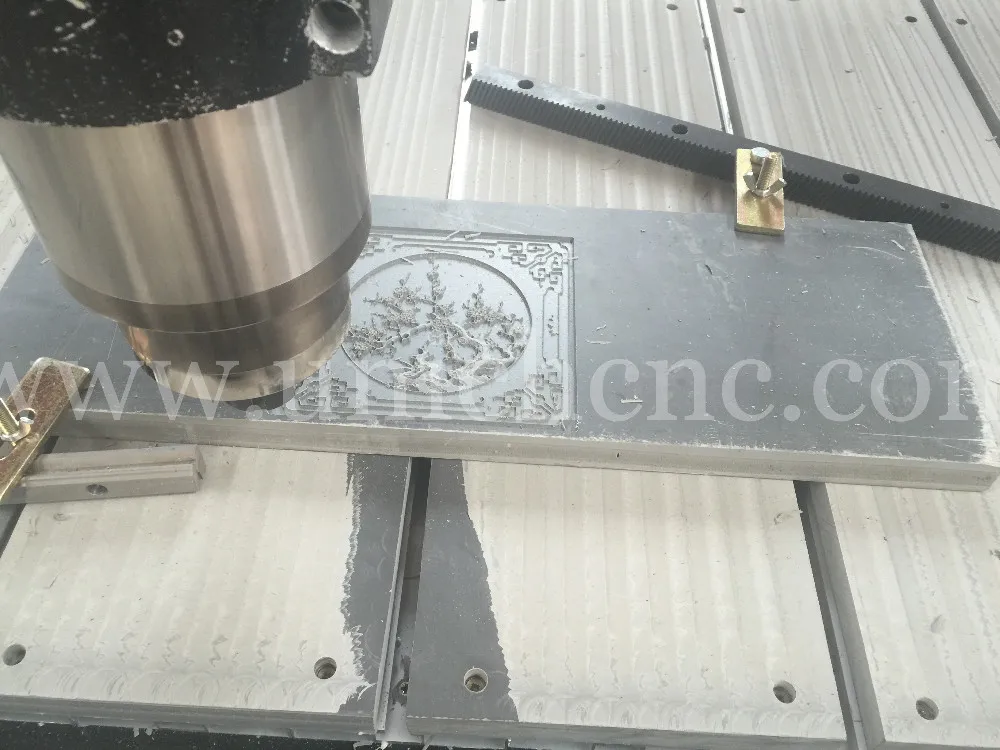

Special designed for engrving all kinds of stone, such as marble,granite, sandstone, Artificial

stone and so on.

Suitable for engraving /Cutting /drilling MDF, Wood, Acrylic, Bamboo, PVC, two colors

board, soft metal(such as Aluminum,copper ) and so on.

Suitable for 3D engraving.

Machine Feature:

>>Main configuration

#Working area: 1300*2500*400mm
#Spindle: 5.5 kw water cooling spindle (two spindle)
#Control system: Nc-studio controller
#Drive system: Leadshine stepper motors and drivers, stepper motor 450B, Leadshine

driver M860.
#Transmission: Z by Taiwan TBI ball screw,X,Y by gear transmation
#Rail guide: Taiwan HIWIN linear rail guide
#Soft limited switch
#Hard limited switch

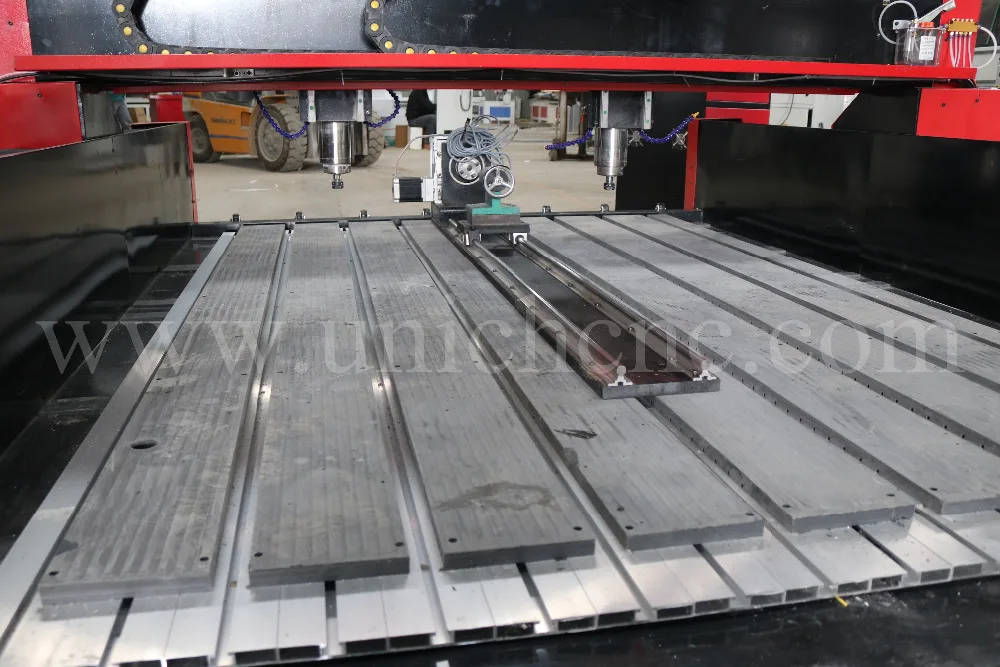

#Table: T-slot structure
#Inverter: Fuling inverter
#Frame: very heavy duty body(12mm steel body)
#Tool Sensor , Filter , Cast steel motor Box
#New Type Design For the High Stability
#Taiwan Imported Best bearing holder
#The whole machine warranty is 1 year.If machine has any question exclude man-made

damage , we can send you new parts for free within warranty period

>>Standard Configuration:

1) NC-studio control system: Popular and easy operation, with USB port to transfer program;

2) China water-cooling spindle: Long working life, easy maintenance;

3) Big stepper motor: With highly control precision and high speed, reliable and stable;

4) Taiwan Hiwin Guide and Block: Guaranteed genuine rail with good quality,realizing smooth

movement;

5) Taiwan TBI ball screw: linear motion with high precision and and in high speed

6) Helical rack and pinion: quiet running, greater accuracy, smoother cutting and allows greater accelaration and feeding rates, longer lifetime because of smaller wearing force.

7) Taiwan Delta Inverter: Guarantee the variety working speed and protect the spindle very well;

Optional parts

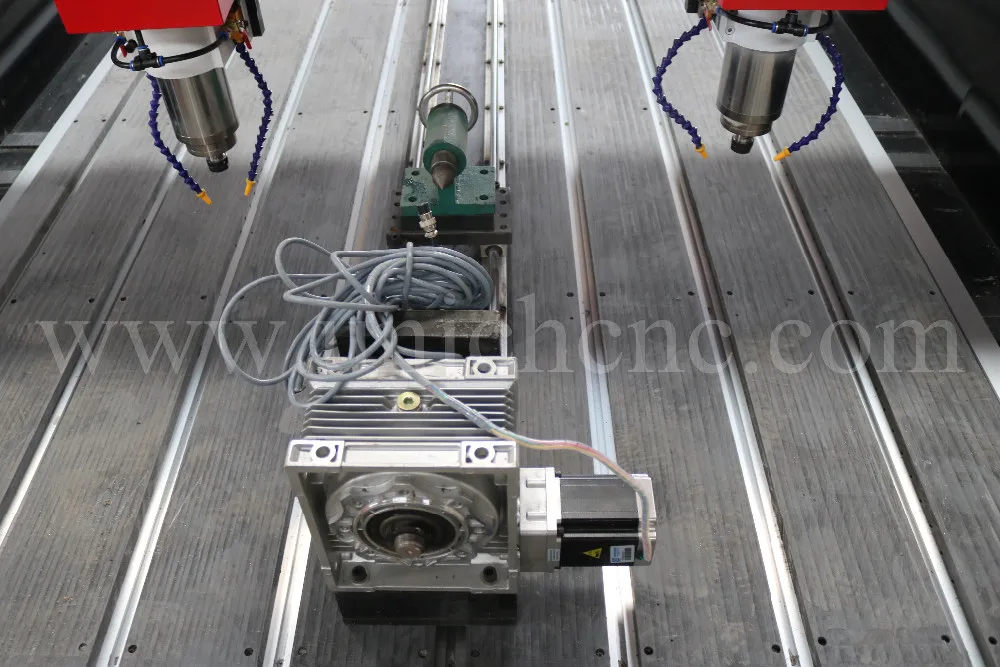

1. Rotary:  For engraving cylindrical or ellipsoid materials,the rotary is necessary.

2. Dust collector: When you cut or engrave soft metal or wood,the dust collector can absord the

chippings andmake the work environments safe and clean.

Machina parameter

Working Area:

2000x3000x400mm

Spindle Type:

Water cooling spindle

Spindle Power

5.5KW

Spindle Rotating Speed

0-24000rpm

Power (except spindle power)

7.5KW (include powers of: motors, drivers, inverters and so on)

Power Supply:

AC220 or 380±10,  50/60 HZ

Worktable:

T-slot table with stainless water tank

Driving Syestm:

Chinese stepper or Taiwan/Japan servo motors and drivers

Transmission:

X,Y : helical  gear rack, HIWIN square guide rail,

Z: ball screw TBI and hiwin square guide rail

Locating precision:

<0.01mm

Min Shaping Character:

Character:2x2mm,letter:1x1mm

Operating Temperature:

5°C-40°C

Working Humidity

30%-75%(without condensed water)

Working Precision

±0.03mm

System Resolution

±0.001mm

Control Configuration:

NC-studio/Mach3/DSP control system.

Data Transfer Interface:

USB

System Environment:

Windows 7 or XP

Spindle Cooling Way:

Water cooling by water pump or water chiller

Inverter:

Fuling or Delta

Limited Switch:

High sensitivity limited switches

Graphic Format Supported:

G code: *.u00, * mmg, * plt, *.nc

Compatible Software

ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares….

Cutting Thickness:

0-40mm also (depends on different material)

Z Tool Censor:

yes

Packing

Plywood case (veneer wood case for export)

 Optional parts

 1. Spindle  power

 2. Double-head or multi-heads

 3. Mist spay cooling system

 4.  Other control system:DSP, Syntec etc

 5.  Servo motors (China Taiwan or Japan brand)

 6. Rotay device

     with diamater 80mm,125mm,150mm,200mm,300mm etc

 7. Dust collector

 8. Oher features could be customized accordingly .

Machine packaging & shipping:

1. Our delivery time:

1) If the machine color is of our factory standard color,the deliver time is about 7-15 working days.

2) If the machine color is indicated by you,we have to extend the deliver time.

2. Our packages:

The machine is packaged with plastic film of many layers,the outside use the thick plywood,so the machine will not damaged.

Our company information:

Our services:

1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.

2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.

4, We offer 24 hours technical support by call, and email.

5, Our technician can give you remote guide online(Skype or MSN) if you have any question.

6, We can record videos of operating the laser machine.

7, Free training course in our factory.

8, Machine will be adjusted before it is delivered , operation disk/CD was included.

Payment Terms

1. 30% T/T in advance, balance paid before delivery (FOB).

2. Support Alibaba payments, Paypal payment, west union, and TT(Bank transfer)

We accept various payment. If you have other payment, please tell us, we're glad to do it for

you, for your convenience.

Transport

1.From Jinan, Shandong to Qingdao Port.

2. From Qingdao Port to your destination port by sea.

3. If you want other transport, please tell us, we're glad to do it for you, for your convenience

Quality control

1. After order, engineers discuss manufacturing procedure.

2. Every component and part elaborately selected and assembled, making sure minimum

breakdown rate.

3. 48 hours continuous test of the machine before leaving the factory.

r requirment.

FAQ:

Q1.How do you get the best price?

Please tell me what’s material you want to cutting or engraving?

And what’s MAX size of carved material?

Then I will recommend the most suitable model and the best price for you.

Q2.In case of failure, how to do?

Call us----our engineers are online for 24-hours, and ready to serve you.

Replacement of damaged parts for free---For more information, please read the warranty card.

The CD and operation manual----It show the most common failure in working processing and how to solve this problems.
