Skype: export01_18

whatsapp: 008613793193929

Unich machine feature of plasma machine

(1). The machine’s body is strong, rigid, high precision, reliable and durable.

(2). Imported high-precision round rail linear bearings, smooth movement, to ensure that the machine tools high-precision.

(3). Excellent performance on cutting illuminated letters for advertising and channel letters on metal surface board.

(4). Designer perfectly, selects the vest machine accessories, to minimize the failure rate preferred.

(5). Small cutting gap, no residua.

(6). High cutting speed, high accuracy and low cost.

(7). Advanced CNC control system, auto arc, arcing success rate over 99%.

(8). Support G code files of Wentai, ARTCAM, Type 3 software. Also support DXF files of AUTOCAD by transfer software. Control system supports U disk file transfer, easy operation

(9). Adopt well known plasma

<<Applications of Plasma cutting machine>>

*Applicable industry

It be widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical,

war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.

*Applicable material

Iron, aluminum, titanium plate, stainless steel plate, galvanized steel, white steel and other metal materials.

Working videos:

1. //www.youtube.com/watch?v=uLT-j467egg

2. //www.youtube.com/watch?v=UuPYiikxNgY

Plasma power cutting thickness

1. according to your material thickness and choose a suitable power supplier.

Power supplier/A

Cutting thickness carbon steel/mm

63

6

100

15

160

20

200

30

Power supplier/A

Cutting thickness

carbon steel/mm

45

8

65

12

85

15

105

18

125

25

200

30

Main Configuration:

#Workingarea:1300*2500mm

#FASTCAM Control  Software

#plasma power supply 63A/100/160/200A optional

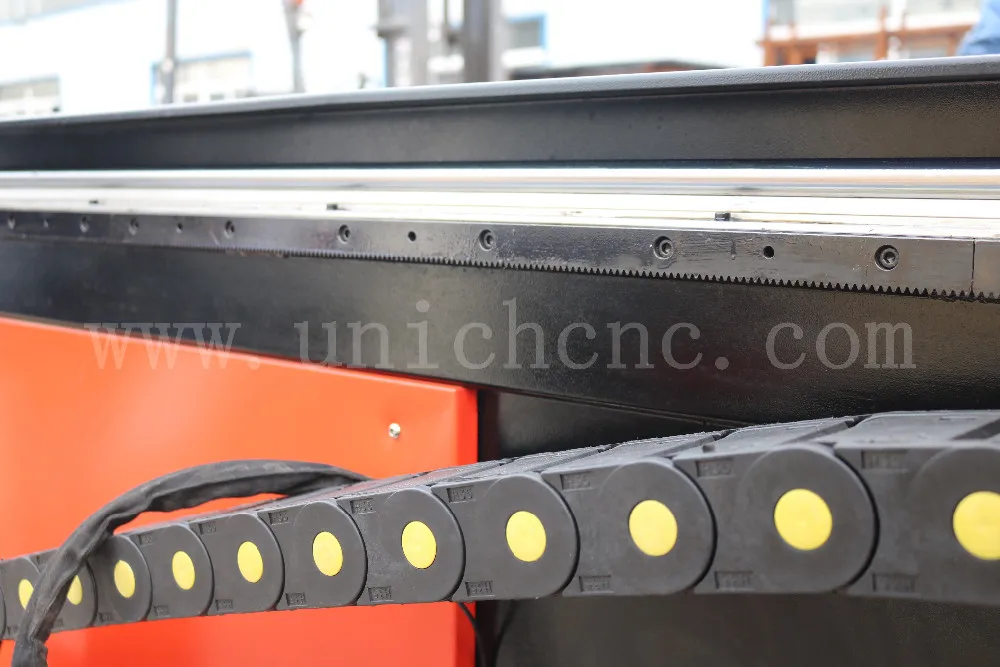

#Gear-wheel transmission

#Original round rails

#Control system : START control system.

#china Famous Brand Stepper motors.

#With adjustable up-down device.

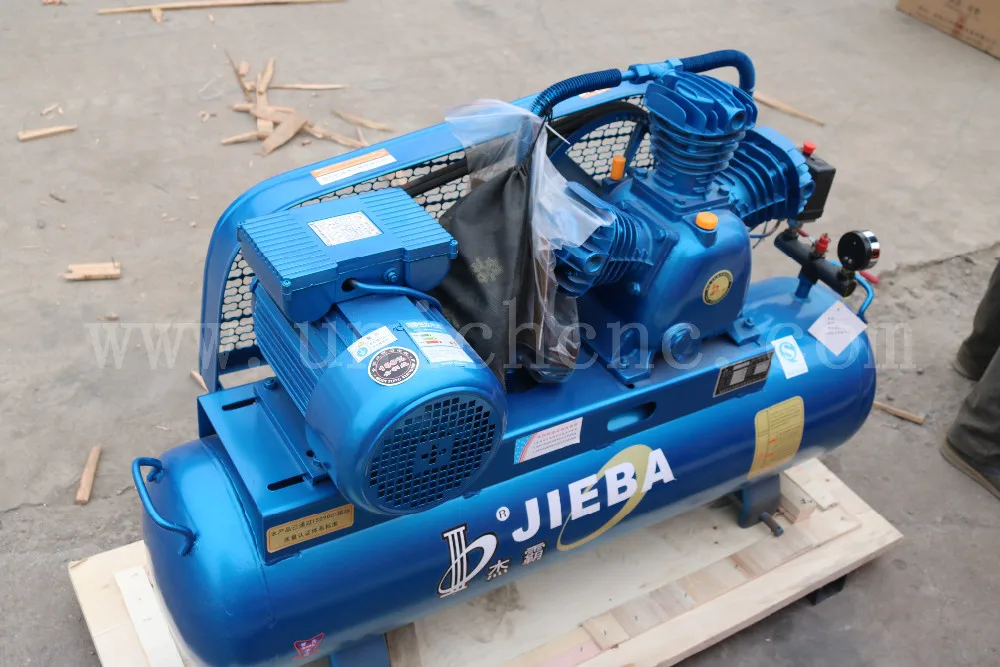

#Air compressor.

#Including  software (original )

Optional:

1. Different working size: 1300*2500mm /1500*3000mm/ 2000*4000mm or other sizes according to customers' needs.

2. Hiwin square rails.

2. Servo motors and drivers

3. Different power: 100A /200A for different thickness cutting

4. Torch Height control system. (have)

5) Rotary axis

<<Machine features and detailed parts>>

1

2

3

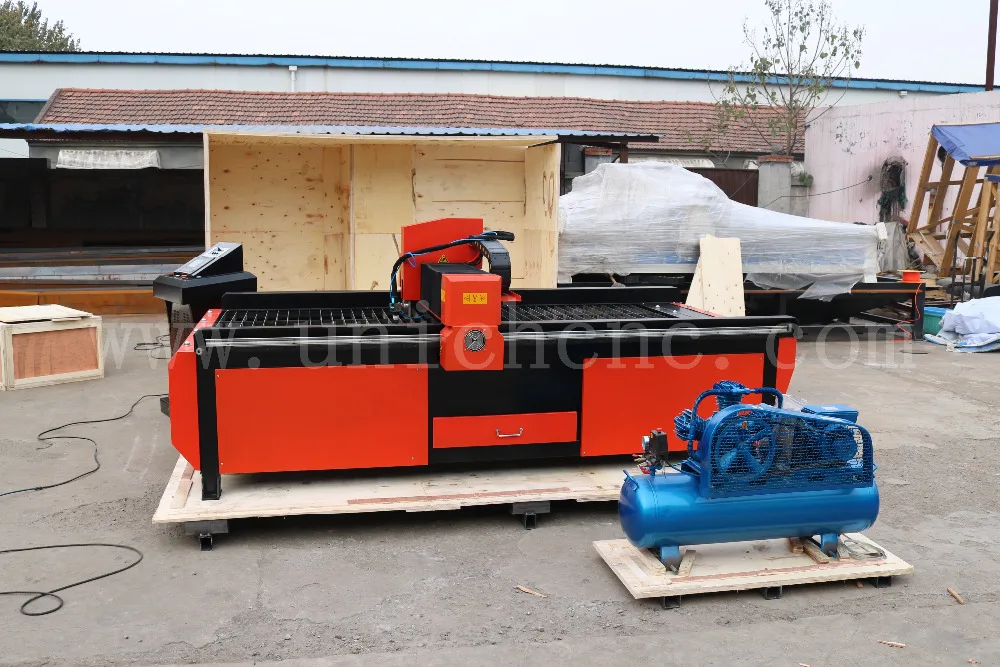

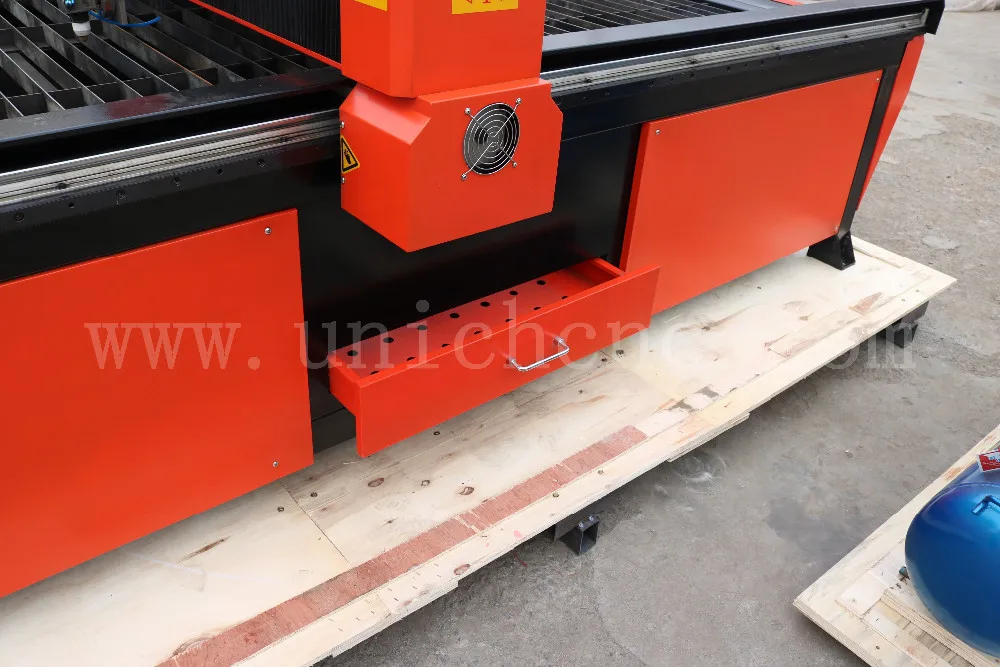

Wheld steel structure via special treatment, no distortion, high precision.

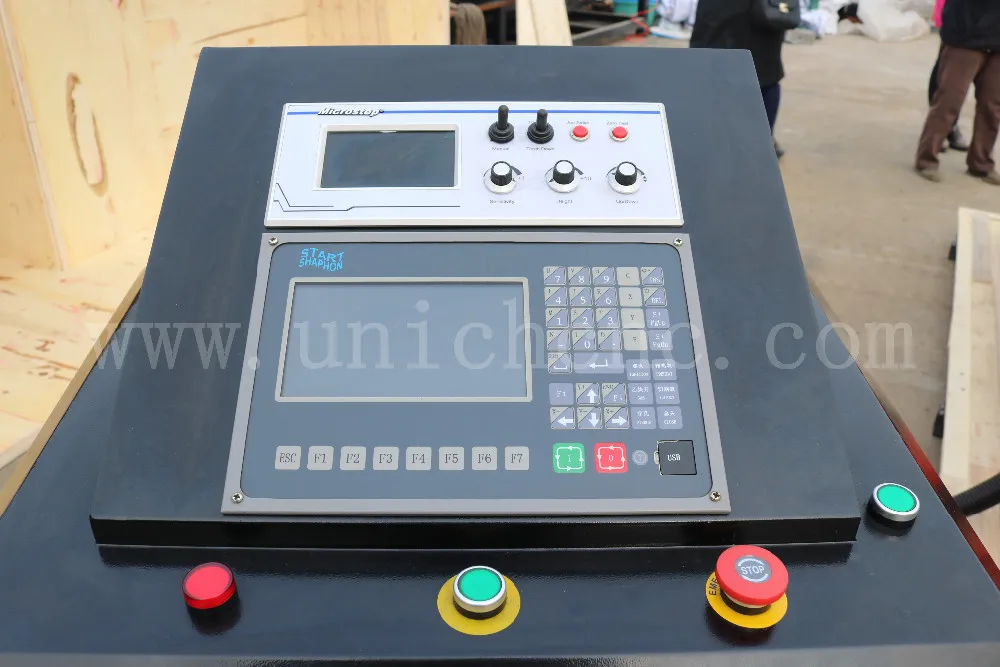

Starfire control system+ATC torch height with USB interface

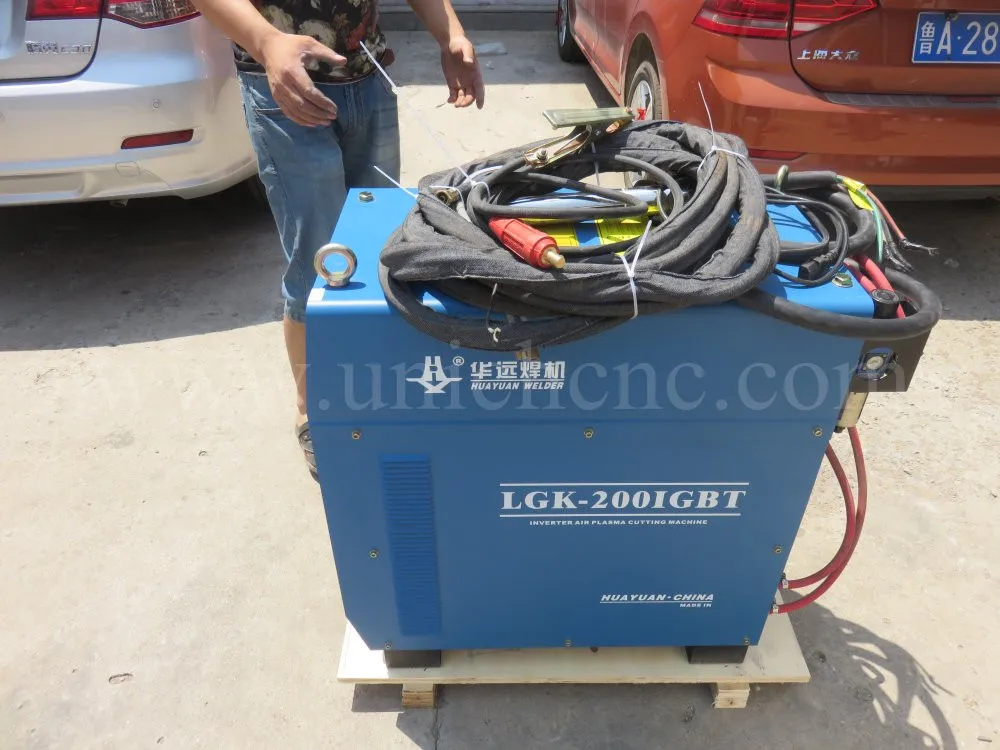

Chinese HUAYUAN or American HYPERTHERM power supply

8

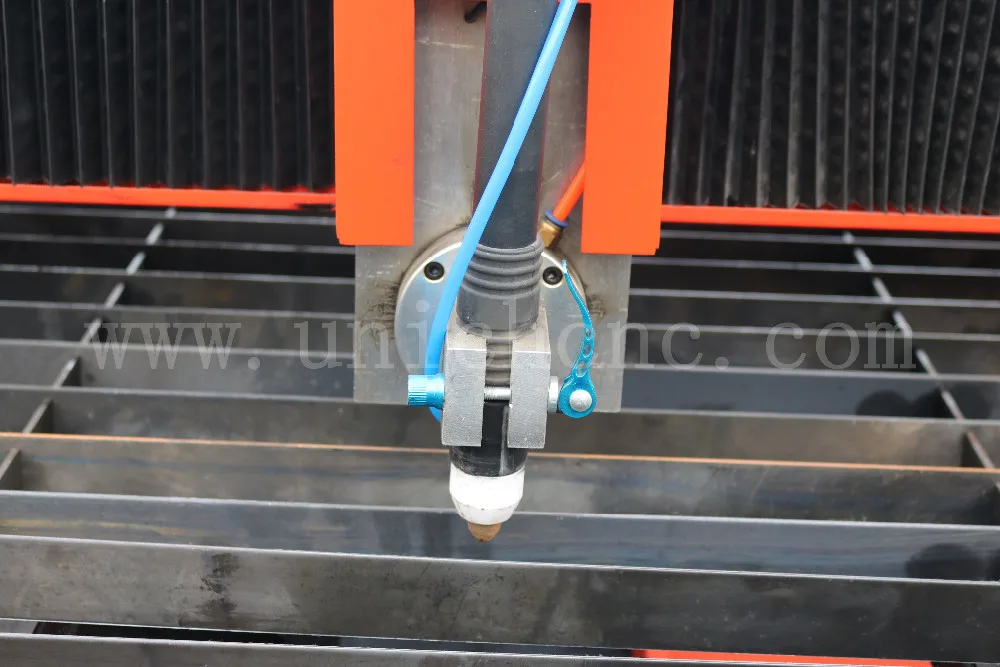

Plasma cutting head with cooling system

Parameter:

Model Parameter

Industrial plasma cutting machine

Model

LXP1325

LXP1530

LXP2040

Working size

1300*2500mm

1500*3000mm

2000*4000mm

Three axes Repeat positioning accuracy

±0.05mm

Process precision

±0.35mm

Transmission system

linear guide+ rack

Max. cutting speed

15000mm/min

Working voltage

AC380/50HZ

Control system

Beijing START plasma cutting system

Standard high sensitivity arc voltage device

Software support

FASTCAM, AutoCAD

Instruction format

G code

Drive system

Stepper motor (Optional Taiwan AC servo motor)

Plasma power

Domestic Huayuan 60A-200A

Imported US Powermax 60A-000A

Power cutting ability

Domestic Huayuan 0.5-30mm

US Powermax series 0.5-30mm

Working pressure

0.65-0.7Mpa

Packaging and shipping:

Services:

1. After our machine is finished, our engineer will check every parts of the machine.

2. After we confirm every parts are no problem , we will have a continuous debugging

for 24 hours.

3. Therefore, as soon as you received the machine ,they can use it immediately.

4. Two year warranty period (man-made damage is negotiable).

5. Lifelong maintenance and spare parts supply.

6. Free design of fixtures as customers required.

7. Free training for operation staffs.

8. Free marking samples of customer provide.

More information you need to know

1. Payment terms: T/T, Alibaba Trade Assurance, West Union, Paypal

2. Delivery lead time: 5-12 working days after receipt of the advance payment.

3. Delivery method: by sea or air shipment.

4. Packing: compound wooden cases with exporting standard.

FAQ?

Q1: How can I get the best machine for me?

You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
Yes, We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or skype.

Q3: Do you have any manual for your machine ?

Yes , We can offer you the english manual of Machine, Controller and the Design software!
Q4: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
Q5: This model is not suitable for me, do you have more models available?
Yes, we can supply many models. Replacement of some part based on your need. The above are most popular. If it can not meet your requirement, then tell us. We have the ability to make specially according your requirement!

Q6: Can you arrange the shipment?

Yes, we can, we can send the machine to your nearest port, we will arrange everything for you , and tell you what you need.

Q7: How should i pay for my order ? what is the procession of this purchase ?

 we accept TT by bank.  you can do 30%  prepayment at first, then we will start to make production.  when the machine is ready , we will take pictures to you, and then you can do the ballance.  after we got your payment. i will send the machine to you.
Q8: How about your service after sales ?  can your engineer speak fluent english ?
 we offer the service from you got the machine,  including how to install the machine, how to use machine. how to let machine work. and so on.  usually we will teach you how to do by email or by skype .  our engineer has many years of experience for cnc machine service . so he can slove the problem in short time.
