2-мегапиксельная камера Full HD USB-мини с 5-50 мм зум-объективом переменного фокусного расстояния UVC Box HD Security H.264 CCTV Camera Plug and Play.

2-мегапиксельная камера Full HD USB-мини с 5-50 мм зум-объективом переменного фокусного расстояния UVC Box Security H.264 CCTV Camera Plug and Play.

Unavailable in

2Megapixel 1080P usb mini hd usb camera 5-50mm zoom varifocus lens UVC mini box HD security H.264 CCTV Camera Plug and play

Package include:

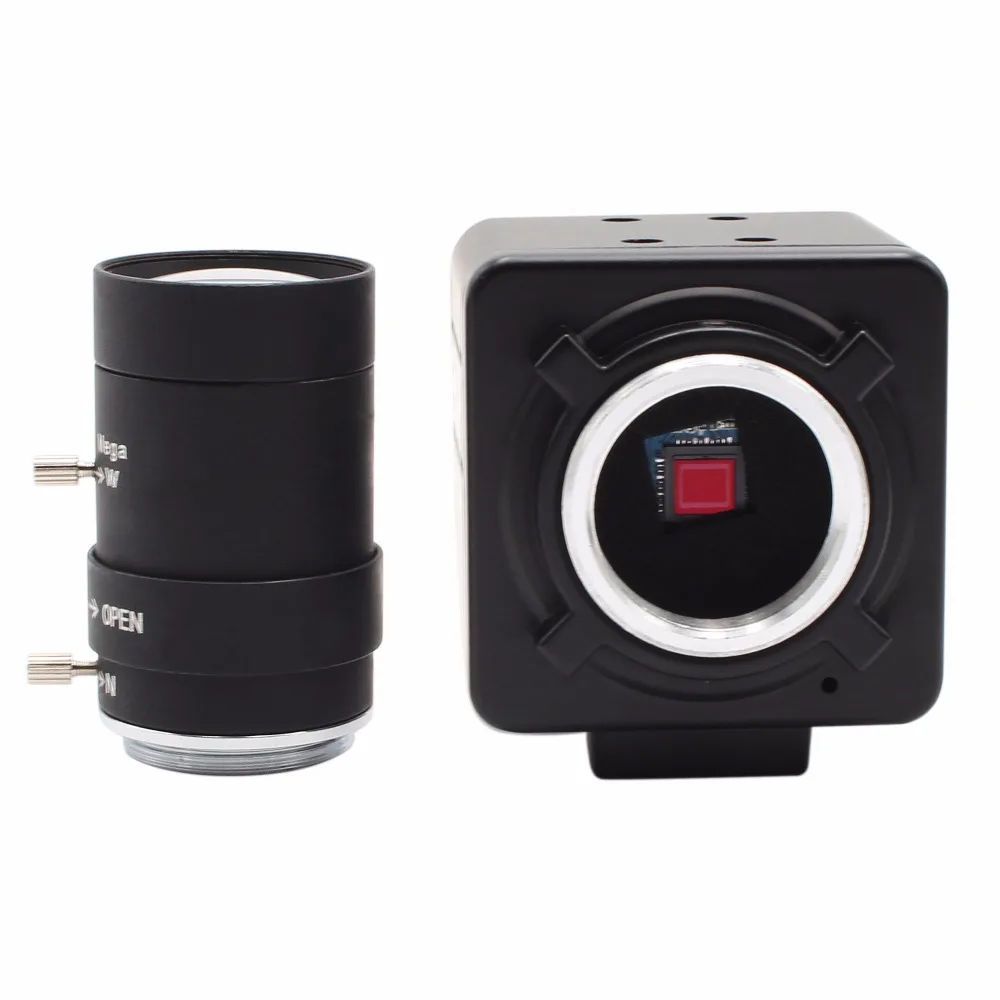

1) 1PC 2mp usb camera with 5-50mm manual varifocal CS lens

2) 1PC 3m usb cable  ( 2m/5m cable optinal)

1)Max resolution :1920*1080 ,2.0 Megapixel USB2.0 camera

2)Plug&play with any PC video surveillance, no need additional power

3)Star Light camera: working perfect both in light condition and low light condition

4)Highly advanced Sony IMX322/IMX323 Sensor

5)Compression format : H264 /MJPEG / YUV2(YUYV)

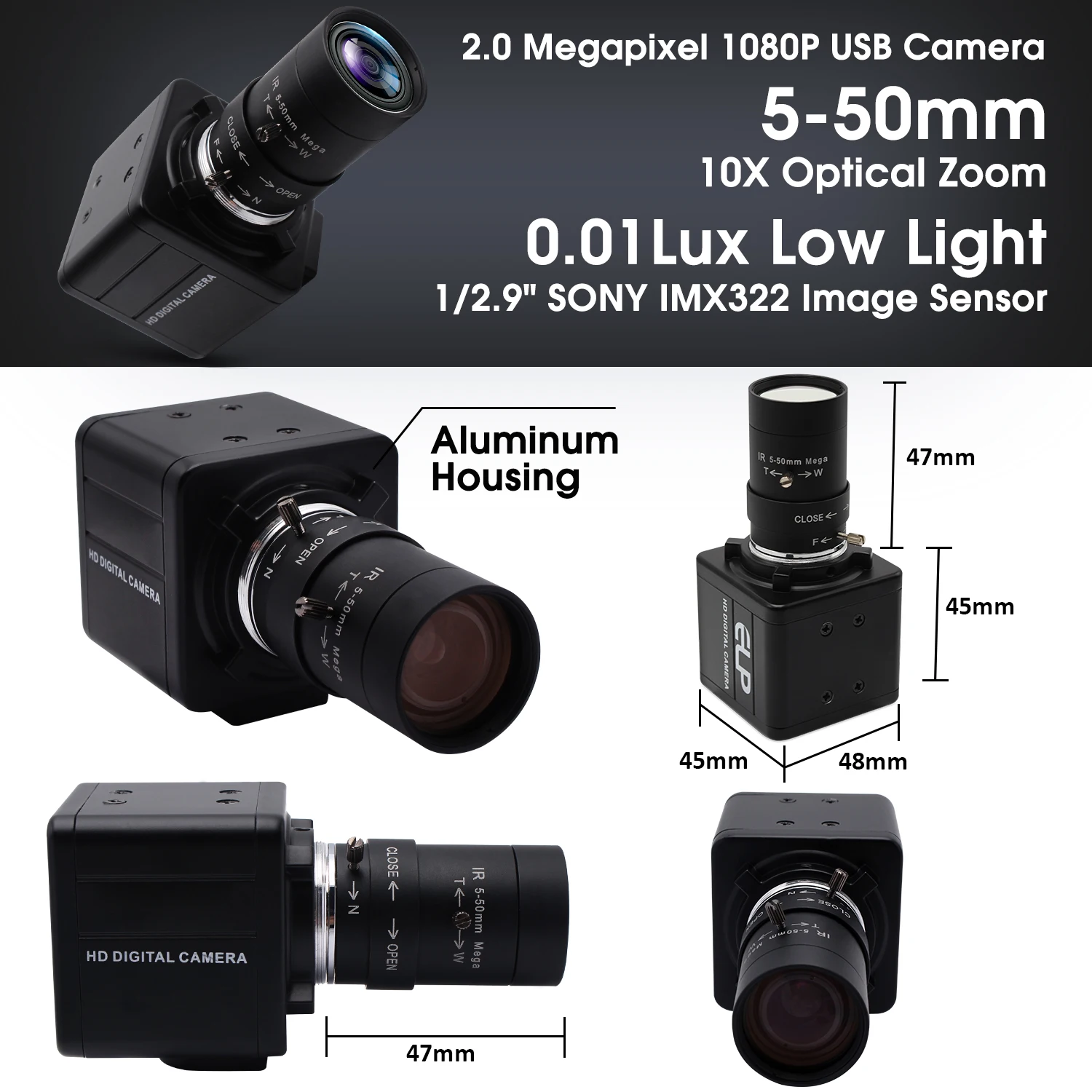

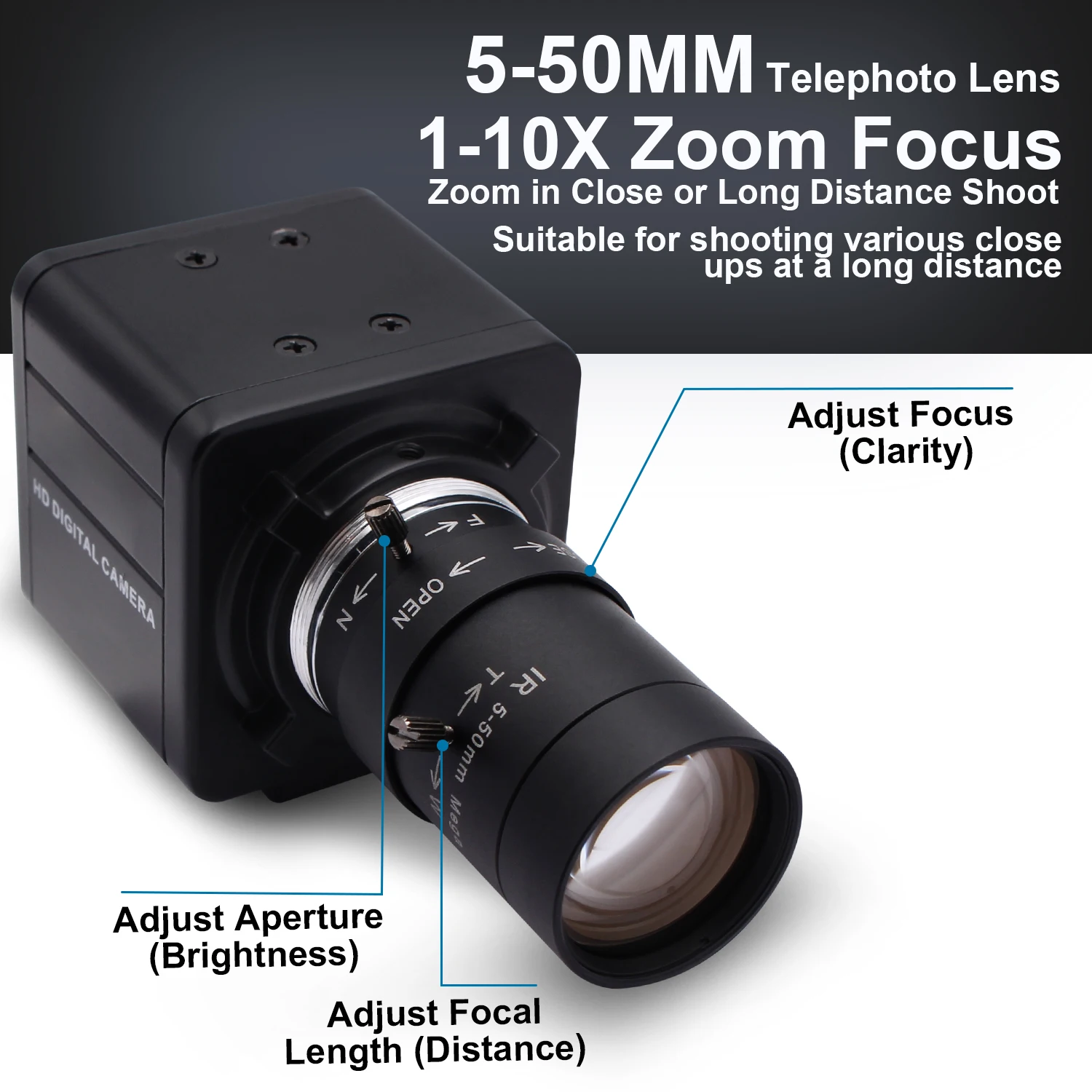

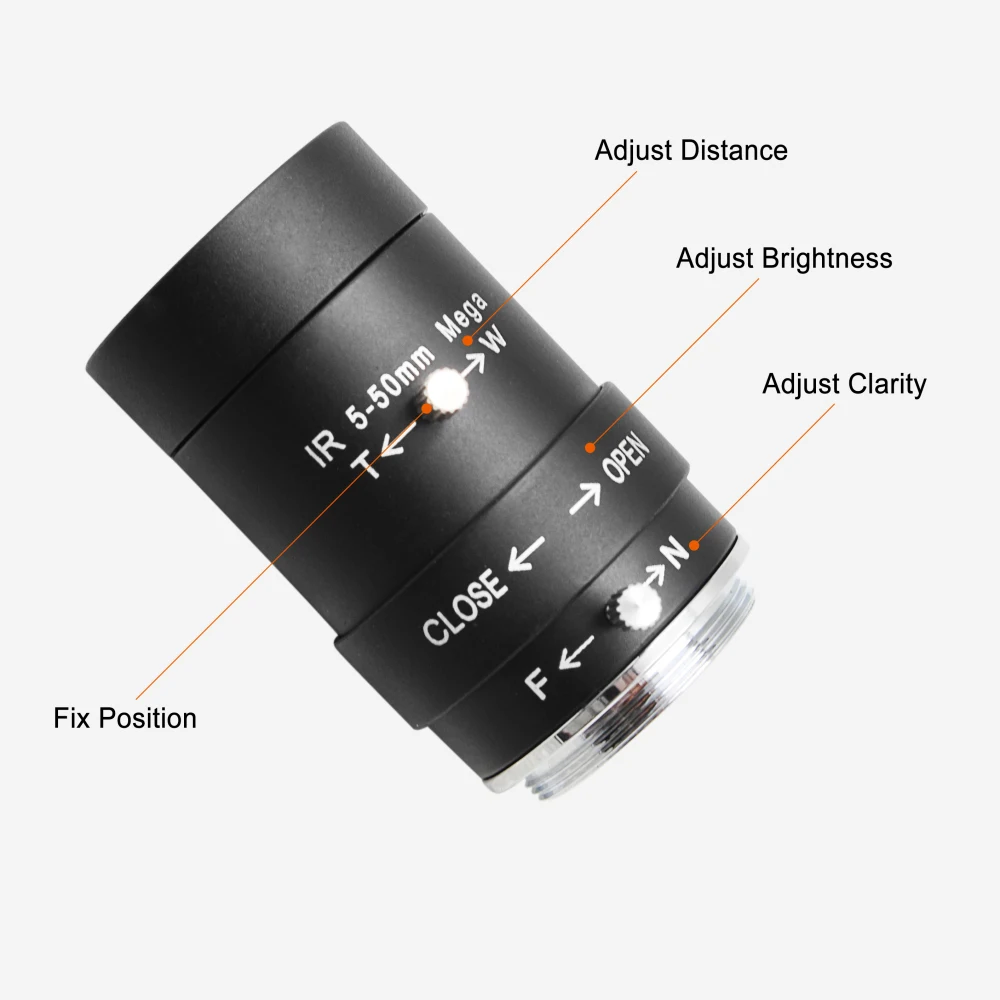

6)Equiped with 5-50mm varifocal CS lens

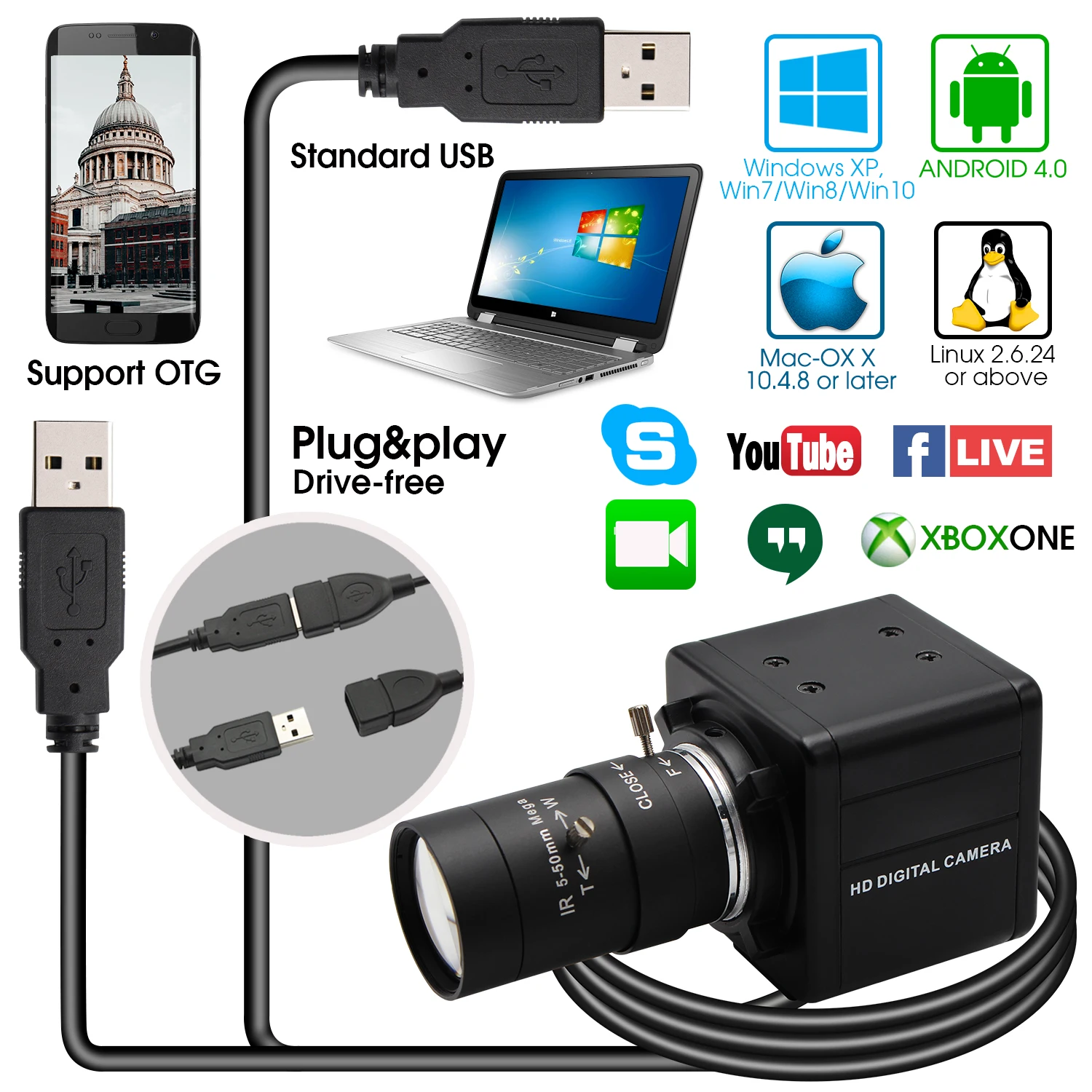

7)UVC compliance for use in OS Windows, Linux, Android, Mac

8)Support otg protocal

Model

ELP-USBFHD06H

Sensor

IMX322/IMX323

Lens Size

1/2.9 inch

Pixel Size

12.8X11.6 mm

image area

2000(H)X1121(V)  approx. 2.24 M pixels

Max. Resolution

1080P

Compression format

H264 /MJPEG / YUV2（YUYV）

Resolution & frame

H264：320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps

MJPEG：320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps

YUV：320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 15 fps

S/N Ratio

42dB

Dynamic Range

86dB

Sensitivity

5.0V/lux-sec@550nm

Mini illumination

0. 01 lux

Shutter Type

Electronic rolling shutter / Frame exposure

Connecting Port type

USB2.0 High Speed

Free Drive Protocol

USB Video Class（UVC）

Support OTG Protocol

USB2.0 OTG

AEC

Support

AEB

Support

AGC

Support

Adjustable parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure

Lens Parameter

Standard 3.6mm, optional 2.1/2.5/2.8/6mm/FOV(D)170 Degree/FOV(D)180 Degree

Digital audio

High quality digital MIC, support single, dual channel

LED board power connector

Support  2P-2.0mm socket

Power supply

USB BUS POWER  4P-2.0mm socket

Power supply

DC5V

Operating Voltage

140mA~190mA

Working current

-10～70℃

Working temperature

-20～85℃

Board size /Weight

38X38mm（Compatible 32X32mm）/ about 30g

Cable

Standard  1M / optional 2M,3M,5M

Operating system request

Win7 Win8

Linux 2.6 or above

Android 4.0 or above

Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site

monitoring, environmental monitoring, etc.

 used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player,

 LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external,

 evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system,

simple security system, teaching system, Interactive system,  automobile data recorder. Project video capture,

  credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system,

Driving learning system, Industrial camera, biological microscope, box inside surveillance,  micro HD surveillance,

 endoscope, Medical auxiliary equipment, etc.

Our USB Camera include VGA 640X480,1MP,1.3MP,2MP,5MP and 8MP resolution
