14 inch LED industrial all in one touch panel pc with 2mm embedded 10 Points Capacitive Touch Screen Default IP54 (front panel). Typical 1600*900 resolution. Compact, fully functional,all the power and functionality of a desktop computer in a all in one design,powered by intel celeron 3855u processor, ideal for industrial and commercial applications. suit for multiple application,industries, car repair shops, security, factory, business, fanancial and projects.

(Barebone, Single RAM/SSD/SSD+HDD without system).Others with Windows 7/10 pro as the default system, and linux ubuntu do need to leave us message on the order, thank you. hardware compatible with all windows/linux distributions.

Low power consumption, low heat, use dedicated turbo silent cooling fan to ensure long-term operation and stable heat dissipation. very slim, can stand on desk or embeded/mountable.

Designed with 3*USB 2.0+ 1*USB3.0+ 3*RS232+ 1* LAN+ Audio In &Out Built-in 2W Speaker + 1*VGA+1* DC,aesthetic design and reasonable interface layout.

Size at 346.3* 231.3* 42.7mm,3.5kgs,with power cord,auto power-on option could be customized,all use big brand memory and ssd/hdd with quality assurance.

This model can install 5 types processor CPU:

1: Bay Trail-D-Celeron J1900 Quad Core 2.0G(Max. 2.4GHz)

2: Intel® Celeron Processor 3855U (2M Cache, 1.60 GHz)

3: Intel®Core I5 Dual Core(Max. 2.6GHz)

4: Intel® Core I7 Dual Core (Max. 2.8GHz)

5: Bay Trail-D-Celeron J1800 Duad Core 2.41G(Max. 2.58GHz)

4G RAM 64G SSD

If customer buy the configuration with RAM, SSD, HDD, We can install system as belows,

Model Number:Partaker Z10
Screen Size:14 Inch 2MM Embedded Panel PC
Opening Hole Size:340.3mm (length) *225.3mm (width)
Material:Aluminum alloy / sheet metal
Screen Type:10 Points Capacitive Touch Screen
CPU:Intel Core I5 Gen. 3th CPU (Commonly for I5 3317U, seller remains random ship)
OS:Support Windows 7/8/8.1/10,WES7/8,Linux, Vxworks etc; (Barebone, Single RAM, Single SSD or SSD+HDD without any system). Others with Windows 7 pro as the default option, and linux ubuntu or Windows 10 pro do needs to leave us message on the order, thank you.
Version:With Fan
RAM/SSD/HDD:Maximum 8G RAM DDR3/L/-RS 1333/1600, 1* MSATA + 1*2.5 Inch HDD
I/O:2*RS232+HDMI+VGA+LAN+4 USB2.0+DC+Audio In &Out
Physical Dimension:346.3* 231.3* 42.7mm
Physical Weight:3KG/3.5KG(Net/Gross)
IP Protection Level:Default IP54 (front panel)
Color:Black
Panel Structure:
Panel Size:14 Inch LED Screen
Resolution:1600*900
Display Brightness:250cd/m(2)
Contrast:500 : 1
Response Time:8ms
Touch Type:Capacitance 10 point touch> 50 million times
Usage Environment:
Working Temperature:0°C~50°C Surface air flow
Operating Humidity:10%~95% at 40°C No condensation
Storage Temperature:-10 ℃ ~ 60 ℃
Installation Method:
1:Embedded (Recommended)
2:Wall-mounted
3:Desktop
4:Cantilevered
5:Others
Network:1* Realtek 8111E Gigabit
Audio:ALC662
Package Size:38CM(L)*30CM(W)*12.5CM(H)
Package Weight:6KGS
Power Supply:Input:180-240V~1.0A 50-60Hz,Output:12V DC 4A MAX
Power Cord:Power Cord*1
Buckle:Embedded Installation Buckle*4 Sets

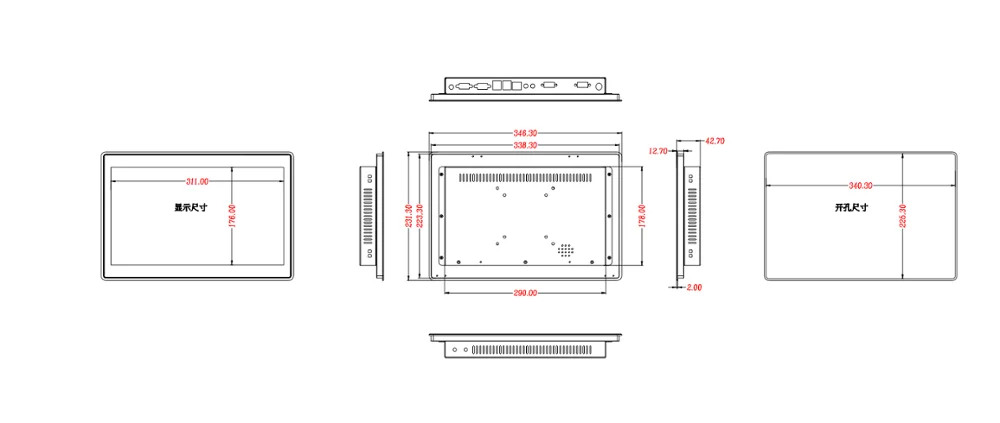

Opening Hole Size Drawing:

Features:

2mm ultra-thin front panel, embedded design

14-inch capacitive touch screen, 10 point touch

Aluminum flat panel, seamless design

Optional WiFi module, support for 802.11b / g / n

Standard VESA screw hole, can choose the installation method flexibly

Support WinXP, Win7, Win8, Win10, Linux etc….

Panel Structure:

Panel Size

14 Inch LED Screen

Resolution

1600*900

Display Brightness

250cd/m(2)

Contrast

500 : 1

Response Time

8ms

Touch Type

Capacitance 10 point touch> 50 million times

Usage Environment:

Operating Temperature:

-10℃~60℃ Surface Air Flow

Operating Humidity:

10% ~ 95% @ 40 ℃ without condensation

Storage Temperature:

-20 ℃ ~ 70 ℃

Installation Method:

1. Embedded (Recommended)

2. Wall-mounted

3. Desktop

4. Cantilevered

5. Other Installation Methods

Motherboard:

BIOS:AMI 32Mbit,Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions

Display Mode:Single Display; VGA+LVDS ,HDMI+LVDS, Synchronous / Asynchronous Dual Display

Motherboard:  Fan Design

I/O Interface:

Network: 1* Realtek 8111E 10/100/1000M Adaptive Network Card Chip

Audio: Realtek®ALC662 HD Audio Decoding Core

Quality Inspection:

Each Partaker Industrial All In One Computer will conduct a number of strict testing, including performance testing, temperature testing, vibration, pressure, LED screen aging, interface testing, electronic load, touch screen detection

Before shipment, the appearance of Partaker Industrial All In One Computer, performance, interface, 24-hour aging test to ensure that each is superior quality.

Company Profile:

Focus on the industrial sector for 8 years, your most reliable suppliers

INCTEL Technology focus on All in One touch-screen, infrared touch All in One Computer, resistance touch All in One PC, advertising, touch products such as the development and production. For industrial control, commercial display, advertising, business meetings, games, entertainment, medical equipment and other fields, introduced a professional application solutions.

Package Information:

Package Size

38CM(L)*30CM(W)*12.5CM(H)

Physical Weight

3KG / 3.5KG(Net/Gross)

Power Supply

Input: 180-240V~1.0A 50-60Hz Output: 12VDC  4A MAX

Power Cord

Power Cord*1

Buckle

Embedded Installation Buckle* 1 Set
