Specification:

------------------------------------------------------------------------------------------------------------------

System Main processor : Hi3520D V300

Interface Preview : 1/4

Video Codec: H.264

Monitor quality : VGA,HDMI

Preview ability : 4*4M 18fps(AHD)/4*1080P (5 in 1)

Encode ability : 4*4M 10fps(AHD)/4*1080P 15fps(5 in 1)/4*720P(5 in 1)

Decode ability: 4*4M 10fps(AHD)/ 4*1080P 15fps(5 in 1)/ 4*720P(5 in 1)

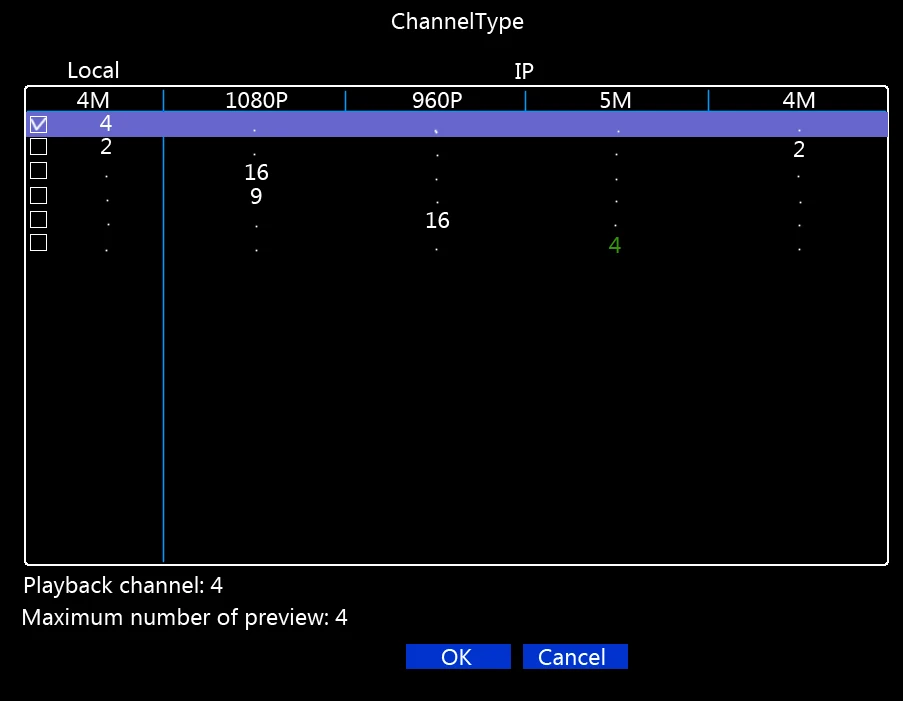

Multi-mode :

Analog: 4*4M;

hybrid: 2*4M（analog）+2*4M（network）

network:16*1080P; 9*1080P;16*960P;4*5M;

Motion Detection : Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be
set (Limited local channel)

Audio Audio compression :G.711A

Intercom : support

Record &playback :Record mode manual>alarm>motion detection>timing

Local Playback :  4ch(analog input mode)

Search mode : Search by time, calendar, event, channel

Storage &backup :

Video storage : HDD, network

Backup mode : Network, USB hard disk, USB burner, SATA burner

External :

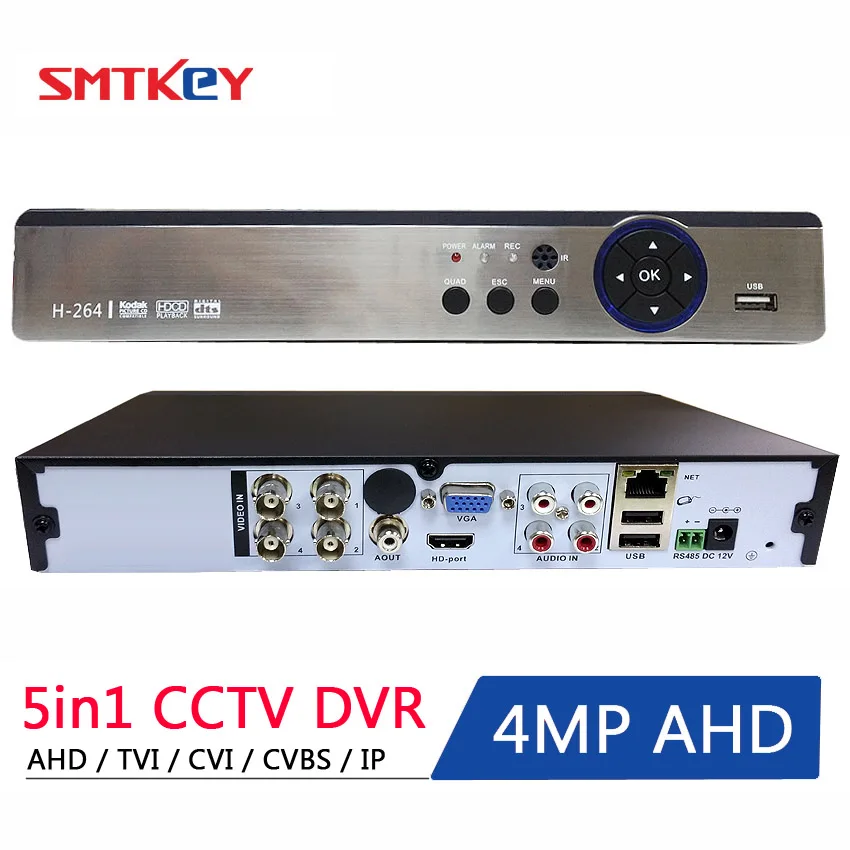

Interface:Video input 4ch BNC

Video output  : 1ch VGA, 1ch HDM

Audio I/O :  4/1

Network interface : RJ45 10M/100M self-adaption

PTZ control : 1*RS485, Support kinds of PTZ protocols

USB  : 2* USB 2.0 ports

HDD :  1*SATA ports (Max 6TB/per)

Wireless  : 3G, WIFI (extend via USB Dongle )

General Power supply : 12V/2A

------------------------------------------------------------------------------------------------------------------

Package Includes:

1 x 4CH DVR

1 x USB Mouse

1 x Power Adapter

1 x User Manual

1 x screws

------------------------------------------------------------------------------------------------------------------
