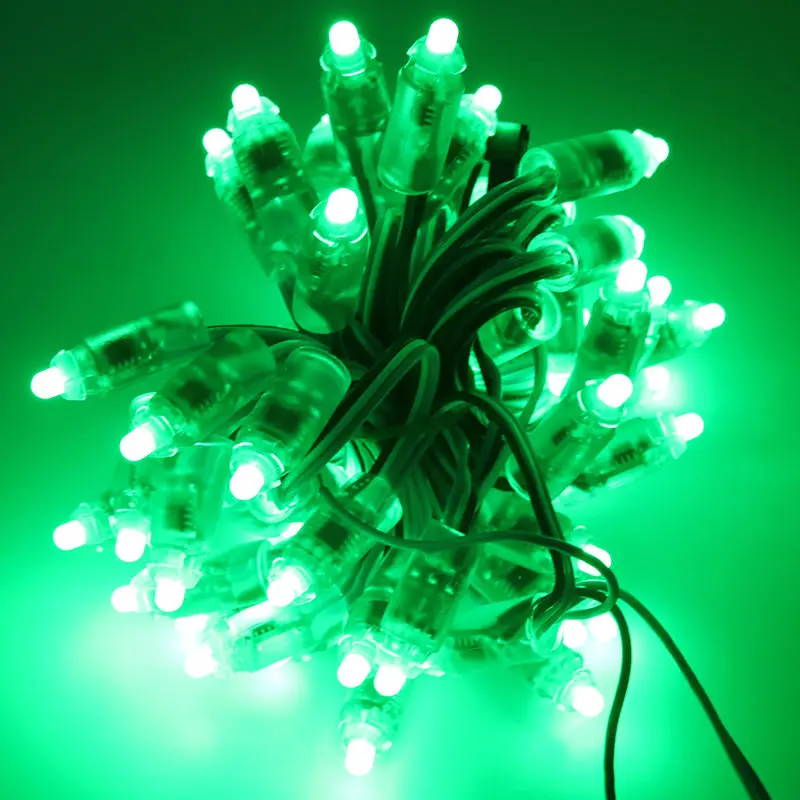

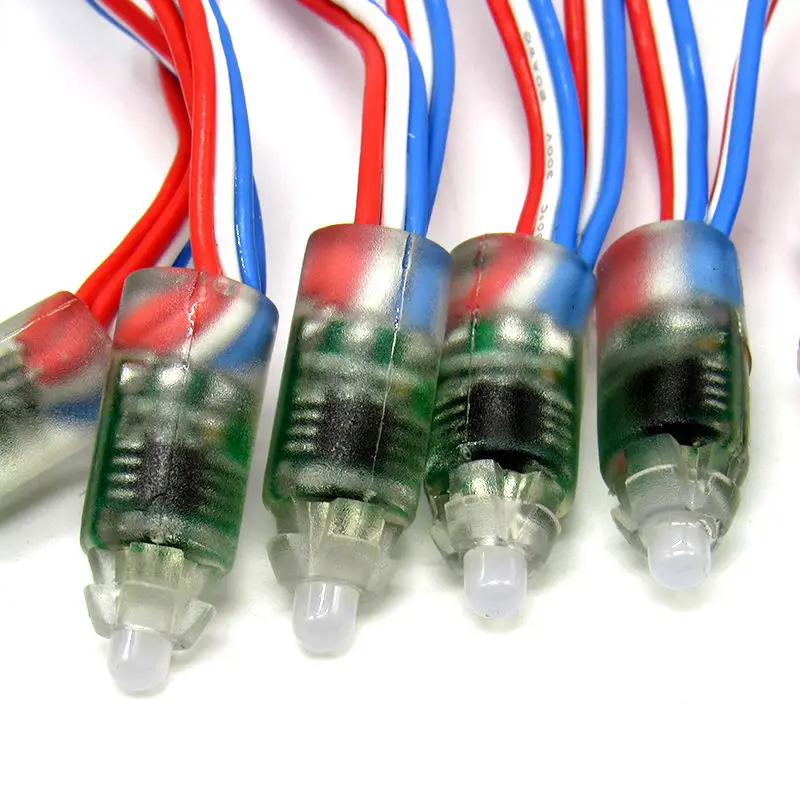

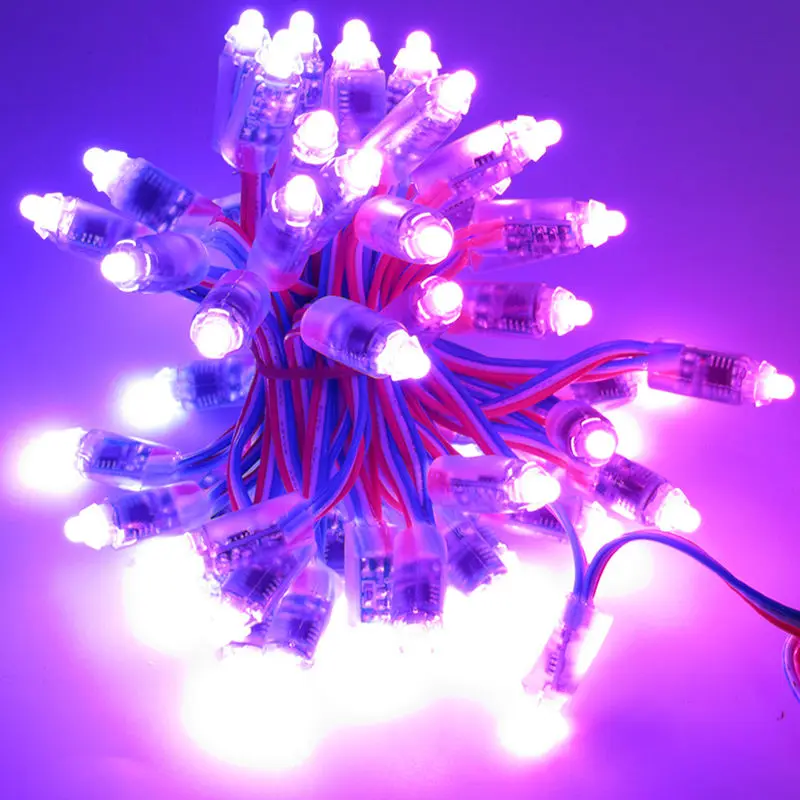

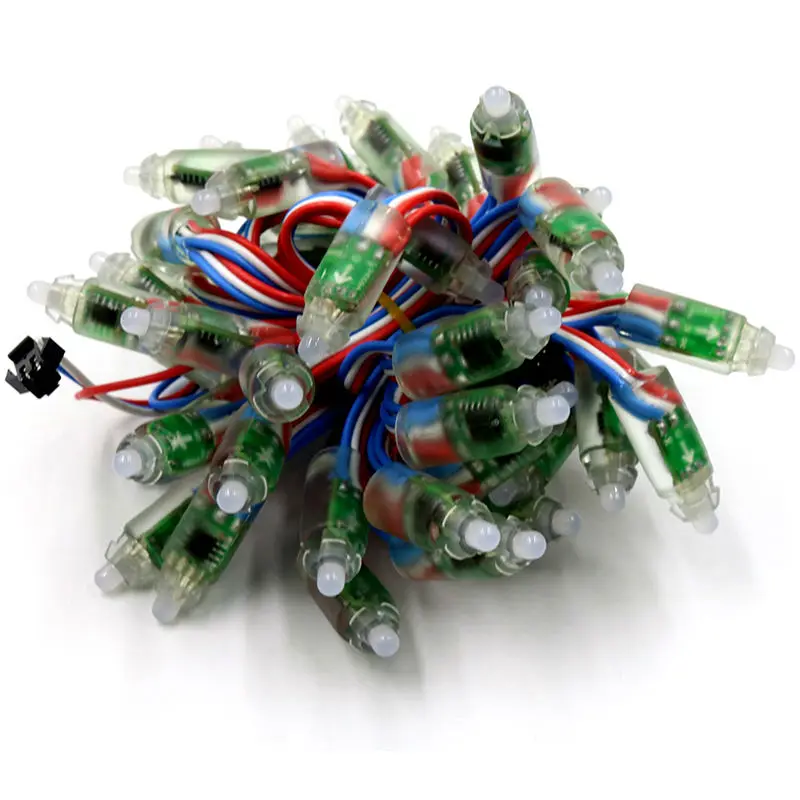

9mm addressable rgb led pixel light UCS1903 SM16703 ws2811 5V 12V led module lights backlight waterproof ip68 full color modules

wiring instruction:

input:the side without IC of the pcb

the first wire from left: DC5V/12V+

middle wire: DAT

the left wire from the left : GND

Features:

1. Adpots high quality F5mm 0.24w round hat RGB LED as lighting source.

2. With good proection level. can achieve IP68.

3. each module as one pixel, takes 3 dmx channels,white strobe color,can be controlled individually,

4. It is easy installation, open hole.

5;good waterproof type,IP68 rated,epoxy resin filled

6;using the strong cabe,with good cold resistance ability

7:works with dmx matrix controller,or SPI pixel controll,on-line controller.etc

Specification:

IC Type

WS2811 / UCS1903 / SM16703 chip

Color

full rgb color,24bit,256 gray scale

LED Qty

1pcs F5mm round hat rgb led with 3pin common anode

Input Voltage

DC5V/12V input

Max current

60MA

Max Power

5V--->0.3W, 12V--->0.6W

Driver method

Constant current circuit

Dimension

9mm diameter(open hole)

Viewing angle

100-120degree

Protection Level

IP68

Certification

CE and RoHS

Standard connection

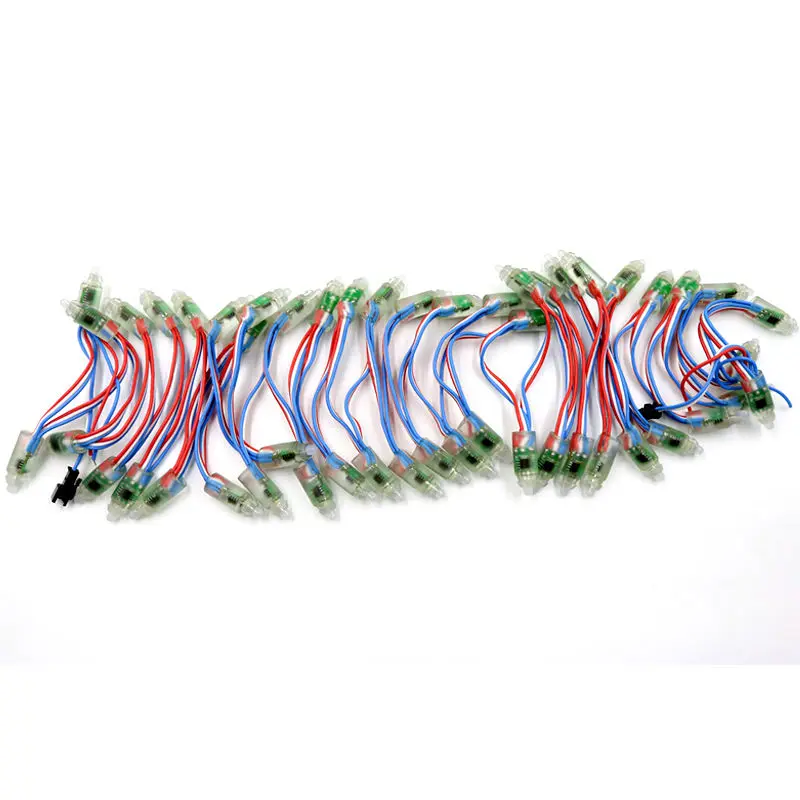

50pcs nodes per string

Standard wire length

100mm;all color wire(20awg)

Housing

transparent PVC

Fixed way

9mm diameter open hole;

Lifespan

35000 hours

Warranty

2years

Operation temperature

-40-50°c

Store temperature

-50-60°c

lights, back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path
and contour marking; etc.
They can be a good choice for advertising,Led screen, night clubs, coffee / wine bars, shopping malls,
various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc

1. Gold supplier, good service and factory competitive price.
2. Good high brightness F5mm RGB LED.
3. Low voltage for human safety, energy-saving.
4. Waterproof led pixel can use in outdoor.
5. Environmental friendly: Low carbon, no radiation, no flicker, and no harm to human and environment.

6. Cuttable every LED can be cut.

7. Every LED individually controlled

8. Can show customized effects

9. Support online control

10. Long lifetime for 50,000hrs

11. CE and RoHS approved

12. 2years warranty

This kind led pixel strip need work with led pixel controller and 5V/12V led power supply.
