Partaker R9 Intel I3 3220 VPN Router Network 1000M 82583v Lan 2G RAM 32G SSD | Компьютеры и офис



2017 Partaker R9 B75  1000M 82583v Lan Router Network I3 3220  2G RAM 8G SSD

Soft route is with the use of a desktop or server software to form a routing solution, mainly by software settings to reach the router function; while the hard route is based on use of special hardware devices, including the processor, power supply, embedded software, Setting the router functionality provided.

Software router is not complicated, very simple, normal operation will use PC software can be installed on the route, as the name suggests is the system software setup routing function Depending on the different operations can be divided based on the windows platform and software-based routers Linux / bsd platform development, based on the Windows platform software firewall more common ISA Server, Winroute Firewall, Internet behavior management soft grass routes, etc. Some of these software is commercialized, usually based on the number of authorized users of different charges and different, the cost of buying genuine software firewall for many small and medium enterprises is undoubtedly spending a small fortune, grass Internet behavior management software-based routing is limited windows platform and also hit a soft free routing software; and based on Unix / Linux platform software firewall we generally less contact, to benefit from open source operation, currently based on Unix / Linux platform software firewall mushroomed continue to introduce these Most software firewall is free, a common sea spiders, ikuai8, RouterOS, m0n0Wall, SmoothWall, Ipcop, CoyoteLinux [1], etc. These systems are characterized by low total general hardware requirements, or even just need a 486 computer, a floppy disk, you can install two cards out of a very professional software firewall, which has eliminated a lot of friends down the low-end computers, means to take one out of the computer, install a free firewall software, do not spend a penny on DIY out a professional firewall, and these systems also include NAT function itself, and can achieve broadband sharing, which means that this free firewall is actually a good broadband router, this is how exciting things, but for now, this kind of free software route is usually inserted in order to survive or because of excessive advertising leads to dissatisfied users.







LOGO Sticker can be customized, MOQ100pcs



2G RAM 8G SSD Included

Our firewall appliance can install routing software like Radius_Manager, RouterOS, ROS, Panabit, PFSense, monowall, PFS, OPENWRT, Yunbs, XiaoCao, Wayos, Netzone, Bytevalue, Bithighway, Hi-Spider, iKuai etc





Model Catalog Spec. Description More Details R9 B75 6 Ethernet  (Cabinet Type) Type 4 CPU CPU Optional (Can Buy From US)

Standard 1U Type(43*27*5CM),180W Big Power,Can Rack,

With Mounting Bracket Ears,Wall Hanging,Foot Pad

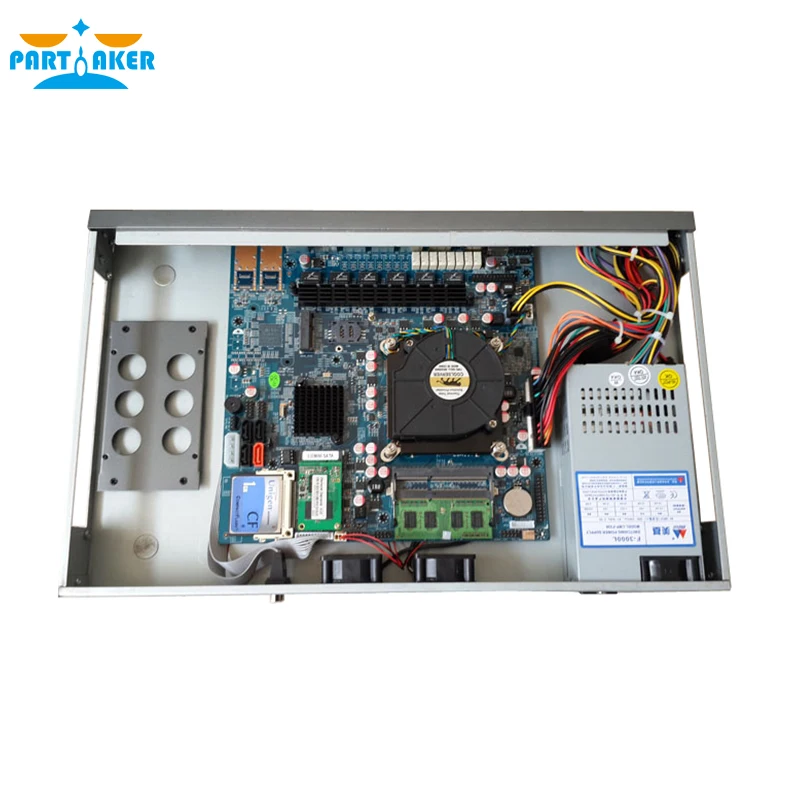

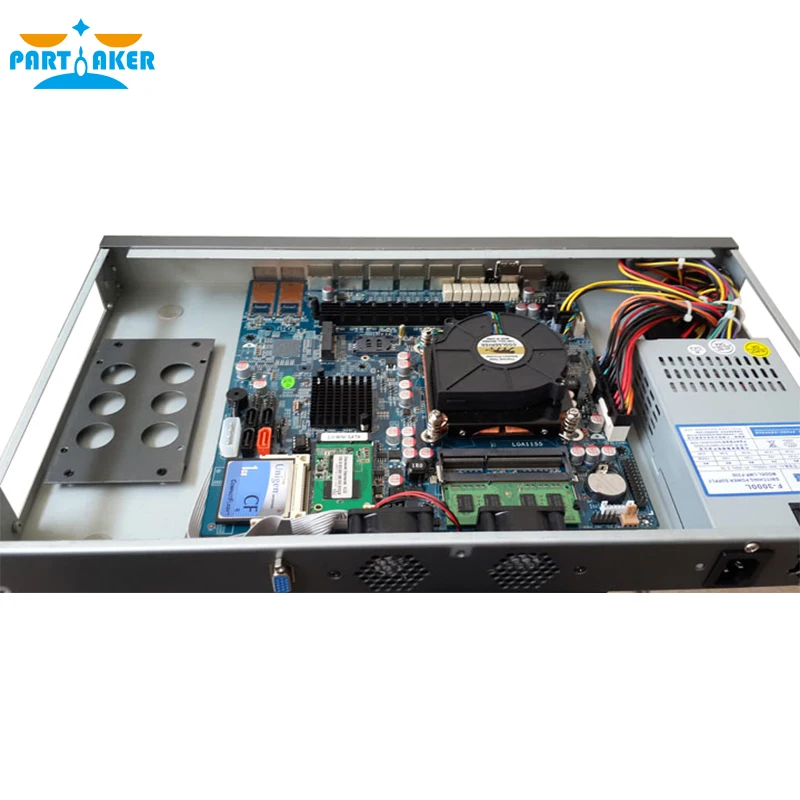

Chipeset Intel® B75 Express Chipset Memory 1* SO DDR3,1333MHz, N/A GB HDD/SSD N/A Ethernet 6*Intel® 82583V Gigabit Ethernet

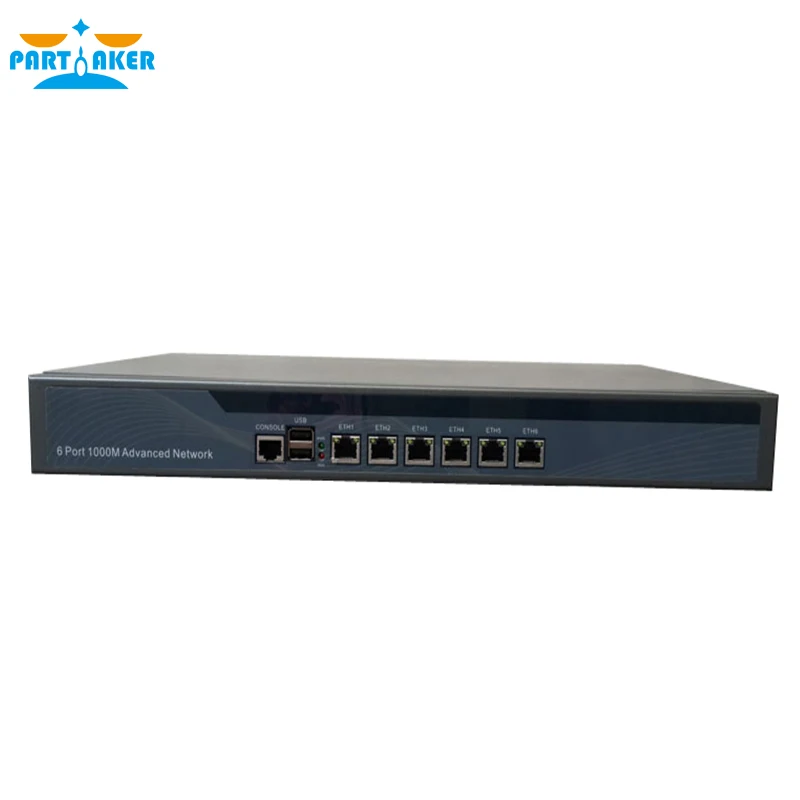

Model Number:  Partaker R9 Type:  B75 6 Ethernet, (Cabinet Type)  CPU:  Intel Core I3 AES-NI Supported:  NO Chipeset:  Intel® B75 Express Chipset,With One Set BYPASS Memory:  2* SO DDR3，1333MHz, Max. 32G RAM HDD/SSD:  1 SSD+1 HDD Supported Ethernet:  6*Intel® 82574L Gigabit Ethernet COM:  Yes   Hardware:  Standard 1U Type（43*27*5CM), 180W Big Power，Can Rack，With Mounting Bracket Ears，Wall Hanging，Foot Pad Network Card:  The Motherboard Integrates 6 Intel (Intel) Gigabit Ethernet Electrical Interface, Using Intel 82574l / L 10/100 / 1000m Ethernet Controller, The Network Card Bus Using PCI-E Interface, The Actual Test Flow On The Machine More Than 1G/S. Support:  RouterOS(ROS), Mikrotik,PFSense, IPFire, Panabit, WayOS, SmoothWall, m0n0wall, ClearOS, IPCop, Devil Linux, Radius_Manager, BYTEVALUE, Netzone, Hi-spider, iKuai8, etc. WAN-LAN Throughput:  Around 500 Mbps-600 Mbps   About Power Cord:  We will ship the type of power cord, based on your area.
