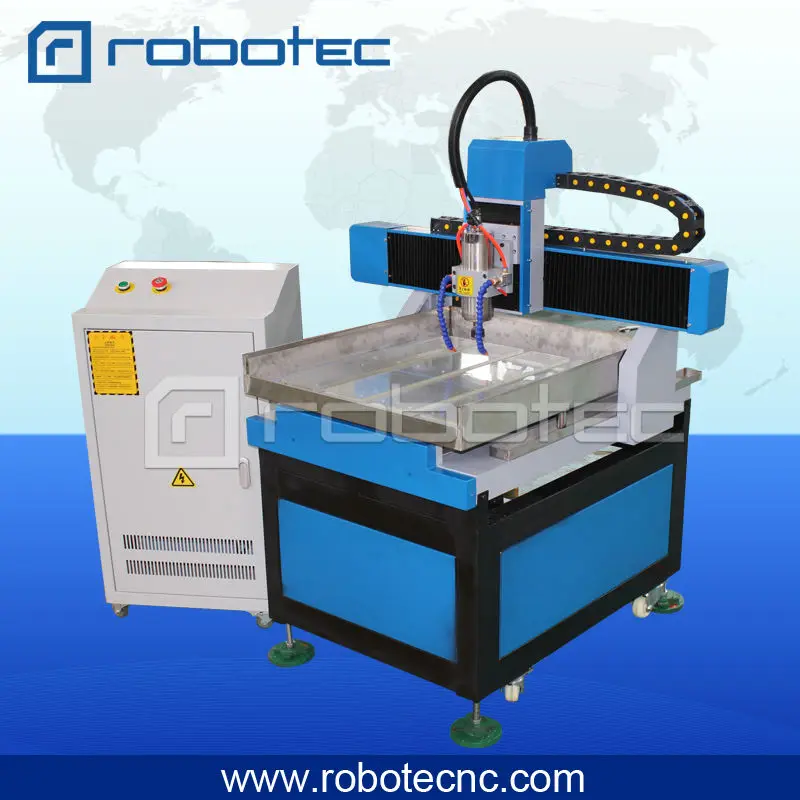

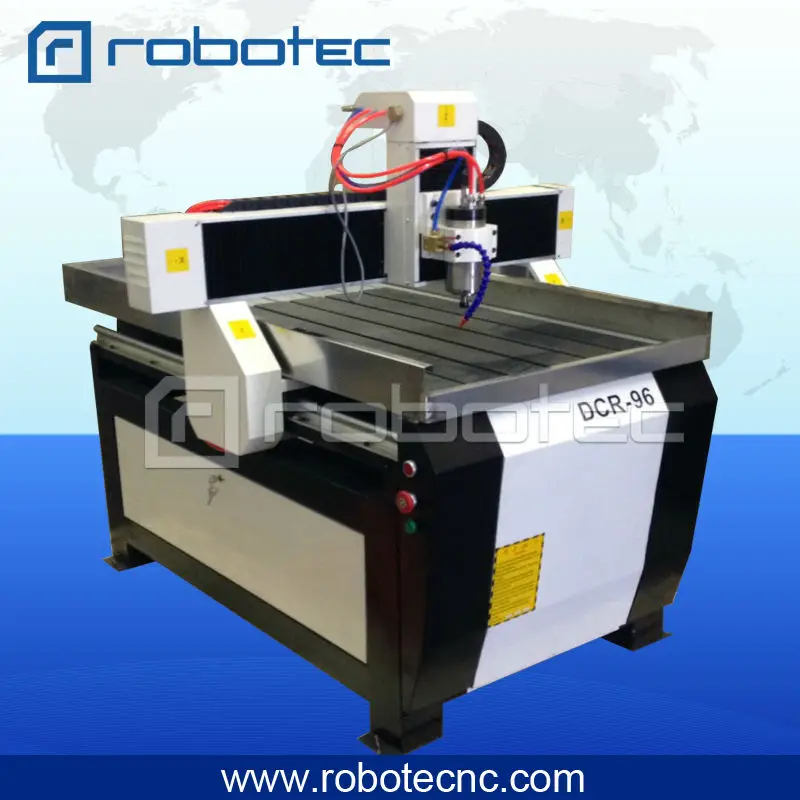

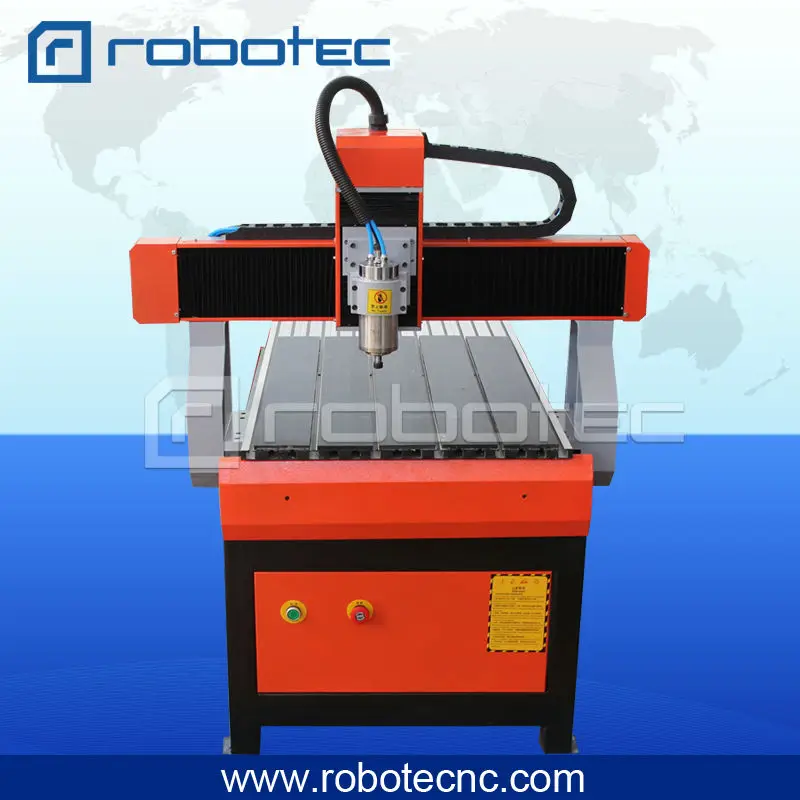

                               Woodworking CNC Router 6090

Model

                         RTG-6090

Working area (X*Y*Z)

                  600*900*150mm

Table size

                  850*1050*1540mm

Body structure

                  Thicken steel made

X, Y Structure

                   Rack and pinion

rails

                  Taiwan 20size hiwin square rails

Z Structure

                  Taiwan TBI ball screw

X, Y Resolution

                         <0.01mm

Max Moving Speed

                   40000mm/min

Max Engraving Speed

                   15000mm/min

X,Y,Z traveling positioning accuracy

                   ±0.01mm

X,Y,Z repositioning accuracy

                   ±0.01mm

Spindle power

                  1.5kw water cooling spindle

Spindle Speed

                   0-24,000rpm

Voltage

              380v/3phase or as customer needed

Drive type

             Big stepper motors and drivers

Working  Dictate

                        G Code

Operating system

              DSP control system(Option Mach3 or Ncstudio)

Tool sensor

                       Yes

Auto oil lubricator

                    Yes,included

Wire protect

                    Yes,included

Running Environment

                   Temperature: 0℃~45℃

package

                   Export wooden box

After packed size

                   800*1100*1700mm

G.W

                    500kgs

>>Standard Configuration:

1) DSP control system: Popular and easy operation, with USB port to transfer program;

2) Italian HSD Air-cooling Spindle: Long working life, easy maintenance;

3) Big Stepper Driving Moto: With highly control precision and high speed, reliable and stable;

4) Taiwan Hiwin Guide and Block: Guaranteed genuine rail with good quality, realizing smooth movement;

5) Taiwan TBI ball screw: linear motion with high precision and and in high speed

6) Helical rack and pinion: quiet running, greater accuracy, smoother cutting and allows greater acceleration and feeding rates, longer lifetime because of smaller wearing force.

7) Taiwan Delta Inverter: Guarantee the variety working speed and protect the spindle very well;

>>Applicable Material: Acrylics, artificial stones, artificial marble, woods, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.

>>Applicable Industry: Woodworking industry, stone industry, advertising industry, artwork or decoration industry, electronica industry, mold industry and music industry etc.

1. Service before order: our salesman will try to know more about your demands ,  including the max working size, main processing materials and the thickness , so we will offer you suit machine.

2.Service during production : we will send the production the machine pictures for customer in time , customer can know more the detailed machine parts.

3.Service before shipping : the machine parts will be installed and tested by our professional.

technician, send the test video according to customer’s processing materials for customer confirmations.

4.Service after shipping : we will check when the machine arrive your sea port or the approximate arrival date, so that the customer can know the arrival date and to prepare to pick the machine up

5.Service of training : the English manual and operating video will be sent to customers with the machine together, it will help customer how to operate the machine , it there is any question about the operation , we will have the professional technician to help them how to operate by online ,until the customer can use it freely.

6.Service of warranty : we guarantee the machine for  Two Years, some machine parts ( quality problems ) can be free charge to replace it within warranty.

Pls attention:

1. The machine is shipping by sea!!! Pls don't place order on aliexpress.

2. The price is FOB Qingdao, pls give me your nearest port before order.

3. Will have discount if you contact me !!!

                                         Watting for your inquiry.
