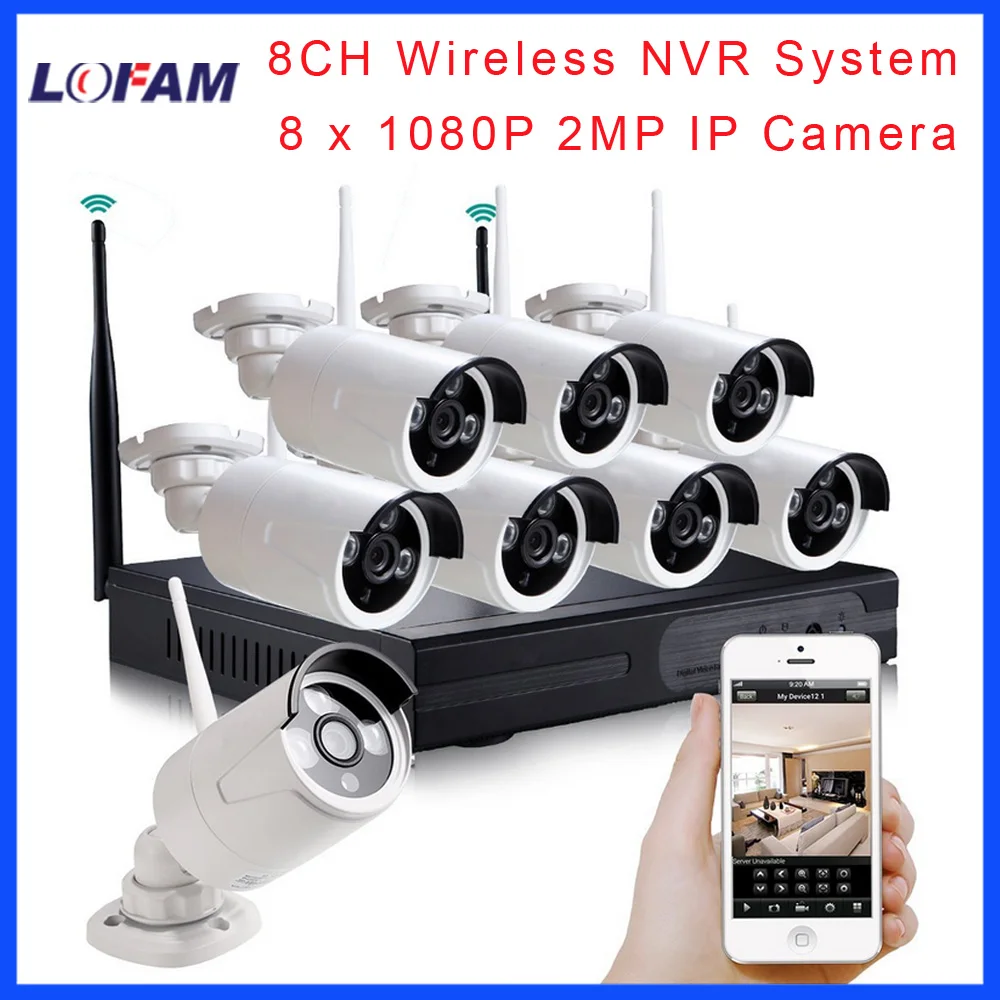

LOFAM 1080P Wireless CCTV System 8CH HD wi-fi NVR Kit Outdoor IR Night Network IP Wifi Camera Security System Surveillance Kit

Network Video Recorder Features:

Built-in high-performance wireless router with 5db high gain dual-antenna, support 802.11 b/g/n, 150Mbps, strong anti-jamming capability and through-wall capability, safe and reliable

Private hidden wireless protocol transmission technology, the third-party device cannot find wifi ssid

True high definition 1080p 2.0MP H.264 recording on all cameras

Continuous, scheduled and motion recording

Hue, Brightness, Saturation, Contrast is adjustable

2 video outputs (HDMI & VGA) to connect multiple monitors

Free App, instant mobile viewing on smartphones and tablets

Dual streaming to conserve bandwidth

Wireless Security Camera Features:

High definition 1080p 2MP resolution 1/4" Micron OV9712 CMOS image sensor

Real-Time wireless video with H.264 compression 1920 x 1080 resolution

Dual IR-CUT filter achieves accurate color reproduction in varying lighting conditions

Long range night vision range up to 100ft (30m)

Simple installation, No video cable required

Weatherproof housing for outdoor or indoor installation

Built-in wireless router

NVR built-in wireless router, With Realtek RTL8196E + RTL8182ER processor,

Private hidden wireless protocol transmission technology, The third-party device cannot find wifi ssid,

5db high gain dual-antenna, Stronger ability of signal transmission.

Plug and Play

Compared with the common wireless system, Without cumbersome wifi configuration,

We have add the camera to the NVR in advance,

You only need to plug in the power adapter for all devices, Plug and Play.

WIFI range

Indoor wifi range reach to 15-30m, Outdoor can be more than 50m

But the actual wifi distance depending on the actual environment,

As we all know that the wifi signal through the wall, Signal strength will be weakened.

Motion detection

If you enable the video detection function, The system will send an email alert to you inbox

As soon as any motion is detected in the camera\'s field of view.

Remote monitoring

Use the free mobile apps and client software to connect to the HD camera securely from anywhere in the world.

Supported Windows PC, Android, iPhone and iPad.

System

Model:

WX-8765WN

Main Processor:

Hisilicon 3520 + Realtek RTL8196E + RTL8182ER

Operating System:

Embedded LINUX

Preview:

1/4/8

Control Device:

USB Mouse

Video & Record

Video Compression:

H.264

Video Input:

8CH * 1080P 2MP

Video Output:

VGA / HDMI
1024x768, 1280x1024, 1366x768
1440x900, 1920x1080

Video Mode:

Manual, Time, Motion, Alarm

Playback Mode:

Real time, Routine, Event

Playback:

8CH * 1080P

Storage & Backup

Space Occupation:

1080P: 40-45G/day/ch

Video Saved:

Local HDD

Interface

Video Output:

1 * VGA, 1 * HDMI

Network Protocol:

UPnP/ SMTP/ PPPoE/ DHCP, FTP etc

Net Interface:

1 * RJ-45

USB Interface:

1 * USB2.0 Port

Hard Disk:

1 * SATA Port ( support 4TB )

Other

Operating Conditions:

-10 C ~ 55 C
Humidity 95% or less (non-condensing)

Power Supply:

12 VDC

Power Consumption:

5W (Without HDD)

Size:

257mm*210mm*45mm

Weight:

1.5kg (Without HDD)

True night vision technology

Our true night vision technology delivers a clear and bright night vision effect,

The camera\'s built-in mechanical infrared filter, Infrared light in the daytime for superior color reproduction.

At night, The IR filter is automatically removed for enhanced light sensitivity,

The high quality IR Leds allow each camera to view the environment even in complete darkness.

IP66 waterproof

The 24NR HD surveillance cameras are extremely rugged and flexible.

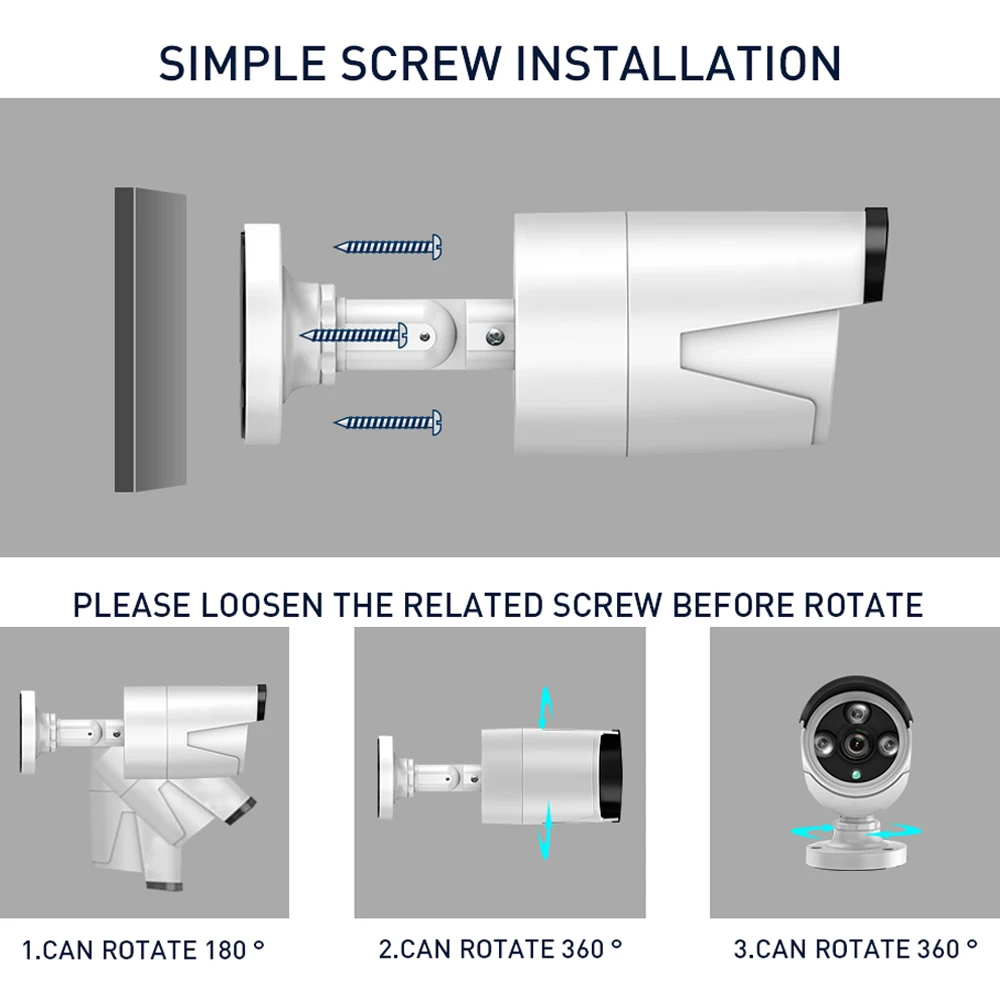

Versatile ceiling or wall mounting options allows them to be placed wherever you need them most - indoors and outdoors.

They are IP66 rated and are able to withstand the most unforgiving climates.

Camera

Processor:

Hi3518E

Image Sensor:

1/4" Micron OV9712 CMOS Progressive Scan

Infrared

3*Array LEDs with IR-Cut
IR distance 30m 100ft

Min. Illumination:

Colour 0.1 Lux
B/W 0.01 Lux

Day& Night:

Dual IR-cut filter auto switch

Max S/N Ratio:

> 39.1dB

Video

Video Standard:

H.264

Dual Stream:

Yes

Max.Resolution:

1920*1080 (1080P 2.0mp)

Bit Rate:

32 Kbps ~ 4 Mbps
Supports CBR / VBR

Frame Rate:

50Hz: 25fps (1920 x 1080) ______ 25fps (640 x 480)
60Hz: 30fps (1920 x 1080) ______ 30fps (640 x 480)

Image Settings:

Brightness, Saturation, Contrast, Hue adjustable

Image Process:

AE, AWB, ABF, ABLC,
Digital WDR, 3D-DNR

Image Orientation:

Flip and Mirror

Privacy Mask:

4 Configurable regions

Title OSD:

Supports Channel name, Date

Network

Alarm Trigger:

Motion Detection

Alarm Way:

Email Alarm

Protocols:

P2P/ DHCP/ DDNS/ PPPoE/ E-Mail/ FTP etc.

Wireless Protocol:

WIFI 802.11b/g/n 150Mbps

Interface

NET:

1 * RJ45 10M / 100M ethernet interface

Power:

1 * Ø5.5 RCA interface

General

Anti-thunder Level:

Standard IEC61000-4-5

Operating Conditions:

-40 C ~ 60 C
Humidity 95% or less (non-condensing)

Power Supply:

12 VDC

Power Consumption:

6W

Waterproof:

IP66

Housing Material:

Metal

Weight:

0.5kg

What's package included ?

1 X Wireless 8CH 1080P Security NVR recorder

8 x Wireless wifi 1080P 2.0MP outdoor camera

1 X Power Supply for DVR

8 x Power supply for cameras

(UK/ US / EU / AU)

1 x CD software

1 X USB Mouse

1 X Users Manual

Hard disk for optional on product link !
