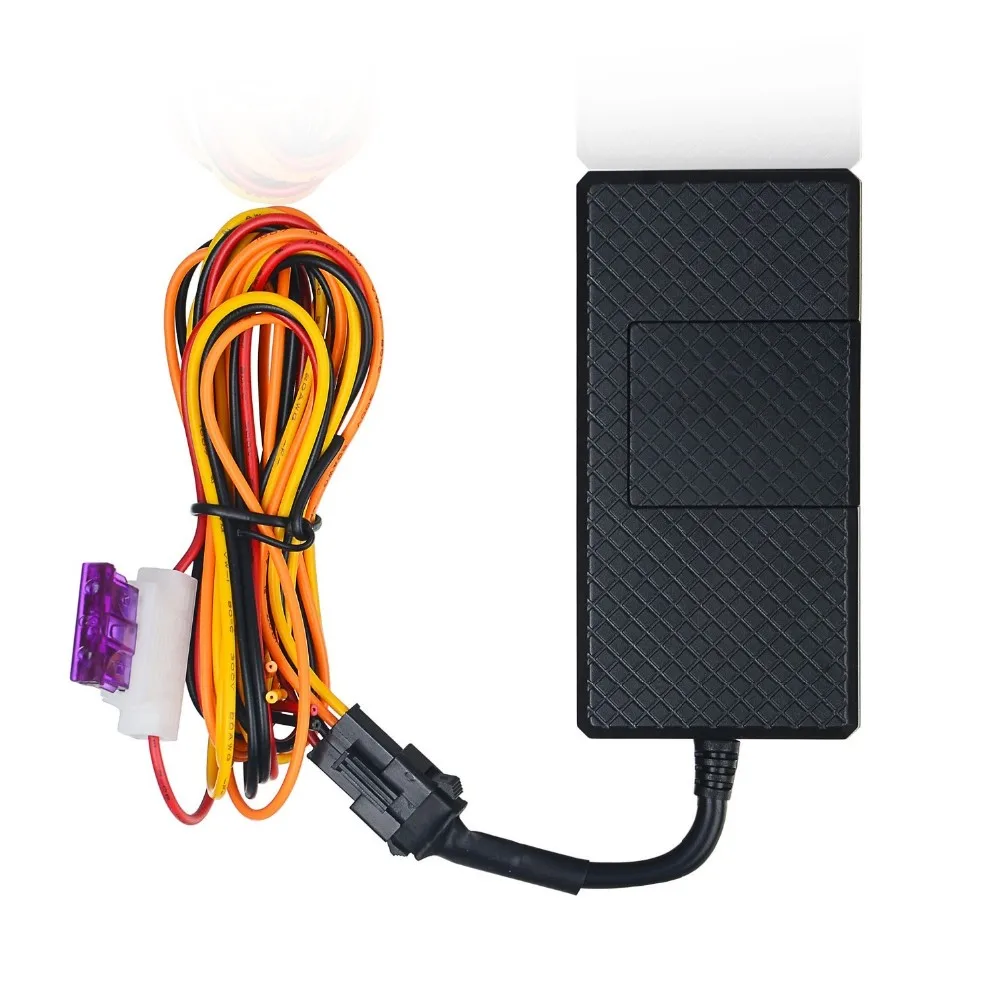

Car GPS Tracker unit equipment SMS GSM GPRS Vehicle Tracking Device Monitor Locator Remote Control for Motorcycle Scooter system

Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or GPRS

     · GSM quad-band frequency;

· Real time tracking location by SMS/GPRS;

· Real time voice monitoring function ;

· Recover original password;

· Set authorized number;

· Overspeed alarm alarm ;

· ACC anti-theft alarm ;

· Device lights turn into sleep mode after 5 minutes;

· Connect external relay to realize controlling oil and circuit of the vehicle(optional);

· Built-in backup battery to realize power failure alarm(optional);

Content

Specs.

Dim.

84 mm x47.5 mm x 20 mm

Weight

70g

Network

GSM/GPRS/GPS

Band

850/900/1800/1900 MHz

GPS chip

UBLOX

GSM module

MTK

GPS sensitivity

-162Db

GPS accuracy

5m

Time To First Fix

Cold status  45s

Warm status  35s

 Hot status  1s

Work voltage

9V-36V

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +55°C

Humidity

5%--95%

Installation instructions

     Preparation

     4.1.1 Open the package to check the device model number is correct, be with full accessories, or else please contact your supplier;

     4.1.2 Choose SIM card, need insert a GSM SIM card into the device, please refer to the suggestion of your supplier for SIM card choice.

      Notice:

     Please insert SIM card before turning the device power switch to on;

     The SIM card need open the GPRS function;

     Please make sure SIM card with full balance.

Installation

   The device is hidden type installation, we suggest the device installing by professional institution. Please pay attention to the following points:

4.2.1 To avoid the thieves destruction, the device install

ation place should be as far as hidden.

4.2.2 Avoid putting the device with reversing radar, car burglar alarm and any other vehicle communication devices;

4.2.3 Can fix the device by ribbon or wide sponge powerful two-side glue stick;

4.2.4 The device has built-in GSM and GPS antenna, make sure the receive side upward and there is no metal shielding.

4.2.5 Recommended installation place: 1-The hidden place in the board below the front windscreen;2- The hidden place around former dashboard (nonmetal material for skin);3-The hidden place in the board below the back windscreen.
