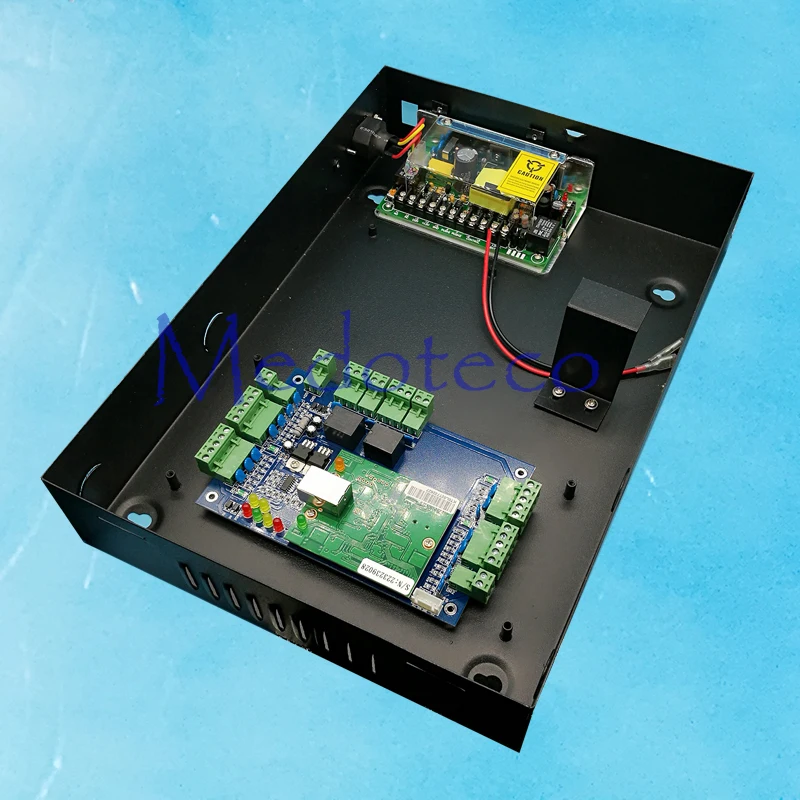

Single door access control panel TCP/IP L02 system with 12V5A backup Battery power supply and Metal protect box | Безопасность и

Single door access control panel TCP/IP L02 system with 12V5A backup Battery power supply and Metal protect box | Безопасность и

One door Access Control Panel RFID access control board TCP/IP Single Door Security Access Controller free english software

1 PC Two Door Access Control Panel

1PC 12V5A Power Supply

1 PC Metal Box

1 PC CD

Function Introduction

Conventional Function

offline operation; real time supervision; photo display; mass storage; flexible user privilege setup; remote unlocking; multi-user supervision; quick setting; convenient checking and query; revisable and printable report form; report form;report can be exported to excel file; card+password unlocking; alarm for long time unclosing;alarm for invalid card swiping; first card unlocking;alarm for illegal break in; unlocking at definite time; e-map etc.

Professional function

for professional users such as bank,cash house, telecom station, power supply station,prison and plice station: interface locking; intimidation alarm; integrated fire control;anti-passback and anti-tail; interlocking;multi-card unlocking; emergency double locking; in door population checking; unlocking based on internal and external validation.

all-in-one-card management system

nomal shift and multi-shifts time attendance management system; fixed ration dining management system; meeting attendance management system; online patrol management system and security alarm management system.

Parameter

Communication:TCP/IP 10M/100M adaptive

English Software supportable database:Access and SQL

Description:Control 2 door, get in and out door by swiping card, or get in by swiping card and get out door by button

Power Supply:12VDC 4-7A

Power Consumption of Circuit Board:Less than 100mA

Input Format of Reader:Wiegand 26 (All card reader with compatible protocol, such as EM , MF one etc)

Qty of Reader:2 pcs

Door Controlles :2

Door opening time extending setting:1-600 seconds(adjustable)

Max q ' ty of controller:No limit Remark: N denotes q ' ty of computer serial prot or q ' ty of 485hub port, support 256pcs ports

Operation Temperature:minus 40°C-70°C

Operation Humidity:10-90 % RH , No Condensation

users:20,000 Users

Event Buffers(offline):100,000 event buffers

Power interruption protection measure:High Speed Memory, Records never lose

Max Distance from Reader to Controller:100m (suggestion distance 80m)

Max Distance between Controllers:TCP/IP: Depends on net coverage area

Alarm for long time door open, ilegal break in, intimidate:Yes

Fire and alarm linkage:If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm

Complsive open and close door at long time:Yes

Open door in remote distance:Yes

Inter block:Yes

Anti pass back and tail:Yes

Multi-card open door:Yes

Open long time at specified time:Yes

Electronic map:Yes

Urgency locking:Yes

First card unlocking:Yes

Unlock based on internal and external validation:Yes

Keypad (card+passwor, supper password):Yes

Power Supply Unit:

Size: Approx. 130x 72 x 40mm(L x W x H)
