Jeatone 7 Inch Video Door Phone HD 1200TVL IR Night Vision Outdoor Camera Doorbell Hands-Free Monitor Motion Detection Alarm |

Jeatone 7 Inch Video Door Phone HD 1200TVL IR Night Vision Outdoor Camera Doorbell Hands-Free Monitor Motion Detection Alarm |

Notice:

Our Product Just Works Well With Our Own Intercom System. At Present. We Could Not Guarantee It Could Be Compatible With Other Brand Indoor Monitor/Outdoor Camera. If You Need To Connect Other System ,Please Contact Us For Technical Support Before Buying.

See More Area With 100 Degree Angle With The 2.8mm Lens Outdoor Camera, Protect Your House Safety.

Due To The Perspective Characteristics, Wide Angle Lens Will Have Certain Deformation (Near The Center Lens Deformation Is Small, Marginal Deformation More Serious), Distance From The Camera When The Subject Is Close, Body Image Deformation Will Be Larger.

The System Supports Six Different  Languages: English, Russian, French, Arabic, Spanish, Japanese.

With This New Function, You Can Consider The Indoor Monitor as a Clock Hanging On The Wall. It Always Shows The Time As Long As You Plug In Power For The Monitor.

Unique Touch Screen Design, OSD Menu, Brushed Metal Panel, Stylish And Elegant.Dual-way Intercom, Call Transfer Among Monitors

This Item Is Hands-free And Available For Dual-way Communication. It Supports Communication Between Indoor Monitor And Outdoor Camera, But Also Supports Communication Between Monitor And Monitor.

Support To Connect a Delay Function Electronic Lock To This System. With This Function, You Just Need To Press The Unlock Button On Monitor. Support Adjusting The Time Between Lock And Unlock. So, It Makes Your Home More Safety.

Our 7" Video Door Phone Set Supports Connecting With PIR Detector, Analog Camera And Electronic Lock. It Can Protect Your Home And Property In All Aspects.

​Please Notes:

PIR Installation Separately Can Be For Alarm Prompt only, Work With Camera Together Can Alarm And Video Recording.

When Someone Rings The Doorbell, The Monitor Inserted With SD Card Will Record Picture or Video Automatically. If The SD Card Doesn't Applied, The Monitor Will Just Only Record Picture. The Built-in Memory Could Save 86 Pictures, With SD Card, You Can Set The Recording Mode To Video. When The SD Card Is Fulled, The Earliest Recorded Video Will Be Deleted Automatically.

The Outdoor Camera Is Equipped With Rubber Gasket Ring, There Is No Way To Leak. It Also Can Works Well Even In Bad Weather.

Fashionable Appearance

♦1200TVL Camera

♦3pcs 940 Nanometer IR LEDs For Night Vision

♦Adjustable Intercom Volume

♦Dual-way Intercom

♦IR Sensor, Turn On/off IR LEDs Automatically

♦Easy To Install And DIY Installation

♦Rust-proof Aluminium Alloy Anti Vandal Panel

♦IP65 Weatherproof

Product Specs-Outdoor

Camera Sensor

1/3" CMOS, 1200TVL-Line High Resolution

Lens

2.8mm(100°) HD Wide Angle Lens

Night Vision

IR Light, 3pcs IR LEDs

Electronic Lock

Support

Power Consumption

200mA Max.

Power Supply

Supplied From Indoor Monitor

Material

Aluminum Alloy panel

Waterproof

IP65

Operation Temp

-40°C +50°C

Installation

Surface Mounted

Excellent Performance

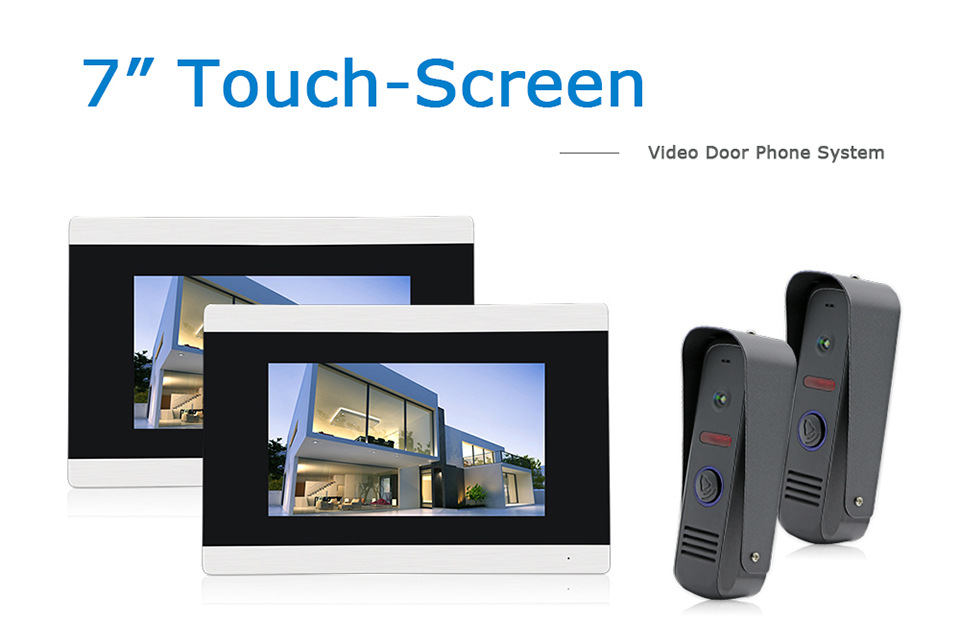

♦7"TFT High Resolution Color Screen

♦Wire Drawing Aluminum Case

♦Touch Sensor Button

♦Room to Room Intercom

♦Door Answering, Monitoring And Unlocking

♦Adjustable Color, Brightness and volume

♦Built-in Memory Can Save 86 Pictures, Support External Max.32GB SD Card

♦12 Ringtone For Choice


Product Specs-Monitor

Monitor & Resolution

7" Wide Color HD TFT LCD, 800*480

Memory

Built-in Memory Can Save 86 Pictures, Support External Max.32GB SD Card

Intercom Code

Hands-free Dual-way Communication

Delay Calling Time

120s

Keypad

Touch Sensor Button

Power Input & Consumption

External Power DC 12V; Standby:3W; Working:5W

Material

Aluminum Wire Drawing Shell

Recording

Picture: Jpeg Format; Vide: Avi Format

Support

2 Call Panel +4 Indoor Monitor + 2 Analog Camera & 2 PIR

Operation Temp

-10°C +60°C

Installation

Surface Mounted

2x Indoor Monitor

2x Monitor Mounting Plate

2x Power Adapter

10x 200mm 4 Pin Connerctor

4x Gurantee Card

4x English User Manual

2x Outdoor Call Panel

2x Call Panel Mounting Plate

2x 200mm 2 Pin Connector

4x Screw Bag

4x Qualified Certificate

2x Rain Cover

The Extension Cable(5m,15m,25m) Is Not Included, You Need To Buy It Separately According To Your Needs.(Input:100V-240V)

  We Will Send Applicative Power Adapter To Your According To Your States

PIR Sensor And CCTV Camera Installed To Work Together Can Alarm and Video Recording (Camera with individual power).
