USB Camera 2megapixel 1080P CS varifocal 5-50mm Mini Case High Speed  MJPEG 30fps 60fps 120fps for Android Linux Windows Mac

Package include:

1) 1PC 2mp usb camera with 5-50mm manual varifocal CS lens

2) 1PC 3m usb cable  ( 2m/5m cable optional)

*1080P HD high resolution USB Camera
*Can used as Endoscope Camera with high speed
*All kinds of resolution optional
*CMOS 1080P sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate– deliver 60 fps in 1280X720 resolution,30 fps in 1920X1080 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.


The HD 1080P USB CMOS board camera module(model: ELP-USBFHD01M serials) is ideal for many applications like security systems, portable video system, video phones, industrial machine monitoring and toys. It use high quality image sensors made by OmniVision, one of the world leaders in this field of electronics.

The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.

Optional models

Sensor

1/2.7" CMOS OV2710

Lens size

200W, 2.0megapixel, 1920(H)x1080(V)pixels

Max. Resolution

1920X1080

Picture format

MJPEG

USB Protocal

USB2.0 HS/FS, USB1.1 FS

Support free driver

USB Video Class(UVC)1.1

Auto exposure AEC

Support

Auto white blance AEB

Support

Frame rate

1920 (H) x 1080 (V) pixels   MJPEG 30fps       YUY2 6fps
1280 (H) x 1024 (V) pixels   MJPEG 30fps       YUY2 6fps
1280 (H) x  720 (V) pixels    MJPEG 60fps       YUY2 9fps
1024 (H) x  768 (V) pixels    MJPEG 30fps       YUY2 9fps
800 (H)   x  600 (V) pixels    MJPEG 60fps       YUY2 21fps
640 (H)   x  480 (V) pixels    MJPEG 120fps     YUY2 30fps
352(H)    x  288 (V) pixels    MJPEG 120fps     YUY2 30fps
320 (H)   x  240 (V) pixels    MJPEG 120fps     YUY2 30fps

Adjustable parameters

Brightness/Contrast/Color saturation /Definition/Gamma/WB

Night vision

optional, can choose IR board

view angle

30-150 degree optional

voltage

DC 5V

current

150mA

work temperature

DEGREES(-20~70)

Size

32x32mm/38*38

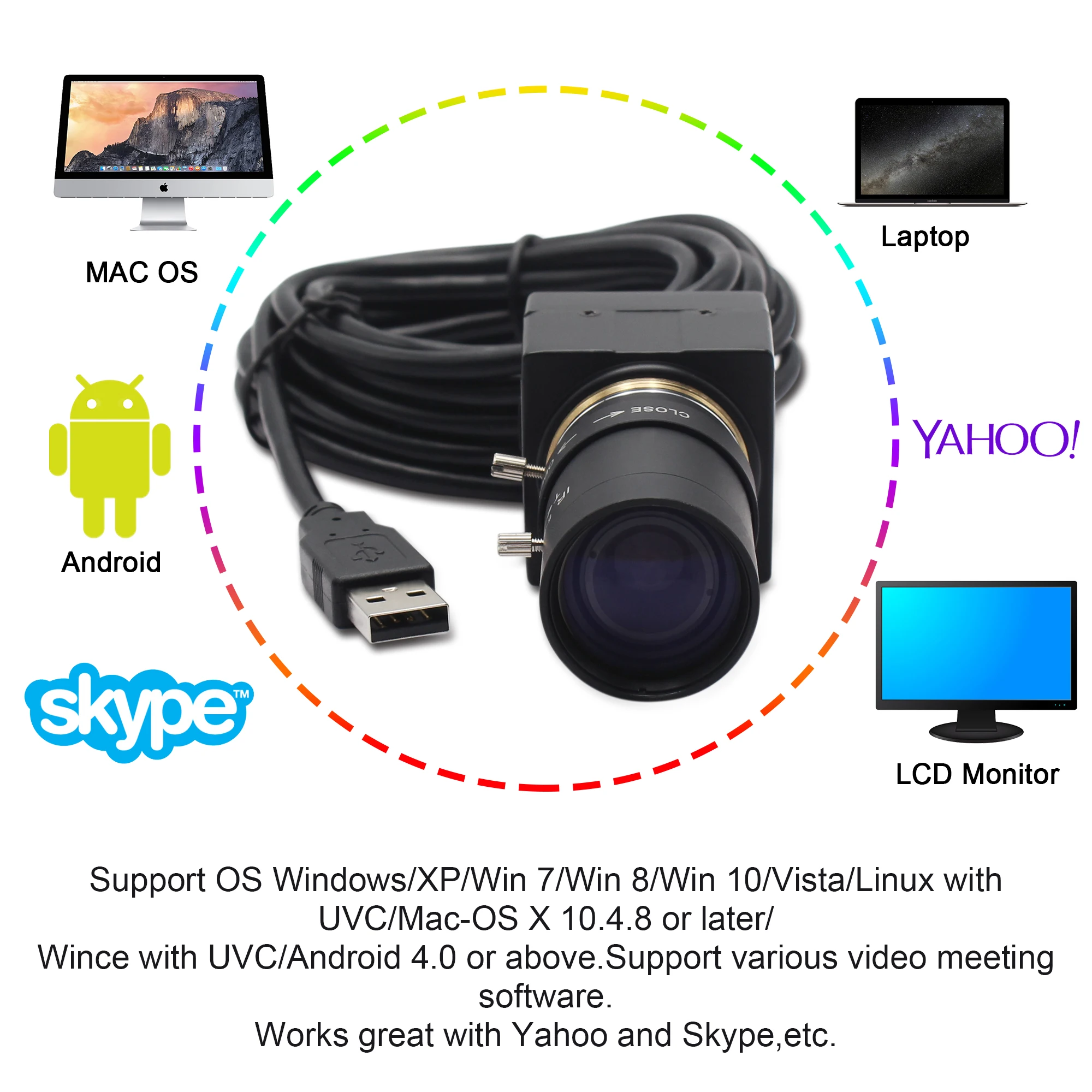

Support OS

WinXP/Vista/WIN7/WIN8
Linux with UVC
Mac-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above

Effective Pixels:

1920 (H) x 1080 (V) pixels
1280 (H) x 1024 (V) pixels
1280 (H) x  720 (V) pixels
1024 (H) x  768 (V) pixels
800 (H)   x  600 (V) pixels
640 (H)   x  480 (V) pixels
352(H)    x  288 (V) pixels
320 (H)   x  240 (V) pixels

Performance:

1920 (H) x 1080 (V) pixels   MJPEG 30fps       YUY2 6fps
1280 (H) x 1024 (V) pixels   MJPEG 30fps       YUY2 6fps
1280 (H) x 720 (V) pixels     MJPEG 60fps       YUY2 9fps
1024 (H) x 768 (V) pixels     MJPEG 30fps       YUY2 9fps
800 (H) x 600 (V) pixels       MJPEG 60fps       YUY2 21fps
640 (H) x 480 (V) pixels       MJPEG 120fps      YUY2 30fps
352(H) x 288 (V) pixels        MJPEG 120fps      YUY2 30fps
320 (H) x 240 (V) pixels       MJPEG 120fps      YUY2 30fps


Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site

monitoring, environmental monitoring, etc.

 used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player,

LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external,

evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system,

 simple security system, teaching system, Interactive system,  automobile data recorder. Project video capture,

 credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system,

Driving learning system, Industrial camera, biological microscope, box inside surveillance,  micro HD surveillance,

 endoscope, Medical auxiliary equipment, etc.

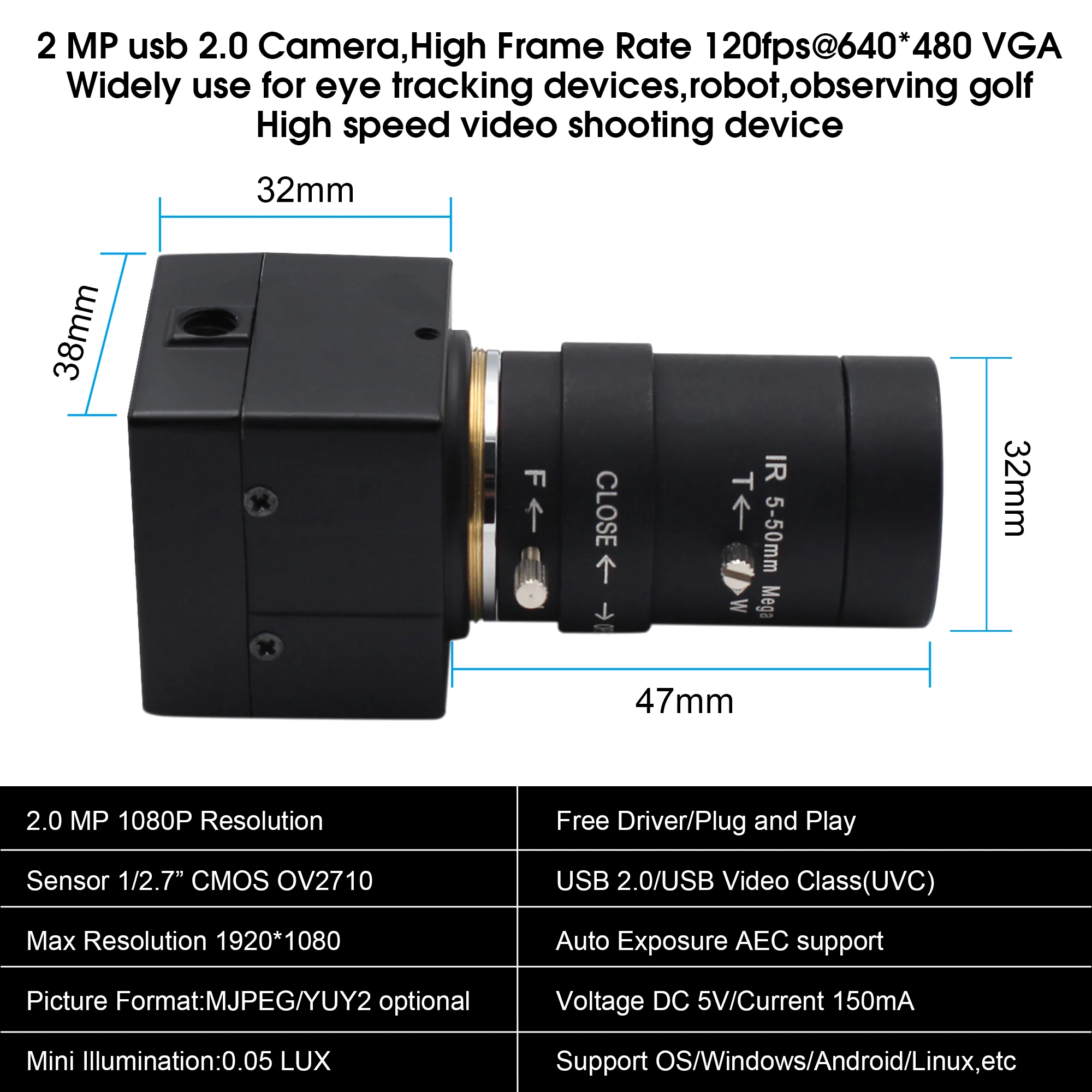

Lens

​

Mini size

This camera come with 5-50mm megapixel varifocal lens, we also have 2.8-12mm varifocus lens for it, If you need, please contact us

Effect

Package

Our USB Camera include VGA 640X480,1MP,1.3MP,2MP,5MP and 8MP resolution
