DIY FPV BNF frame kit brushless micro indoor drone 70mm pure carbon quadcopter unassembled 16mm x 16mm





NOTE:item 1 don`t included ESC

Specification:

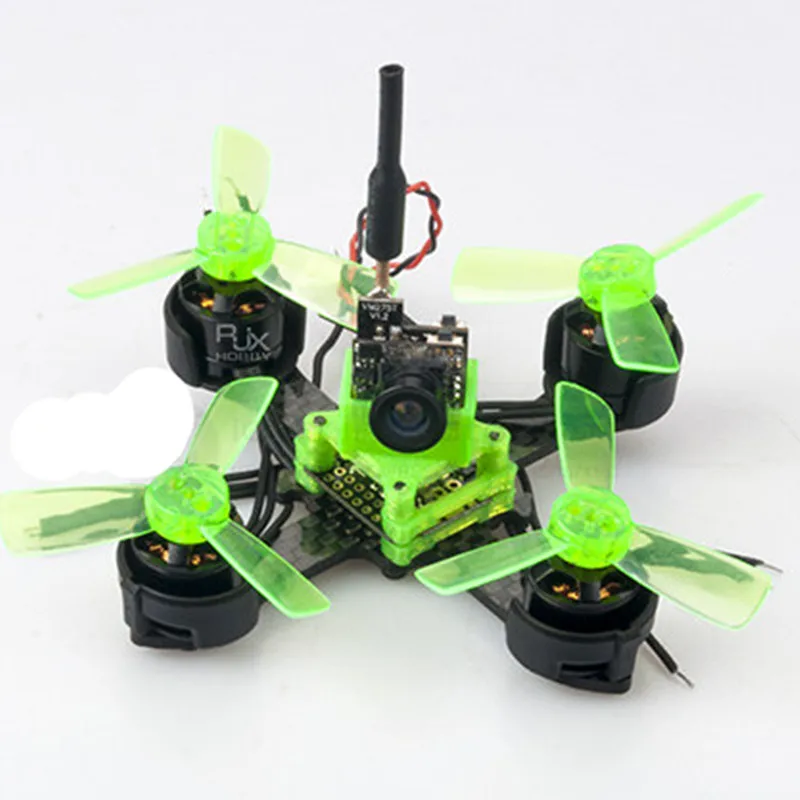

Frame size:70mm Net Weight: 65g Gross Weight: 100g FC mounting hole: 16mm x 16mm   Features:   The 70mm FPV Racing RC Drone is great for beginners and advanced racers.   This brushless, micro quadcopter can be flown indoors and outdoors, it fits inside your pocket. Propeller guards make it safe to fly inside, while the high torque brushless motors give it the authority to handle the great outdoors.   The 2mm carbon fiber frame provides added durability while a 25mW VTX provides clean and powerful video in any environment.   The 800TVL 5.8G 48CH camera with 120 degree field of view lets pilots see clearly in tight indoor spaces or out in the backyard.   Micro Flight Controller with F3 Chip / MPU 6000, OneShot, MultiShot & DShot 100/300 ESC Protocol, leaving all the options open when it comes to your quad of choice.     To RTF, What’s Needed to Complete(not included): Transmitter FPV Monitor or Headset Blade 4-in-1 BLHeli FPV E(item 1 need) LiPo-battery Suitable Charger and JST Charge Adapter   Product list:

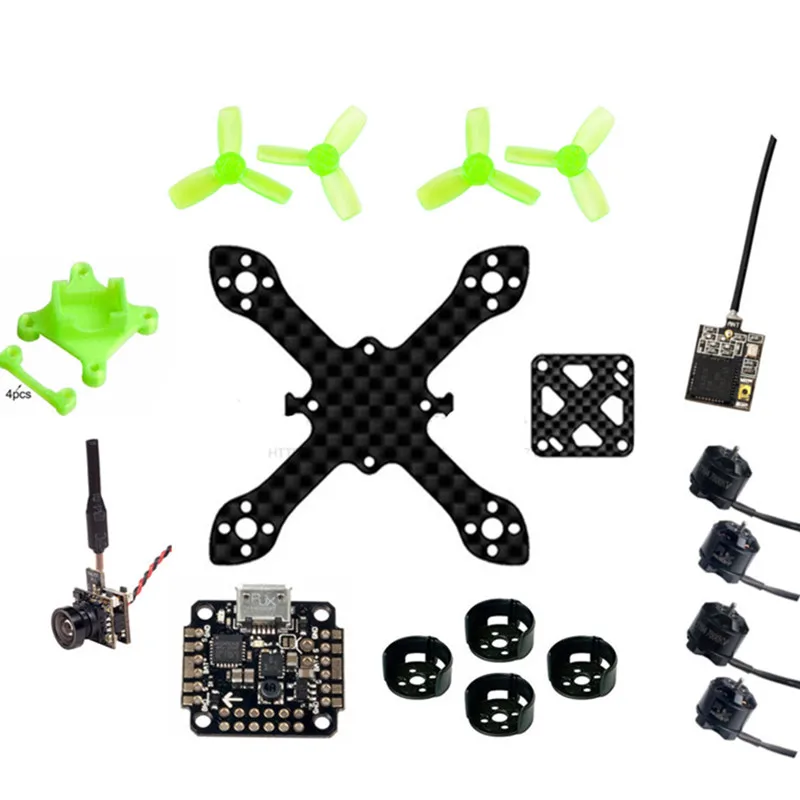

item 1:



Frsky Mini Receiver * 1 1935 1.9 Inch 3-Blade Propeller * 2 pairs Micro AIO Camera 5.8G 25mW 48CH 800TVL * 1 Micro F04 FPV Camera Holder * 1 1104 7600KV FPV Motors * 4 16x16mm mini F3 Flight Controller * 1 Prop Guards * 4 70mm Carbon Main Frame * 1

​

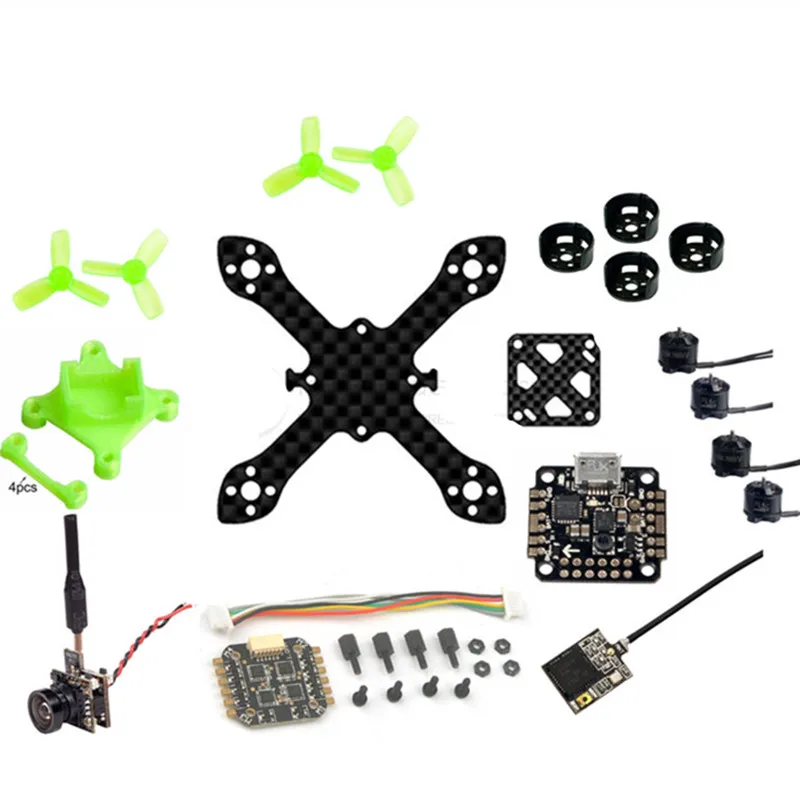

item 2:



Frsky Mini Receiver * 1 1935 1.9 Inch 3-Blade Propeller * 2 pairs Micro AIO Camera 5.8G 25mW 48CH 800TVL * 1 Micro F04 FPV Camera Holder * 1 1S 4 in 1 6A ESC BLHeli_S Dshot * 1 1104 7600KV FPV Motors * 4 16x16mm mini F3 Flight Controller * 1 Prop Guards * 4 70mm Carbon Main Frame * 1

​

item 3:



Frsky Mini Receiver * 1 1935 1.9 Inch 3-Blade Propeller * 2 pairs Micro AIO Camera 5.8G 25mW 48CH 800TVL * 1 Micro F04 FPV Camera Holder * 1 2S 4 in 1 6A ESC BLHeli_S Dshot * 1 1104 7600KV FPV Motors * 4 16x16mm mini F3 Flight Controller * 1 Prop Guards * 4 70mm Carbon Main Frame * 1



1S 4 in 1 6A ESC:

Specification:

Item name: Teeny1s 4 In 1 6A BLHeli_S ESC Size: 23x27mm (includes solder pad) Mounting holes: 16x16mm, φ2mm Weight: 2g Input voltage: 1S lipo or 1S HV-LIPO Con. Current: 6A Peak Current: 7A (5S) Firmware: BLHELI_S Processor: SILABS EFM8BB10F8G BEC: NO Driver: 3 in 1 MOS Supports Dshot150 Dshot300 Dshot600 Oneshot125 Multishot PWM Firmware target:O_L_5_REV16_5.HEX Package included: 1* Teeny1S 6A 4in1 ESC 4*M2*5+5 Nylon column 4*M2 Nuts 4*M2 Screw

2S 4 in 1 6A ESC:

Description:



Item name: Super_s BS06D 4 In 1 6A BLHeli_S ESC Size: 25x29mm (includes solder pad) Mounting holes: 16x16mm, φ2mm Weight: 3g Input voltage: 2S lipo Con. Current: 6A Peak Current: 10A (5S) Firmware: BLHELI_S Processor: SILABS EFM8BB21F16G BEC: NO Driver: 3 in 1 MOS Supports Dshot Oneshot multishot

Package include: 1 x Guide 4 In 1 6A BLHeli_S ESC 1 x Cable 4 x M2*5+5 nylon column 4 x M2 Screw 4 x M2 Nut
