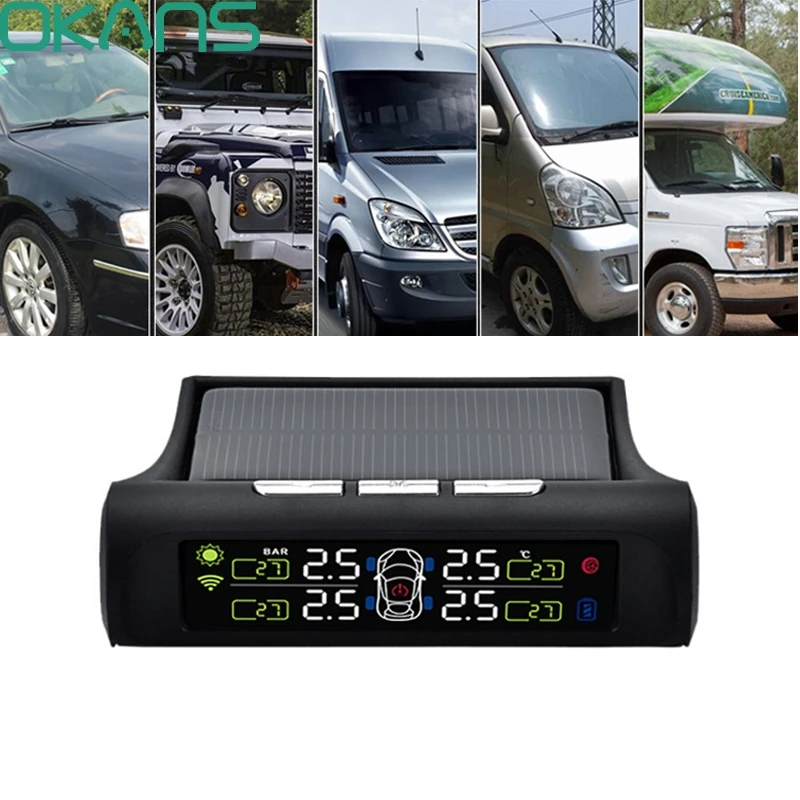

Solar TPMS Tire Pressure Alarm Monitor System Wireless 4 Internal / External Sensor Car Temperature Solar Power

Description:

This product is a solar wireless wheel pressure monitor. External sensor, simple and convenient. No need to disassemble the tire, no wiring, no need to match the debugging, no balancing, 2 minutes can be installed independently.

Features:

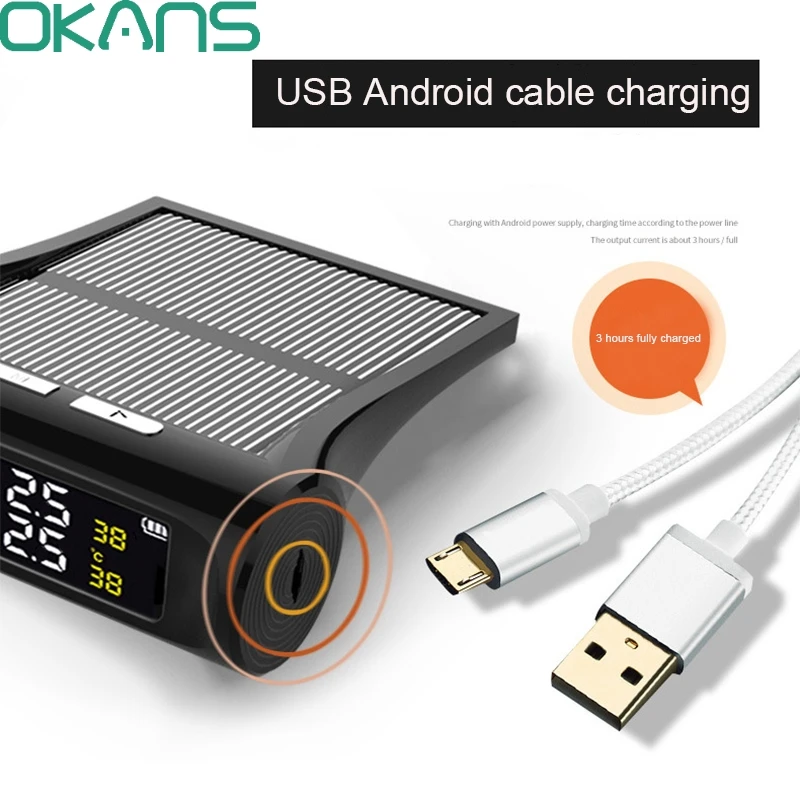

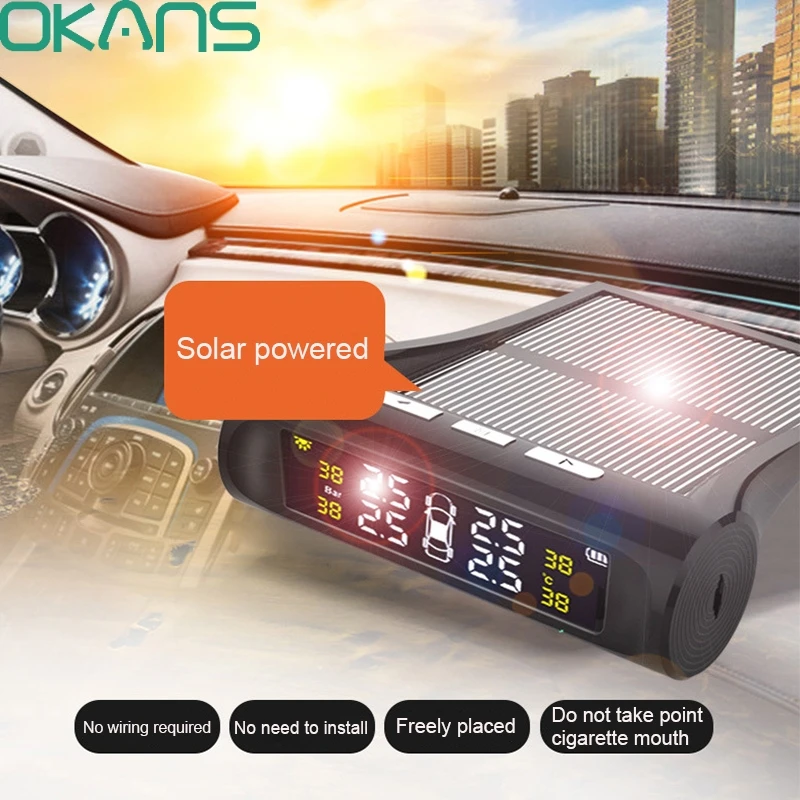

1.Solar powered Monitor, with a micro USB charging port for no-sunlight situations.

2.Wireless external sensor technology.

3.Easy to install, waterproof sensors, won't worry about rainy days.

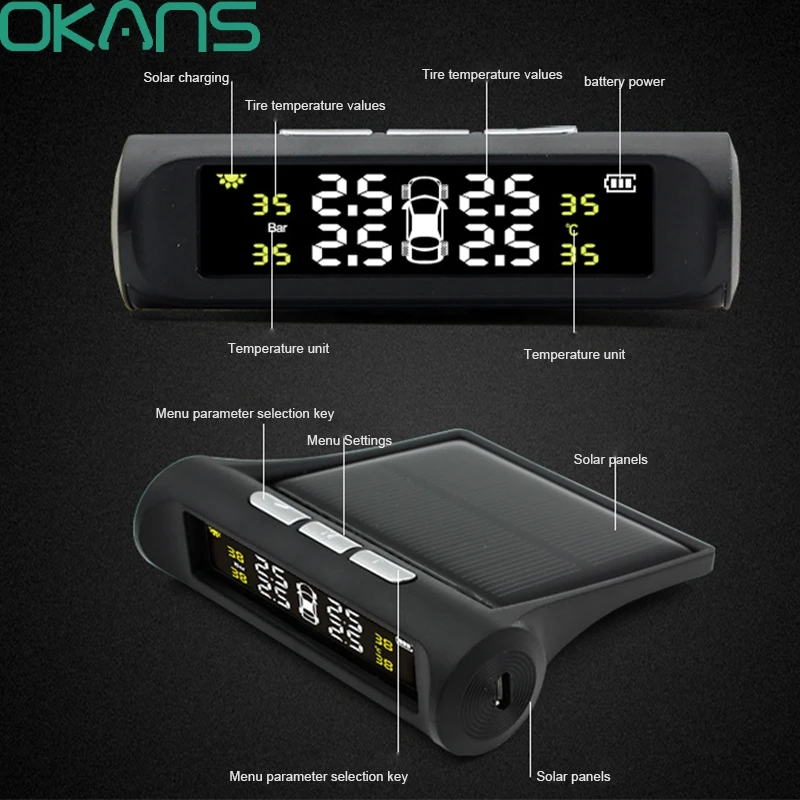

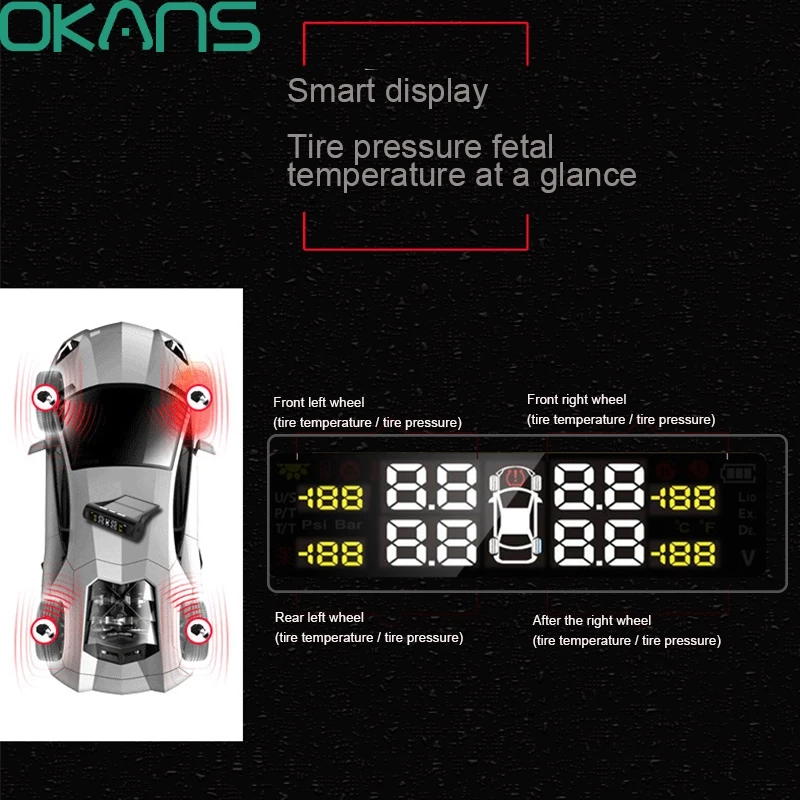

4.LCD screen displays Real Time monitored pressure and temperature of 4 tires at once.

5.With tire leaking warning.

6.With "beep" warning for abnormal tire pressure and temperature.

7.You can choose PSI/BAR pressure.

8.You can choose Celsius/Fahrenheit degree (°C/°F) Temperature unit.

9.Universally fits most cars, vehicles, SUVs, etc.

Specification:

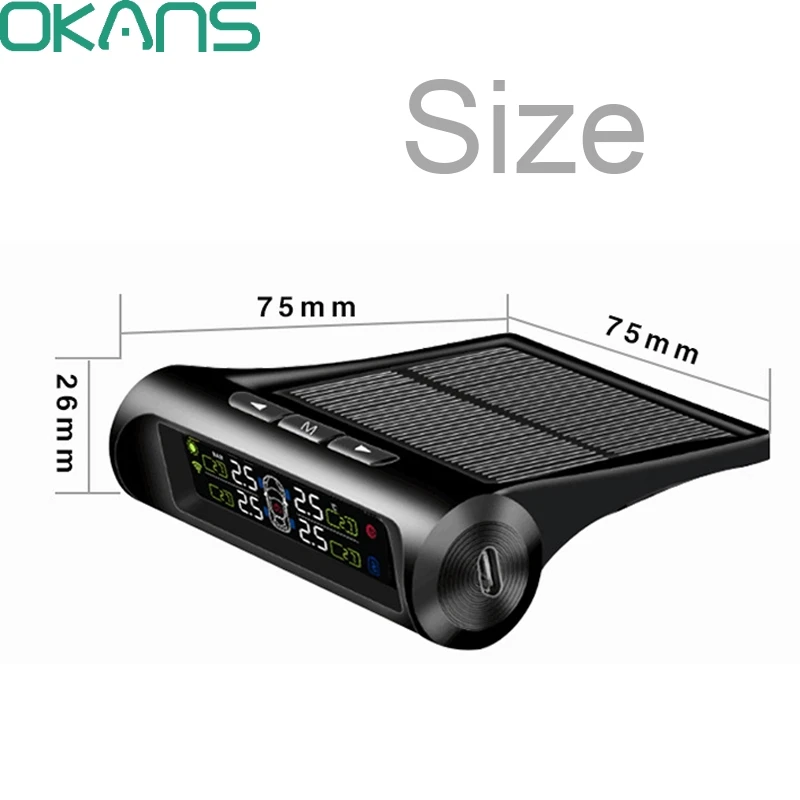

Size:9*8*3cm/3.54*3.15*1.18in

Tire pressure host parameters
Operating voltage: 3.7-5V
Storage temperature: -30 ° C-90 ° C / -86 ° F-194 ° F
working temperature: -30 ° C-85 ° C / -86 ° F-185 ° F
RF Emission frequency: 433.92MH ± 50KHz
RF Signal sensitivity: -90dbm
Display mode: LCD Color
Bright screen current: ≤6mA
Black screen current: ≤4mA

External sensor parameters
Battery Life: 24 months
Operating Voltage: 2.1-3.6V
Storage Temperature: -30 ° C-90 ° C / -86 ° F-194 ° F
Working Temperature: -30 ° C-85 ° C / -86 ° F-185 ° F
Temperature Resolution: ± 2 ° C (25 ° C) / ± 35.6 ° F (± 77 ° F)
Pressure Range: 0-7.0Bar
Pressure Resolution: ± 0.1Bar
Waterproof Grade: IP67
Transmitted Power: ≤10dBm
Emission Frequency: 433.92MHz

Warming tips:

Sensor replacement battery, please dismantle and assemble the shell separately, can effectively avoid the sensor wrong installed in other tire position.

When the receiver voice prompts "low power of the wheel sensor", and the display appears icon" !",  it means low voltage flashing alarm, please replace the sensor battery in time.(Lithium battery CR1632, working temperature requirements: -30℃~80℃/-86℉-176℉ , battery not included).

Operation:

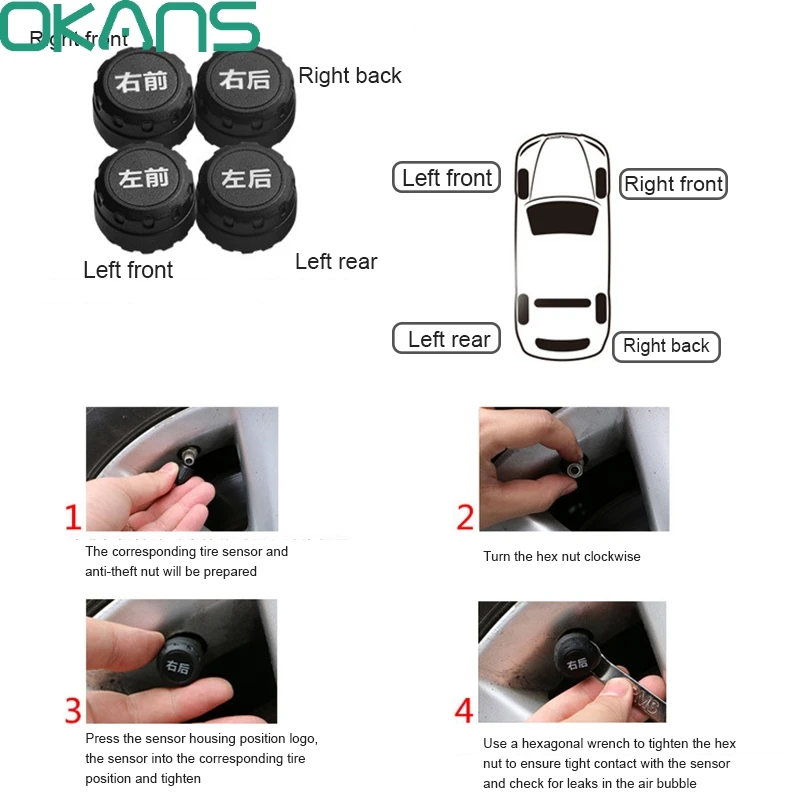

1. Please prepare the nut wrench before removing the sensor, screw the nut in the clockwise direction of the separation nut and the sensor, and turn the sensor counterclockwise

2. Close the sensor with the booster tool and turn the sensor counterclockwise to cover the shell

3. Remove the old battery from the battery clip and store it

4. Set up the new lithium battery CR1632 in the positive and negative positions (positive and negative)

5. Cover the sensor on the top of the sensor, and then press clockwise with the help tool

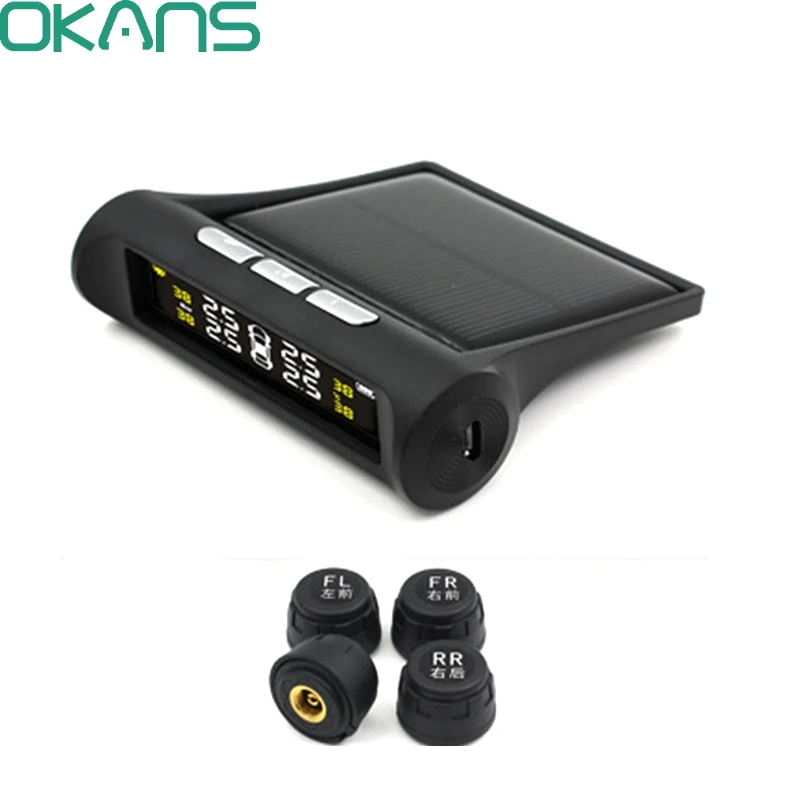

1x Tire Pressure Monitor
4 x External Sensor
4 x Nuts
1 x Wrench
1xUser Manual
