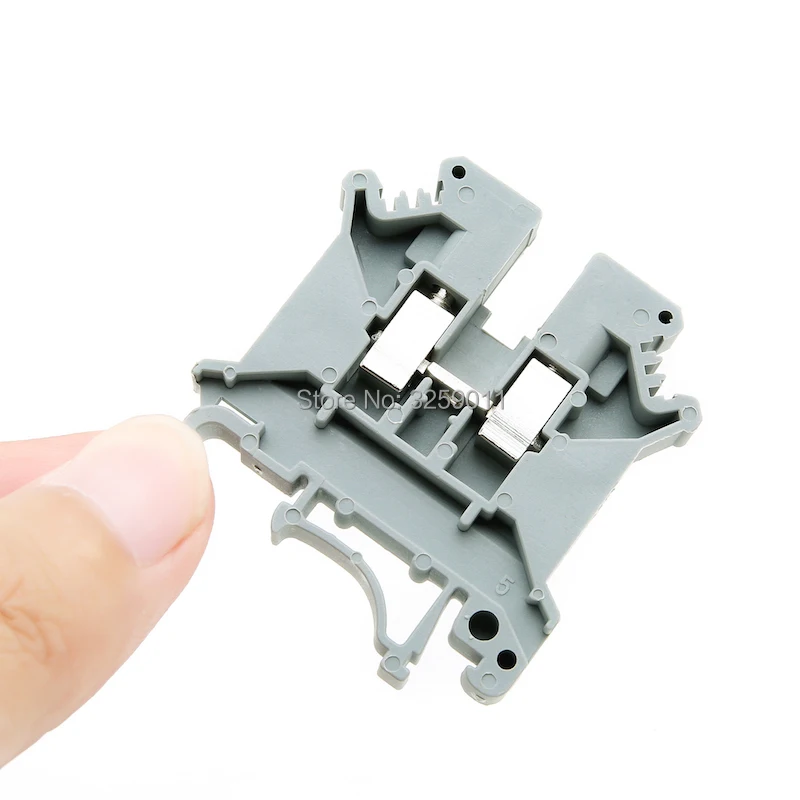

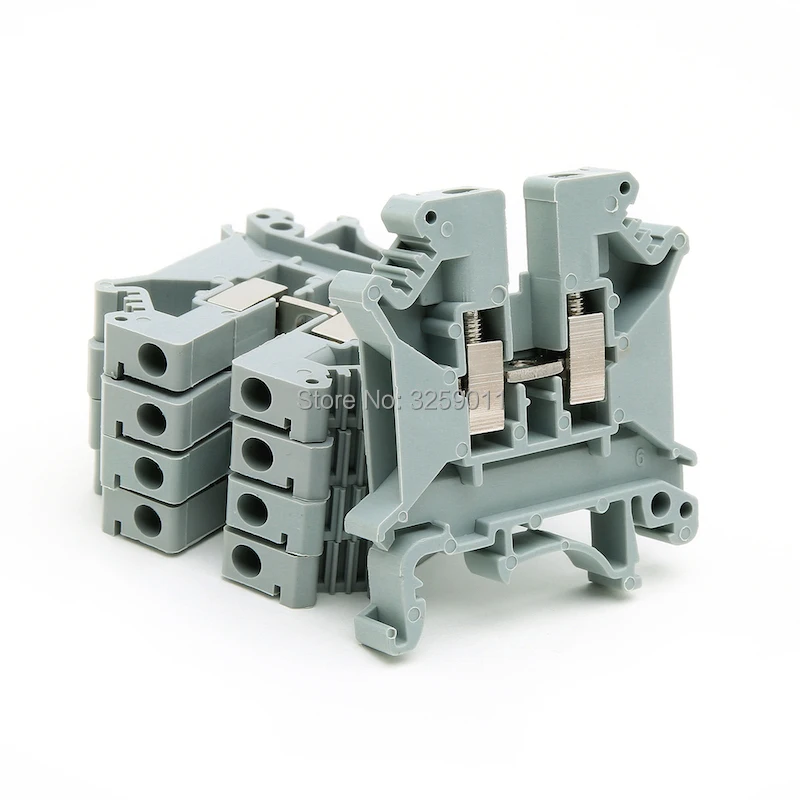

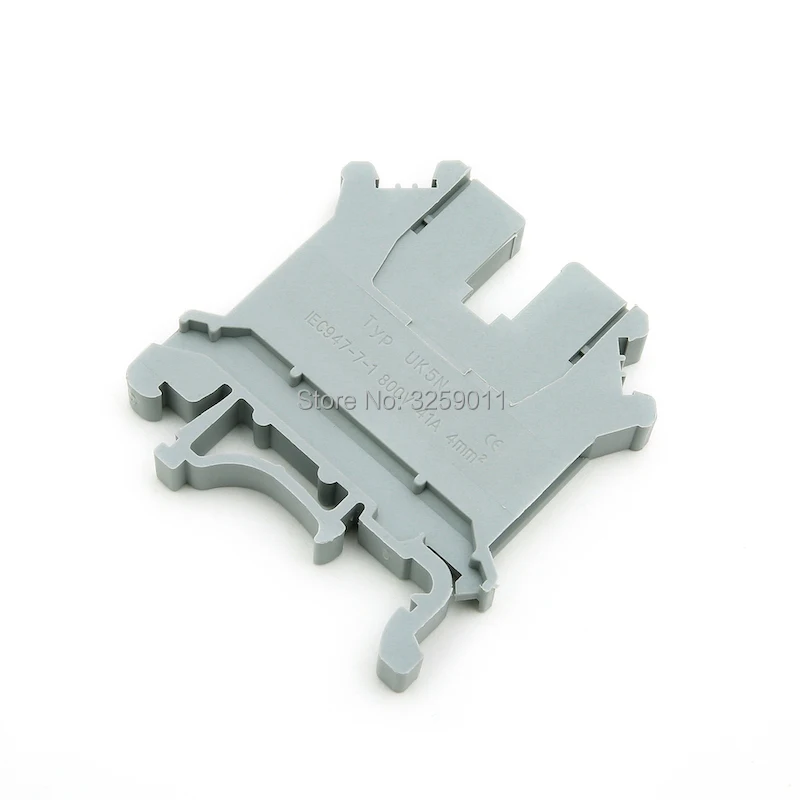

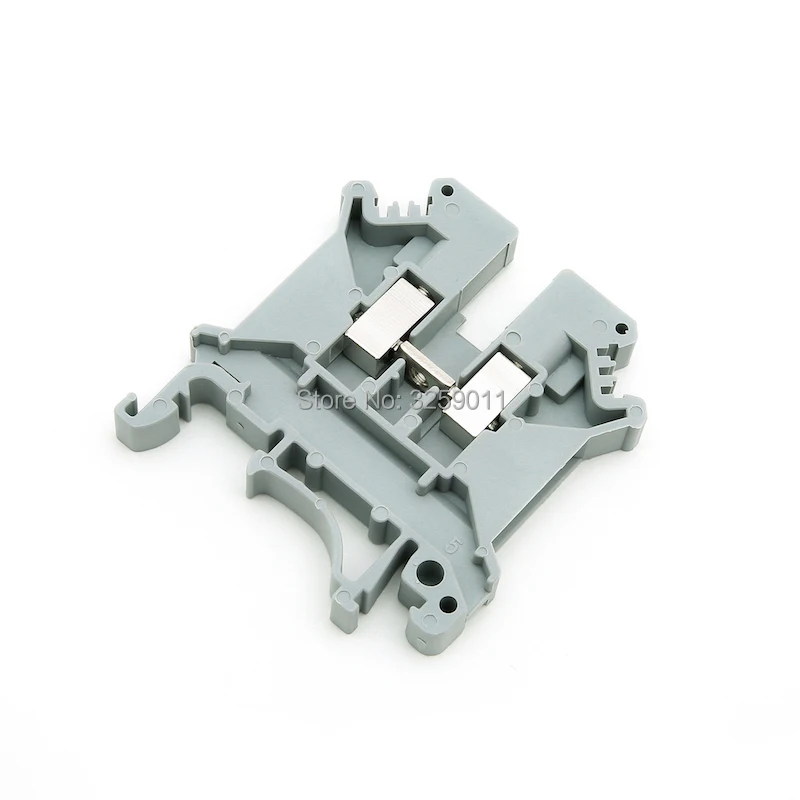

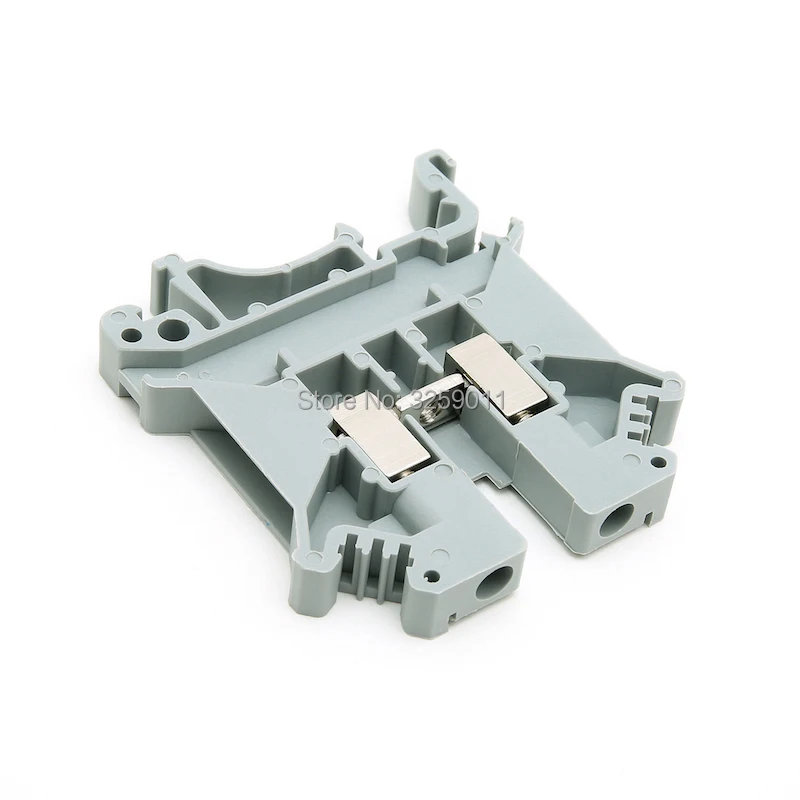

Number of levels 1

Number of connections 2

Potentials 1

Nominal cross section 4 mm⊃2;

Color gray

Insulating material PA

Flammability rating according to UL 94 V0

Rated surge voltage 8 kV

Degree of pollution 3

Overvoltage category III

Insulating material group I

Maximum power dissipation for nominal condition 1.02 W

Maximum load current 41 A (with 6 mm⊃2; conductor cross section)

Nominal current IN 32 A

Nominal voltage UN 800 V

Open side panel Yes

Shock protection test specification IEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08

Back of the hand protection guaranteed

Finger protection guaranteed

Result of surge voltage test Test passed

Surge voltage test setpoint 9.8 kV

Result of power-frequency withstand voltage test Test passed

Power frequency withstand voltage setpoint 2 kV

Result of the test for mechanical stability of terminal points (5 x conductor connection) Test passed

Result of bending test Test passed

Bending test rotation speed 10 rpm

Bending test turns 135

Bending test conductor cross section/weight 0.2 mm⊃2; / 0.2 kg

4 mm⊃2; / 0.9 kg

6 mm2 / 1.4 kg

Tensile test result Test passed

Conductor cross section tensile test 0.2 mm⊃2;

Tractive force setpoint 10 N

Conductor cross section tensile test 4 mm⊃2;

Tractive force setpoint 60 N

Conductor cross section tensile test 6 mm⊃2;

Tractive force setpoint 80 N

Result of tight fit on support Test passed

Tight fit on carrier NS 32/NS 35

Setpoint 5 N

Result of voltage-drop test Test passed

Requirements, voltage drop ≤ 3.2 mV

Result of temperature-rise test Test passed

Short circuit stability result Test passed

Conductor cross section short circuit testing 4 mm⊃2;

Short-time current 0.48 kA

Result of thermal test Test passed

Proof of thermal characteristics (needle flame) effective duration 30 s

Oscillation, broadband noise test result Test passed

Test specification, oscillation, broadband noise DIN EN 50155 (VDE 0115-200):2008-03

Test spectrum Service life test category 1, class B, body mounted

ASD level 1.857 (m/s2)2/Hz

Acceleration 0,8 g

Test duration per axis 5 h

Test directions X-, Y- and Z-axis

Shock test result Test passed

Test specification, shock test DIN EN 50155 (VDE 0115-200):2008-03

Shock form Half-sine

Acceleration 5g (10-150-10 Hz)

Shock duration 30 ms

Number of shocks per direction 3

Test directions X-, Y- and Z-axis (pos. and neg.)

Relative insulation material temperature index (Elec., UL 746 B) 130 °C

Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 130 °C

Static insulating material application in cold -60 °C

Behavior in fire for rail vehicles (DIN 5510-2) Test passed

Flame test method (DIN EN 60695-11-10) V0

Oxygen index (DIN EN ISO 4589-2) >32 %

NF F16-101, NF F10-102 Class I 2

NF F16-101, NF F10-102 Class F 2

Surface flammability NFPA 130 (ASTM E 162) passed

Specific optical density of smoke NFPA 130 (ASTM E 662) passed

Smoke gas toxicity NFPA 130 (SMP 800C) passed

Calorimetric heat release NFPA 130 (ASTM E 1354) 27,5 MJ/kg

Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 - HL 3

Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 - HL 3

Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 - HL 3

Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 - HL 3

Width 6.2 mm

End cover width 1.8 mm

Length 42.5 mm

Height NS 35/7,5 47 mm

Height NS 35/15 54.5 mm

Height NS 32 52 mm

Connection method Screw connection

Connection in acc. with standard IEC 60947-7-1

Conductor cross section solid min. 0.2 mm⊃2;

Conductor cross section solid max. 6 mm⊃2;

Conductor cross section AWG min. 24

Conductor cross section AWG max. 10

Conductor cross section flexible min. 0.2 mm⊃2;

Conductor cross section flexible max. 4 mm⊃2;

Min. AWG conductor cross section, flexible 24

Max. AWG conductor cross section, flexible 12

Conductor cross section flexible, with ferrule without plastic sleeve min. 0.25 mm⊃2;

Conductor cross section flexible, with ferrule without plastic sleeve max. 4 mm⊃2;

Conductor cross section flexible, with ferrule with plastic sleeve min. 0.25 mm⊃2;

Conductor cross section flexible, with ferrule with plastic sleeve max. 2.5 mm⊃2;

Cross section with insertion bridge, solid max. 4 mm⊃2;

Cross section with insertion bridge, stranded max. 4 mm⊃2;

2 conductors with same cross section, solid min. 0.2 mm⊃2;

2 conductors with same cross section, solid max. 1.5 mm⊃2;

2 conductors with same cross section, stranded min. 0.2 mm⊃2;

2 conductors with same cross section, stranded max. 1.5 mm⊃2;

2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. 0.5 mm⊃2;

2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. 2.5 mm⊃2;

2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. 0.25 mm⊃2;

2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. 1.5 mm⊃2;

Cross section with insertion bridge, solid max. 4 mm⊃2;

Cross section with insertion bridge, stranded max. 4 mm⊃2;

Connection in acc. with standard IEC/EN 60079-7

Conductor cross section solid min. 0.2 mm⊃2;

Conductor cross section solid max. 6 mm⊃2;

Conductor cross section AWG min. 24

Conductor cross section AWG max. 10

Conductor cross section flexible min. 0.2 mm⊃2;

Conductor cross section flexible max. 4 mm⊃2;

Stripping length 8 mm

Internal cylindrical gage A4

Screw thread M3

Tightening torque, min 0.6 Nm

Tightening torque max 0.8 Nm
