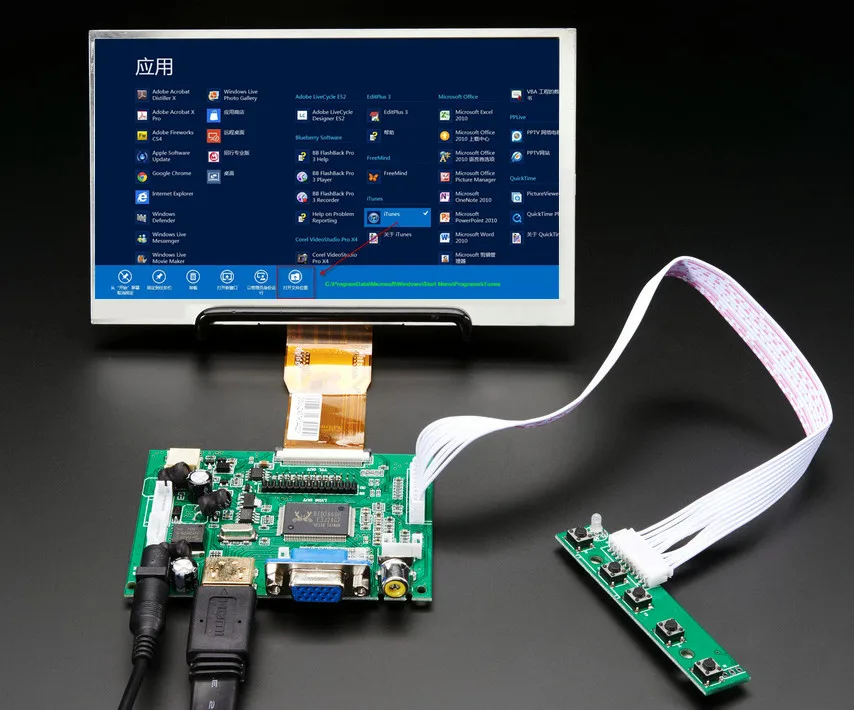

1024*600 Screen Display LCD TFT Monitor with Remote Driver Control Board 2AV HDMI VGA for Lattepanda,Raspberry Pi Banana Pi

Please use 5v-12V power supply (you can use the computer USB interface to supply power)

full set：

7 inches LCD X1

LCD driver board X1

remote control X1

keyboard X1

Button board connection cable X1

USB power cord  X1

Only LCD display：

LCD X1

Only Control Board：

The compatible resolution is: 1024 * 600. Interface: 50pin LCD screen

LCD driver board X1

remote control X1

keyboard X1

Button board connection cable X1

USB power cord  X1

USB power cord：

USB power cord  X1

Specifications

PCB-800099 Driver board

1. Product description:

This driver board uses SIXTHHD-HD1 main control IC

This driver board can

1，1 VGA signal input

2，2 AV signal inputs

3，1 HDMI signal input, and this IC supports HDMI1.2

4，1 road reverse signal input

5，Support wide voltage input, and can work normally between 4.5V-20V

6，Standard backlight 6PIN, interface, can be connected with high voltage board

7，Driver board integrated LCD screen LED backlight driver board

8，Standard LVDS signal output, can support single 6, single 8, double 6, double 8 and other standard LVDS signal LCD screen, but only supports LCD screen with 3.3V power supply

9，Standard button board interface, and supports dual-color LED indicator display

10，Support TTL signal output

Compatible General 50PIN 1024*600 resolution interface TTL LCD screen

11，Support reverse control, and display on AV2, reverse voltage supports voltage input within 50V

12，This drive board has four positioning holes

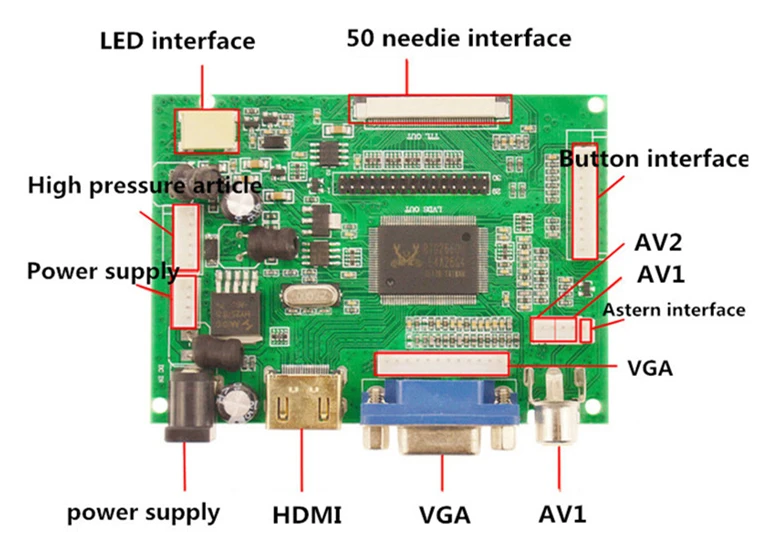

Interface function description

Tag

Function Description

Remarks

RCA1

AV  Input

TP1

AV

J4

VGA Input

DB15

VGA Input

HDMI

HDMI Input

HDMI standard is 1.1

DCIN

power input

J3

power input

J1

External high voltage board port

J7

LED Backlight seat

CON1

TTL-50PIN Signal output

CN1

LVDS Signal output

J6

Buttons, remote control, LED indicator interface

AV simulation

NTSC

support

PAL

support

Keypad, remote control input interface

Serial number

definition

Explanation

1

5V

Remote control power supply, actually 3.3V

2

GND

GND

3

IR

Remote input

4

POWER

Switch function

5

MENU

Menu display function

6

+

plus

7

_

Less

8

SOURCE

Signal conversion

9

LED-R

LED Indicator light

10

LED-G

LED Indicator light

VGA signal input interface

Serial number

definition

Explanation

High voltage board interface

1

+12V

Positive power input

2

+12V

Positive power input

3

EN

High voltage board switch signal

5

GND

GND

6

GND

GND

LVDS Screen interface

Serial number

definition

Explanation

1

VCC

LCD power supply

2

VCC

LCD power supply

3

VCC

LCD power supply

4

GND

GND

5

GND

GND

6

GND

GND

7

LAX0+

LVDS signal

8

LAX0-

LVDS signal

9

LAX1+

LVDS signal

10

LAX1-

LVDS signal

11

LAX2+

LVDS signal

12

LAX2-

LVDS signal

13

GND

14

GND

15

LACK+

LVDS signal

16

LACK-

LVDS signal

17

LAX3+

LVDS signal

18

LAX3-

LVDS signal

19

LBX0+

LVDS signal

20

LBX0-

LVDS signal

21

LBX1+

LVDS signal

22

LBX1-

LVDS signal

23

LBX2+

LVDS signal

24

LBX2-

LVDS signal

25

GND

26

GND

27

LBCK+

LVDS signal

28

LBCK-

LVDS signal

29

LBX3+

LVDS signal

30

LBX3-

LVDS signal

DCIN Power interface

1

+12V

Positive power input

2

+12V

Positive power input

3

GND

GND

4

GND

GND

HDMI interface

1

HDMI Standard interface

Standard wire available

AV signal and reversing control power interface

1

ACC

Reversing voltage input, forced to AV2 after 12V input

2

AV1

AV1 Input

3

GND

GND

4

AV2

AV2 Input

5

GND

GND

VGA IN

1

GND

GND

2

V

V

3

H

H

4

GND

GND

5

R

R

6

GND

GND

7

G

G

8

GND

GND

9

B

B

10

GND

GND

11

SDA

For upgrading

12

SCL

For upgrading
