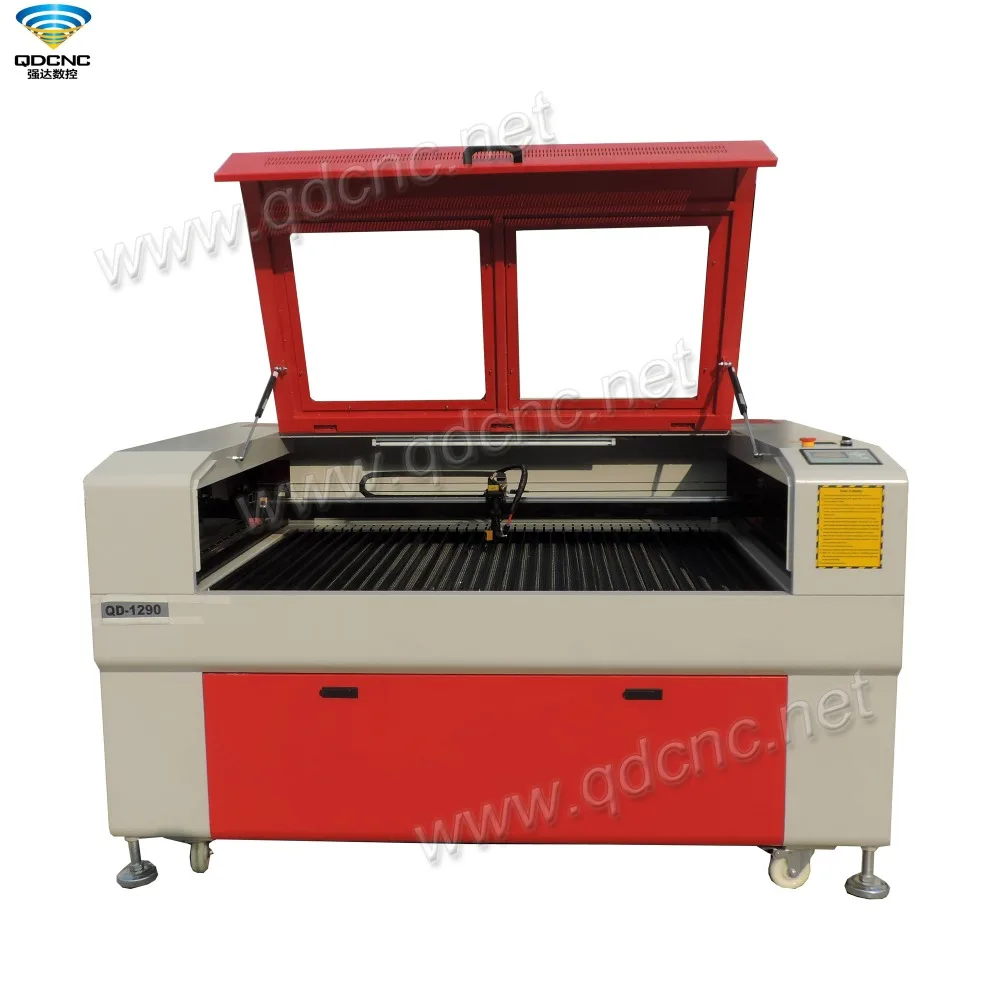

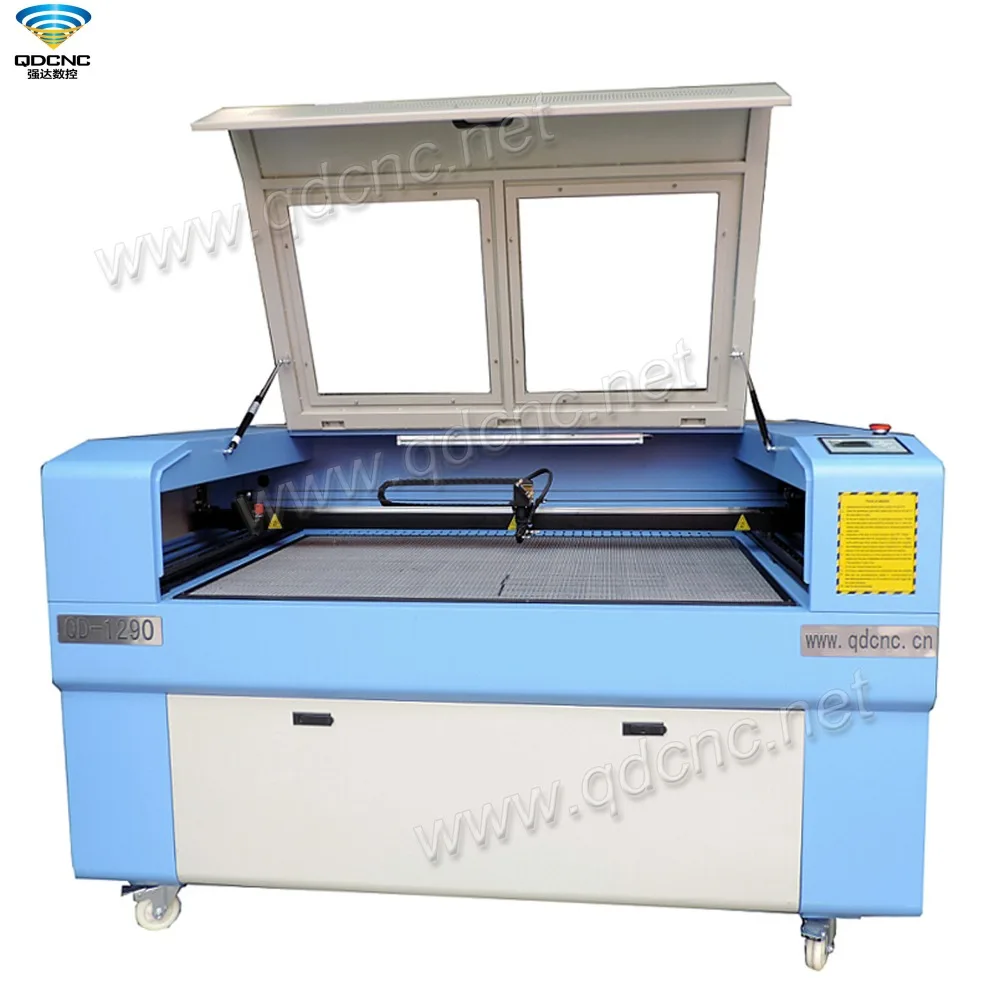

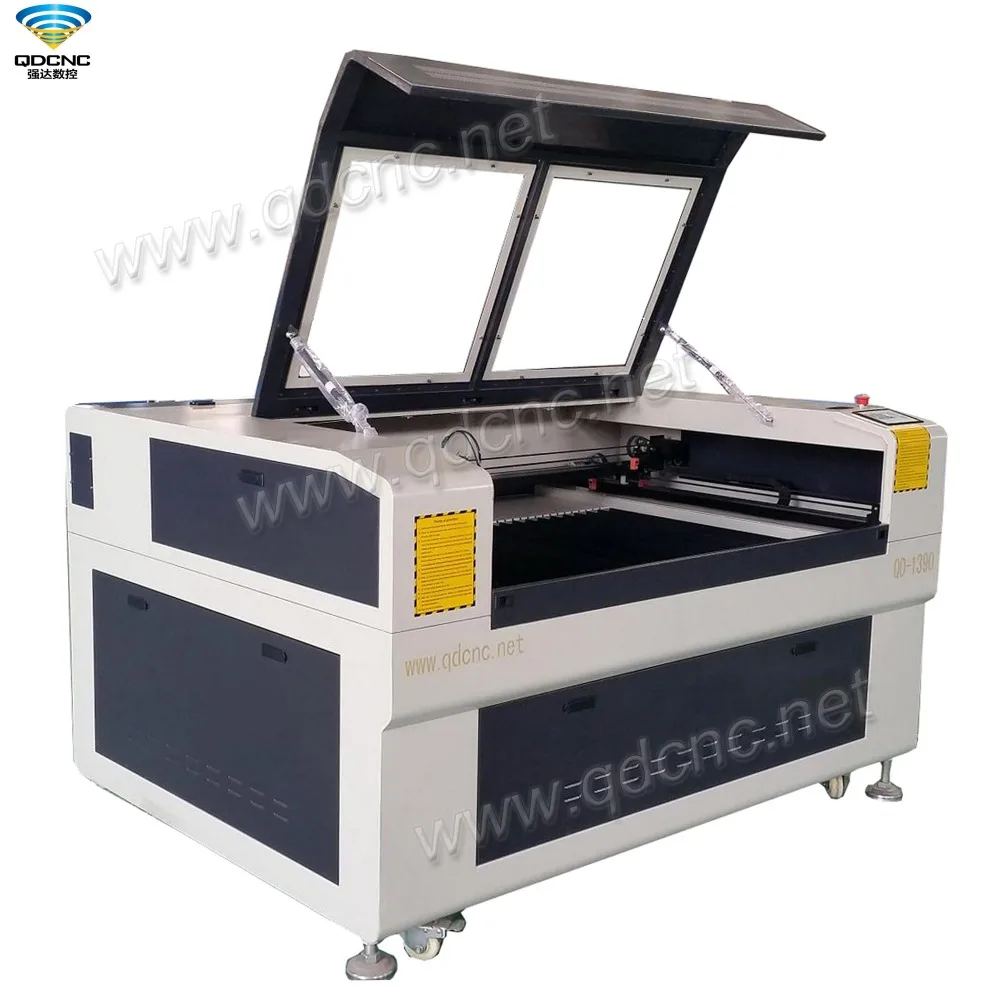

laser engraving machine 80w QD-1290 hot sale laser machine price hobby laser cutter for acrylic


Features:

1) Advanced digital DSP offline controller, stable stepper motor and imported linear rail guide provide a high precision and long time lifetime for the machine.

2) RECI brand laser tube--one of the best laser tube brands in China.

3) Machine has 512 memory which allow to save and store files in the machine and can work without connecting computer.

4) Professional software for laser machine, which support PLT, DXF, BMP, AI, DSF formats, applicable for drawing programs such as Corel Draw, PhotoShop, Auto-CAD, etc.
5) With narrow gap on back of machine which allow passing and processing longer materials.

6) Ampere meter that located above of control panel of machine, this allow operators to monitor the operating current, know well about the condition of laser tube.

Technical Parameters:

Machine Model

QD-1290

Working Area

1200x 900mm

Laser Power

60W/80W/100W/150W/180W(optional)

Laser Type

Co2 laser tube

Laser Power Control

10% -100% software setting

Engraving Speed

0 -60000mm/min

Preposition Accuracy

±0.01mm

Min. Shaping Character

English 1*1mm

Resolution

4500DPI

Graphic Format Supported

BMP, AI,DST, CDR, PLT, DXF, JPG, PGN

Software Supported

CorelDraw, Photoshop, AutoCAD,LaserCut, Tajima

Driving System

Stepper motor

Control System

DSP

Cooling Mode

Water cooling

Working Voltage

AC 110 - 220V ± 10%, 50 - 60Hz

Package

Wooden case

Net Weight/Gross Weight

460KGS/530KGS

Package Dimensions

1960mm* 1560mm* 1320mm

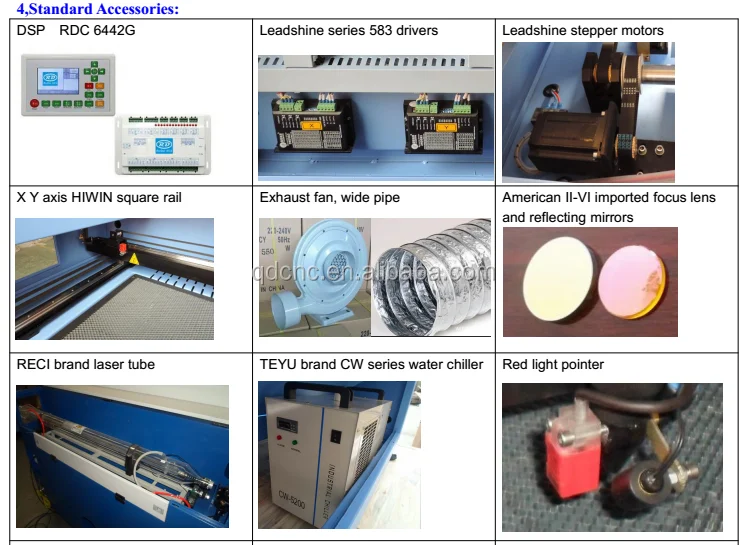

Standard Accessories

RECI brand laser tube

Water chiller

Knife worktable(blade worktable)

Exhaust fan and pipe

Air pump

DSP offline controller and software

Imported focus lens and reflecting mirrors

Red light pointer

Tool box

English user manual

Optional Parts

Rotary attachment

Honey comb worktable

Motorized up-down table(Z axis)

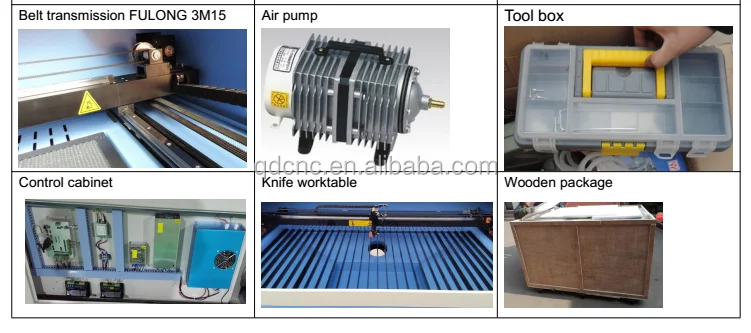

Machine Parts:

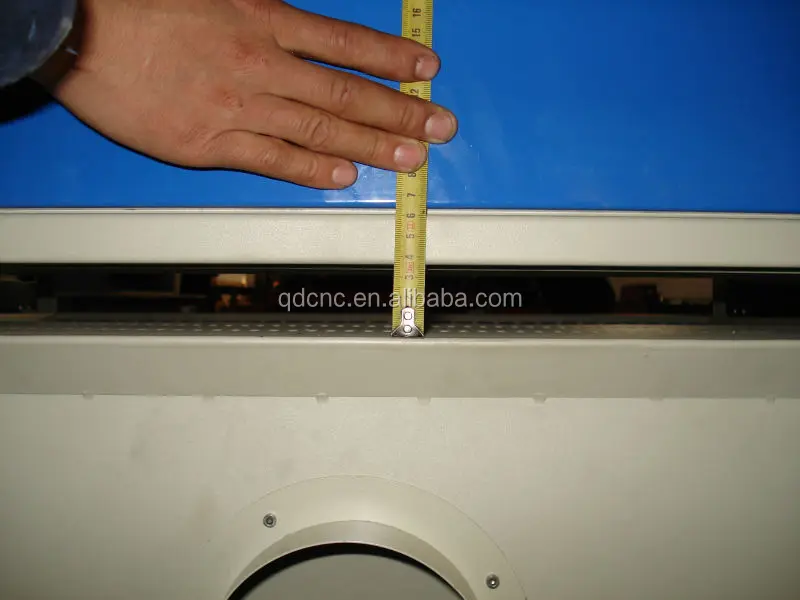

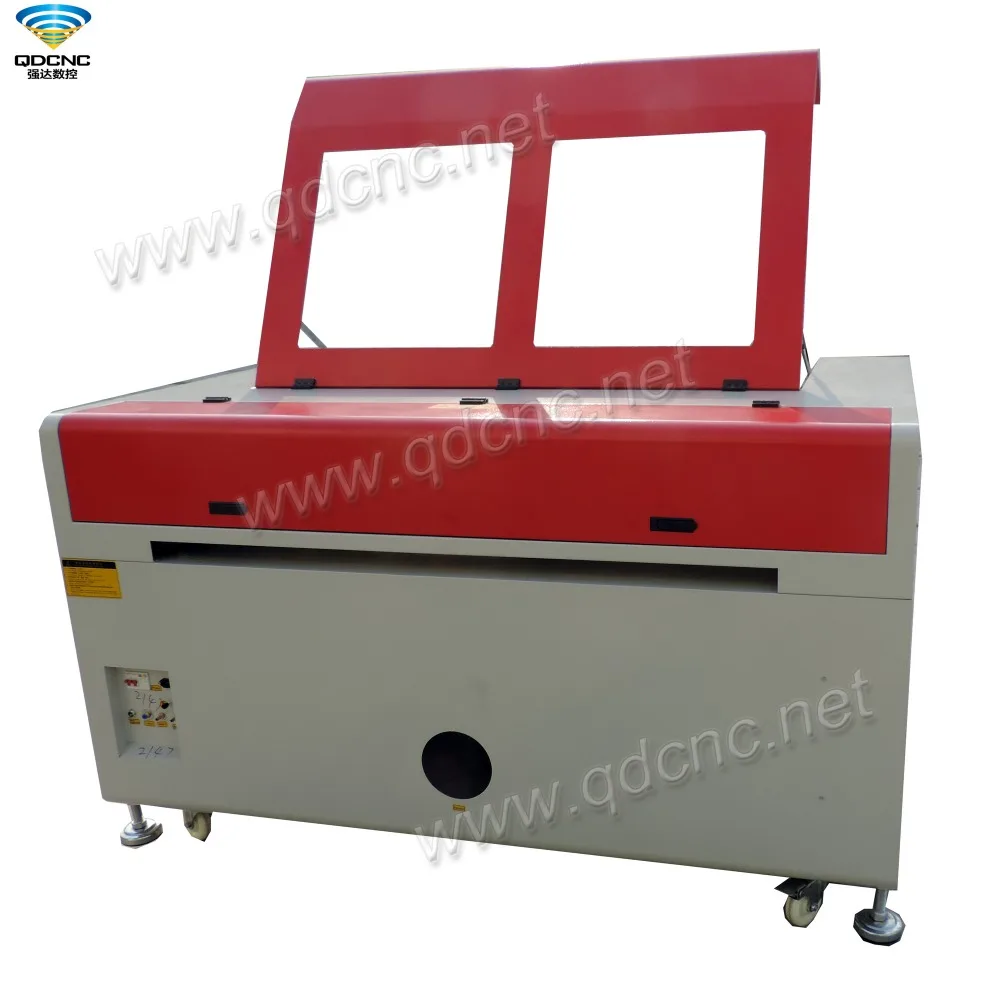

Material Pass through door at back:

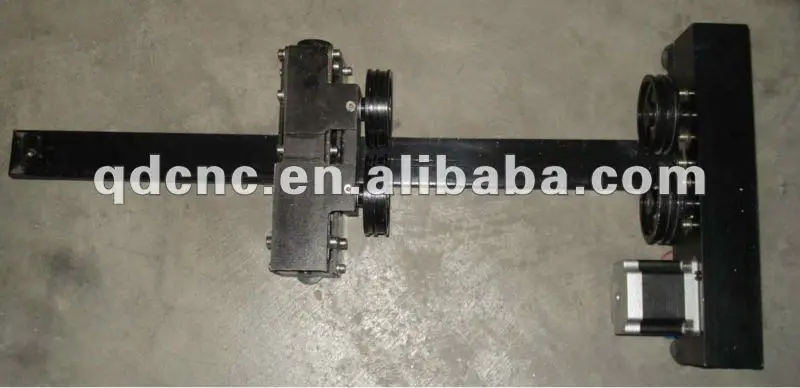

Rotary Attachment:

Applicable Materials:

Non-metal materials, such as acrylic, wood, bamboo, organic glass, crystal, plastic, double color board,  garments, leather, paper, rubber, ceramic, glass, etc.

Applicable Industries:

Advertisement, decoration gift, shoes, toys, computers, garments, model cutting, building, packaging, paper industry,etc.

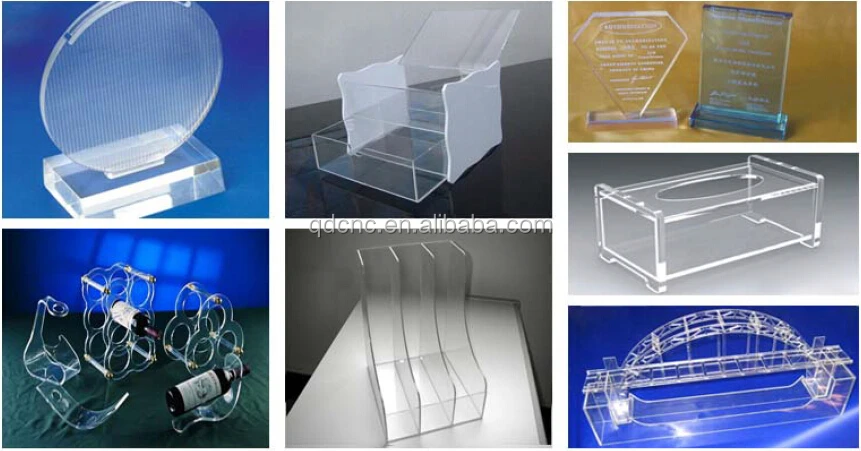

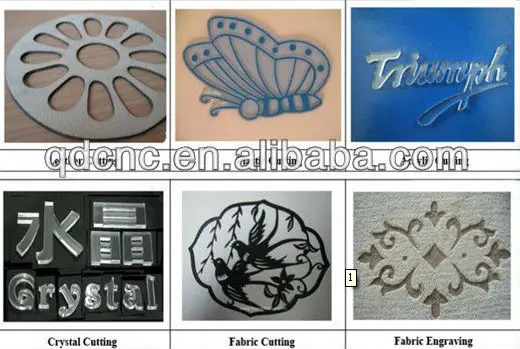

working Samples:

Guarantee & After Sales Service:

1.Two years quality guaranty for the machine and online service everyday day, free technical support. .

2.Free training to guarantee you can operate machine correctly.

4.We will provide the consumable parts at an agency price when you need replacement.

5.Machine has been adjusted before delivery

6.Our staff can be sent to your company to install or adjust if necessary

7.The processing demo video and E-catalogue will be mailed as your request.

Delivery and Transport terms:

Delivery time: 7-15 working days after the order

Package: International Standard Exporting Plywood case

We can send machine to your port or door address by sea or airplane.

Pls kindly tell us your near port or address with postcode.
