I.Function

II.Specification

Read Range

70-100mm(Different according to different working

conditions and different card)

Reading Time

≤0.1s

Operating Frequency

125KHz /13.56MHz(You can choose it by yourself)

Output Port

26bit /34bitWiegand

LED

Red and Green LEDs

Power/Current

DC 6-14V / Max.70mA

Operating Temperature

-10°C to +65°C

Operating Humidity

10% to 90% relative humidity

Beeper

Yes

Index of Protection

IP65

Dimension(LxWxH)

121*84*22(mm)

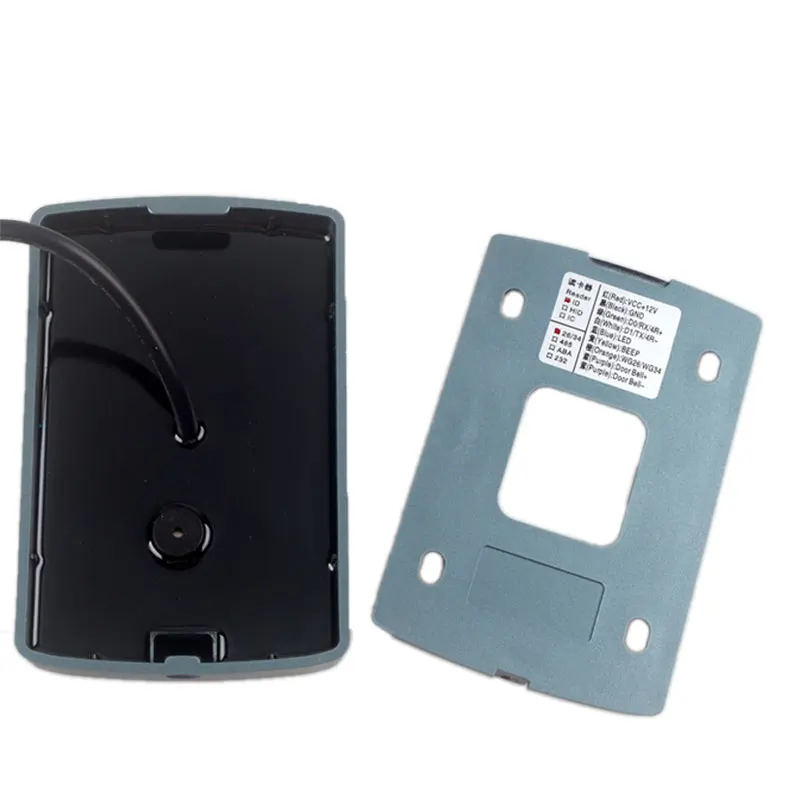

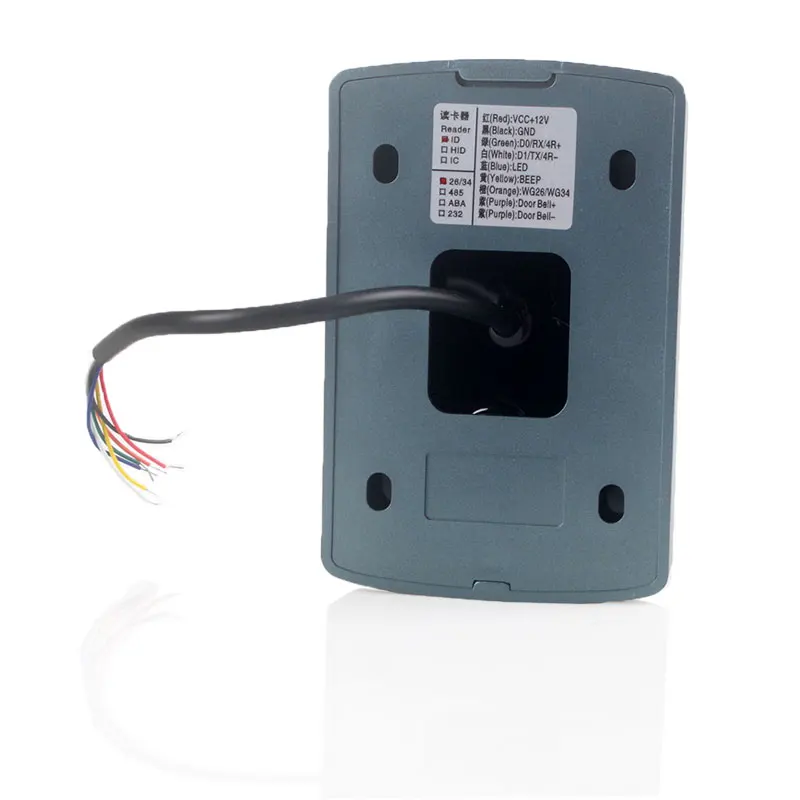

III.Wiring

1

Red

VCC+12V

2

Black

GND

3

Green

D0/RX/4R-

4

White

D1/TX/4R-

5

Blue

LED

6

Yellow

BEEP

7

Orange

WG26/34

8

Purple

Door Bell+

9

Purple

Door Bell-

1Pcs Card reader
