Камера USB 2.0 мегапикселя HD высокой скорости 260 кадров в секунду при 640x360p, 60 кадров в секунду при 1920x1080p, 120 кадров в секунду при 1280x720p, с поддержкой UVC и OTG, в мини-корпусе.

Камера USB 2.0 мегапикселя HD высокой скорости 260 кадров в секунду при 640x360p 60 1920x1080p 120 1280x720p с поддержкой UVC и OTG мини-корпусе.

2.0 Megapixel HD High Speed 260fps at 640x360p 60fps at 1920x1080p 120fps at 1280x720p 2MP UVC OTG USB Camera with Mini Case

Package includes:

1) 1PC 2mp high speed usb camera with 2.1/2.8/3.6/6/8/12/16mm lens optional

2) 1PC 2m usb cable

*Operating system request : Win XP/Vista/Win7/Win8 ,Linux with UVC(above linux-2.6.26),MAC-OS X 10.4.8 or later ,Android 4.0 or above with UVC

*High quality  2.1/2.8/3.6/6/8/12/16mm lens optional

If you do not know which lens to choose, please reference  horizontal view angle of different lens:

2.1mm lens -  about 120degree

2.8mm lens-  about 113degree

3.6mm lens-  about 90degree

6mm lens- about 50degree

8mm lens- about 40degree

12mm lens- about  25degree

16mm lens- about 15 degree

1. Main Specifications

Model

ELP-USBFHD08S-KL36 (lens optional)

Sensor

OV4689

Lens Size

1/3 inch

Pixel Size

2.0µm X 2.0µm

image area

5440 µm x 3072 µm

Max. Resolution

1920(H)X1080(V)

Compression format

MJPEG  / YUV2(YUYV)

Resolution & frame

1920X1080 MJPEG@ 60fps

1280X720 MJPEG@ 120fps

640X360MJPEG@ 260fps

S/N Ratio

38.3dB

Dynamic Range

64.6dB

Sensitivity

1900mV/lux-sec@550nm

Mini illumination

0.1lux

Shutter Type

Electronic rolling shutter / Frame exposure

Connecting Port type

USB2.0 High Speed

Free Drive Protocol

USB Video Class(UVC)

AEC

Support

AEB

Support

AGC

Support

Adjustable parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure

Lens Parameter

2.1/2.8/3.6/6/8/12/16mm lens   optional

Power supply

USB BUS POWER

Operating Voltage

DC5V

Working current

150mA~185mA

Working temperature

0-70degree

Board size /Weight

38*38mm

Cable

Standard  2m/ 3M cable

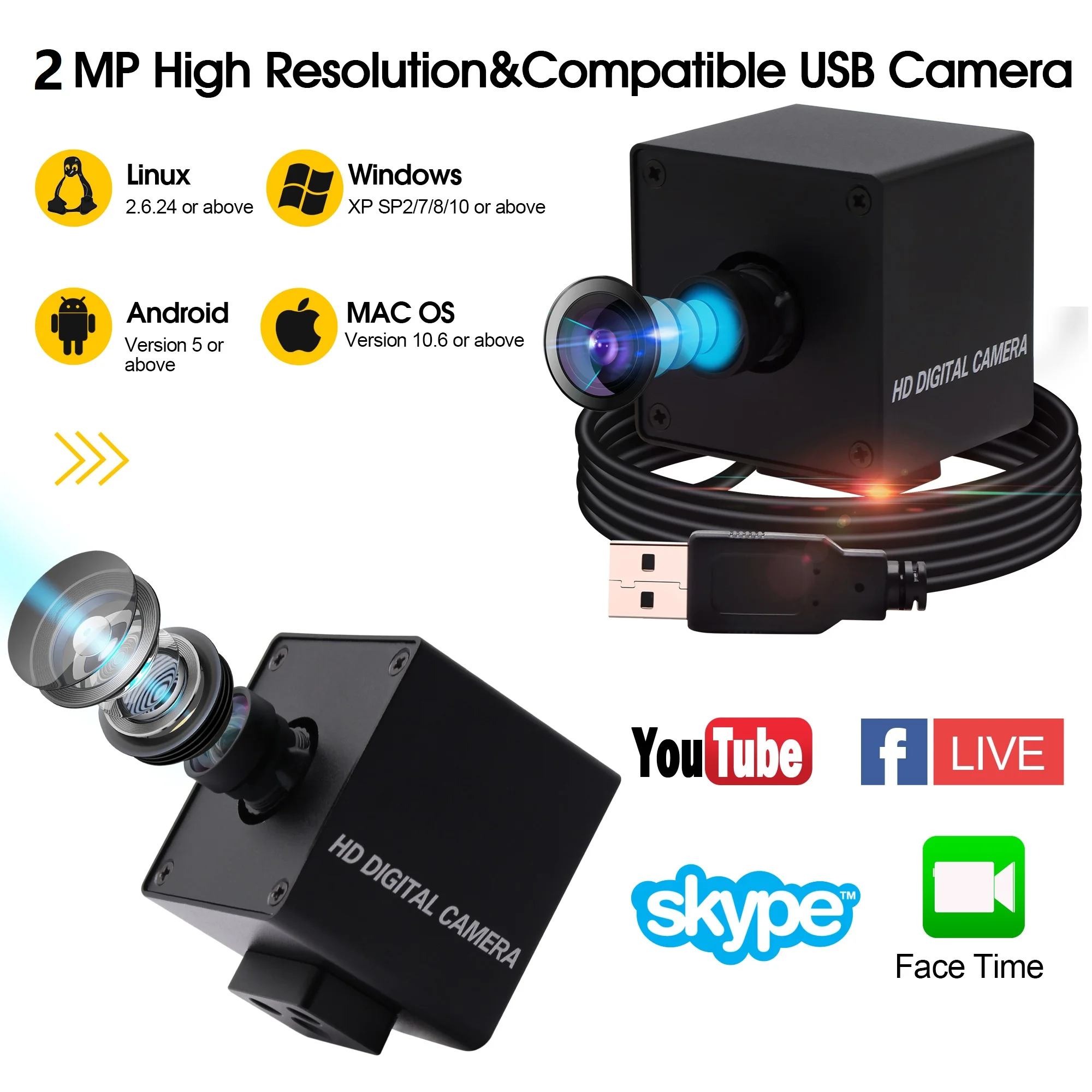

Operating system request

Win XP/Vista/Win7/Win8

Linux with UVC(above linux-2.6.26)

MAC-OS X 10.4.8 or later

Android 4.0 or above with UVC

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law

enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture,  credit card machine, attendance machine, Voting system, High speed video

shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD

surveillance, endoscope, Medical auxiliary equipment, etc.

If you need windows test software, please leave me message, will send you:

High frame rate 1080P USB Camera,

Real fps shown via windows software:
