SG-7500 Antenna :

Black RB400 Clip:

Sliver RB400 Clip:

SG-7500 Walkie Talkie Mobile Radio Dual Band VHF UHF Antenna PL259 Magnetic Mount and SMA-F SMA-M BNC SL16 Adapter

Description:

This is an antenna which is convenient to carry and use, it can enhance the ability to receive signals, what's more, it also has an significant effect in extending communication distance, 4 Coaxial connectors for easy use of hand-held walkie-talkie in the car.

Antenna Features:

1. Can install to the antenna base station directly.

2. PL-259 suitable for car mobile radio station.

3. Super antenna, good concealment,effectively.

4. Ultra short built-in circuit board, signal to send and receive is strong.

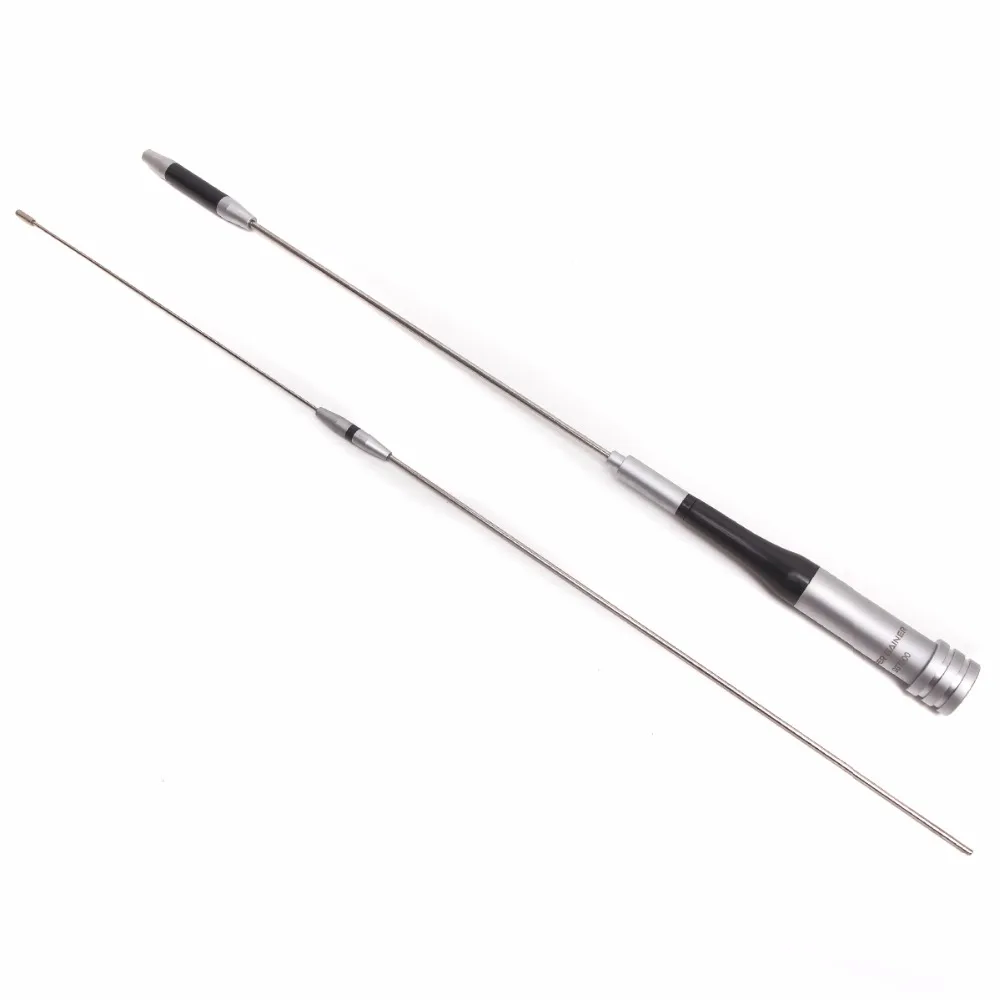

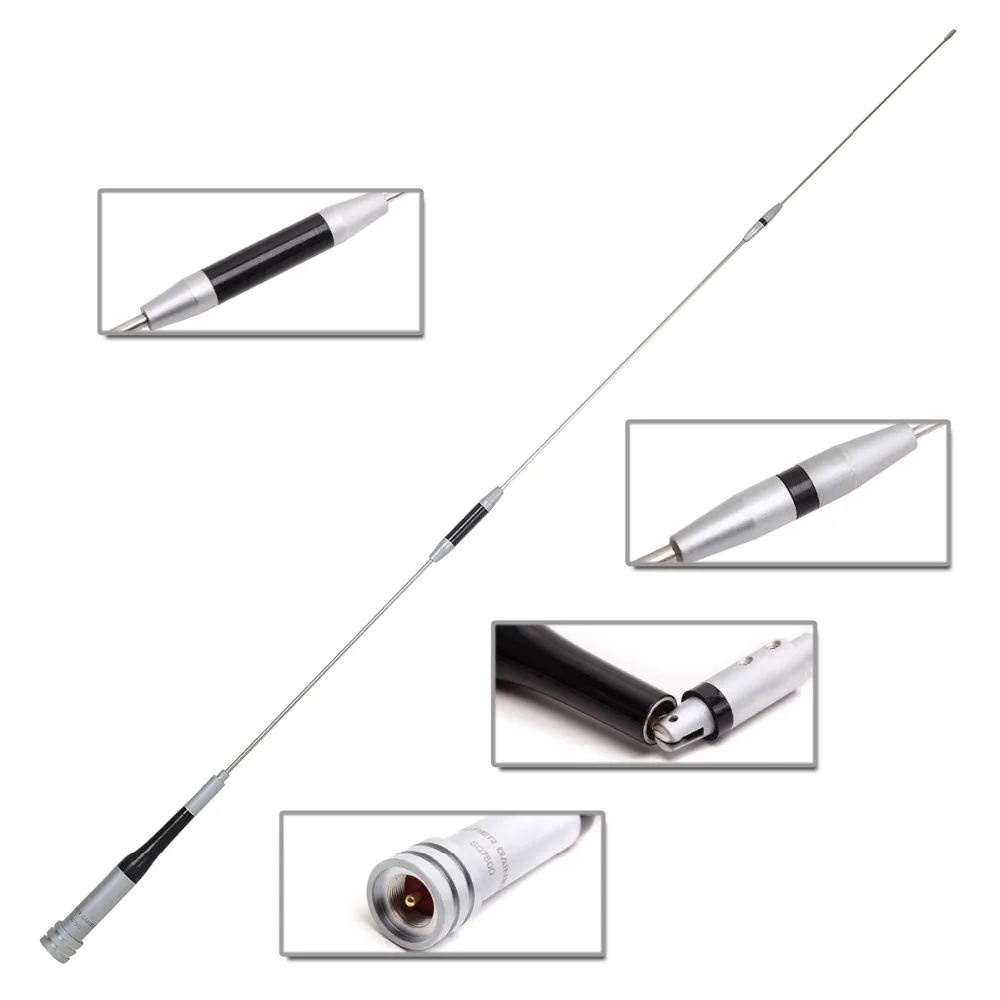

SG-7500  Antenna:

Frequency: Dual Band136-174MHz & 400-470MHz

Gain: 3.5dbi(144MHz)/ 6.0dbi(430MHz)

Max Power: 150W

V.S.W.R: LESS 1.5

Connector: PL259 UHF Type

Antenna Height: 106cm

5M Coaxial Cable  and RB400

Adapter: SMA-F /SMA-M /BNC /SL16 Connector Adapter


Compatibility:

for YAESU :FT-1802M ,FT-1807, FT-7900R, FT-1900R,FT-2900, FT-2800M, FT-7800R, FT-8800R,...

for Kenwood : TM-271 ,TM-471,TM-281,TM-481,TK760,TK780,TK7160,TK7180,TK7102,TK7150 TK7302U,TK7360,NX700...

for ICOM : IC-2200H,IC-2720H,F121S, F121, F5011, F5021, F5121D, F5061, F1721, F1821, F9511, V8000, V2300H,...

for Vertex: VX2100,VX2200,VX4500,...

for TYT: TH-9800,TH-7800,TH-9000

for BaoFeng: BF-9500..

for WouXun: KG-UV950P,KG-UV920P,...

for BaoJie: BJ-218 BJ-318

for QYT: KT8900, KT-8900R,KT-8900D KT-7900D

And any other radio that uses PL259(SO-239 / SL16 / UHF-M) connector Antennas.

Note: If your radio model not listed above, please see my other item or email us your model number, then, we will help you find one that suit for you

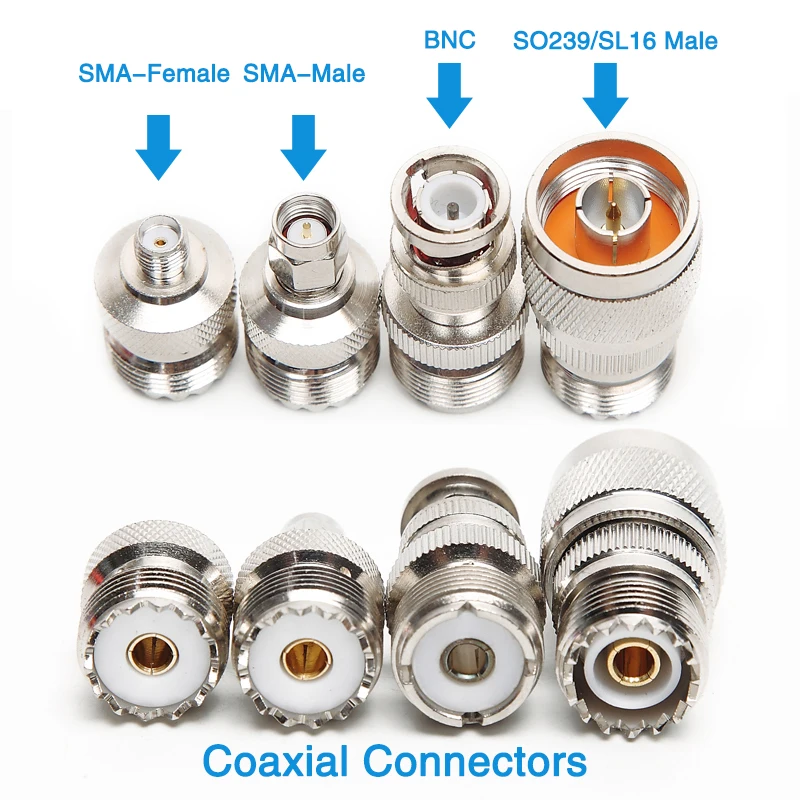

Coaxial Connector:

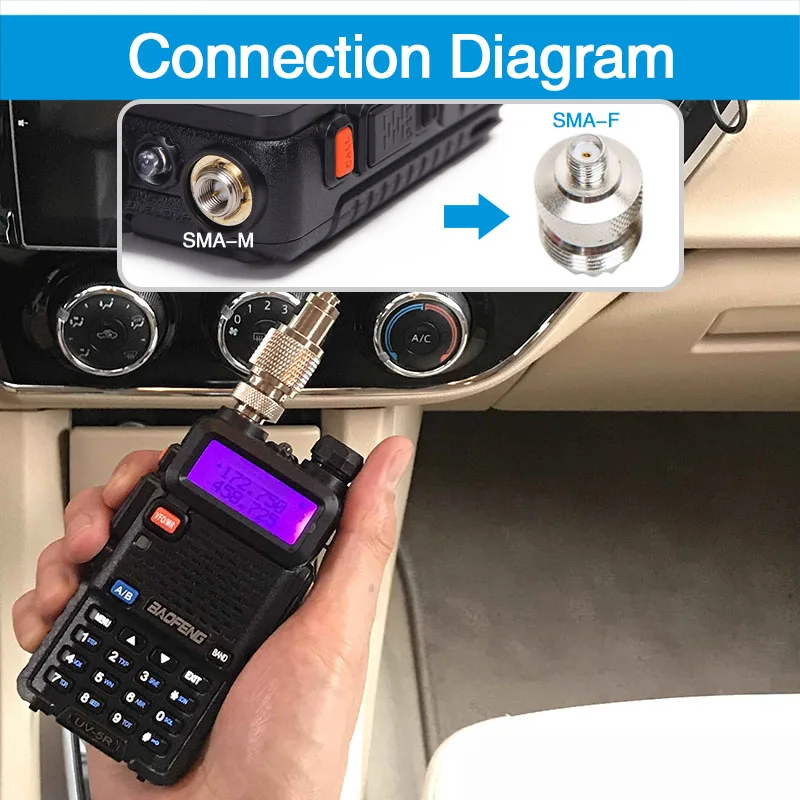

4 Coaxial connectors for easy use of hand-held walkie-talkie in the car.

SMA-Female Connector / SMA-M Male Connector / BNC Connector support various hand-held walkie-talkie.

SO239 Male Connector support male antenna interface of the car radio.

Note: The product is equipped with four additional connectors to support more car radio and hand-held walkie-talkie that can reach 90%, but we can not guarantee support for all 100% of the walkie talkie, Old section and rare style walkie talkie may have no support phenomenon.

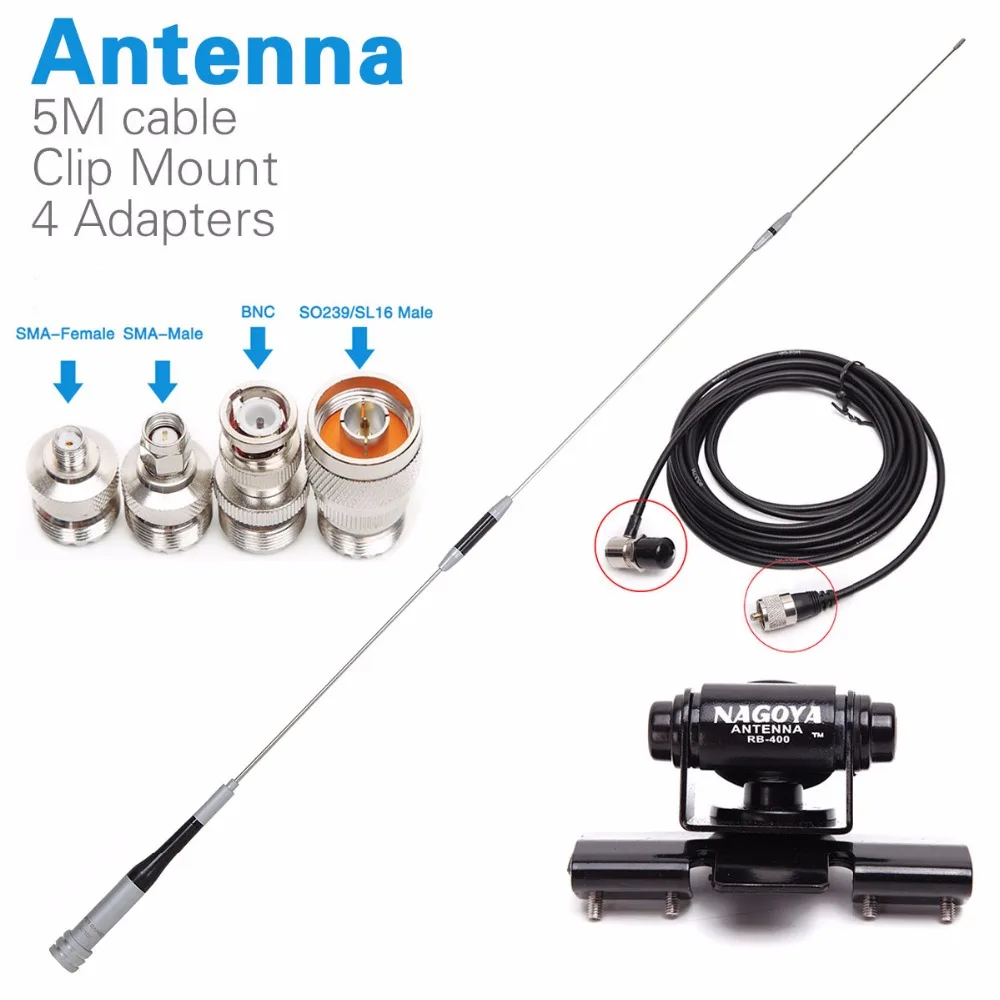

Package included:

1X SG-7500 Antenna

1X RB400

1X 5M Cable

1X SMA-F Female Coaxial Connector

1X SMA-M Male Coaxial Connector

1X BNC Coaxial Connector

1X SO239 Male Coaxial Connector
