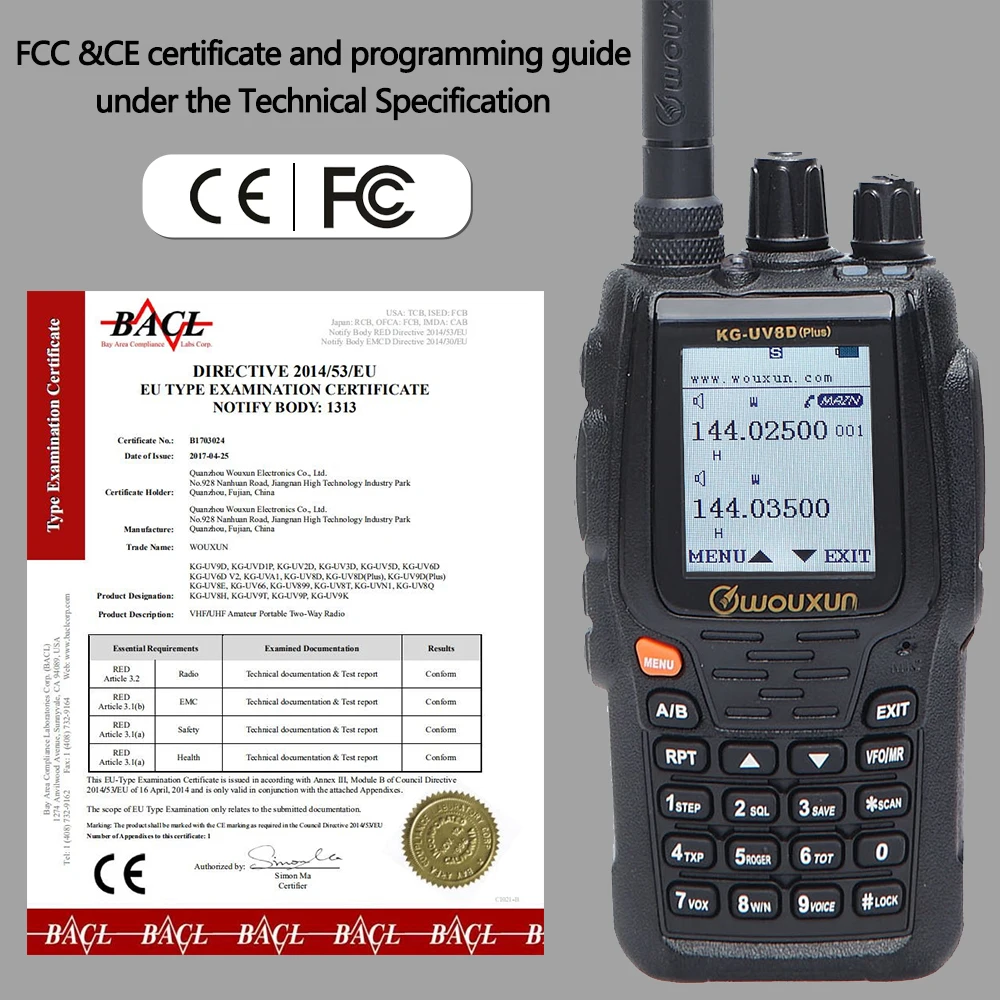

★【FCC&CE&Genuine】We are a genuine Wouxun authorized Wouxun Radio.We strictly follow the frequency limit requirements and programming guidelines of the FCC CE under the technical specifications.For authenticity, you can check on Wouxun's official website

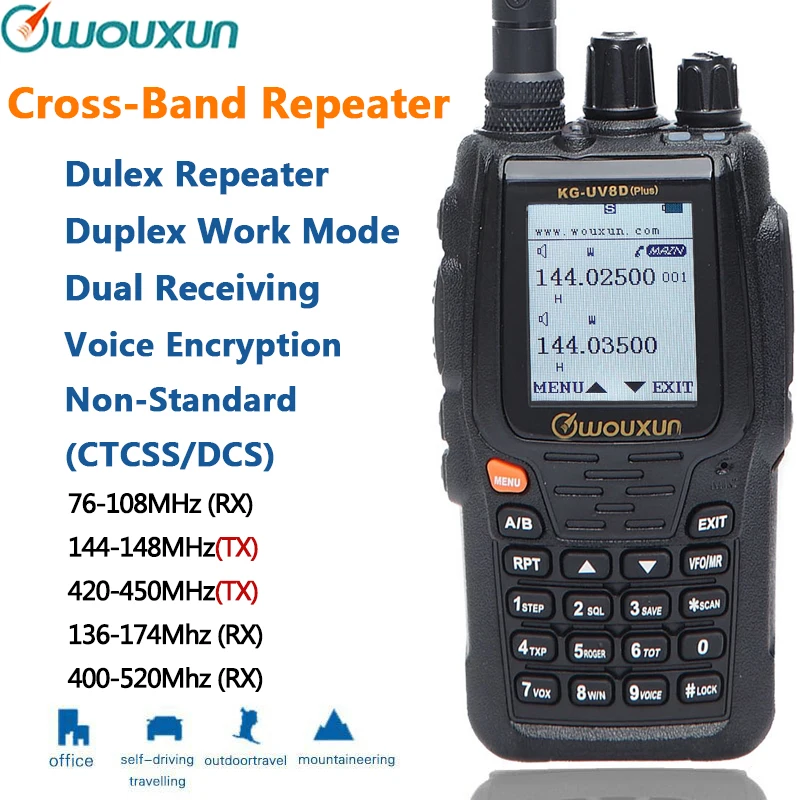

Wouxun KG-UV8D Plus

RX

TX

76-108MHz(RX)

144-148MHz(TX)

136-174Mhz (RX)

420-450MHz(TX)

400-520Mhz (RX)

Dual Bands , Voice Encryption , Two Way Radio KG-UV8D(Plus)

1.Duplex Work Mode and Dual Receiving

It can TX on one area while RX on the other area simultaneously , other, RX on the same or

different bands of A&B areas simultaneously

2.Cross Band Repeater

Frequency offset and direction programmable in repeater Mode UHF/VHF or VHF/UHF cross-band repeater

3.Voice Encryption and Non-Standard CTCSS/DCS

CTCSS or DCS create a secret channel between radios , non-standard ctcss or dcs is stronger

version , voice encryption function use password encrypt voice data

4.Some Improve Functions

Voice compander , backlight intensity can be adjusted , FM radio can be stored and retrieved 20 sets of frequency , power-on message editable

Function

1. Duplex Repeater

2. Duplex Work Mode &TX on on area while RX on the other simultaneously)

3. Dual Receiving(RX on the same or different bands of A&B simultaneously)

4. Large Colorful Screen

5. Frequency Range (suitable for different countries or areas)

6. Dual Display

Dual Band Display on Large Screen, Two independent Operation System

7. Frequency Offset and Direction Programmable in Repeater Mode

UHF/VHF or VHF/UHF Cross Band Repeater

8. 999 Memory Channels

9. Strong and Stable Output Power (VHF: 5W / UHF: 4W)

10. QT/DQT Encoding/Decoding, QT/DQT Scan

11. VOX

12. Multi Definition for Sidekeys

13. Incoming Message Display

Caller ID display

14. DTMF Encoding and Decoding

15. All Calls, Group Calls, and Selective Calls

16. SOS Function

17. Priority Scan Function

18. Remote Alarm

19. Wide/Narrow Bandwidth Selection

20. Voice Guide: Chinese / English

21. Built to IP55 waterproof rating

22. Bright Flashlight Illumination

23. Single Tone Pulse frequency:

2100Hz / 1750 Hz / 1000 Hz / 1450 Hz

24. Reverse Frequency

25. Stopwatch

Specification

Frequency Range

144-148MHz(TX)420-450MHz(TX)

FM: 76-108MHz (RX)136-174Mhz (RX)136-174Mhz (RX)

Step

2.5KHz, 5 kHZ, 6.25 kHZ , 10 kHZ , 12.5 kHZ , 25 kHZ, 50 kHZ, 100kHZ

Channel Number

999 Channels

Work Mode

F2D/F3E

Operating Voltage

7.4VDC

Operating Temperature

-20 or +40

Antenna Impedance

50

Size

124.5x61.49x33.88(mm)

Weight

490g

Receiver

Wide Bandwidth

Narrow Bandwith

Adjacent Channel Selectivity

70db

60db

Inter Modulation

65db

60db

Spurious Response

70db

70db

Audio Response

+1~3db

(0.3~3KHz)

+1~3db

(0.3~2.55KHz)

Audio Distortion

5%

Audio Power

Transceiver500mW

Sensitivity

UHF/VHF:0.25V(12dB SINAD)

Transmitter

Wide Bandwidth

Narrow Bandwith

Type of Modulation

16K F3E

11K F3E

Adjacent Channel Power

70dB

60dB

Spurious

60dB

70dB

Audio Response

+1~3dB 0.3~3KHz

+1~3dB 0.3~2.55KHz

Max Frequency Deviation

5KHz

2.5KHz

Frequency Stability

2.5ppm

Audio Distortion

5%

Output Power

5W/1W(VHF)

Residual AM

4W/1W(UHF)

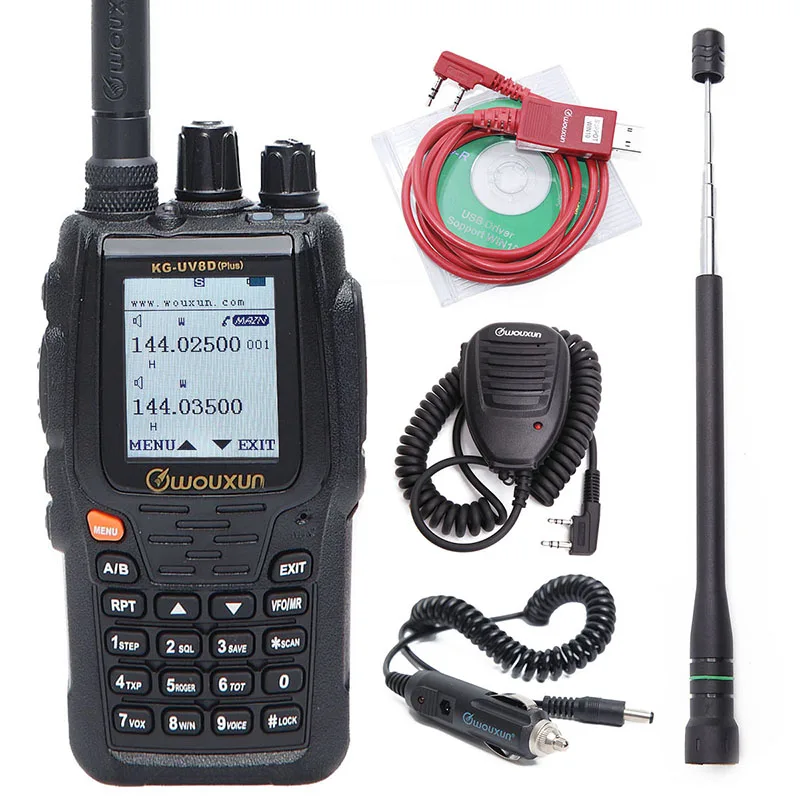

Package:

1x Wouxun KG-UV8D Plus Two Way Radio V1.03 New Firmware 2.5K Step

1x Li-Ion Battery Pack

1x Removable Antenna(connector type: SMA Female (Standard) )

1x Belt Clip

1x Wrist Strap

1x Charger Tray

1x AC Cable

1x User Manual

1x EU Plug

(And other accessory depend on your choice in the link)
