40*60cm Semi auto silk screen printing machine

​Regards the machine work video: Please open this linking on computer to wait the page response fully until you see the video.

Advantage this machine:

High printing speed, no need big place to operate to get automatic printing. The function is the same as the stand one.

Semi auto silk screen printing machine Parameter:

Item Number: US-4060V

Max Frame Size: 550x 800mm

Worktable size: 400x 600mm

Max Printing Size: 380x 550mm

Printing speed: 800-1000times/ hour

Products height: 100mm

Workbench vertical and horizontal adjustment: 50mm

Air source: 5/6Litre/min(6bar)

Power: 220V/ 110V

Out Dimension: 950x 820x 110mm

Weight: 100kg

Apply Material: Metal, glass, plastic, ceramic, card sheet

Semi auto silk screen printing machine Features:

1.SCM IC coordinate light touching panel to compile action programming

2.Adopt stainless steel cabinet to protect machine body , and its vacuum working table is electroplated to be rust-proof.

3.Auto 4-digit counter built-in, counting printing quantity

4.Airframe adopts coin alloy,and metal coating surface

5.distyle vertical construction, high precision, steady operation

6.the transverse stroke can be adjusted, spacing by Taiwan electronic switch

7.the angle of scraper and ink covering blades can be adjusted randomly

8.installing scraper constant pressure equipment to make sure pressure is steady when printing

8.you can regulate work-table back and forth or right and left, and then fastening it

10.you can regulate screen frame back and forth, right and left or level orientatio

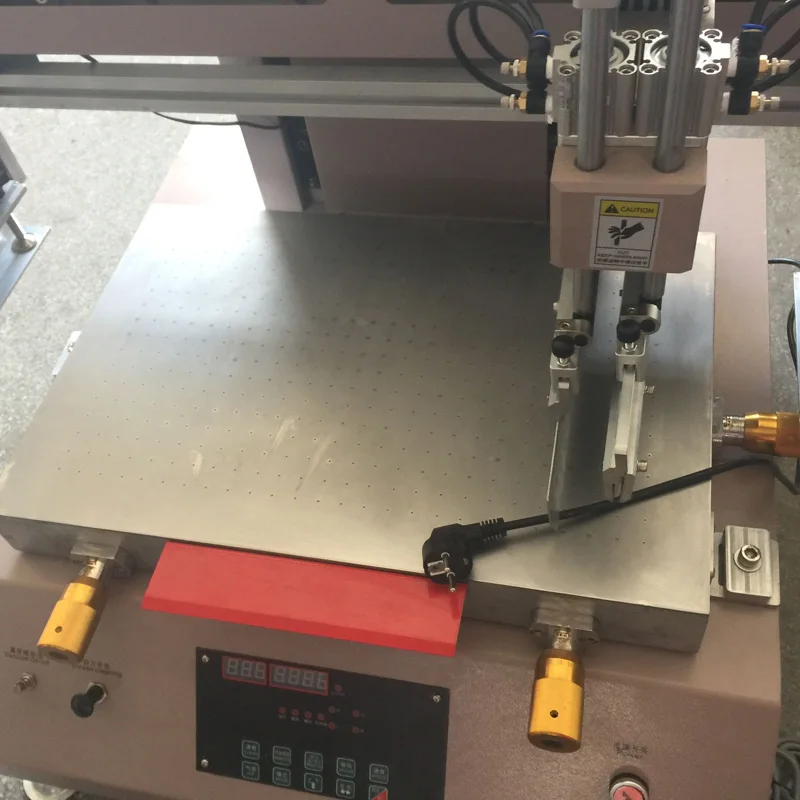

11.vacuum stainless steel worktable, it can absorb kinds of film products

12.installing CEC oil buffer on up and down, left and righ to avoid printing shock

13.The machine is running fast, steably and lower noise.

14.Action model option: fully automatic | semi-automatic | manual

15.Start-up method:panel | foot switches

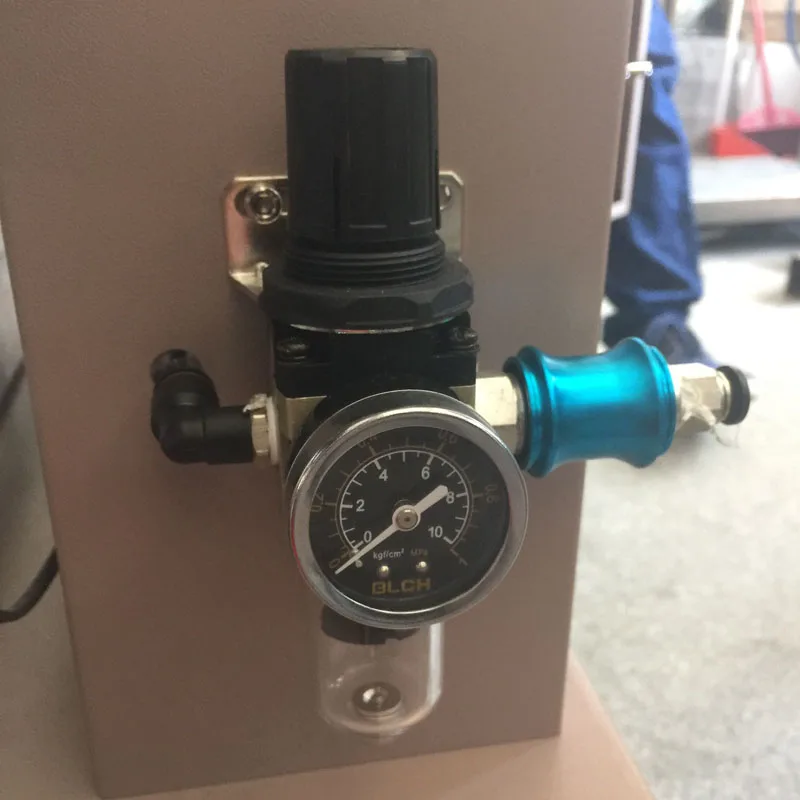

16.scraper pressure controller:by pressure regulating Valve

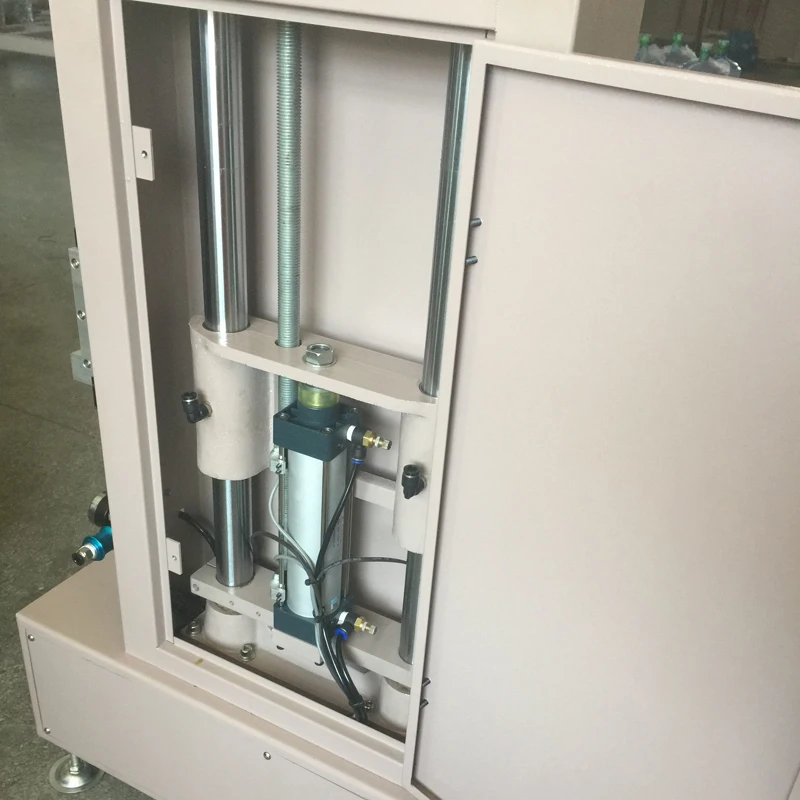

17.vertical driving style: pneumatic

Accessaries:

1 set tool box

1 piece screaper

We can also proving other accessories.
