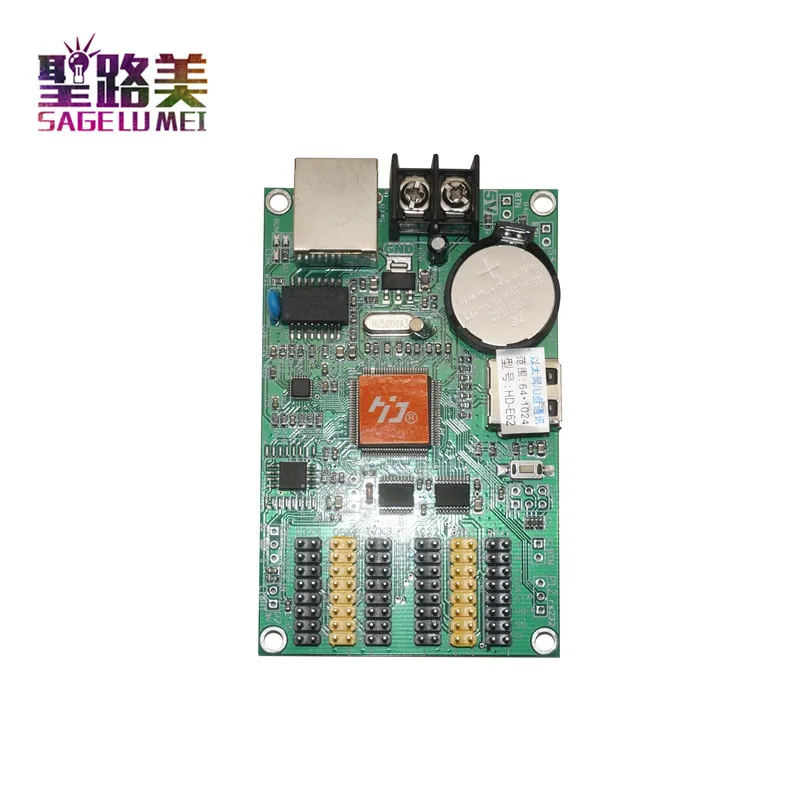

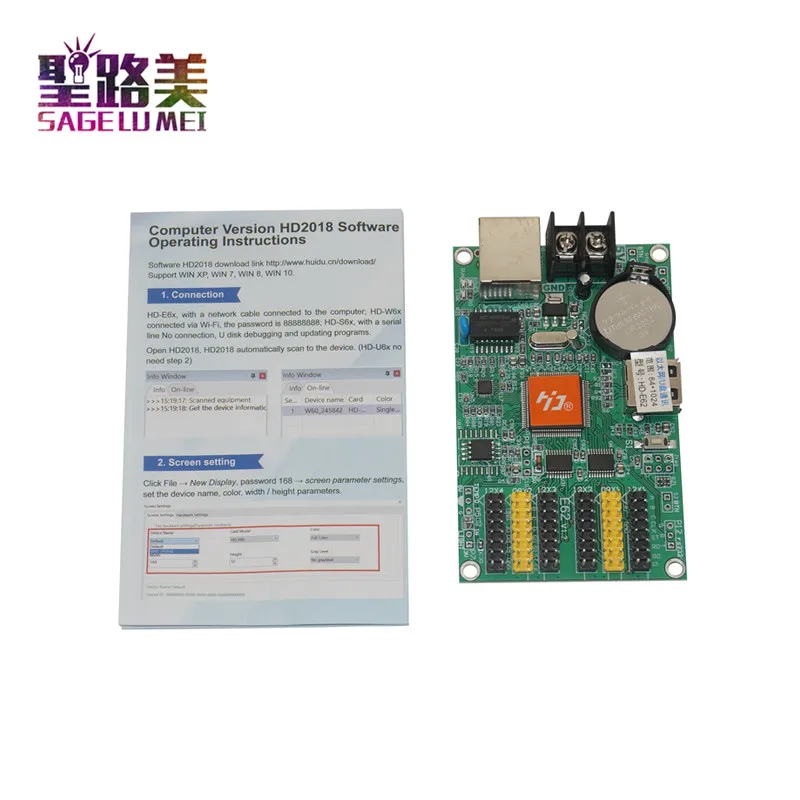

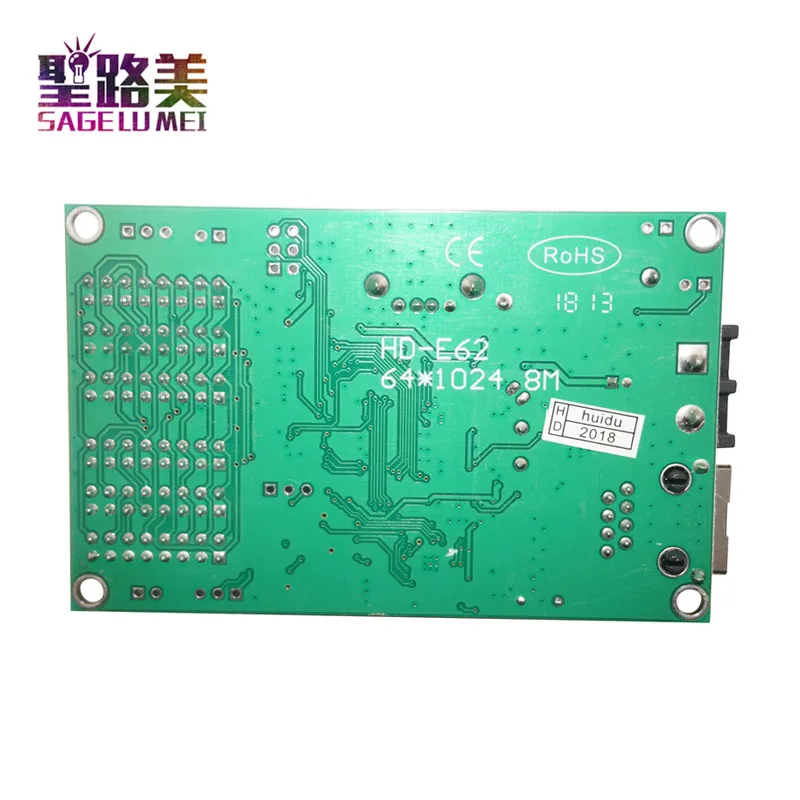

HD-E62 led controller Wireless transmission for U-Disk / RJ45 network port control card for P10 P6 P8 led display screen rs232

​

Product Description:



Application Range: This product applies to information displays for all the signs, stores, vehicles, outdoor ads, etc., and to chain and cluster management for LAN communication.     Model No.: HD-E62    Pixel:   Single color control pixels: Max 32*2048,1024*64,1344*38   Dual color control pixels: Max  64*512, 32*1024,672*48   Seven color pixels: Max 32*384(Full color can display red, green, blue, yellow, purple, cyan and white.)    Communication: USB&Ethernet  port   Interface: 2xT08, 4xT12   Software  password is 168   Scan modes: Static, 1/2, 1/4, 1/8 and 1/16 common modes     Wireless transmission for U-Disk & RJ45 network port, cost-effective, simple software interface, easy to operate, rich and fine display effects     Content   Capability   FLSH capacity   2M Byte(able to expand to 8M Byte)   Communication ports   U-Disk / RJ45 network port   Color   Double-color supports red, green and yellow.   Support seven-color   Full color can display red, green, blue, yellow, purple, cyan and white.   Program quantity   200 programs are available, which can be switched by buttons or remote control.   Area quantity   Eight areas with separate zone, special effect and border   LED pixel   64(H)×2048(W)(The resolution is 48K.)   Display contents   Text, image, time, temperature, count, animated characters, etc.   Display modes   Display in order, switch by buttons or remote control   Display effects   1. Text, image, time, count, temperature (Module is required to be connected.), etc.;   2. Support the settings of program/area/custom borders;   3. Various action modes;   4. Over 40 special character effects;   5. Support simple animated characters;   6. Support hollow/stroked characters;   7. Support the background settings of area characters;   Function of clock   1. Support calendar/analog clock;   2. Clockwise/counter-clockwise count;   3. The font, size, color and position can be set freely;   4. Support multiple time zones;   Expanders   Temperature/humidity/remote control/light sensors, and wireless RF module   Automatic switch screen   Support time switch   Luminance control   Support three luminance modes



Package include:



1 * HD-E62 control card
