Direct Factiory Rfid Electric Control Door Lock Keypad Code Access System Kit Set |

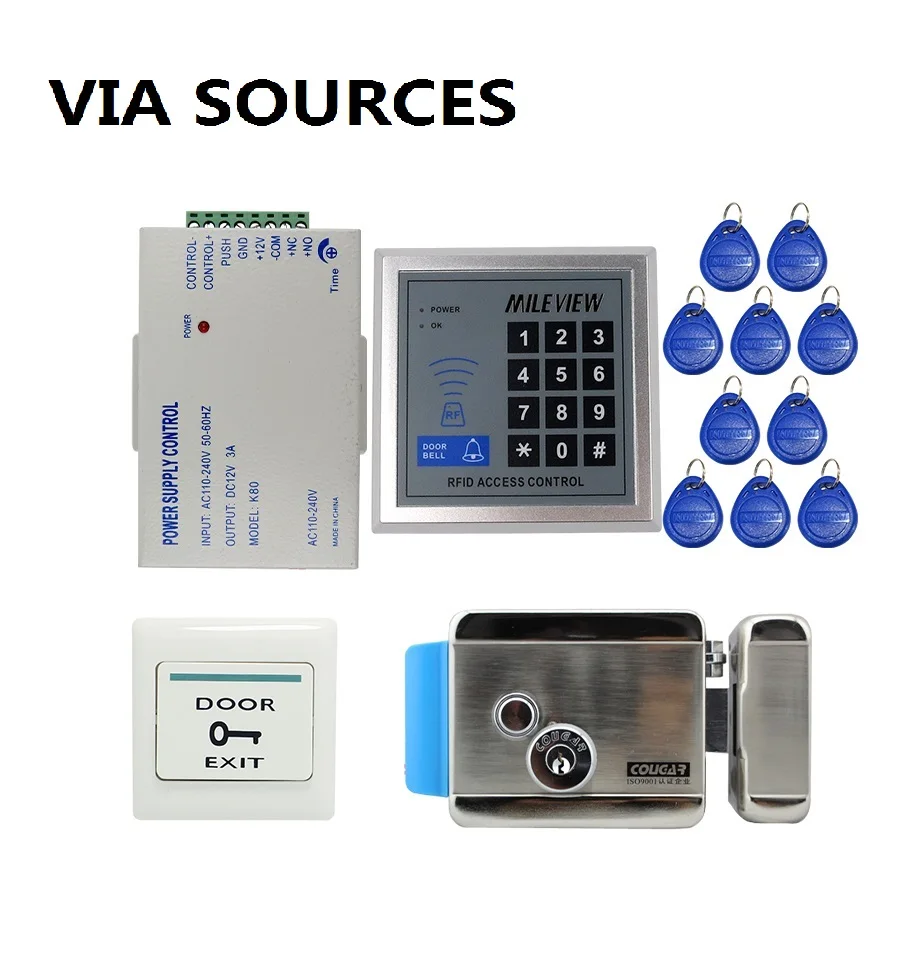

DIY RFID Access Control System Kit Set with Electric Control Lock

Power Supply +Electric Control Lock + 10 ID Keyfobs +Exit button

It enables you to control who has access to your building



RFID Access controller
 This is a NEW RFID Reader Access Control Keypad, which can update the safety of your home and office. It is perfect for Homes, Office, Factory and many other fields!
 Contactless RFID transponder technology
 Full programming from the keypad
 Support Card, PIN, Card + PIN
 Connection for external release button(Exit button)
 Build in RFID reader
 User capacity: 500users (each card only can add one password)
 Does not need to connect on the computer, it can work alone.
   Power supply

This is a 110V-240V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.
 It controls electric lock directly.
 Can reduce the load of access controller, save wiring to reduce the hidden trouble
 Based delay control circuit, lock time can be in 0-15 seconds
 Automatic protection function, unexpected situations such as when the power supply short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off
 Operative device: E/M Lock, Access Controller, Exit Push Button.



Electric Control Lock

This is a 12V Electric Lock Rim lock, unlock electronically or by hand, flexible switch, low electricity consumption. This Door Locks fit for different kinds of doors. When bolt extends out, the door can be locked normally.




NO Mode - (Locked while power is off); Material: Stainless Steel;Authority Certification: CE & MA Approved

Application: wood/iron doors;

Working Voltage: 12VDC

Working Current: 0.2-0.45A

Weight: 1500g;

Dimension (Face Plate): 120mm x 105mm x 35mm

Center distance: 60mm

Door distance: 35-55mm





125Khz RFID Keyfobs

These are 10pcs 125KHz RFID Proximity Keyfobs, they can work with the product which has 125Khz RFID card reader. Operation Frequency: 125KHz;



Reading distance: 8-10cm;



Each keyfob has an uniqe ID number.

Exit Button

This is a Exit Button for Access control use,when you want to go out, you just need to press this Exit Button, then you can go out:

Maximun Power Rating: 36 VDC 3A-5A output
 Performance Testing: 1000000 times aging test.





Touch Panel Exit Button:



Standard Structure : Touch to exit
Power Input : DC 12V
Suitable Humidity : < 95%
Mechanical Life : > 500000 times
Output Contact : NO / NC / COM
Operating Temperature : -20°C ~ 55°C
LED Indicator :
- Blue : Standby
- Green : Triggered
Dimensions :
- approx. 86 (W) x 86 (H) x 21 (D) mm
- approx. 3.4" (W) x 3.4" (H) x 0.8" (D) inch







Access Controller SpecificationWiring connection: Electric Lock, Exit ButtonWorking Voltage: DC 12VCard Type: ID cardFrequency: 125KhzReading distance: 4-15cm Dimension: 88mm×88mm×18mm
Power supply SpecificationAC input: Standard AC100V-240V 50-60HZDC output: Stabilivolt DC12V/ 3 APackage Dimensions: 117 x 68 x 32mm Lock SpecificationNO Mode - (Locked while power is off); Material: Stainless Steel; Authority Certification: CE & MA Approved

Application: wood/iron doors;

Working Voltage: 12VDC

Working Current: 0.2-0.45A

Weight: 1600g;

Dimension (Face Plate): 120mm x 105mm x 35mm

Center distance: 60mm

Door distance: 35-55mm

 Exit ButtonOpening device: Normal OpenPower Rating: 3A/36VDCFaceplate Dimension: 85Lx85W (mm)Material: Hard Plastic



Standard Package
