Description:

Dual Trigger design , using special two-way driver IC design , fly away to ride the world premiere of Electronic Science and Technology ;

Anti-interference ability , using the freewheeling diode protection;

Part of the relay contacts using double-sided bold wiring for a large current through the safe and reliable;

5.08mm high-quality input and output terminals are used , the wiring is more convenient and suitable for PLC control

The inputs can be set high and low trigger control more flexible ;

Each relay has a pull indicator , working status of the relay at a glance;

 Each relay output leads to a normally open and normally closed two electric shock, use convenient and flexible ;

With fixed screw holes for easy installation ;

Finished by 100% functional testing and stability testing ;

Specification:

The relay contact capacity : AC250V 10A DC30V 10A;

Power supply: Button Battery( Included)

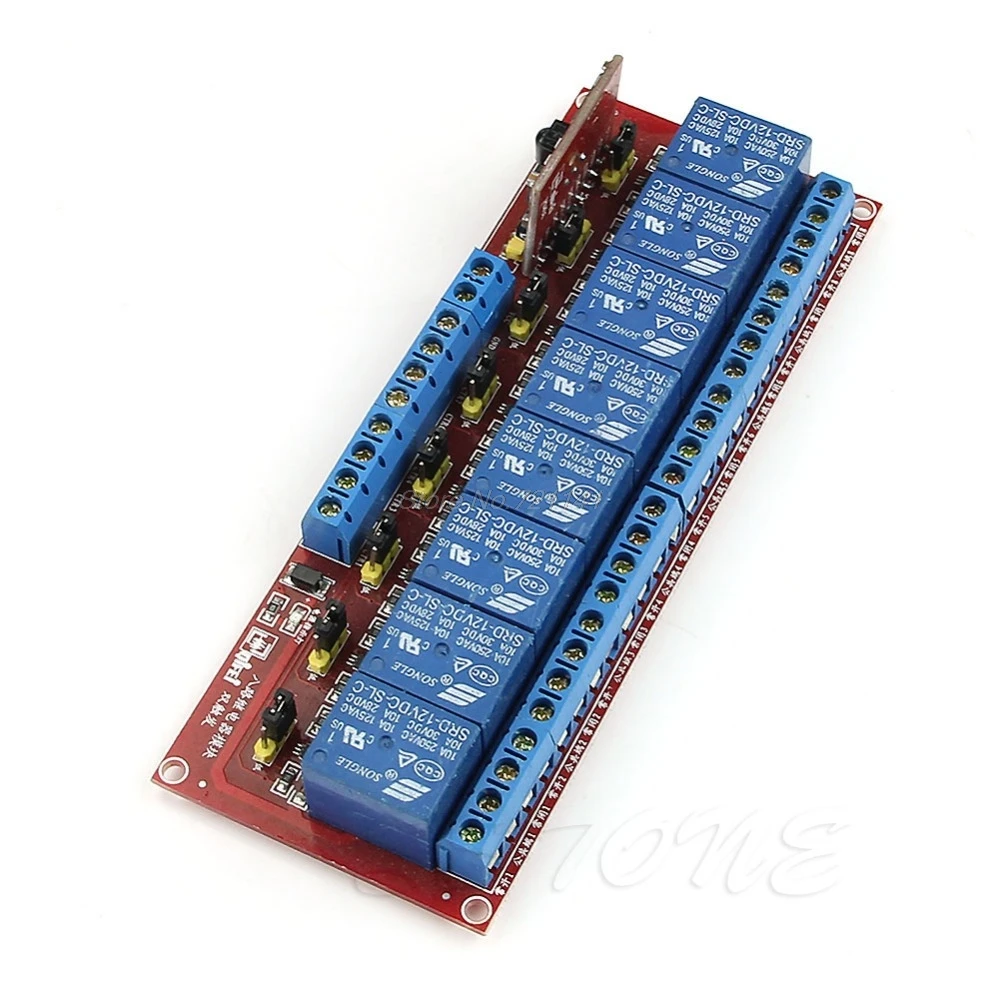

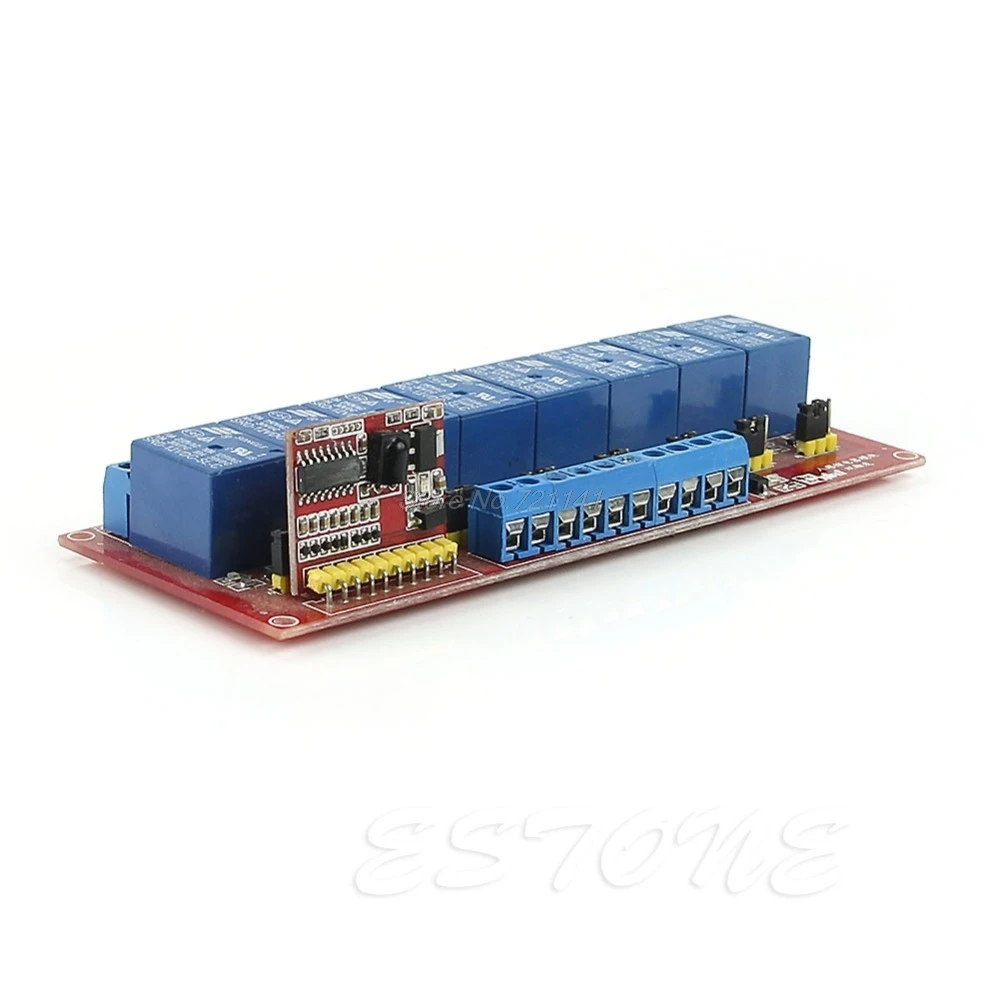

Board Size: (L*W*H)13.50*5.00*2.10cm/5.31"*1.97"*0.83"

The remote control Size:(L*W*H)8.50*4.00*0.60cm/3.35"*1.57"*0.24"

Quantity:1Set

Product wiring as follows :

VCC: input power supply terminal end

GND: input power is grounded end

CTR1-CTR8 trigger signal input terminal , in any way effective ( by a jumper setting can)

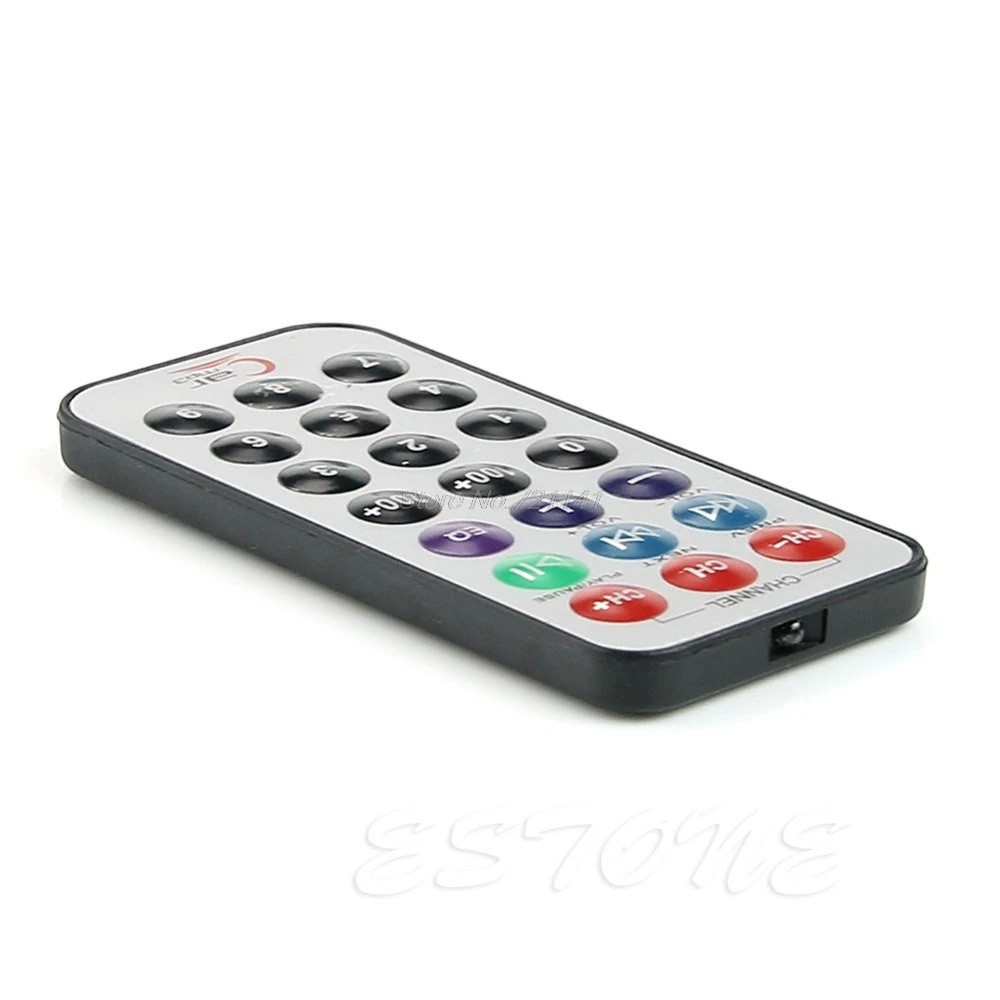

The remote control uses:

Only the numeric keys work, 1-8 keys,Corresponding to the corresponding relay channels 1-8, after pressed the first time relay start work ,After disconnecting relay pressed again.

After the 0 button is pressed, all start to working,

After the 9 button is pressed, all stop working,

Note:

Size for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenomenon.

And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package Includes:

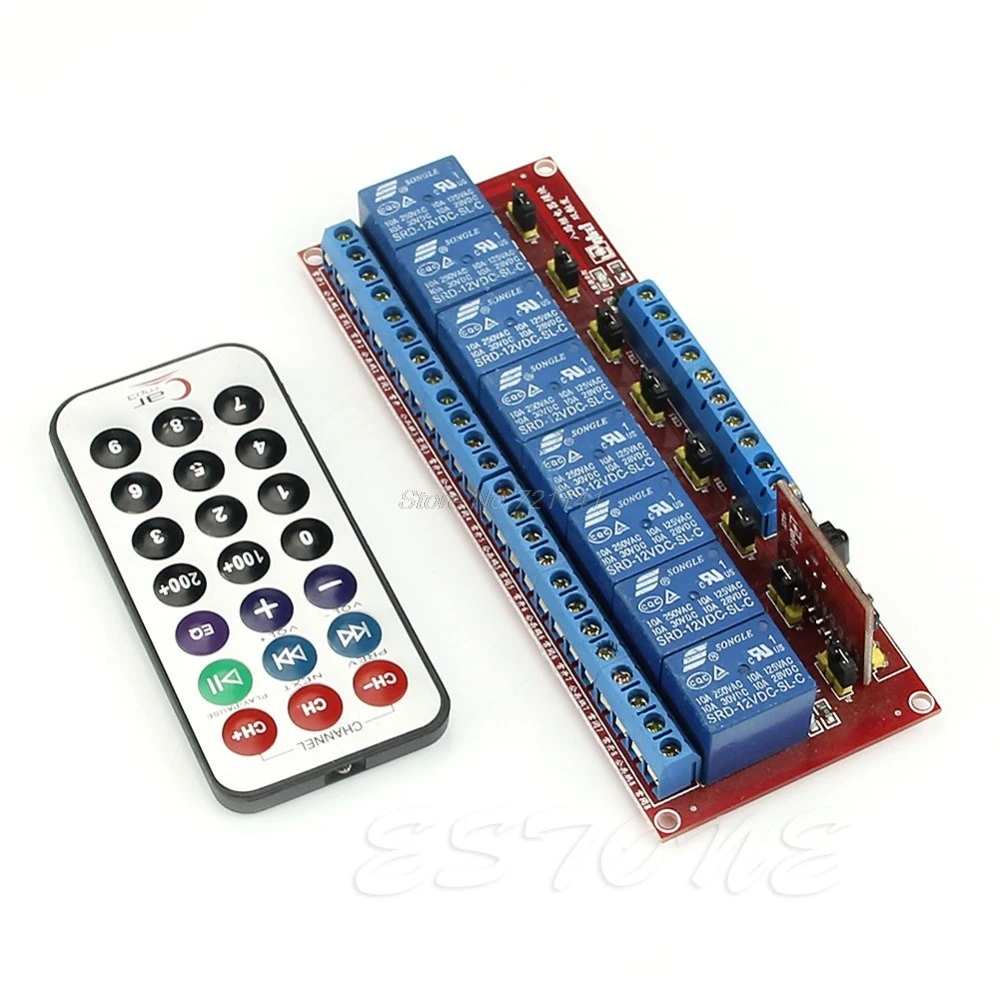

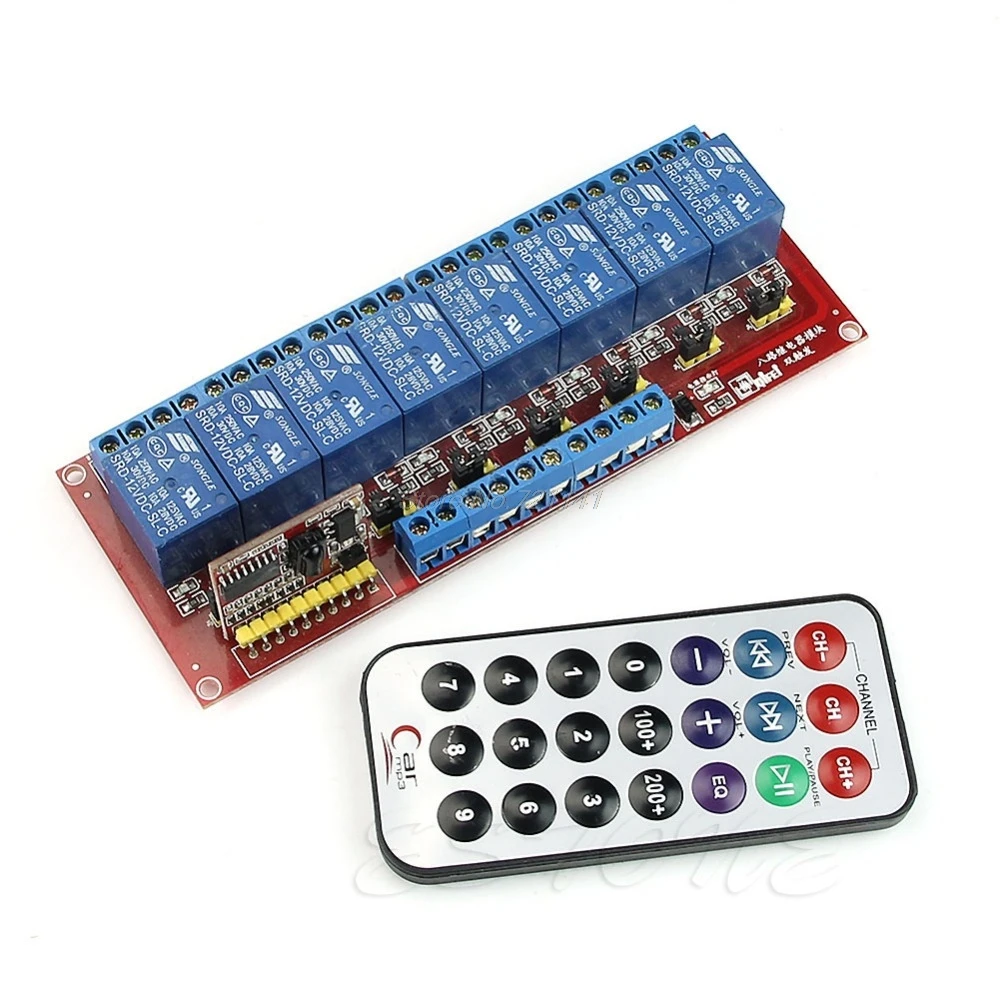

1pc * 8-channel relay module

1pc * The remote control(inclued battery)
