Digital Clamp Meter NJTY DC/AC Volt Amp Ohm Diode NCV Multimeter Ammeter

Features:
1.Multifunctional, can measure AC/DC voltage, AC current, risistance,diode,temperature,continuity,NCV.
2.Stable performance, high precision, respond quickly.
3.Large LCD screen,easy to read.
4.Low battery indication, overload protection.
5.Data hold,buzzer indication.

Description:
1.Portable and lightweight, easy to carry.
2.Auto power off, low battery indication,low power consumption.
3.It's a perfect tool for the laboratory, factory and home.

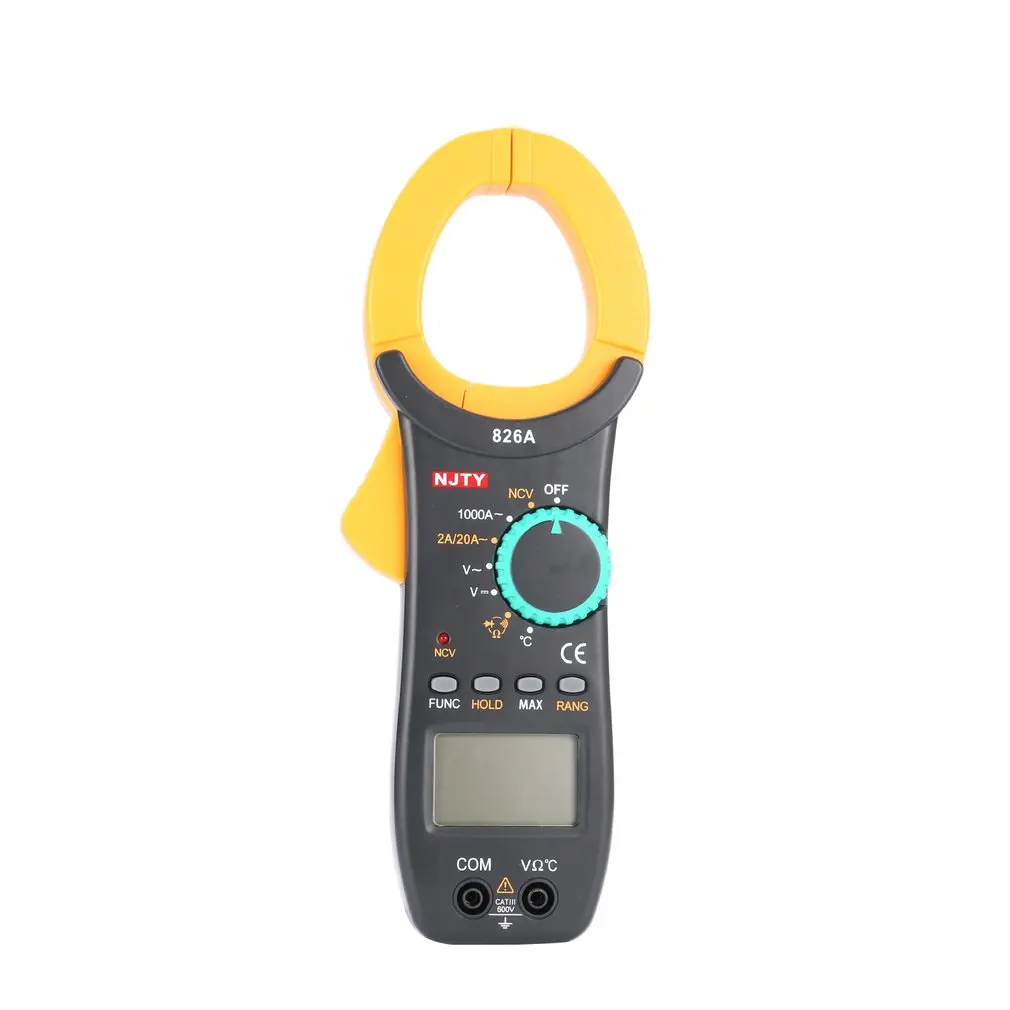

a.Specification:
Brand:NJTY
Model:826A
Color:Orange & Gray
Display: LCD
Max.Dispaly:2000
Battery type: 2 x 1.5V AA Battery(not included)
Automatic power off: yes
DC voltage range: 200mV/2V/20V/200V/1000V
DC voltage accuracy: ±(0.8%+5)/±(1%+5)
AC  voltage range:2V/20V/200V/600V
AC voltage accuracy: ±(1.2%+5)
AC current range:2A/20A/200A/1000A
AC current accuracy: ±(2%+5) /±(3%+5)
Resistance range: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
Resistance accuracy: ±(1%+5)
Temperature Range: -30~750°
Temperature accuracy:±(3%+5)
Maximum size for opening the clamp heads:diameter 55mm
Continuity: <30Ω buzzer sounds.

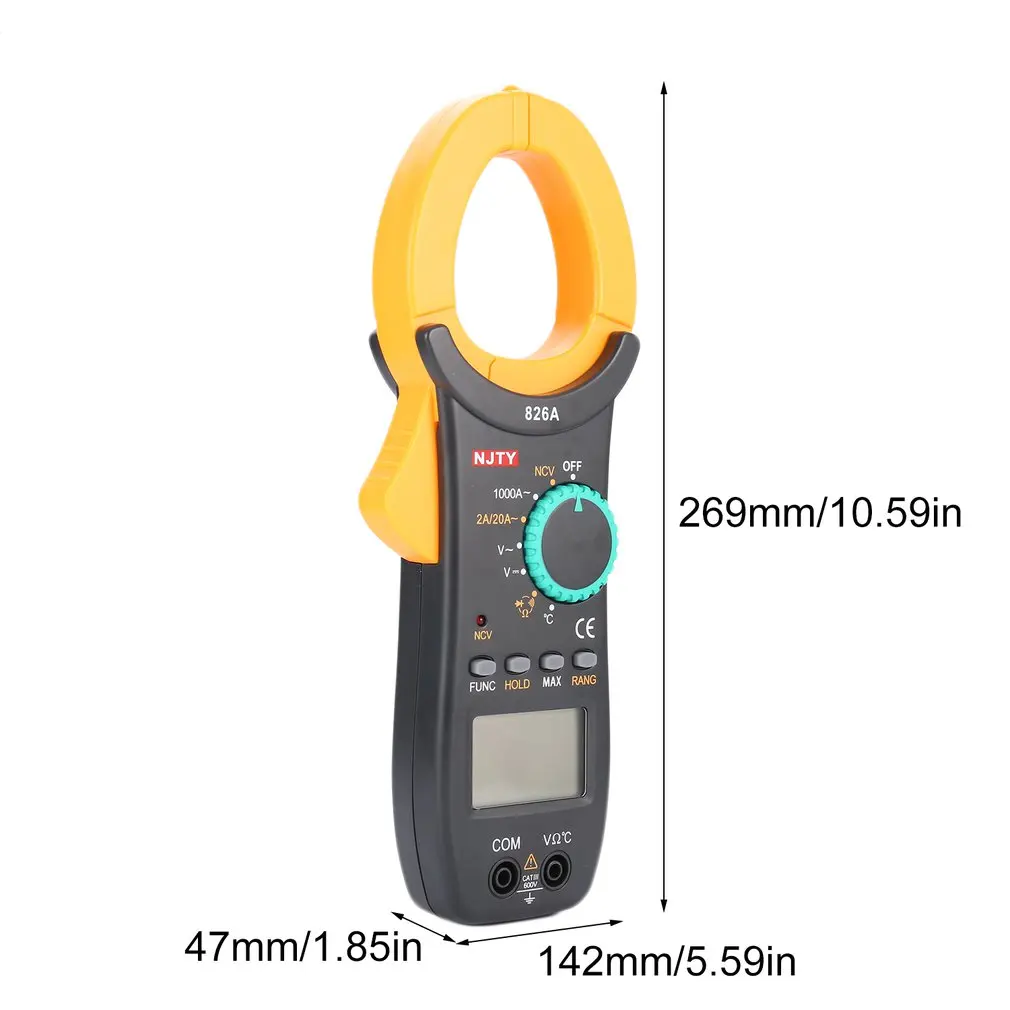

Item size:245 x 98 x 34mm
Item weight:276g

Package Information:
Package Size: 269x 142 x 47mm/ 10.59 x 5.59 x 1.85in
Package Weight: 500g/1.10lb
General Box Package

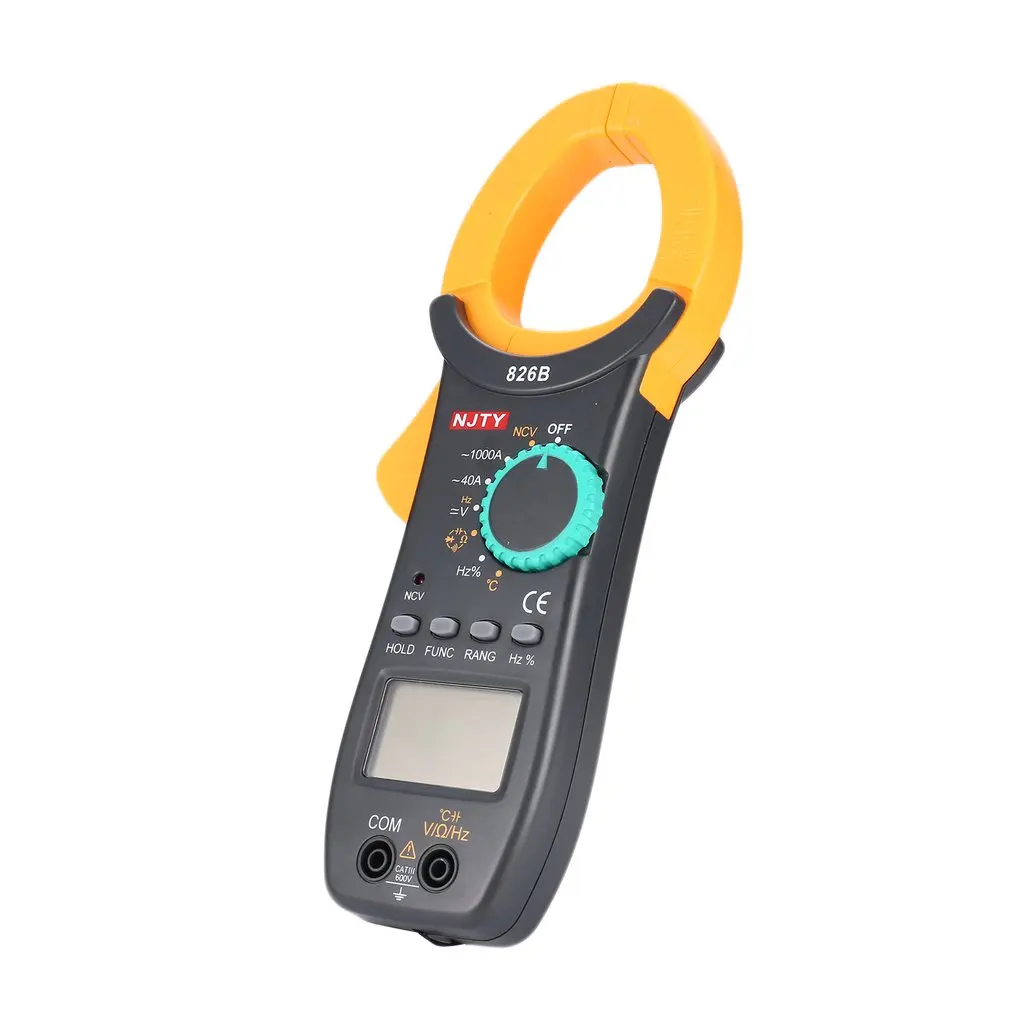

b.Specification:
Brand:NJTY
Model:826B
Color:Orange & Gray
Display: LCD
Max.Dispaly:4000
Battery type: 2 x 1.5V AA Battery(not included)
Automatic power off: yes
DC voltage range: 4V/40V/400V/750V
DC voltage accuracy: ±(0.8%+5)
AC  voltage range:4V/40V/400V/1000V
AC voltage accuracy: ±(1.2%+5)
AC current range:40A
AC current accuracy: ±(2%+5)
Resistance range: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
Resistance accuracy: ±(1%+5)
Temperature Range: -30~750°
Temperature accuracy:±(3%+5)
Capacitance range: 5nF/50nF/500nF/5μF/50μF
Capacitance accuracy: ±(3%+5)/±(8%+5)
Frequency range:10Hz-10MHz
Frequency accuracy: 0.01Hz
Duty ratio:1%-99%
Maximum size for opening the clamp heads:diameter 55mm
Continuity: <30Ω buzzer sounds.
Item size:245 x 98 x 34mm
Item weight:276g

Package Information:
Package Size: 269x 142 x 47mm/ 10.59 x 5.59 x 1.85in
Package Weight: 500g/1.10lb
General Box Package

Package List:
1 x Digital Clamp Meters
1 x Pair of test leads
1 x Thermocouple
1 x Carry bag
1 x User manual
