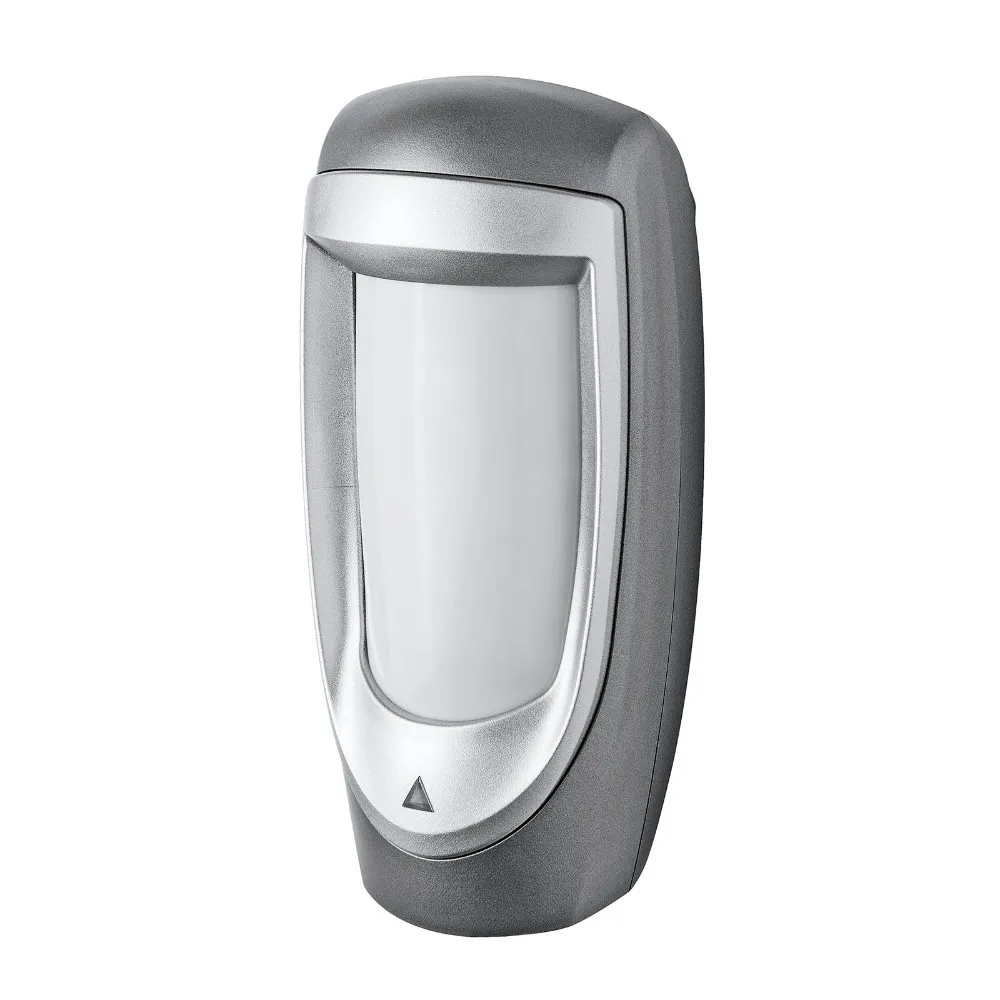

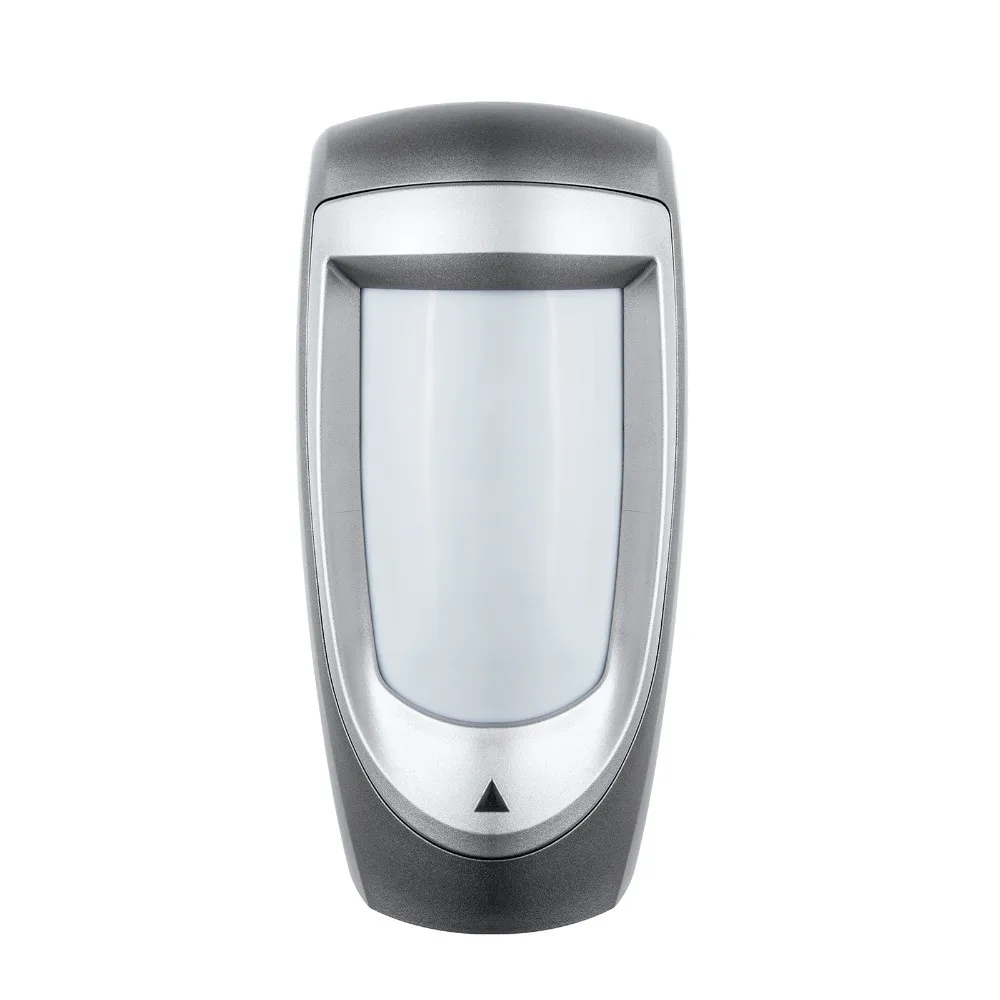

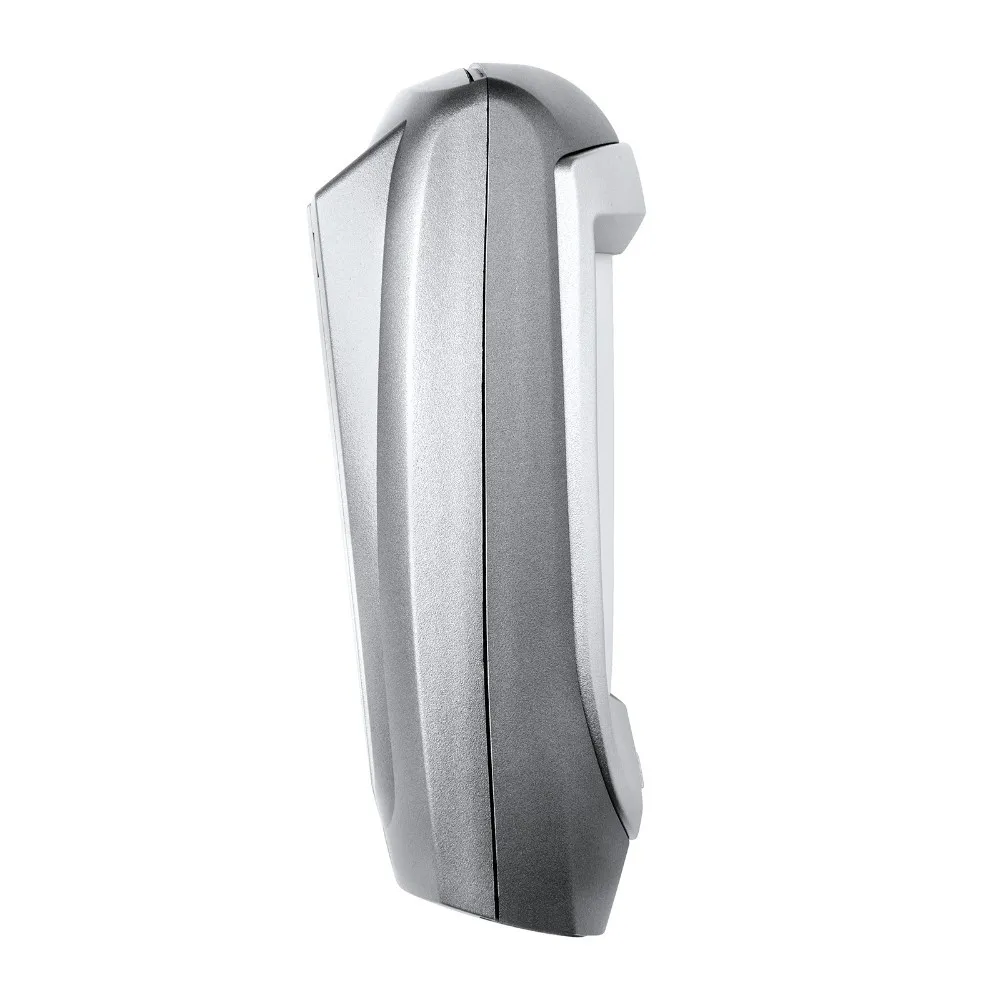

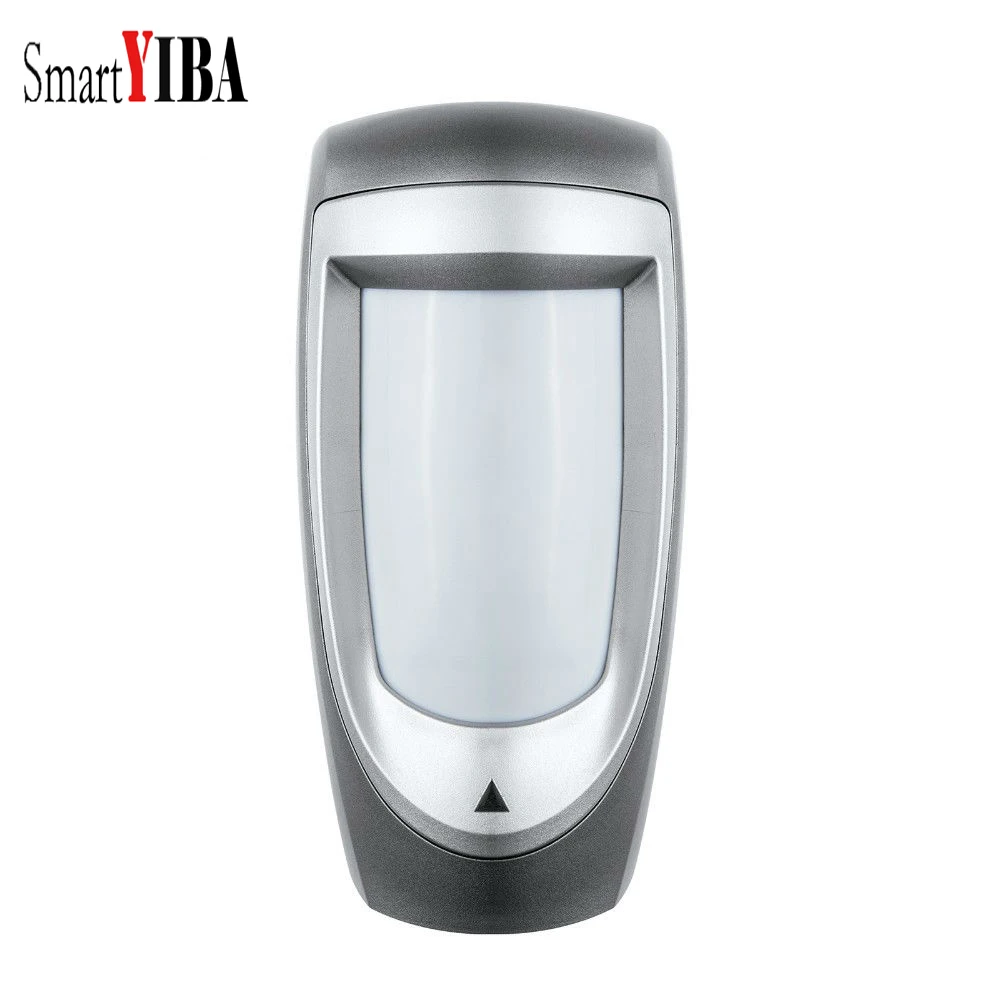

      It is a kind of PIR intrusion detector integrating the most advanced security technology. It adopts 2 dual PIR

sensors with high accuracy, intelligent digital chip, advanced ,<True Motion Recognition & Anti-pests>of

two are technology, which can help it to make an accurate judgment of true intruder or other interference

that can cause wrong alarm. And it is with function of automatic memory of environmental change, which can

avoid wrong alarm a used by hot & cold air, operation machine interference.

     It can prevent effectively the interference cause by a 25 kg past or 10 cats, insect, mouse, birds etc. Its super filter can used indoor and outdoor. This has clear various interference that common PIR detector can't overcome; and put an end to

wrong alarm and miss alarm .

    It has two different working modes: bus mode and relay mode, can be used for all kinds of control panels on the market.

   It has two model: wireless  or wire

Specifications

Input Voltage              9-16VDC

Current Drain               30mA@ 12VDC

Detection Range           11.6m*11.6m

Alarm output NC.            >100mA/28VDC

Anti white light resistance    >20000LUX

Installation height:                2m-2.7m

Tamper switch NC.              100mA/28VDC

PIR Section:                  Lens Date

NO.of Curtain Beams (             11+11+9)*2=62

Tripping Indication:              lndicator lights for about 10-30 seconds

Anti -EMI/RFI 10V/m 10MHz-1000MHz

Motion test 0.2m/s-3.5m/s(0.6ft-11ft)

Humidity 5%-95% RH

Accessories:

BR-1:Surface mounted swivel bracket,adjustable 30

down and 45 left/right.

Environmental:

Operating Temp: -10 C to 50 C(14 F to 122 F )

Storage Temp :-20 C to 60 C (-4 F to 40 F)

Physical Size(H*W*D):176*85*69mm

Package:

1x  pir sensor
