High Accuracy ETCR4700 Multi-functional Three Phase Digital Phase Volt-Ampere Meter Voltampere Sequence Meter





Description:

Range：Current:AC 0.0mA~400.0A；Voltage:AC 0.00V～600V; Phase:0.0°~360.0°

1：Simultaneous measurement of three AC current, voltage

2：Simultaneous measurement of UU, II, UI phase

3：Measurement frequency, phase sequence, active power, reactive power, apparent power, power factor and so on

4：Judge transformer wiring group, inductive, capacitive circuit



ETCR4700 Three Phase Digital Phase Volt-Ampere Meter is a well-developed full-automatic, multi-functional, digital, intelligent meter specifically designed for field testing,featuring high accuracy, high stability, low power consumption, easiness to use and so on. It can directly measure AC voltage and AC current without opening the measured circuit, phases between three voltages, three currents and phase between the voltage and current; in addition, the power factor and power of the circuit can be indirectly measured, it can also be used to distinguish three-phase sequence, transformer wiring group, inductive and capacitive circuits, test second circuit and bus differential protection systems, read the phase relationship between CTs of the differential protection, check the meter wiring right, repair lines and equipment, etc.

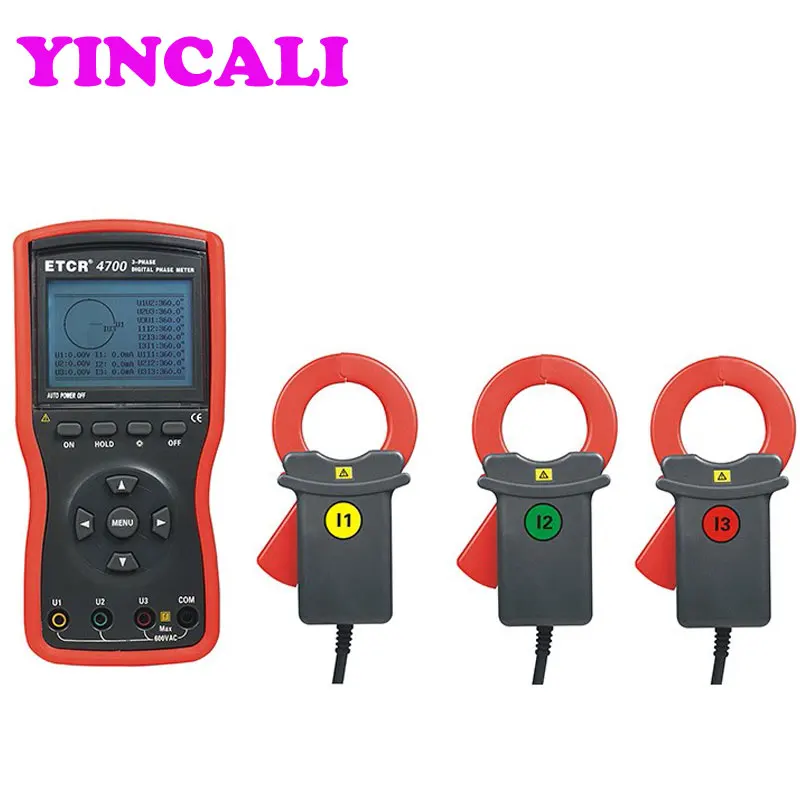

ETCR4700 Three Phase Digital Phase Volt-Ampere Meter has well designed shell mould made of newest material, attach with shakeproof, skidproof, high insulation sheath, has a 240dots×160dots LCD screen, all the test data display on the screen simultaneously, vector diagram indication, and looks exquisite and comfortable.  The instrument is equipped with USB interface, can store 500 sets of data, upload the stored data to the computer through the system software, real-time online real-time monitoring and historical query, dynamic display, can read, save, report, print historical data.





1. ETCR4700 reference and working conditions  Influence quantity Reference conditions Working conditions Remarks Ambient temperature 23°C±1°C -10°C ~ 40°C ---- Ambient humidity 40% ~ 60% < 80% ---- Signal waveform Sine wave Sine wave β=0.01 Signal frequency 50HZ±1HZ 45HZ～65HZ ---- Working voltage of meter 9V±0.1V 9V±1.5V ---- Voltage magnitude when measuring the phase-frequency phase sequence 1A±0.1A 0.1A ~ 400A ---- Voltage magnitude when measuring the phase-frequency phase sequence 200V±2V 30V ~ 600V ---- Voltage magnitude when measuring the power factor 1A±0.1A 0.1A ~ 400A ---- Voltage magnitude when measuring the power factor 200V±2V 30V ~ 600V ---- External electric field, magnetic field To be avoided Location of the tested wire

The tested wire is arranged at the approximate geometrical center of

the clamp

    Function Simultaneous measurement of three-phase AC voltage, current, phase between voltage, phase between current, phase between voltage and current, frequency, phase sequence, active power, reactive power, apparent power, power factor, current vector sum, distinguish transformer wiring group, inductive and capacitive circuits, test second circuit and bus differential protection systems, read the phase relationship between CTs of the differential protection, check the meter wiring right, repair lines and equipment, etc. Power DC9V alkaline batteries（1.5V LR6×6  not include） Consumption About 80mA at most with enabled backlight, battery working continuously for about 10 hours About 5mA with disabled backlight, battery working continuously for about 16 hours Display Mode LCD display, 240dots×160dots Meter Size Length, Width, Height：196mm×92mm×54mm Clamp Size round current clamp:35mm×40mm Measurement Range (automatic shift) AC Voltage：0.00 V～600V (automatic shift) AC Current：0mA～400A (automatic shift) Phase：0～360° Frequency：45.00Hz～65.00Hz Active Power：0W～240kW Reactive Power：0W～240kVAR Apparent Power：0W～240kVA Power Factor：-1～+1 Current Vector Sum：0A～1200A Resolution Voltage：AC 0.01V Current：AC 1mA Phase：0.1° Frequency：0.01Hz Active Power：0.1W Reactive Power：0.1VAR Apparent Power：0.1VA Power Factor：0.001 Current Vector Sum：0.1A Phase Sequence Positive Phase Sequence：U1、U2、U3 or I1、I2、I3 cursors blink in order from left to right Negative Phase Sequence：U1、U2、U3 or I1、I2、I3 cursors blink in order from right to left SampleRate About 2 times/second Data Hold Press HOLD key to keep data, "DH" symbol appears Data Storage 500 sets RS232 Interface USB-RS232 interface, download data to computer for analysis and management Automatic Shutdown Automatic shutdown about 15 minutes later after launching to reduce battery consumption Backlighting Suitable for dark place and nightly use Voltage Detection  Low battery symbol “     " appears to remind the replacement of battery when the battery voltage drops below 7.2V. Weight Main Unit about 550g（with battery），acuminate current clamp about 170g×3, round current clamp about 185g×3, test line about 250g Test Line Length 1.5m Current Clamp Length 2m×φ5mm Working Temperature and Humidity -10℃～40℃； below 80%Rh Storage Temperature and Humidity -10℃～60℃； below 70%Rh Input Impedence Testing voltage the input impendence is 2MΩ Withstand Voltage Withstand 1000V/50Hz sine wave AC voltage for 1 minute between the meter lines and shell; Withstand 500V/50Hz AC voltage sine wave for 1 minute between the two voltage inputs Insulation ≥100MΩ between meter lines and shell or between the two voltage inputs Structure Double insulation, with insulation vibration-proof sheath SafetySpecifications IEC61010-1 CAT Ⅲ 600V, IEC61010-031, IEC61326, 2 class of pollution Accessories Main Unit: 1 pc; Meter Box: 1 piece; Current Clamp: 3 pcs; Test Line: 4 pcs(yellow, green, red, black); RS232 Data Line: 1 pc; Disk: 1 pc; Battery: 6 pcs(LR6)(not included package); User Manual: 1 pc ;Guarantee: 1 pc; Certification: 1 pc. Card
