              plastic hollow cone spray nozzle with special clamp

1,Specifications

1.Hollow cone spray pattern with a circular impact area
2.No vane for unrestricted flow
3.Coarse spray is projected at 90° from axis at the inlet

This range of Adjustable clip spray nozzle are made by plastic (ABS )moulding, out of top quality glassfiber reinforced polypropylene with good mechanical strength and dimensional stability.

They produce small droplets , uniform distribution and are corrosion resistant : prices are moderate and are ideal for applications like air humidification, intensive product cooling and gas washing. Together with our pipe clamps, they offer the best solution in all cases where large quantity of nozzles have to be easily assembled onto pipe manifolds. Maximum operating temperature 75° C.

Adjustable clip spray nozzle has feature of a standard hollow cone spray pattern with a round impact area. Uniform spray distribution is dropped in high flow rate and pressure with unobstructed flow passage and superior spray control design.

Adjustable clip spray nozzle  has feature of a standard hollow cone spray pattern with a round impact area

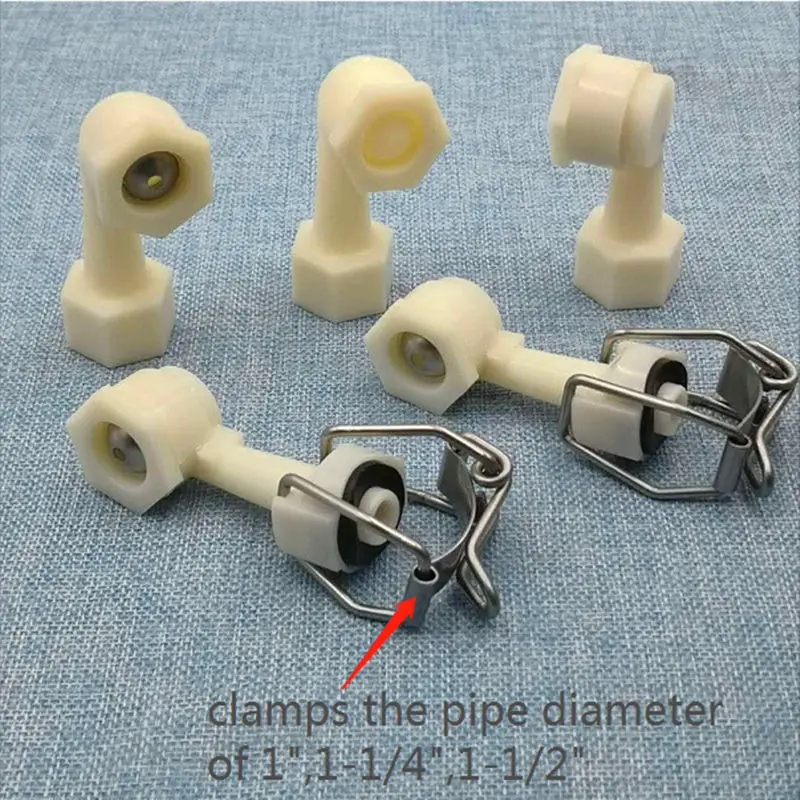

clamp size :

size          pipe diam     pipe bore diam

1"            32-35           14mm

1-1/4"     38-43            16mm
1-1/2"     44-51            18mm
