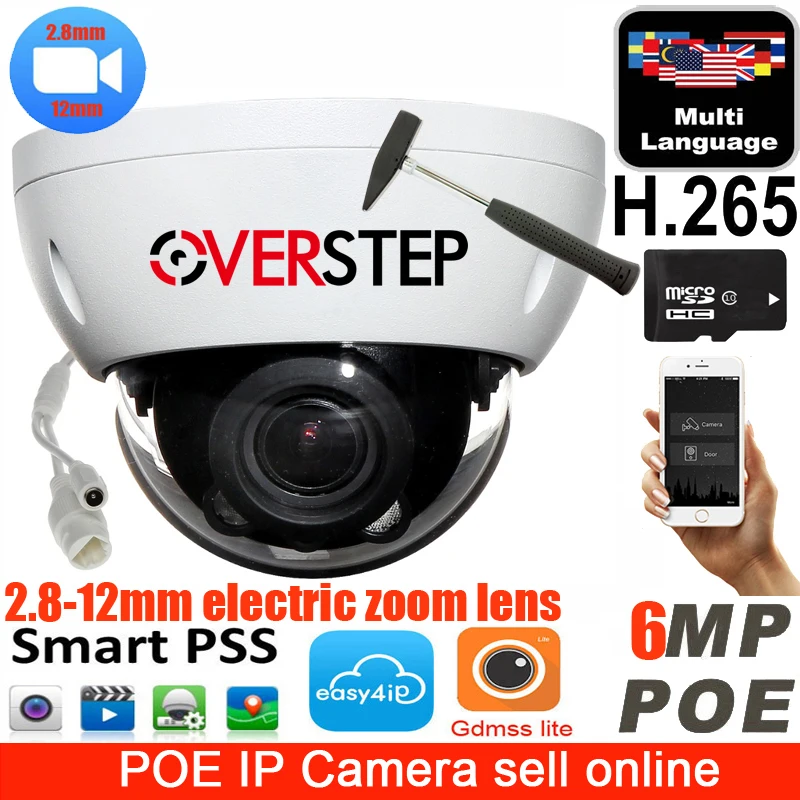

IPC-HDBW4633R-zS 6MP H.265 Starlight Camera IP67 IR80M built-in 2.8-12mm lens zoom PoE IP camera | Безопасность и защита

Poe varifocal motorized lens 2.8mm ~12mm camera IPC-HDBW4433R-ZS H.265 network CCTV camera 6MP IR 80M ip camera replace   IPC-HDBW4631R-ZS



Product features
The use of ultra low light 6 Mega pixels (2592*1520) CMOS image sensor, low light effect, high image clarity
Can output 3 million 30fps (2304x1296), high resolution real-time or high frame rate image output
Support H.264, High profile H.265, Main profile H.264, Baseline H.264, MJPEG a variety of encoding formats, can be three streams at the same time output, flexible use of a variety of scenarios
Region of interest (ROI) coding, to ensure that the image quality, saving storage space
Support scalable video coding (SVC) technology, according to the network environment, adaptive transmission rate
Support mobile phone monitoring
Support corridor mode, the application is more flexible
Support wide dynamic, 3D noise reduction, strong light suppression, backlight compensation, suitable for different monitoring environment
The anti light high performance infrared light, to achieve 24 hours all-weather monitoring
Support POE power (802.3af) /DC12V + 25% wide pressure power supply, strong resistance to power fluctuations
Support is disconnected from the network, IP conflict, motion detection, video occlusions, mix line invasion, regional invasion, scene change, remaining items / disappear, face detection, hovering detection, gathering, fast moving, vehicle detection intelligent alarm
Conforms to the IP67 dust and waterproof international standard, meets the IK10 riot standard
Support three axis adjustment function, realize no dead angle monitoring, convenient construction and installation
With SD card slot ,SD card function, SD card Max support 128G
2.8 mm ~ 12 mm Electric Zoom Lens







Parameter classification Parameter name parameter values model DH-IPC-HDBW4631R-ZS system parameter Main processor manufacturers and models Ultra high performance processor video camera Sensor type 1/3 "6Megapixel progressive scan CMOS Aptina company     Adjustment angle Level: 0 ° ~355 °; vertical: 0 ° ~75 °; image flip 0 ° ~355 ° Electronic shutter 1/3s~1/100000s; can be manual or automatic adjustment Minimum illumination 0 01LuxF1.2 (color); 0.001LuxF1.2 (black and white); 0Lux (infrared light open) Maximum infrared distance 50 meters Day and night conversion IR-CUT automatic switching Scanning mode progressive scanning noise reduction 3D noise reduction Wide dynamic support Signal to noise ratio > 50dB gain control Manual / automatic white balance Manual / automatic Backlight compensation Support, optional area Strong light suppression support Lens parameter focal length 2.8 mm ~ 12 mm Electric Zoom Lens Lens interface M12 Lens aperture F2.0/F2.0/F2.0 RIS Mode fixed Zoom type Fixed focus Angle of view H: 92 ° ~28 ° Minimum focusing distance 0.75m/1.1m/2.4m Audio parameter Audio input None Audio output None Audio compression standard G.711a; G.711Mu; AAC kbps 8Kbps/16Kbps Video parameters Video compression standard H.265; H.264; H.264H; H.264B; MJPEG KBps 8Kbps~32Mbps Video frame rate 50Hz:
2560x1440 25fps+D125fps+720P1fps
60Hz:
2560x1440 25fps+D130fps+720p1fps Default default code stream 4096kbps (3.5MP) Alarm parameters Alarm input None Alarm output None action with alarm Support no SD card; SD card space shortage; SD card error; network disconnection; IP collision; mobile detection; video occlusion; regional invasion; mix line intrusion; item legacy / disappear; scene change; audio anomaly detection; face detection function Image setting Brightness; contrast; sharpness; saturation; GMMA OSD information stack Time; channel; geographic location; picture; Image mirroring support heartbeat mechanism support Video mode Manual video; video recording; video recording; video recording
Video priority from high to low in turn is manual / external alarm / video detection / timing Storage function Support network storage; Micro SD card storage, maximum capacity 128GB Maximum number of users 20 Restore default Support a key to restore the default browser Support IE7; IE8; IE9; IE10; Chrome8+; Firefox3.5+; Safari5+ browser user management Maximum support 20 users, multi-level user rights management safe mode Authorized user name and password; MAC address binding; HTTPS encryption; 802.1x IEEE; network access control Ultra low stream 1080p:2~4Mbps; 720P:1~2Mbps Intelligent analysis Support scene change; regional invasion; mix line invasion; article left / disappear; face detection and can be linked with the alarm; support a variety of trigger rules linkage action Face detection support Through the fog support Privacy masking 4 block area Corridor mode Support 90 degrees and 270 degrees two modes Network and interface network interface 1, 10/100M Ethernet port Network protocol HTTP; TCP; ARP; RTSP; RTP; UDP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP;; SMTP;;;;;;;;; Access standard ONVIF; CGI; PSIA Conventional parameter power supply DC12V (+ 25%) /POE power waste The maximum 6.3W (IR, ICR) working temperature -40 C ~+60 C Working humidity Less than or equal to 95% Protection level IK10; IP67 Shell material Die casting aluminum size With 122mm * 89mm weight Net weight 750g, with package weight 800g Installation method Wall mounted; top loading; lifting other























Camera image at artificial illumination (about 30Lux):

Camera image at night conditions with internal built-in IR illuminator on:



Camera image at direct strong light opposite to camera:
