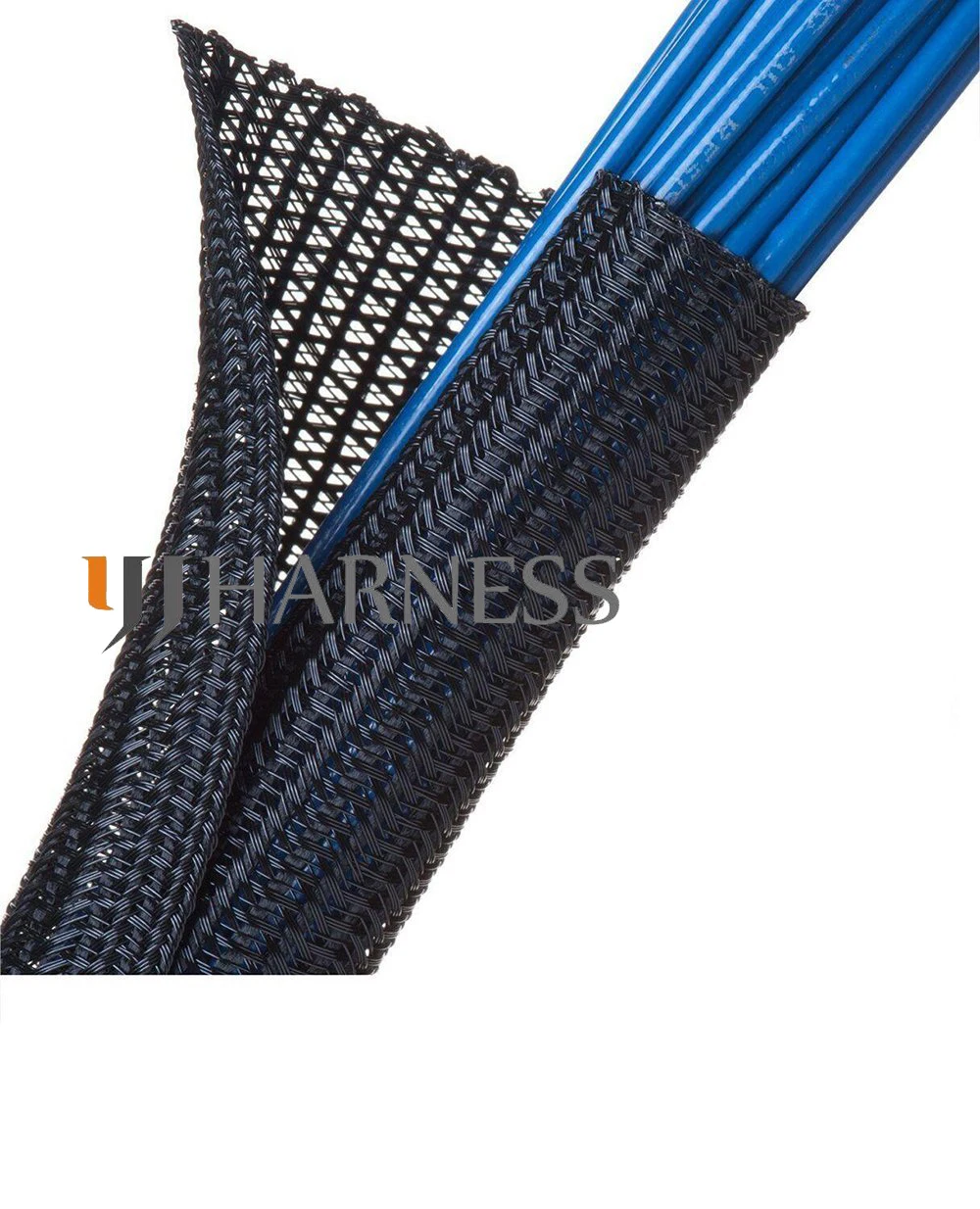

You are buying  1/4" split braided sleeving.
the sleeving is split for quick and easy installation.
no need to remove harness or remove plugs.
this product same as t e c h f l e x, brand
if you buy 2 or more lengths it will be in 1 piece.

Features：

More flexible than split convoluted or spiral wrap

Soft and quiet

Cut and abrasion resistant

Halogen Free and Chemically Inert

Maintains shape and rigidity across wide temperature range

SCW self-closing wrap offers innovative solutions for the protection of breakout areas and provides easy removal when is necessary an inspection or maintenance of cables. The special open structure allows to be installed after other components, for example copper terminals and connectors.

Application:

It’s ideal for application in wire harness, automatic equipment, railways, general manufacturing industry where wires and tubes need a tough and durable protection.

Technical data:

Material: Polyester

Operating range:-50°C~ +150°C

Melt point: 240± 10°C

Flammability:  UL94 V-2

Certificate: RoHS, Halogen free

Standard color: Black

Cutting tool: Hot knife/ scissor

Data sheet

Part No.

I.D.

(d)

Overlap

(%)

Max. Bundle Dia.

SCW-006

6.0 mm

25

7.0 mm

SCW-009

9.0 mm

25

10.0 mm

SCW-013

13.0 mm

25

14.0 mm

SCW-016

16.0 mm

25

17.0mm

SCW-019

19.0 mm

25

20.0 mm

SCW-025

25.0 mm

25

26.0 mm

SCW-032

32.0 mm

25

33.0 mm

SCW-038

38.0 mm

25

40.0 mm

SCW-050

50.0 mm

25

52.0 mm

1.  Special packing, sizes and colors can be supplied upon request.

2.  All numerical data are average or typical values, not including customized sizes.
