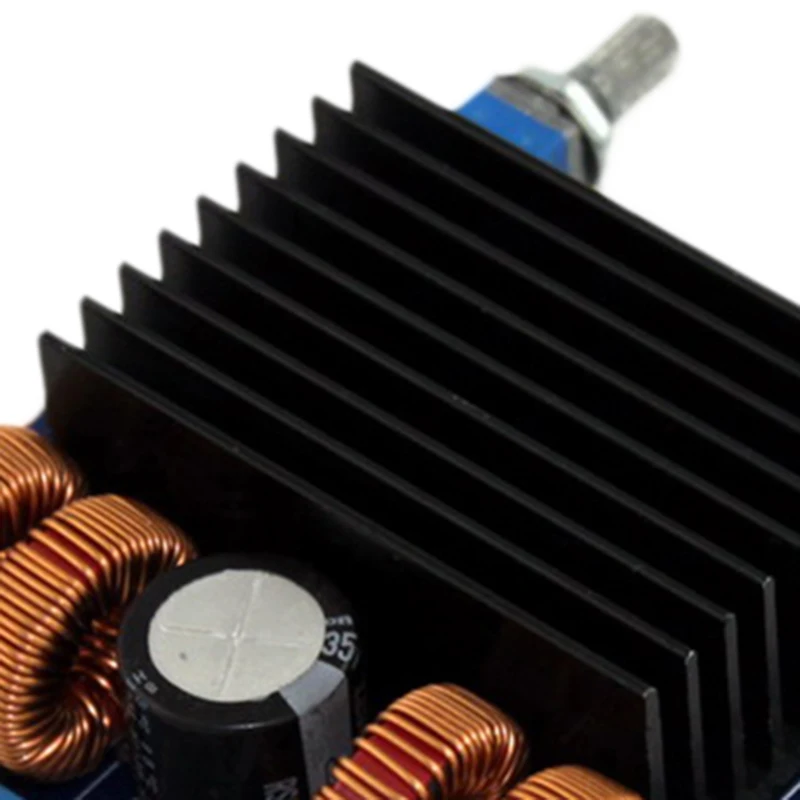

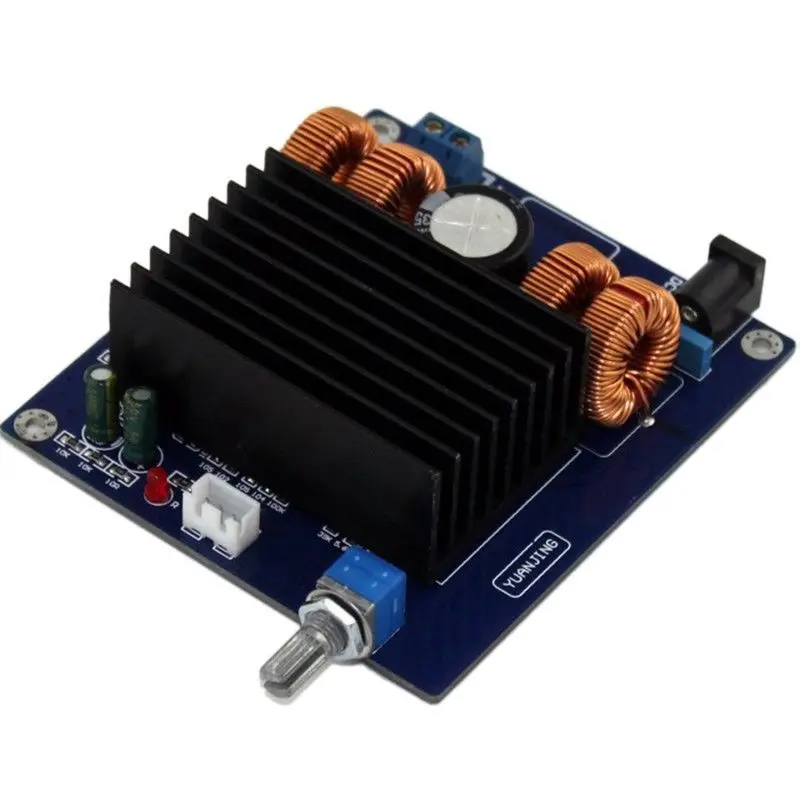

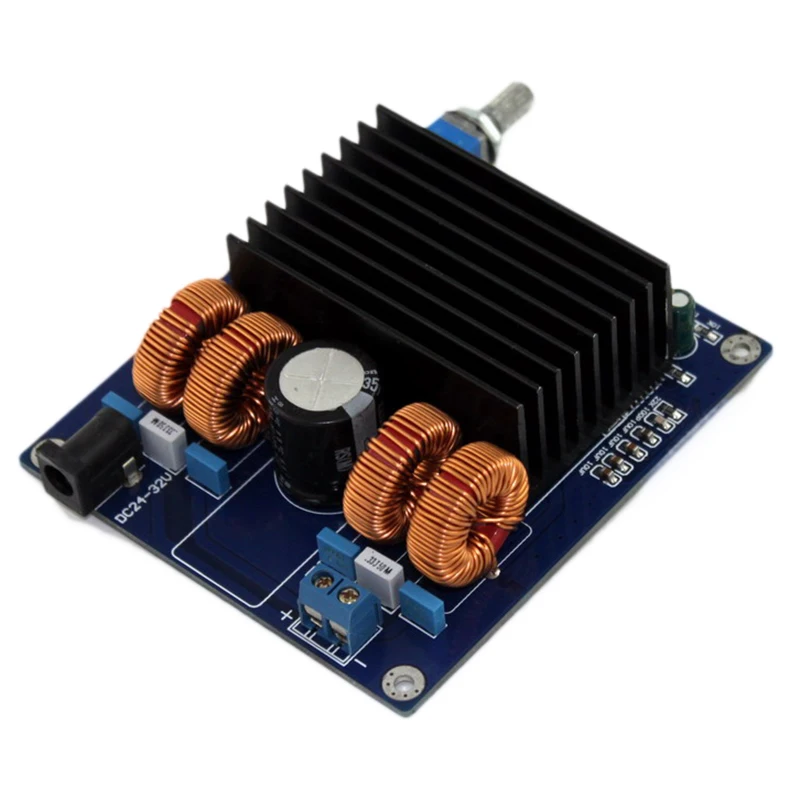

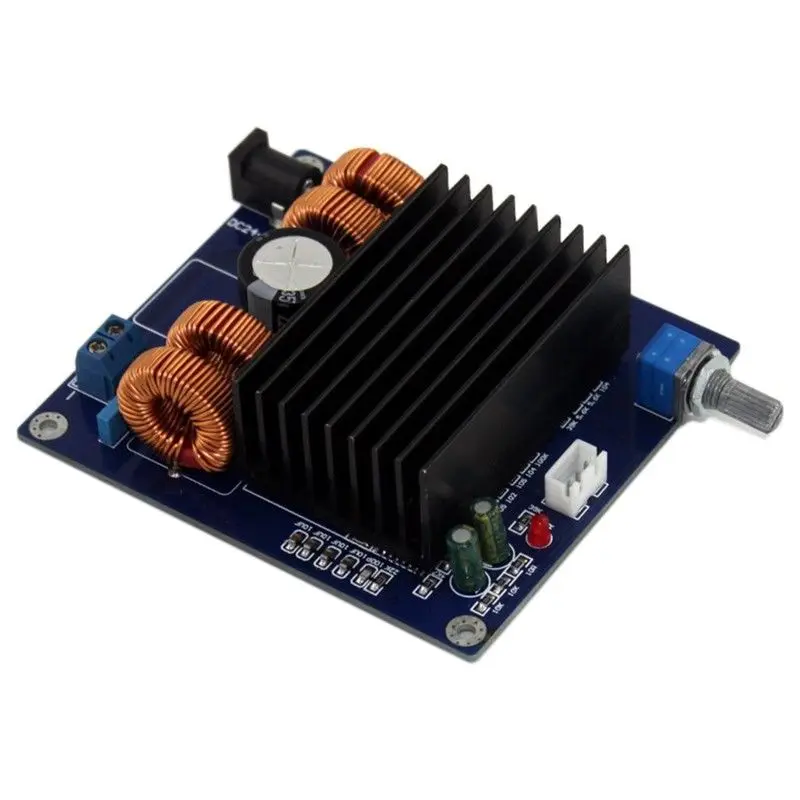

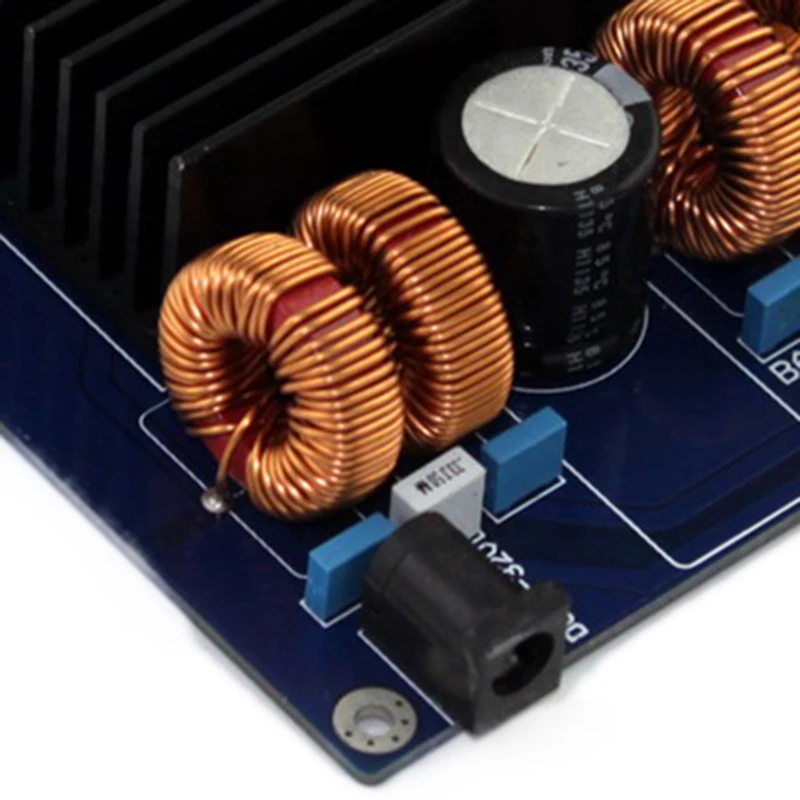

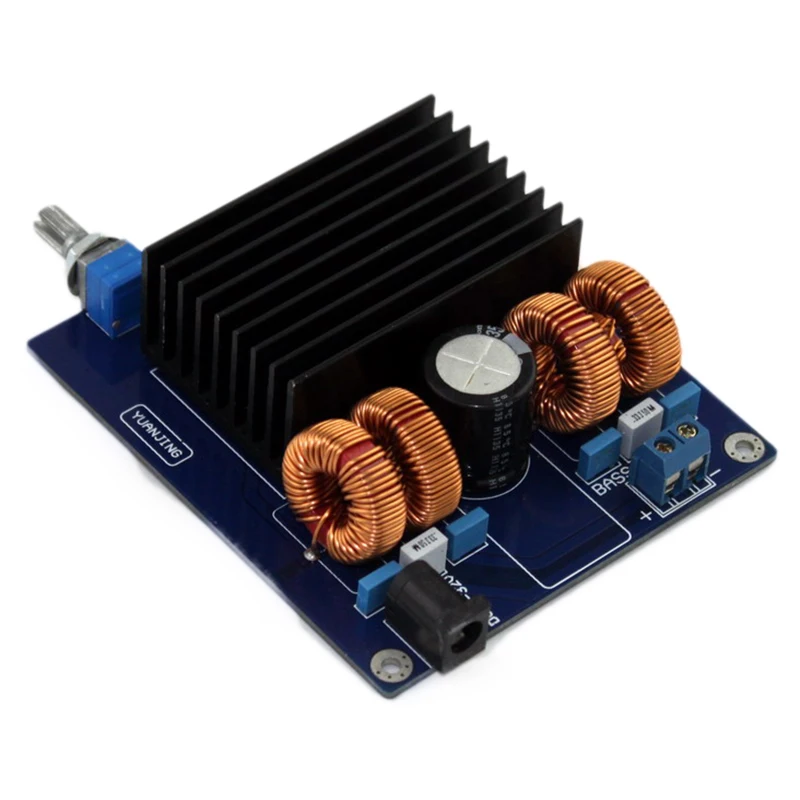

TDA7498 Audio amplifier Board 1.0 channel 200w class D Subwoofer Home bass DIY Module | Электроника

Channels:1
Type:Home Amplifier
TDA7498 is the market's first rated power 100W+100W amplifier, using the support of monolithic integrated analog, logic and high voltage function of the advanced sixth generation BCD6S process (bipolar /CMOS/DMOS).
Compared with other class D amplifiers, the ST process of the BCD6S achieves a higher energy efficiency ratio of the chip area, while also reducing the crosstalk and improving the sound quality.
In addition, the BCD6S allows the integration of NMOS and PMOS complementary transistors in a high power output circuit, eliminating the need for an external bootstrap capacitor and cathode load diode.
This method simplifies the design, saves the board space, improves the reliability of the product design, and optimizes the material cost.
Basic parameters:
Quiescent Current: 20mA
Efficiency: 90%
Subwoofer Rated output power: 200W
Operating voltage: DC18V to DC32V
Recommended supply voltage: DC32V
Maximum output current: 6A
Speaker Impedance: 4-8 ohm
colour:Photo Color
Material:PC+ metal
size:PCB Size: 92 * 83MM
Package Contents:
1*Audio amplifier Board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
