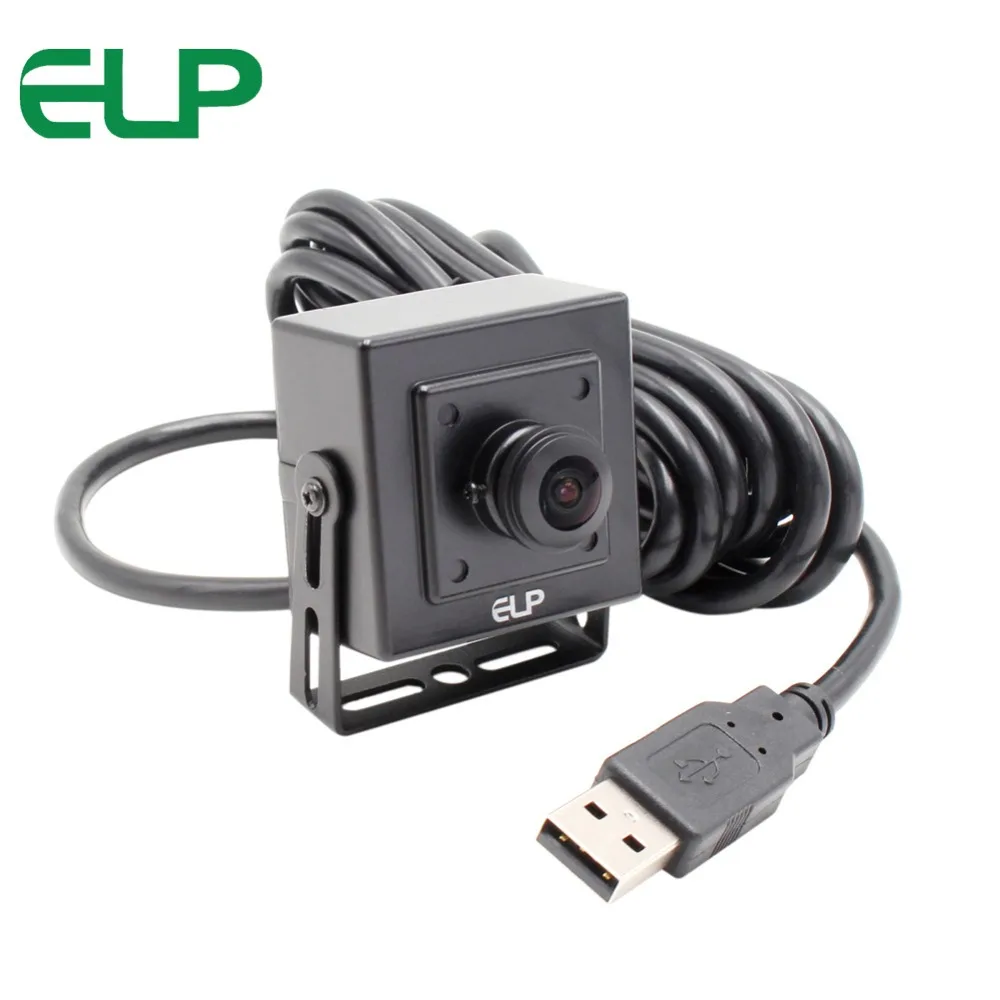

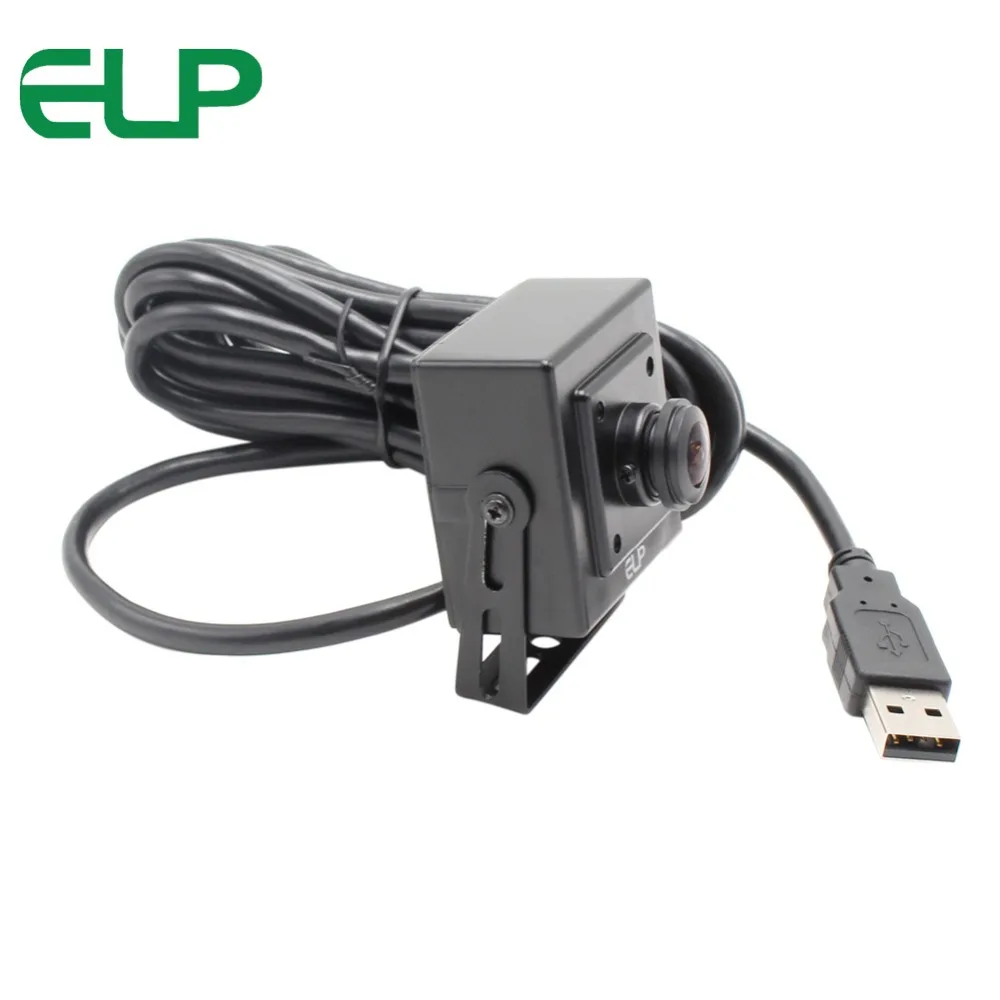

ELP mini black box 5mp uvc 170 degree wide angle fisheye usb camera linux for parking entrance



Package includes:

1) 1PC 5mp usb camera with 170 degree fisheye lens

2) 1PC 3m usb cable



Advantage of usb camera:

​

1)The HD 5mp USB CMOS board camera module(model:ELP-USB500W02M serials) is ideal for many applications like security systems, portable video system, video phones, industrial machine monitoring and toys.

2)It use high quality image sensors made by OmniVision, one of the world leaders in this field of electronics.

3)The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.





*5Megapixel CMOS sensor for high quality image. *High speed USB 2.0 interface for high resolution PC camera interface. *high pixel technology for sharp image and accurate color reproduction. *low light performance – ideal for any lighting condition. *Super small outline and thin profile for embedded applications. *High frame rate–30 fps in 1280X720 resolution. *High quality lens, true and undistorted color image. *Low power consumption – ideal for portable equipment. *UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above. *Camera with UVC.





Model ELP-USB500W02M-BL170 Sensor OV5640 Lens Size 1/4 inches Pixel Size 1.4µm x1.4µm image area 3673.6µmx2738.4µm Max. Resolution 2592(H) X 1944(V) Compression format MJPEG / YUV2(YUYV) Resolution & frame 2592x1944 @ 15fps MJPEG / 2048x1536 @ 15fps MJPEG 1600x1200 @ 15fps MJPEG / 1280x1024 @ 15fps MJPEG 1920x1080 @ 30fps MJPEG / 1280x720 @ 30fps MJPEG 800x600 @ 30fps MJPEG / 640x480 @ 30fps MJPEG Camera Board    SMT (ROSH) Assembly technique Resolution 600LW/PH (Center) S/N Ratio 36dB Dynamic Range 68dB Sensitivity 600 mV/Lux-sec Shutter Type Electronic rolling shutter / Frame exposure Connecting Port type USB2.0 High Speed Free Drive Protocol USB Video Class(UVC) AEC Support AEB Support AGC Support Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance,  Backlight Contrast, Exposure Lens Parameter Standard 3.6mm, optional2.1/2.5/2.8/6mm/FOV(D)170 Degree LED board power connector Support 2P-2.0mm socket Power supply USB BUS POWER 4P-2.0mm socket Operating Voltage DC5V Power consumption 150mW (VGA); 200mW (QSXGA) Working current active: 140 mA  standby: 20 µA Working temperature    -20~70℃ Storage temperature  0~65℃ Board size /Weight 41*41MM Cable Standard 3M / 1M,2M,3M,5M optional  Operating system request Win XP/Vista/Win7/Win8 /  Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later/ Android 4.0 or above with UVC Certificate CE&FCC





used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture,  credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope, Medical auxiliary equipment, etc.

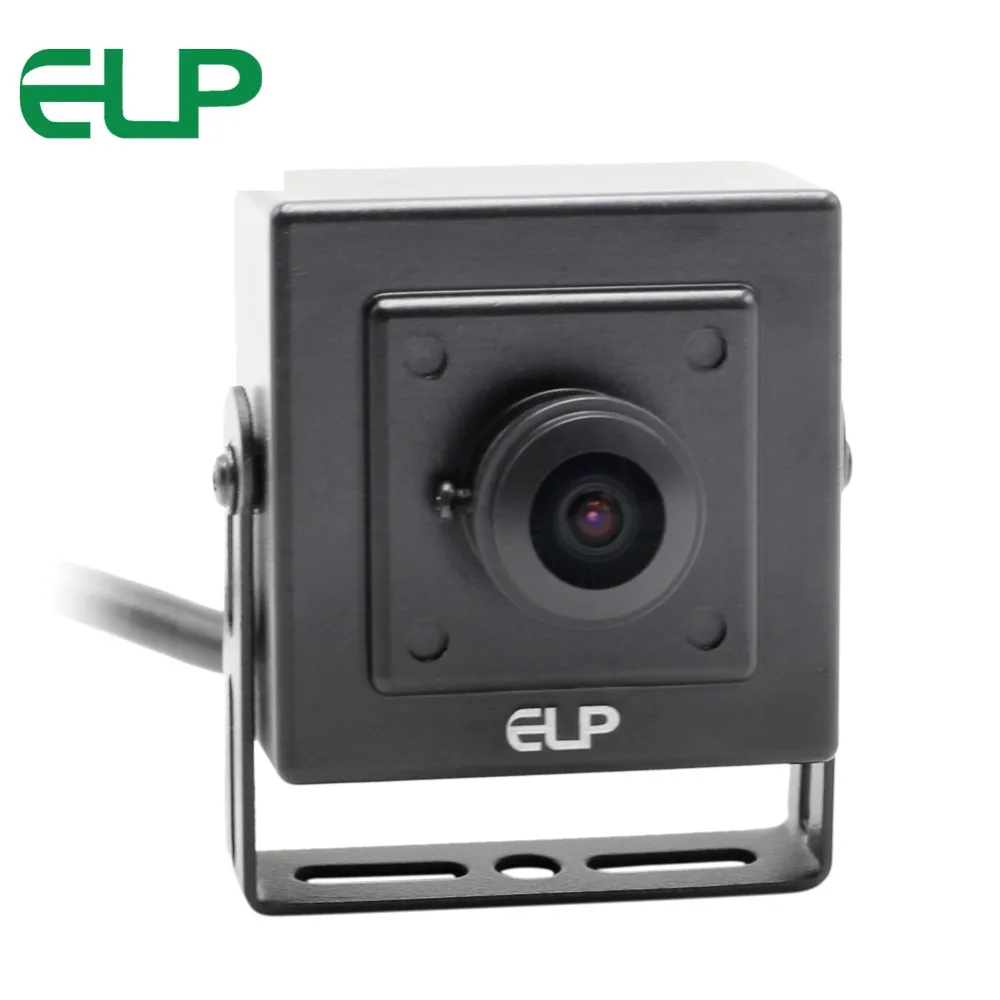

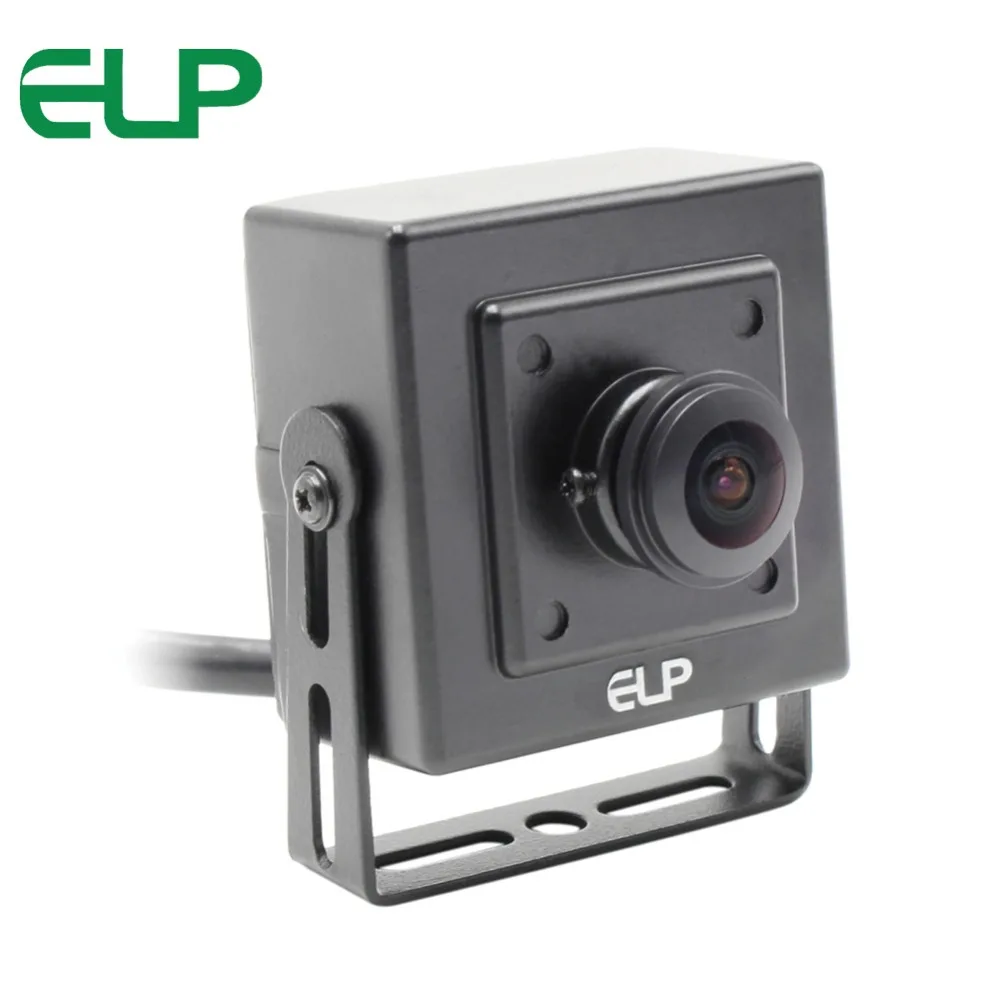

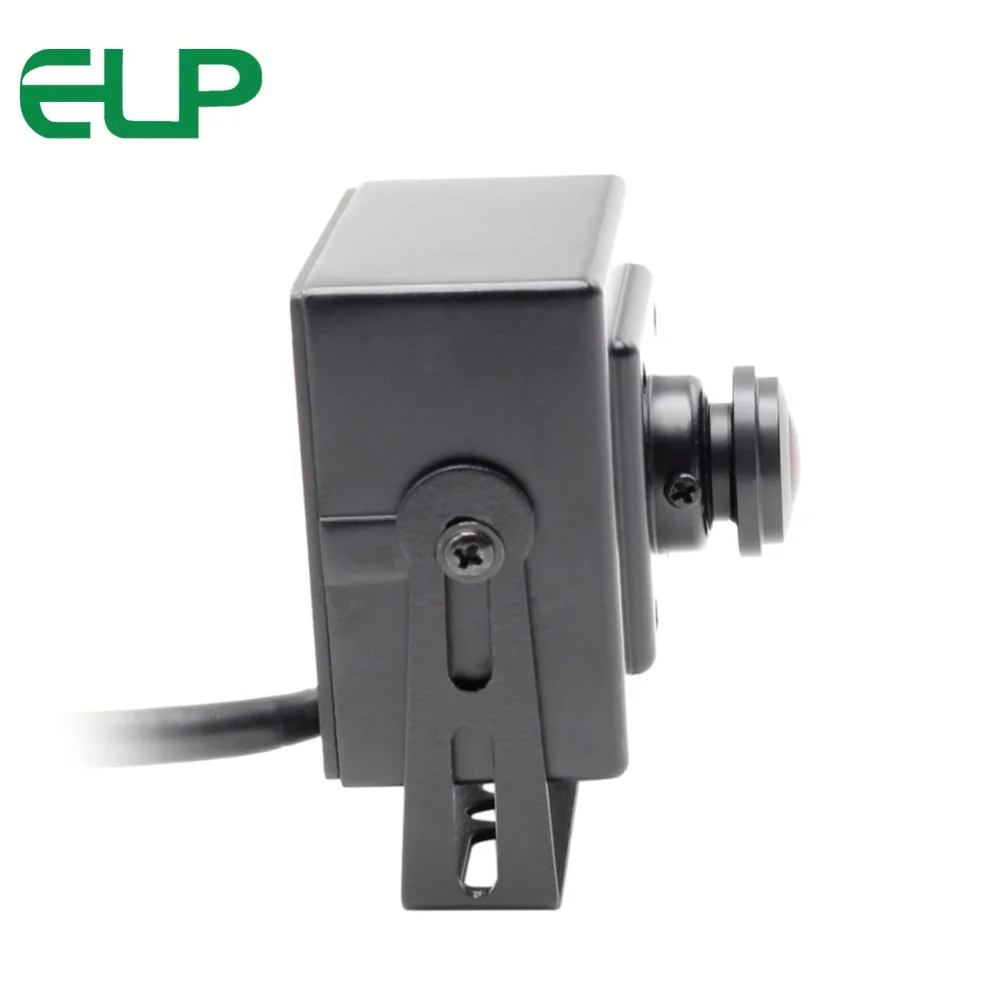

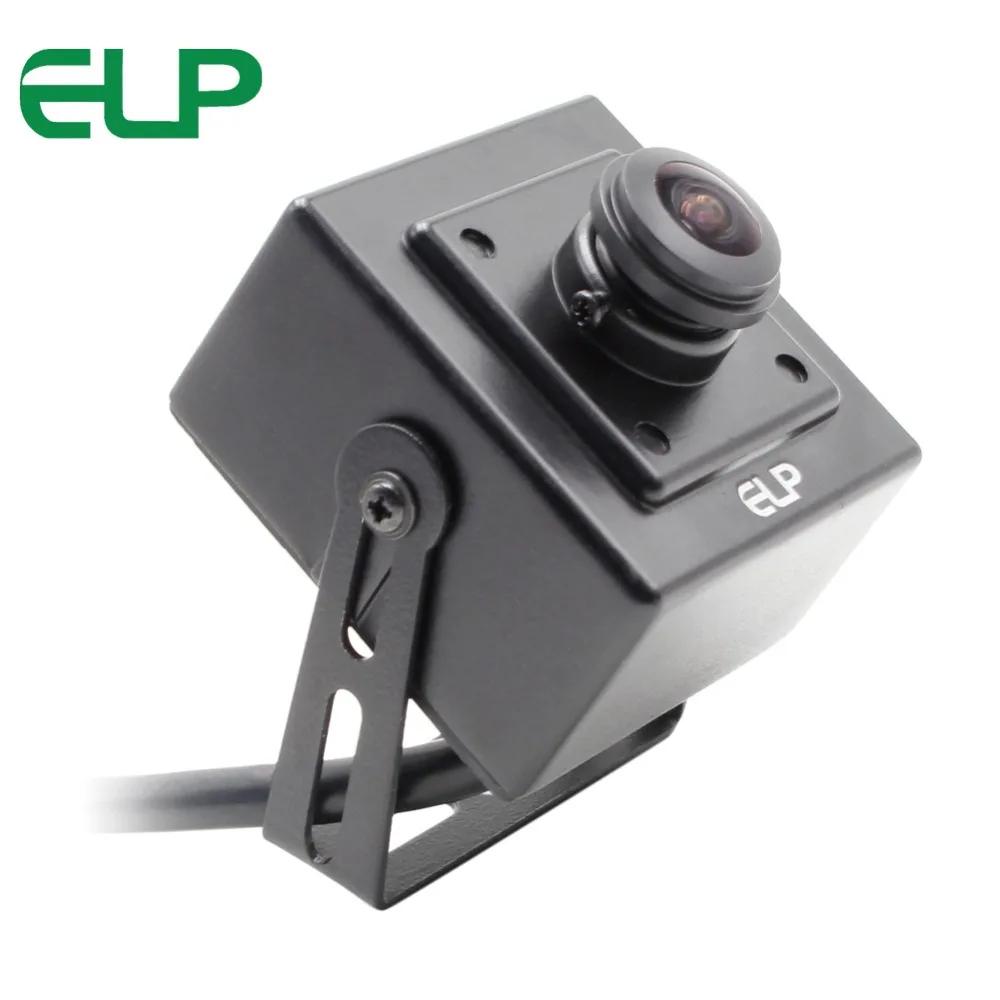

Inside the case is 5mp usb camera module with 170degree fisheye lens





Effect show:
